RESEARCH ARTICLE

Development and comparison of recombinase polymerase amplification assays for the detection of chicken-derived ingredients in food products

Cang Zhou1,2,3,5, Jinfeng Wang2, Libing Liu2, Zhenguo Dong4, Qi Fu2, Minna Chen2, Xiaoxia Sun2, Xiangdong Xu1,5*, Jianchang Wang1,2,5*

1School of Public Health, Hebei Medical University, Shijiazhuang, China;

2Food Microbiology and Animal Quarantine Laboratory, Technology Center of Shijiazhuang Customs, Shijiazhuang, China;

3Jiangsu Provincial Center for Disease Control and Prevention, Nanjing, China;

4Hebei Sanshi Biotechnology Co. Ltd., Shijiazhuang, China;

5Hebei Key Laboratory of Environment and Human Health, Shijiazhuang, China

Abstract

The recombinase polymerase amplification (RPA)-based assays, formulated with the ND5 gene, were developed to meet the requirement of detecting different breeds of chicken-derived ingredients in deep-processed foods. The RPA assay demonstrated good inter-species specificity and intra-species conservation, exhibited high sensitivity (10 pg genomic DNA/reaction), high limit of detection, 0.1% (w/w). In all, 20 samples, including sausages and compound seasonings were used to compare the RPA assay developed for this study and other assays. RPA worked along with the polymerase chain reaction method described in SN/T 2978-2011 standard and a previously described protocol. Three compound seasonings containing small amounts of chicken juice or chicken meat showed discrepancies between GB/T 38164-2019 and the remaining methods because of sensitivity issues. Overall, the chicken-specific RPA assay was successfully developed, taking 20–25 min from sample processing to final output.

Key words: chicken ingredients, real-time RPA, LFS RPA, authenticity identification

*Corresponding Authors: Jianchang Wang and Xiangdong Xu, School of Public Health, Hebei Medical University, Shijiazhuang, China. Emails: jianchangwang1225@126.com; xuxd@hebmu.edu.cn

Academic Editor: Mehran Moradi, PhD, Department of Food Hygiene and Quality Control, Faculty of Veterinary Medicine, Urmia University, Urmia, Iran

Received: 13 June 2024; Accepted: 13 December 2024; Published: 3 January 2025

DOI: 10.15586/qas.v17i1.1516

© 2025 Codon Publications
This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (http://creativecommons.org/licenses/by-nc-sa/4.0/)

Introduction

The European Commission prioritizes food safety as a cornerstone of its policy on food and health, and that the food authenticity is one of the most important elements for ensuring this (Razzak et al., 2015). Food adulteration is the intentional substitution or addition of cheaper varieties to products for higher profits (Spink and Moyer, 2011; Wu et al., 2020). Meat products are one of the main types of foods that are adulterated for economic motives. A common form of adulteration in meat products is counterfeiting with cheap meat varieties, such as duck, chicken, pork, and horse meat, with expensive ones, such as beef, lamb, and donkey meat. Worse still is the counterfeiting of meat that has not been inspected and quarantined as an edible meat (Bittante et al., 2022; Mayer et al., 2012). A false ingredient lists could also conceal potential allergens, posing serious health risks to consumers and potentially including life-threatening allergic reactions (Bartuzi et al., 2017). Food adulteration not only undermines the fair business environment but also violates the legitimate rights and interests of consumers. Previous studies conducted in European, South American, and Asia-Pacific nations have demonstrated that food adulteration is a global problem (Afifa Khatun et al., 2021; Pierina and Maria, 2021; Song et al., 2019). Enhanced surveillance and enforcement efforts are currently underway globally to reduce the incidence of food adulteration. Compared to other animal-derived ingredients, adulteration with chicken-derived ingredients is not only found in meat products but in compound seasonings produced using chicken as well. Chicken essence seasoning without chicken-derived ingredients is of concern and it infringes on the interests of consumers. The relevant Chinese standards for chicken essence seasoning (SB/T 10371-2003; National Developed and Reform Commission of the People’s Republic of China, 2003) and chicken powder seasoning (SB/T 10415-2007; National Developed and Reform Commission of the People’s Republic of China, 2007) rely on total nitrogen content to verify the presence of chicken-derived ingredients. However, the excessive addition of other nitrogen-containing substances, such as monosodium glutamate, and flavor-presenting nucleotides may confound the accuracy of the chicken-derived ingredients (Zhang et al., 2007). Consequently, there is an urgent need of specific and rapid detection methods that can accurately identify chicken-derived ingredients in meat products and seasonings.

The polymerase chain reaction (PCR)-based methods are the most well-established and widely used methods in detecting animal-derived ingredients (Zhao et al., 2020). China has also developed PCR-based assays for detecting chicken-derived ingredients, such as SN/T 2978-2011 (State General Administration of the People’s Republic of China for Quality Supervision and Inspection and Quarantine, 2011), and GB/T 38164-2019 (State Market Regulatory Administration of the People’s Republic of China, 2019) for detecting animal-derived ingredients in common poultry and livestock. However, the PCR-based techniques rely on the sophisticated thermal cycling instruments and thus cannot be used outside the laboratory settings. The alternatives, isothermal DNA amplification techniques, including the transcription-mediated amplification (TMA), strand-displacement amplification (SDA), rolling circle amplification (RCA), helicase-dependent amplification (HDA), cross-priming amplification (CPA), loop-mediated isothermal amplification (LAMP), recombinase polymerase amplification (RPA), etc., have distinct requirements. Some of these, such as TMA and RCA, require higher annealing temperatures, while others need relatively high temperatures and/or a phase for complex primers design, such as LAMP requiring four to six primers to recognize discrete regions and reacting at 60–66°C, and CPA relying on five primers to detect target sequence at 63°C. Some such as HDA and SDA have long reaction periods of up to 1–2 h. In contrast, the RPA method works perfectly over a wide range temperatures (37–42°C), uses just one primer pair and a probe (Kumar, 2021). The lower reaction temperature makes it easier to operate, and a single primer pair and probe makes it simpler to design. Therefore, RPA can be applied in resource-limited field detection using hot water bags, metal baths, and other portable heating device to have a constant temperature. Furthermore, RPA amplification products can be coupled with different endpoint assays, such as flocculation assay, electrochemical detection, chemiluminescent detection, and so on for visualization of results (Li et al., 2018).

Recombinase polymerase amplification is widely used in the detection of pathogenic microorganism, genetically modified foods, gene mutations, and so on (Du et al., 2018; Li et al., 2021; Zhang et al., 2020). The reported studies using RPA to detect chicken-derived ingredients mainly focused on the inter-species specificity validation while ignoring the intra-species conservation validation, with the scope of application being restricted to chicken products only and not the seasonings (Cao et al., 2018; Ivanov et al., 2021; Lin et al., 2021). In view of this, this study sought to improve the reliability of finding chicken-derived ingredients from different breeds, and to expand the scope of application to meet the demands of processed foods, such as compound seasonings. The chicken-specific real-time RPA assay and RPA combined with lateral flow strip (LFS RPA) assay were developed with the ND5 gene as a target, and compare the performance with counterparts in SN/T 2978-2011, GB/T 38164-2019, and a previously described protocol in Liu et al. (2020). These methods were applied to actual samples to analyze the applicability of the developed RPA assays with the aim of providing a reference for selecting appropriate method for detecting chicken-derived ingredients.

Materials and Methods

Sample preparation and DNA extraction

Pork, beef, chicken (white-feathered chicken), duck, and goose meat samples were purchased from local supermarkets. Different breeds of chicken, such as green bird chicken, crow chicken, apricot chicken, orangery chicken, and triple yellow chicken as well as turkey meats were obtained through online shopping. Donkey, horse, pigeon, goat and sheep meat samples were collected from a local farm, while Yak, buffalo and camel meat samples were collected from local markets of Lhasa, Kunming, and Xilingol in China, respectively.

All meat samples were churned separately, dried and crunched into a powder. DNA was extracted from 50 mg of powder using a Wizard® Genomic DNA purification kit (Promega Corp., Madison, WI, USA). The genomic DNA concentration was adjusted to 105 pg/μL. The genomic DNA of each species was used as template in subsequent validation experiments. Chicken genomic DNA was further subjected to serial gradient dilutions of 1.0×105 pg μL to 1.0×10-1 pg/μL approximately.

The chicken and pork meat powder samples were mixed in different ratios to make binary mixtures with 25.0%, 10.0%, 5.0%, 1.0%, 0.5%, and 0.1% (w/w) of target species composition. A 50-mg sample of each binary mixture was taken for DNA extraction.

A total of 20 test samples, comprising nine sausages and eleven seasonings were purchased from local supermarkets. Each of the seasonings were powdered or homogenized with pestle and mortar. DNA extraction was carried out from 50 mg of each sample using the Wizard® Magnetic DNA Purification System for Food (Promega Corp.) according to manufacturer’s protocol. A small piece of each of the nine sausages was excised at multiple points using sterile scissors and crunched into powder using liquid nitrogen. Then each sample was taken for DNA extraction carried out from 50 mg of each crunched sausage using Wizard® Genomic DNA Purification Kit (Promega Corp.) according to manufacturer’s protocol.

All DNA extractions were examined for concentration and quality using a NanoDrop spectrophotometer (ND-2000c; Technologies Co. Ltd., Wilmington, DE, USA) and stored at -20°C to maintain their stability for downstream applications.

Primers and probes of RPA assays

The ND5 gene was selected as the target gene. The published nucleic acid sequences of chicken (Gallus gallus, NC_053523.1, AB086102.1, AP003319.1, GU261687.1, KX987152.1, LC082227.1, LC082354.1, MN013407.1, MT471352.1, and OM634640.1), duck (Anas platyrhynchos, NC_009684.1), pig (Sus scrofa, NC_000845.1), goat (Capra hircus, NC_005044.2), donkey (Equus asinus, NC_001788.1), sheep (Ovis aries, NC_001941.1), and cattle (Bos taurus, NC_006853.1), horse (Equus caballus, EU939445.3), buffalo (Bubalus bubalis, NC_049568.1), bactrian camel (Camelus bactrianus, NC_009628.20), yak (Bos grunniens, NC_006380.3), cow (Bos taurus, NC_006853.1), rabbit (Lepus capensis, NC_015841.1), domestic goose (Anser answer, NC_011196.1), turkey (Meleagris gallopavo, NC_010195.2), dog (Canis lupus familiaris, NC_002008. 4), fox (Vulpes vulpes, NC_008434.1), American mink (Neogale vison, NC_020641.1), and raccoon dog (Nyctereutes procyonoides, NC_013700.1) were collected from GenBank. These sequences were analyzed using the MegAlign software (version 7.0; DNASTAR Inc., Madison, WI, USA). Regions with both intra-species conservation and inter-species specificity were chosen to design RPA primers and probes. The RPA assay design manual of TwistXD was referenced during the designing process for primers and probes in the subsequent phases. PCR primers and TaqMan probes from SN/T 2978-2011, GB/T 38164-2019-based detection protocols, and the protocol described by Liu et al. (2020) were synthesized by Generay Biotechnology (Shanghai, China). The primer and probe sequences are shown in Table 1.

Table 1. Primers and probes used in this study.

Assays Primers and probes Sequence (5´-3´) Genes Sources
RPA JF1 CAATCTTCATCCACTCAGGGGCAGAAAGCAT ND5 The present study
JR1 CGATGGTTAGTGTTAATATGGCGATGAGGAA
JF2 CATCCGAACCATTTATTACAAAATTCTTTACC
JR2 CGATTCGGTTGTAGATTATTGCCTGTAGTGC
JF3 TGCACTACAGGCAATAATCTACAACCGAATC
JR3 GGTGAAGGCCAAATTGAGCGGATTTTCCTG
JF4 AGGCCCAACCCCTGTCTCCGCCCTACTCCAT
JR4 TGTTGCGGCAAAGAGTGTTGATAGAGCACCT
exo-P1 GAATTTTTTTACTCATCCGCACCCACCCCTTCC[FAM][THF][BHQ1]CATCCAATAAAACAG-C3-spacer
nfo-R Biotin-TGTTGCGGCAAAGAGTGTTGATAGAGCACCT
nfo-P FAM-GCACCCACCCCTTCCTGTCATCCAATAAAA[THF]AGCCCTGACAACGTG-C3-spacer
Real-time PCR F TGCTGCACCTATGAAAATGAATG TGFB3 Liu et al., 2020
R AGAATGCAGTCTCAGCACAACAC
P FAM-TGCCCCGGTCTCCCTATGGTGC-BHQ1
F CCCTCCTCCTTTCATCCTCAT ND1 GB/T 38164-2019
R GTCATAGCGGAACCGTGGATA
P FAM-CTATGAATCCGGGCCTC-BHQ1
F CTATAATCGATAATCCACGATTCA 12S rRNA SN/T 2978-2011
R CTTGACCTGTCTTATTAGCGAGG

Detection protocols reaction system

Polymerase chain reaction

A PCR assay from SN/T 2978-2011 was performed on thermal cycler (T100 Thermal Cycler, Bio-Rad Corp., CA, USA). The reaction mix constituted was as follows: 12.5 μL of 2× GoTaq® green Master Mix (Promega Corp.), 1 μL of animal genomic DNA or 2 μL of test sample DNA as template, 2 μL of each primer (10 μmol/L) and deionized distilled H2O (ddH2O) was added up to 25 μL. The reaction conditions included were as follows: initial denaturation at 94°C for 3 min, followed by 35 cycles consisting of 94°C for 30 s, 63°C for 30 s, 72°C for 1 min; and final extension at 72°C for 5 min, and storage at 4°C. The results were viewed on 2% agarose gel using the Fusion FX5gel Imaging System (Viber Lourmat Corp., Paris, France). The amplified products with expected target band were sent for sequencing.

Real-time polymerase chain reaction

The real-time PCR assays from GB/T 38164-2019 and Liu et al. (2020) were performed on ABI Quant Studio 5 real-time PCR system (Applied Biosystems Inc., Waltham, MA, USA). The reaction mix was constituted as follows: 12.5 μL of 2× PerfectStart® II Probe qPCR SuperMix (TransGen Biotech Inc., Beijing, China), 1 μL of animal genomic DNA or 2 μL of test sample DNA as template, 1 μL of each primer and probe (10 μmol/L), and ddH2O was added up to 25 μL. The reaction condition were set as follows: initial denaturation at 95°C for 30 s, followed by 40 cycles consisting of 95°C for 5 s and 60°C for 30 s, with the cycle threshold (Ct) values recorded.

Real-time recombinase polymerase amplification

The real-time RPA was performed using the ZC BioScience™ exo kit (ZC BioScience Inc., Hangzhou, China) following the manufacturer’s protocol. The reaction mix was constituted as follows: 25 μL of A buffer, 2 μL of each primer (10 μmol/L), 0.6 μL of exo probe (10 μmol/L), 1 μL of animal genomic DNA or 2 μL of test sample DNA as template, and ddH2O was added up to 47.5 μL. An additional 2.5 μL of B buffer (magnesium acetate, 280 mmol/L) was added to the tube cap, followed by capping. The tube was inverted several times, and centrifuged briefly. Then the reaction tube was immediately placed in the Genie III scanner device (OptiGene Co. Ltd., West Sussex, UK). The real-time RPA reaction was carried out at 39 °C for 20 min, with fluorescence signals collected every 30 s, and the threshold time (TT, mm:ss) was recorded.

LFS RPA assay

The LFS RPA in this study was performed using GenDx ERA kit (GenDx Biotech Co. Ltd., Suzhou, China) following the manufacturer’s protocol. The reaction mix was constituted as follows: 20 μL of rehydration buffer, 2.1 μL of each primer (10 μmol/L), 0.6 μL of nfo probe (10 μmol/L), 1 μL of animal genomic DNA or 2 μL of sample DNA as template, ddH2O was added up to 48 μL, and the additional 2 μL of magnesium acetate (280 mmol/L) was added to tube cap. The reaction mix was inverted repeatedly, followed by incubation in a metal bath. Subsequently, 5 μL of the reaction product was diluted to 40-fold with ddH2O, and the lateral flow strips (GenDx Biotech Co. Ltd.) were inserted into the diluent. The results were visualized after 5 min, with positive determinations made when both control and test line were present, and negative determinations were made when only the control line was present. The result was deemed as invalid in the absence of a control line.

The reaction conditions, including incubation temperature and time, were optimized to improve amplification efficiency. Incubation temperatures ranging from 35°C to 43°C were tested with 1 μL of 1×102 pg/μL chicken genomic DNA as template, with the initial incubation time set as 20 min. The brightness of test line was used to determine optimum incubation temperature. The incubation time was assessed at 5, 10, 15, 20, 25, and 30 min under optimum temperature. Each reaction was performed in triplicate.

Specificity analysis of five detection assays

To assess the performance of the aforementioned protocols for cross-reactivity to other common poultry, 1 μL of chicken genomic DNA was used as a positive control and 1 μL of ddH2O as no template control (NTC). The genomic DNA of different breeds of chicken, such as green bird chicken, crow chicken, apricot chicken, orangery chicken, triple yellow chicken, were used as templates to validate intra-species conservation. The genomic DNA of turkey, pig, duck, horse, donkey, cow, sheep, goat, buffalo, yak, camel, goose, and pigeon were used as templates to validate inter-species specificity. All specificity tests were conducted in triplicate to confirm the results.

Sensitivity analysis of five detection assays

Chicken genomic DNA was serially diluted to 10-fold from 1×105 pg/μL to 1×10-1 pg/μL with 1 μL of each dilution used as template to validate different protocols. All sensitivity tests were repeated for five times. The lowest DNA concentration with a detection probability of at least 95% was the sensitivity of the method.

Limit of detection (LOD) analysis of five detection assays

To validate the LOD of each protocol, 1 μL of each proportion of prepared binary mixture DNA was used as a template. Every LOD test was conducted for five times to confirm the result. The LOD was defined as the lowest proportion with at least 95% probability of being detected as positive.

Evaluation of five detection assays for samples

The DNA extracted from nine sausages and 11 seasonings were used as templates for five different protocols. The results of five detection assays were compared to validate the practical efficacy.

Results

Screening of optimal primers combination

Optimal primer design was done according to the RPA Assay Design Manual of TwistXD, resulting in four primer pairs from JF1R1 to JF4R4 (Table 1). All primer pairs were validated using the basic RPA with 1 μL of 1×105 pg/μL chicken genomic DNA as a template. All reactions produced the expected amplified band (Supplementary Figure S1A). JF4R4 was selected as an optimal pair because it produced a single band with expected amplified fragment size and was brighter than other primer pairs.

The specificity of JF4R4 was validated before the designing of exo and nfo probes. The genomic DNAs of fox, donkey, duck, pig, horse, goat, and cow were first chosen as templates for cross-reactivity analysis. The results showed that JF4R4 specifically produced the target band for chicken but not for any other species (Figure S1B). The real-time RPA and LFS RPA probes were designed on the basis of JF4R4 amplification fragment. The exo and nfo probes shared the same nucleic acid sequence, but with different group modification modes.

Optimization of incubation temperature and time of LFS RPA

The incubation temperature and reaction time were optimized to achieve the optimal performance of LFS RPA. The incubation temperature was optimized between 35°C and 43°C with 1 μL of 1×102 pg/μL chicken genomic DNA as template and an incubation period of 20 min. The optimal temperature determined was 37°C as it had the clearest test line (Figure 1A). Furthermore, the incubation time was optimized at 37°C. The results showed that the test line first emerged after 15 min, with the brightness of test line increasing with time (Figure 1B). The optimal incubation time was determined as 20 min because it was sufficient to determine the results.

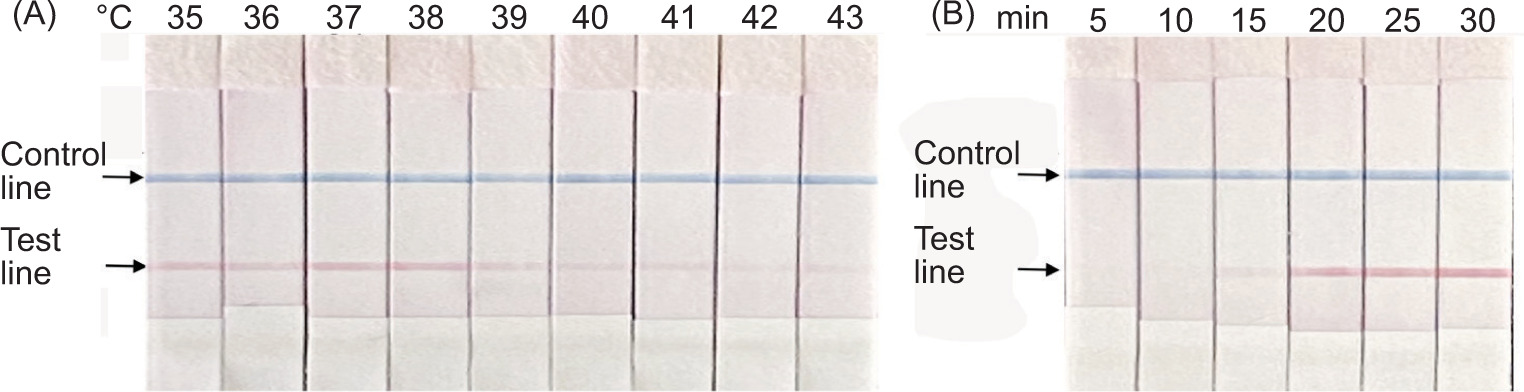

Figure 1. Optimization of reaction conditions for the LFS RPA assay. Optimization of (A) incubation temperature; and (B) incubation time.

Specificity analysis of real-time RPA and LFS RPA

The results of specificity analysis on real-time RPA and LFS RPA showed that both produced specific amplification curves and test lines for different breeds of chickens, indicating good intra-species conservation (Figure 2).

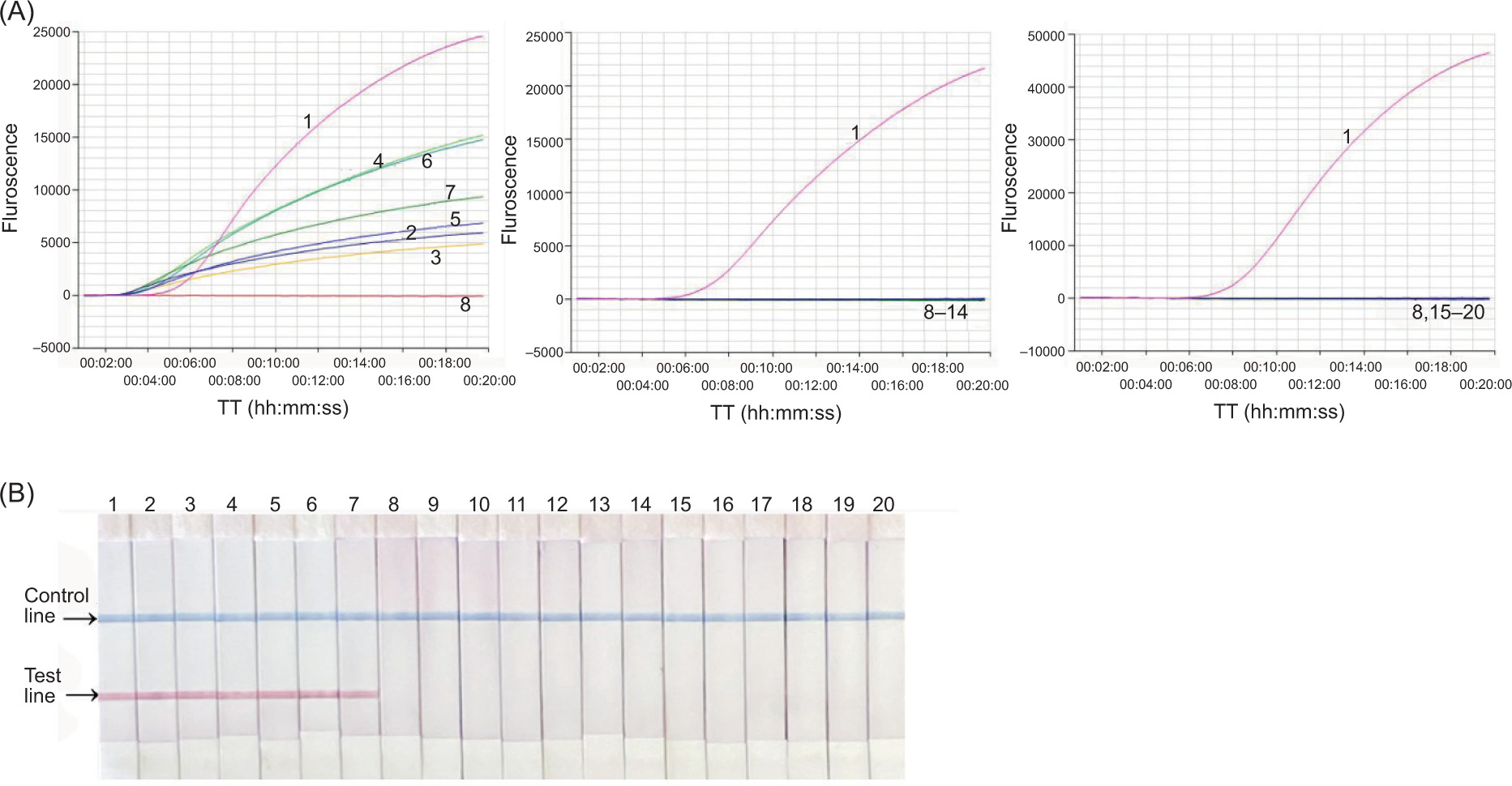

Figure 2. Specificity analysis of RPA assays. Line/lane 1, chicken; line/lane 2, green bird chicken; line/lane 3, crow chicken; line/lane 4, apricot chicken; line/lane 5, orangery chicken; line/lane 6, triple yellow chicken; line/lane 7, turkey; line/lane 8, ddH2O; line/lane 9, pig; line/lane 10, duck; line/lane 11, horse; line/lane 12, donkey; line/lane 13, cow; line/lane 14, sheep; line/lane 15, goat; line/lane 16, buffalo; line/lane 17, yak; line/lane 18, camel; line/lane 19, goose; and line/lane 20, pigeon.

For non-target species, only turkey genomic DNA generated an amplification reaction. However, no specific amplification curves or test lines were observed, suggesting a certain degree of good inter-species specificity (Figure 2).

Specificity analysis of real-time polymerase chain reaction assays

The results of the chicken-derived ingredient specificity analysis of the real-time PCR assay showed the GB/T 38164-2019 assay as having nonspecific amplifications for duck, cow, and donkey with Ct values < 35. Nonspecific amplifications with Ct values ≥ 35 were observed for rest of the species, with the exception of camel and yak (Figure 3A). A typical amplification curve was produced for chicken using the real-time PCR assay described by Liu et al. (2020). Nonspecific amplification was observed for turkey, duck, and cow DNA with atypical curves and Ct values ≥ 35 (Figure 3B).

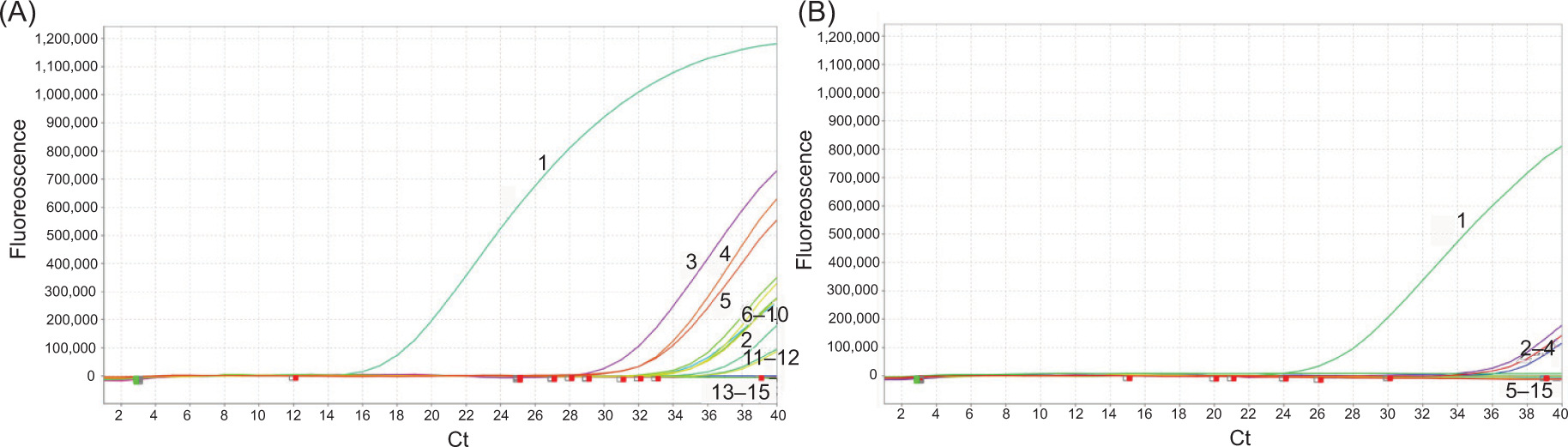

Figure 3. Specificity analysis of real-time PCR assays of chicken-derived ingredients in GB/T 38164-2019 and described by Liu et al. (2020). Line 1, chicken; line 2, turkey; line 3, duck; line 4, cow; line 5, donkey; line 6, goat; line 7, sheep; line 8, buffalo; line 9, goose; line 10, pigeon; line 11, horse; line 12, pig; line 13, camel; line 14, yak; and line 15, ddH2O.

Specificity analysis of polymerase chain reaction assay

The results of specificity analysis of the PCR assay for chicken-derived ingredient in SN/T 2978-2011 showed nonspecific amplifications with cow, duck, donkey, goose, pigeon, and turkey DNA (Figure 4). There was less than 98% homology between the sequences of nonspecific PCR amplicons and chicken. This indicated that the specific detection of chicken-derived ingredient using SN/T 2978-2011 PCR protocol could be realized by combining it with sequence analysis.

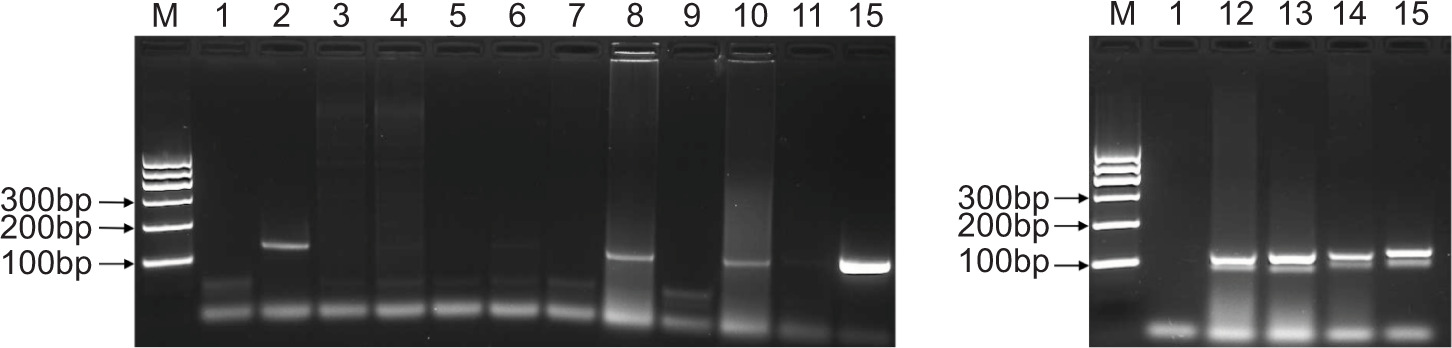

Figure 4. Specificity analysis of the PCR assay for chicken-derived ingredients in SN/T 2978-2011. Lane 1, ddH2O; lane 2, cow; lane 3, goat; lane 4, sheep; lane 5, pig; lane 6, buffalo; lane 7, yak; lane 8, duck; lane 9, camel; lane 10, donkey; lane 11, horse; lane 12, goose; lane 13, pigeon; lane 14, turkey; and lane 15, chicken.

Sensitivity analysis of five detection assays

Sensitivity analysis of five assays with chicken genomic DNA ranging from 1.0×105 pg/μL to 1.0×10-1 pg/μL as template indicated that the PCR assay in SN/T 2978-2011 consistently produced target bands at 100 pg/μL (Figure 5C), while the real-time RPA, LFS RPA and the real-time PCR from Liu et al. (2020) achieved stable amplification at 10 pg/μL (Figures 5A, 5B, and 5E). The GB/T 38164-2019 real-time PCR achieved stable amplification curves at concentrations as low as 1 pg/μL (Figure 5D).

Figure 5. Sensitivity analysis of five detection assays. Line/lane 1, 1.0×105 pg/μL; line/lane 2, 1.0×104 pg/μL; line/lane 3, 1.0×103 pg/μL; line/lane 4, 1.0×102 pg/μL; line/lane 5, 1.0×101 pg/μL; line/lane 6, 1.0×100 pg/μL; line/lane 7, 1.0×10-1 pg/μL; and line/lane 8, ddH2O.

LOD analysis of five detection assays

The LOD analysis of five detection assays showed that all achieved stable amplification at all ratios, that is, 25%–0.1% (w/w) (Figure 6).

Figure 6. LOD analysis of five detection assays. Line/lane 1, 25.0% chicken+75.0% pork; line/lane 2, 10.0% chicken+90.0% pork; line/lane 3, 5.0% chicken+95.0% pork; line/lane 4, 1.0% chicken+99.0% pork; line/lane 5, 0.5% chicken+99.5% pork; line/lane 6, 0.1% chicken+99.9% pork; and line/lane 7, ddH2O.

Evaluation of five assays on actual samples

The chicken-derived ingredients were detected in 14 samples (70%) by the real-time RPA, LFS RPA, the PCR assay in SN/T 2978-2011, and the real-time PCR described in Liu et al. (2020). The real-time PCR in GB/T 38164-2019 was detected in 17 samples (85%, 17/20). Notably, chicken-derived ingredients were detected by all assays in one sausage with no chicken in the ingredient list, while only real-time PCR in GB/T 38164-2019 with Ct values of 31.81, 31.9, and 34 detected chicken in ingredient list in three seasoning samples with chicken-derived ingredients.

Discussion

The authentication of animal-derived ingredients is included in the routine food risk monitoring programs in China (Wang et al., 2020). Many studies on common animal-derived ingredients’ detection and authentication are based on PCR technology (Sreenivasan Tantuan and Viljoen, 2021; Uddin et al., 2021; Wang et al., 2021; Yu et al., 2021). In China, PCR or real-time PCR assay is often used as a standard method for the detection of animal-derived ingredients. The specificity of PCR in SN/T 2978-2011, real-time PCR assays in GB/T 38164-2019 and Liu et al. (2020) were verified in this study. The real-time PCR assay in GB/T 38164-2019 produced nonspecific amplification curves for several non-target species at 105 pg/μL of genomic DNA, suggesting that the template concentration should be restricted within a range of 5–50 ng/μL as referenced in GB/T 38164-2019. PCR in SN/T 2978-2011 also had nonspecific amplification for several non-target species. Although the species-specific differentiation could be realized through sequence analysis, the whole detection process was long and complicated. Although the real-time PCR in Liu et al. (2020) had a better performance, it also produced nonspecific amplifications in three different species and could not be applied independently from sophisticated thermal cycling instruments. In contrast to the above assays, the real-time RPA and LFS RPA assays demonstrated satisfactory specificity results with high intra-species conservation and a good inter-species specificity.

The advantages of its simple operation and availability of easy-to-carry equipment establish RPA a promising tool for rapid detection. However, most RPA primers are long (28–35 bp) and are tolerant to mismatches (5–9) bases, and strict primer and probe design principles make it more difficult to identify specific primers for developing RPA assays (Kissenkotter et al., 2020; Munawar, 2022). Furthermore, the natural function of the enzyme involved in the homology-directed repair during the reaction limits the ability of RPA to identify major species with high sequence similarity (Li et al., 2018). During the designing of primers, the presence of differential bases between species close to the 3’-end decreases the nonspecific amplification of non-target species and even inhibit cross-reactions, favoring the specificity of developed RPA assays (Daher et al., 2015). In this study, real-time RPA and LFS RPA were developed to facilitate the detection of chicken-derived ingredients in food. The optimal reaction temperature for LFS RPA was 37°C, aligning with Zhao et al.’s (2020) findings but differing from 39°C as reported by Chen et al. (2022) and Ivanov et al. (2021) and 40°C as reported by Chen et al. (2022); Ivanov et al. (2021); Kumar et al. (2021); and Zhao et al., (2022). Interestingly, Lin et al. (2021) revealed no differences in test lines between 37°C, 39°C, and 42°C. The above-mentioned optimal temperatures were in the range of 35–42°C, which were commonly required for RPA assays (Kumar, 2021). Considering that the enzymes used in the RPA assay show activity in a wide range of temperatures, the optimal reaction temperature is largely influenced by the primers and probes used. Next, the specificity of the assays was classified as good intra-species conservation and good inter-species specificity. Amplification reactions occurred in different breeds of chickens, and no amplifications were recorded among other common poultry and livestock. Although the amplification reaction was detected in turkeys, the turkey was not the primary target for adulteration of chicken-derived ingredients.

Table 2. Detection results of chicken-derived ingredients in food for sale.

No. Sample name Major animal-derived ingredients GB/T 38164-2019 (Ct) Liu et al., 2020 (Ct) SN/T 2978-2011 Real-time RPA (TT, mm:ss) LFS RPA
1. Beef soup stock Dehydrated beef and edible beef oil
2. Matsutake seasoning Corn sauce and mushroom powder
3. Chicken and corn soup ingredients Ground chicken 20.51 31.14 + 8:30 +
4. Compound seasoning with chicken-derived ingredients Chicken and whole eggs 23.42 28.84 + 10:00 +
5. Compound seasoning with chicken-derived ingredients Ground chicken (chicken rack, chicken), edible chicken 23.36 32.23 + 8:30 +
6. Stewed pork sausage Pork and chicken 15.30 25.15 + 6:30 +
7. Chicken sausage Chicken 12.31 21.51 + 5:30 +
8. Sausage Chicken 13.00 22.38 + 6:00 +
9. Sausage Pork 13.51 23.43 + 6:00 +
10. Halal beef-flavored sausage Chicken and beef 13.12 24.48 + 6:30 +
11. Pork bone bouillon-flavored soup mix Pork bone bouillon powder and cooking lard
12. Hen soup flavor gumbo Cooking chicken oil and crunched chicken 21.22 33.15 + 8:30 +
13. Compound seasoning with chicken-derived ingredients Crunched chicken and egg yolk powder 31.81
14. Compound seasoning with chicken-derived ingredients Ground chicken, egg yolk powder, and chicken oil 34.01
15. Compound seasoning with chicken-derived ingredients Egg yolk powder and crunched chicken 31.90
16. Compound seasoning with chicken-derived ingredients Chicken, whole egg, and chicken bone extracts 22.91 30.19 + 9:30 +
17. Sausages Pork and chicken 15.46 22.14 + 6:20 +
18. Sausages Pork and chicken 14.02 20.43 + 6:00 +
19. Sausages Pork and chicken 16.00 23.29 + 6:30 +
20. Sausages Chicken 13.33 24.00 + 6:30 +

Ct: cycle threshold; TT: threshold time; “-” indicated a negative result; “+” indicated a positive result.

The developed real-time RPA and LFS RPA as well as SN/T 2978-2011, GB/T 38164-2019, and a previously described protocol (Liu et al. 2020) were applied to the collected real samples to test their applicability. The above-mentioned five assays generated different results only in three samples. Notably, the real-time RPA and LFS RPA, the PCR assay in SN/T 2978-2011, and the real-time PCR described in Liu et al. (2020) did not detect chicken-derived ingredients in three seasoning samples, which were labeled with chicken in ingredient lists. In comparison, real-time PCR in GB/T 38164-2019 successfully detected chicken-derived ingredients. These differences could be related to the different sensitivity levels of each assay. Advancements in processing technologies have introduced more aggressive methods that can cause significant DNA fragmentation, potentially leading to undetectable or less sensitive detection of target-derived ingredients (Liu et al., 2021). To identify animal-derived ingredients in extensively processed foods, the target amplified fragments should be short enough to accommodate highly degraded DNA. For the developed chicken-specific RPA assays, the amplified fragment is 156 bp, which is suitable for small DNA fragments of approximately 350 bp after processing (López-Andreo et al., 2012). Sensitivity analyses showed that the sensitivity of RPA assays reached 10 pg genomic DNA/reaction, which was consistent with that of the real-time PCR method described in Liu et al. (2020) and was better than the PCR assay in SN/T 2978-2011. Therefore, it is ideal for detecting chicken-derived ingredients in meat products. Even in complex samples, such as soup stock and chicken essence, the method successfully detected chicken-derived ingredients in just 20–25 min. However, for extensively processed samples (with chicken powder and egg yolk powder as raw materials) or lower content of chicken-derived ingredients, the proposed RPA assays did not detect chicken-derived ingredients. In contrast, the real-time PCR in GB/T 38164-2019 effectively detected the same due to its higher sensitivity but in a time-consuming manner, taking 1 h. The appropriate assay should be able to meet different testing requirements under daily testing.

None of the commercially available chicken products listed their chicken content. A comprehensive identification of the species and content is advocated to provide a more accurate evaluation of food adulteration. The RPA assays developed in this study aimed to provide qualitative results, and future studies are needed to develop quantitative detection methods for chicken-derived ingredients.

Conclusions

In this study, the chicken-specific real time RPA and LFS RPA assays were developed exhibiting high intra-species conservation and good inter-species specificity. The sensitivity and LOD of the two methods were 10 pg genomic DNA/reaction and 0.1% (w/w), respectively. When applied for detecting chicken-derived ingredients in actual samples, such as sausages and compound seasonings, the developed RPA assays showed good performance, compared to that of SN/T 2978-2011 and previously described protocol, suggesting that the developed RPA assays were applicable to extensively processed foods obtained from different breeds of chicken. Compared to the current standards in China, the developed RPA assays showed simple operation and rapid detection characteristics, and took only 20–25 min to produce results. However, it is necessary to explore the quantitative detection of chicken-derived ingredients in the future to provide more comprehensive assessment of food adulteration.

Data Availability Statement

All data generated or analyzed in this study are included in this published article.

Author Contributions

Conceptualization: Jianchang Wang; Methodology: Cang Zhou and Jinfeng Wang; Investigation: Cang Zhou and Jinfeng Wang; Data curation: Minna Chen and Zhenguo Dong; Writing – original draft preparation: Cang Zhou; Writing – reviewing and editing: Jianchang Wang; Funding acquisition: Jianchang Wang; Validation and resources: Qi Fu, Zhenguo Dong, and Xiaoxia Sun; Supervision and project administration: Libing Liu and Xiangdong Xu. All authors reviewed and read the manuscript, and agreed upon to be published version of the manuscript.

Conflicts of Interest

The authors declared no conflict of interest.

Funding

This research was funded by the Science and Technology Program of Hebei province, grant No. 21375501D.

REFERENCES

Afifa Khatun, M., Hossain, A., Hossain, M.S., Kamruzzaman Munshi, M. and Huque, R., 2021. Detection of species adulteration in meat products and Mozzarella-type cheeses using duplex PCR of mitochondrial cyt b gene: a food safety concern in Bangladesh. Food Chemistry (Oxf) 16(2): 100017. 10.1016/j.fochms.2021.100017

Bartuzi, Z., Cocco, R.R., Muraro, A. and Nowak-Wegrzyn, A., 2017. Contribution of molecular allergen analysis in diagnosis of milk allergy. Current Allergy and Asthma Reports 17(7): 46. 10.1007/s11882-017-0716-z

Bittante, G., Amalfitano, N., Bergamaschi, M., Patel, N., Haddi, M.L., Benabid, H., Pazzola, M., Vacca, G.M., Tagliapietra, F. and Schiavon, S., 2022. Composition and aptitude for cheese-making of milk from cows, buffaloes, goats, sheep, dromedary camels, and donkeys. Journal of Dairy Science 105(3): 2132–2152. 10.3168/jds.2021-20961

Cao, Y.H., Zheng, K.Z., Jiang, J.F., Wu, J.L., Shi, F.X., Song, X.M. and Jiang, Y.Q., 2018. A novel method to detect meat adulteration by recombinase polymerase amplification and SYBR green I. Food Chemistry 266: 73–78. 10.1016/j.foodchem.2018.05.115

Chen, X.Y., Yu, H.R., Ji, Y., Wei, W., Peng, C., Wang, X.F., Xu, X.L., Sun, M.H. and Xu, J.F., 2022. Development and application of a visual duck meat detection strategy for molecular diagnosis of duck-derived components. Foods 11(13): 1895. 10.3390/foods11131895

Daher, R.K., Stewart, G., Boissinot, M., Boudreau, D.K. and Bergeron, M.G., 2015. Influence of sequence mismatches on the specificity of recombinase polymerase amplification technology. Molecular and Cellular Probes 29(2): 116–121. 10.1016/j.mcp.2014.11.005

Du, Y.N., Zhao, X., Fan, X.R., Zhang, Q., Zhao, K. and Xu, Y., 2018. Research progress of recombinase polymerase amplification technology and its application. Shanghai Journal of Agriculture 34: 117–122.

Ivanov, A.V., Popravko, D.S., Safenkova, I.V., Zvereva, E.A., Dzantiev, B.B. and Zherdev, A.V., 2021. Rapid full-cycle technique to control adulteration of meat products: integration of accelerated sample preparation, recombinase polymerase amplification, and test-strip detection. Molecules 26(22): 6804. 10.3390/molecules26226804

Kissenkotter, J., Bohlken-Fascher, S., Forrest, M.S., Piepenburg, O., Czerny, C.P. and Abd El Wahed, A., 2020. Recombinase polymerase amplification assays for the identification of pork and horsemeat. Food Chemistry 322: 126759. 10.1016/j.foodchem.2020.126759

Kumar, Y., 2021. Isothermal amplification-based methods for assessment of microbiological safety and authenticity of meat and meat products. Food Control 121: 107679. 10.1016/j.foodcont.2020.107679

Kumar, D., Kumar, R.R., Rana, P., Mendiratta, S.K., Agarwal, R.K., Singh, P., Kumari, S. and Jawla, J., 2021. On point identification of species origin of food animals by recombinase polymerase amplification-lateral flow (RPA-LF) assay targeting mitochondrial gene sequences. Journal of Food Science and Technology 58(4): 1286–1294. 10.1007/s13197-020-04637-6

Li, J., Macdonald, J. and von Stetten, F., 2018. Review: a comprehensive summary of a decade development of the recombinase polymerase amplification. Analyst 144(1): 31–67. 10.1039/C8AN01621F

Li, R., Wang, J., Sun, X., Liu, L., Wang, J. and Yuan, W., 2021. Direct and rapid detection of mycoplasma bovis in bovine milk samples by recombinase polymerase amplification assays. Frontiers in Cellular and Infection Microbiology 11: 639083. 10.3389/fcimb.2021.639083

Lin, L.Y., Zheng, Y.Z., Huang, H.Y., Zhuang, F.L., Chen, H.X., Zha, G.C., Yang, P.K., Wang, Z.H., Kong, M.L., Wei, H.G., Zou, X.H. and Lin, M., 2021. A visual method to detect meat adulteration by recombinase polymerase amplification combined with lateral flow dipstick. Food Chemistry 354: 129526. 10.1016/j.foodchem.2021.129526

Liu, L.B., Chen, M.N., Sun, X.X., Zhang, Y.Q., Fu, Q., Qian, Y.K., Zhou, W., Guo, C.H. and Wang, J.C., 2020 Quantitative analysis of chicken-, pig-and cow-derived ingredients in sausage products by digital polymerase chain reaction. Meat Research 34: 51–56.

Liu, G.Q., Luo, J.X., Xu, W.L., Li, C.D., Guo, Y.S. and Guo, L., 2021. Improved triplex real-time PCR with endogenous control for synchronous identification of DNA from chicken, duck, and goose meat. Food Science & Nutrition 9(6): 3130–3141. 10.1002/fsn3.2272

López-Andreo, M., Aldeguer, M., Guillén, I., Gabaldón, J.A. and Puyet, A., 2012. Detection and quantification of meat species by qPCR in heat-processed food containing highly fragmented DNA. Food Chemistry 134(1): 518–523. 10.1016/j.foodchem.2012.02.111

Mayer, H.K., Burger, J. and Kaar, N., 2012. Quantification of cow’s milk percentage in dairy products—a myth? Analytical and Bioanalytical Chemistry 403(10): 3031–3040. 10.1007/s00216-012-5805-1

Munawar, M.A., 2022. Critical insight into recombinase polymerase amplification technology. Expert Review of Molecular Diagnostics 22(7): 725–737. 10.1080/14737159.2022.2109964

National Developed and Reform Commission of the People’s Republic of China, 2003. Chicken Essence Seasoning: SB/T 10371-2003. China Standards Press, Beijing, China.

National Developed and Reform Commission of the People’s Republic of China, 2007. Chicken Powder Seasoning: SB/T 10415-2007. China Standard Press, Beijing, China.

Pierina, V. and Maria, S., 2021. Food frauds: Global incidents and misleading situations. Trends in Food Science & Technology 114: 424–442. 10.1016/j.tifs.2021.06.010

Razzak, M.A., Hamid, S.B. and Ali, M.E., 2015. A lab-on-a-chip-based multiplex platform to detect potential fraud of introducing pig, dog, cat, rat and monkey meat into the food chain. Food Additives & Contaminants Part A Chemistry Analysis, Control, Exposure & Risk Assessment 32(11): 1902–1913. 10.1080/19440049.2015.1087060

State General Administration of the People’s Republic of China for Quality Supervision and Inspection and Quarantine, 2011. PCR Detection Methods for Chicken-Derived Ingredients in Products of Animal Origin: SN/T 2978-2011. China Standard Press, Beijing, China.

State Market Regulatory Administration of the People’s Republic of China, 2019. Detection Methods for Animal-Derived Ingredients in Common Poultry Animals Real-Time Fluorescence PCR Method: GB/T 38164-2019. China Standard Press, Beijing, China.

Song, Q.C., Chen, Y.W., Zhao, L.M., Ouyang, H.S. and Song, J., 2019. Monitoring of sausage products sold in Sichuan province, China: a first comprehensive report on meat species’ authenticity determination. Scientific Reports 9(1): 19074. 10.1038/s41598-019-55612-x

Spink, J. and Moyer, D.C., 2011. Defining the public health threat of food fraud. Journal of Food Science 76(9): R157–R163. 10.1111/j.1750-3841.2011.02417.x

Sreenivasan Tantuan, S. and Viljoen, C.D., 2021. Determining the presence of undeclared animal species using real-time PCR in canned and ready-to-eat meat products in South Africa. Journal of Food Science and Technology 58(7): 2699–2704. 10.1007/s13197-020-04776-w

Uddin, S.M.K., Hossain, M.A.M., Chowdhury, Z.Z. and Johan, M.R.B., 2021. Short targeting multiplex PCR assay to detect and discriminate beef, buffalo, chicken, duck, goat, sheep and pork DNA in food products. Food Additives & Contaminants Part A Chemistry Analysis, Control, Exposure & Risk Assessment 38(8): 1273–1288. 10.1080/19440049.2021.1925748

Wang, W.J., Fu, M., Zhang, Q.D., Zhen, Y.R., Liu, J.J., Xiang, S.N., Michal, J.J., Jiang, Z.H., Zhou, X. and Liu, B., 2021. A novel quantitative real-time PCR method for the detection of mammalian and poultry species based on a shared single-copy nuclear DNA sequence. Food Chemistry 341(Pt 2): 128170. 10.1016/j.foodchem.2020.128170

Wang, Y.Q., Yang, F., Guo, W.L., Chen, S.B., Bao, Y.G., Jing, W.K., Zhang, Z.F., Chang, H. and Kang, X.P., 2020. Application of recombinase polymerase isothermal amplification to the identification of animal-derived ingredients. Chinese Journal of Agriculture 36: 151–157.

Wu, H.H., Zhao, P.P., Yang, X.H., Li, J., Zhang, J.Y., Zhang, X., Zeng, Z.H., Dong, J.Q., Gao, S. and Lu, C., 2020. A recombinase polymerase amplification and lateral flow strip combined method that detects Salmonella enterica Serotype Typhimurium with no worry of primer-dependent artifacts. Frontiers in Microbiology 11: 1015. 10.3389/fmicb.2020.01015

Yu, N., Ren, J., Huang, W., Xing, R., Deng, T. and Chen, Y., 2021. An effective analytical droplet digital PCR approach for identification and quantification of fur-bearing animal meat in raw and processed food. Food Chemistry 355: 129525. 10.1016/j.foodchem.2021.129525

Zhang, Y.H., Hu, J.Q., Li, Q.M., Guo, J.Q and Zhang, G.P., 2020. Detection of microorganisms using recombinase polymerase amplification with lateral flow dipsticks. Methods in Microbiology 47: 319–349. 10.1016/bs.mim.2019.11.008

Zhang, S.Y., Li, Y. and Pan, L.W., 2007. Authentication of chicken-derived ingredients in chicken essence seasoning. Chinese Seasonings 12: 60–62.

Zhao, L.J., Hu, Y.X., Liu, W., Wu, H., Xiao, J., Zhang, C., Zhang, H.W., Zhang, X., Liu, J.Y., Lu, X.N. and Zheng, W.J., 2020. Identification of camel species in food products by a polymerase chain reaction-lateral flow immunoassay. Food Chemistry 319: 126538. 10.1016/j.foodchem.2020.126538

Zhao, G., Wang, J., Yao, C.Y., Xie, P.C., Li, X.M., Xu, Z.L., Xian, Y.P., Lei, H.T. and Shen, X., 2022. Alkaline lysis-recombinase polymerase amplification combined with CRISPR/Cas12a assay for the ultrafast visual identification of pork in meat products. Food Chemistry 383: 132318. 10.1016/j.foodchem.2022.132318

Supplementary

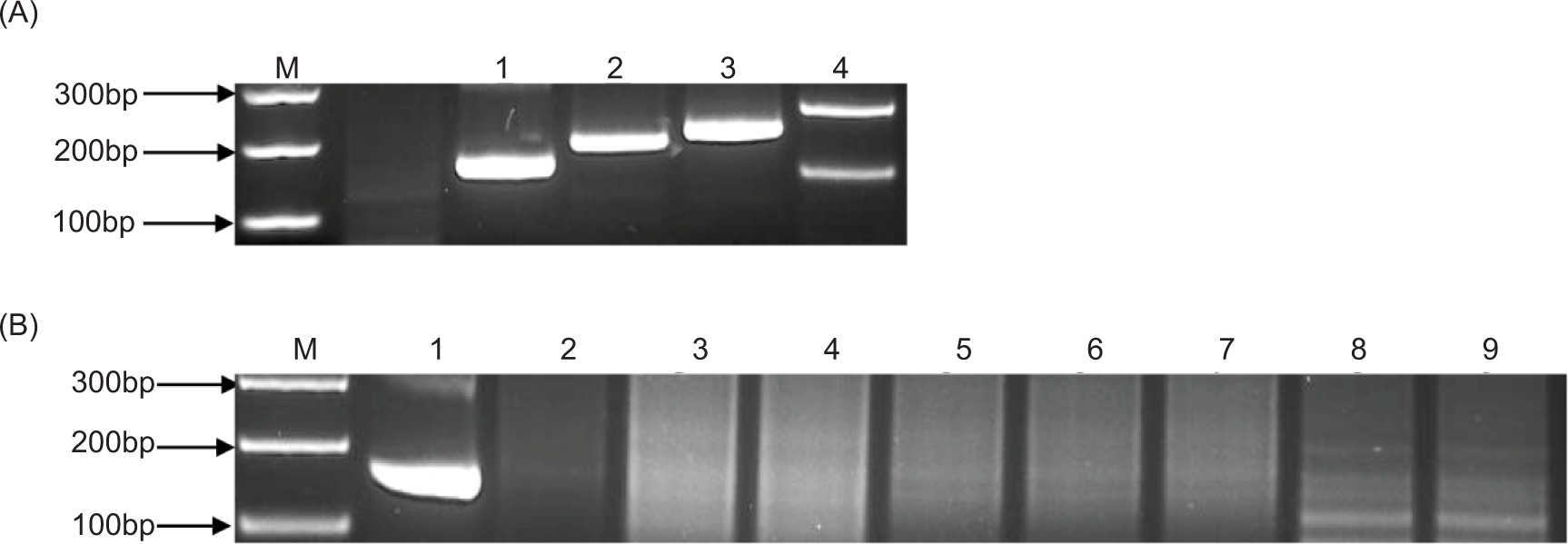

Figure S1. RPA primers screening for chicken. (A) Primers validation. Lane M: DNA marker; lane 1, JF4/JR4; lane 2, JF3/JR3; lane 3, JF2/JR2; lane 4, JF1/JR1. (B) Preliminary specificity validation of JF4/JR4. Lane M: DNA marker; lane 1, chicken; lane 2, fox; lane 3, donkey; lane 4, duck; lane 5, pig; lane 6, horse; lane 7, goat; lane 8, cow; and lane 9, ddH2O as no template control (NTC).
