Changes in the biochemical characteristics and volatile fingerprints of atemoya during postharvest ripening at room temperature

Xiao Gong1, 2, Xianshao Wu3, Ningli Qi1, Jihua Li1, 2*, Hao Zhang4, Yujia Huo4

1Key Laboratory of Tropical Crop Products Processing of Ministry of Agriculture and Rural Affairs, Agricultural Products Processing Research Institute, Chinese Academy of Tropical Agricultural Sciences, Zhanjiang, China;

2Hainan Key Laboratory of Storage & Processing of Fruits and Vegetables, Zhanjiang, China;

3Grain and Oil Quality Inspection Center of Guangxi ZhuangAutonomous Region, Nanning, China;

4G.A.S. Department of Shandong HanonInstruments Co., Ltd., Jinan, China


In order to determine the best shelf life of the atemoya, the changes in the biochemical characteristics in five different stages of senescence were investigated. During postharvest ripening at room temperature, the firmness decreased rapidly after harvest and the fruit weight loss and browning degree increased from the earliest green-colored stage onward. The total soluble solid concentrations (TSSC) and titratable acidity (TA) increased continuously throughout maturation, and the peak respiratory and ethylene production rates occurred on the 3d and 5th day of postharvest, respectively. Phenylalanine ammonia-lyase (PAL) activity steadily increased, catalase and polyphenol oxidase (PPO) activities decreased significantly on the 1st day and then gradually increased, and peroxidase activities increased during the initial 3 days, and then decreased at later stages. The volatile fingerprints of flesh samples from the five senescence stages were successfully established using gas chromatography-ion mobility spectrometry (GC-IMS) combined with principal component analysis, and 32 typical target compounds and 35 indeterminate compounds were obtained. The results provide a theoretical basis for the development of innovative preservation methods for atemoya.

Key words: biochemical changes, headspace-gas chromatography-ion mobility spectrometry, postharvest characteristics, volatile organic compounds

*Corresponding Author: Jihua Li, Key Laboratory of Tropical Crop Products Processing of Ministry of Agriculture and Rural Affairs, Agricultural Products Processing Research Institute, Chinese Academy of Tropical Agricultural Sciences, Zhanjiang, 524001, China. Email: [email protected]

Received: 09 July 2020; Accepted: 28 September 2020; Published: 16 October 2020

DOI: 10.15586/qas.v12i4.786

© 2020 Codon Publications

This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (


Annona includes one of the world’s most famous fruit, atemoya, which has creamy white pulp, and low acidity. The genus, which belongs to the family Annonaceae, is composed of over 100 species; however, only five (Annona squamosa, A. cherimola, A. muricata, A. reticulata, and A. atemoya) are of significant commercial importance (Pareek et al., 2011). Because of their taste and high nutritional value, including carbohydrates, amino acids, lipids, vitamins (A, B, and C), fiber, and minerals (Fe, Ca, Mg, and P), Annona spp. are considered valuable for table purposes, and have been commercially cultivated in subtropical and tropical regions of the world in recent decades (Hiwale, 2015; Pareek et al., 2011).

Atemoya is a hybrid of A. squamosa and A. cherimola, and is normally heart-shaped or round, weighs approximately 300–500 g, and has pale green, bumpy skin. The majority of the skin is as bumpy as that of the sugar apple, but it becomes smoother, like the cherimoya, at its base. The flesh is not segmented like that of the sugar apple, bearing more similarity to that of the cherimoya. It is very juicy and smooth, tasting slightly sweet with good flavor (Horticulture Innovation, 2019; Wade, 2009). To date, it has been widely cultivated, including in India, Cuba, Venezuela, Israel, Lebanon, Australia, and Taiwan. In 2002, the fruit was successfully introduced to Mainland China from Taitung City in Taiwan, and started cultivation at large scale in tropical China (Fang et al., 2015). However, atemoya is a typical climacteric fruit with the following characteristics: it is highly perishable, usually softens very rapidly, and browns and cracks during ripening. Thus, reducing its commercial and edible value and limiting its cold chain distribution and circulation. The Food and Agriculture Organization of the United Nations (FAO) has reported vegetable and fruit losses in developing countries of up to 40–50% annually. Approximately, 16% of which is due to poor postharvest handling and storage, and in particular, cooling chain limitations in agricultural production storage and distribution activities (Gustavsson et al., 2011).

Information on the biochemical properties and aroma profiles of atemoya during postharvest ripening at room temperature is very limited. The objective of this work was to investigate changes in the biochemical properties and volatile compounds of atemoya fruit during postharvest ripening. The expected results are to provide a theoretical basis for determining consumer acceptance and developing innovative preservation methods for atemoya fruit.

Materials and Methods

Materials and reagents

“Gefner” atemoya (A. cherimola × A. squamosa) fruit with skin firmness of 30–40 N were harvested at commercial maturity from Chongguan ridge (22°21'N and 107°33'E) in Guangxi, China in September 2018. They were hand-picked and packed in cooler boxes, and transported to the laboratory within 4 h of harvest. The atemoya variety was identified by Prof. Yiji Kong from the South Subtropical Crops Research Institute, Chinese Academy of Tropical Agricultural Sciences. Fruit that were uniformly shaped (350 ± 50 g each) and free of defects and cracks were selected for analysis. A total of 120 fruit were divided into two lots and stored at ambient conditions for natural maturity. The maturity stage was judged by the surface color and softness, and five stages were selected, as shown in Figure 1.

Figure 1. Five stages of postharvest atemoya fruit senescence. (A) at harvest, (B) 1d, (C) 3d, (D) 5d, (E) 7d

Firmness determination

Firmness was measured on two opposing sides of each atemoya (n = 6) using a GY-4 Digital Fruit Hardness Tester (Zhiqu Co. Ltd., Dongguan, China) with a 5-mm diameter probe, at a speed of 1 mm s–1 and a load range of 200 N. The compression force was recorded at the maximum transverse diameter of the fruit and the probe was directed perpendicularly to the fruit. The results are expressed in N.

Fruit mass loss (FML) and browning degree (BD) measurements

The fruit mass loss (FML) was calculated as the percent reduction from the initial weight. And the browning degree (BD) was assessed by evaluating the extent of the browned area on the fruit surface, as previously reported by Ali et al. (2016).

Respiratory and ethylene production rate measurements

The respiratory rate of atemoya fruit was determined using a breath analyzer (SY-1022, Liaoning Andreas Technology Co., Liaoning, China), and the results are expressed in mg CO2 kg–1 s–1. Ethylene production was measured as described by Huan et al. (2018) with some modifications. Briefly, at each time point, three fruit per group were randomly selected and enclosed in 5.0 L glass jars at 25°C for 1 h, and 1 mL of headspace gas was injected into a gas chromatographer (GC7890A, Agilent Technologies, Chandler, AZ, USA) coupled to an FID detector. The injector, column, and detector temperatures were 50, 50, and 150°C, respectively. Ethylene values are expressed as ng C2H4 kg–1 s–1.

Total soluble solid concentrations (TSSC) and titratable acidity (TA) measurements

Each atemoya (n = 3) was sliced and rapidly frozen in liquid nitrogen vapor, and then stored at −40°C prior to analysis. Frozen tissues (50 g) were thawed at 4°C for 3 h, and then homogenized in a blender (Thermo Fisher Scientific, MA, USA). The soluble solid concentrations (TSSC) values were determined using an Atago PAL-1 digital refractometer (Atago Co. Ltd., Tokyo, Japan). The titratable acidity (TA) was measured by diluting 10 g of pulp in 100 mL of double-distilled H2O and titrating to pH 7.0 with 0.01 mol L–1 NaOH, and is expressed as the percentage of citric acid.

Total phenol and lignin content measurements

Total phenols were measured with Folin-Ciocalteu reagent according to the method described by Chu et al. (2018), and the results are expressed as OD280 g–1 sample. Lignin was extracted and determined as reported by Bruce and West (1989). Approximately 1 g of pulp was homogenized in 4 mL of 95% ethanol precooled to 0°C, and centrifuged at 3800 × g for 5 min at 4°C. The residue was washed twice with cold ethanol and a mixture of ethanol:n-hexane (1:2). The precipitate was dried for 30 min at 60°C and was dissolved in 2 mL of 25% acetyl bromide-glacial acetic acid solution. The sample was incubated at 70°C in a shaking water bath for 30 min and then 1 mL of 2 mol L–1 NaOH, 1 mL of acetic acid, and 0.1 mL of hydroxylamine hydrochloride were added successively. The volume was brought to 5 mL with acetic acid and the OD280 was measured.

Enzyme activity assays

To determine enzyme activities, atemoya tissue (2 g) was ground with 5 mL phosphate buffer (pH 7.8) containing 40 g L–1 crosslinked polyvinylpyrrolidone (PVPP), 2 mmol L–1 ethylene diamine tetraacetic acid (EDTA), and 5 mmol L–1 β-mercaptoethanol in an ice-water bath. The homogenate was centrifuged at 10,000 × g and 4°C for 20 min. The obtained supernatant was used as the crude enzyme extract. The phenylalanine ammonia-lyase (PAL) activity was measured according to Koukol and Conn (1961). One unit of PAL activity was defined as the amount of enzyme that caused the increase in absorbance of 0.01 per minute at 290 nm, and the result was expressed as U g–1 fresh weight. The catalase (CAT) activity was determined as described by Aebi (1984) with slight modifications. 0.1 mL of enzyme extract was mixed with 1 mL of 0.1 mol L–1 H2O2 and 2.5 mL of 0.05 mol L–1 phosphate buffer (pH 7.8). The reaction mixture was determined at 240 nm at an interval of 30 s for 3 min. One unit of CAT activity was defined as the amount of enzyme that decreased in absorbance of 0.01 at 240 nm per minute. The results were expressed in U kg–1 fresh weight. The polyphenol oxidase (PPO) activity was assayed according to Galeazzi et al. (1981) with some modifications and were extracted from 5 g frozen tissue with 25 mL of 0.2 mol L–1 sodium phosphate buffer (pH 6.5) containing 1% polyvinylpyrrolidone. One unit of PPO activity was defined as the amount of enzyme that caused an increase in the absorbance of 0.01 per minute at 420 nm. The POD activity was determined according to Hammerschmidt and Kuć (1982) with slight modifications. The reaction mixture consisted of 50 mmol L–1 sodium phosphate buffer (pH 6.0), 0.5 mol L–1 H2O2, 25 mmol L–1 guaiacol, and 0.1 mL crude enzyme extract. One unit of peroxidase (POD) activity was defined as the amount of enzyme that caused the increase in absorbance of 0.01 per minute at 470 nm and the data are expressed in U mg–1 protein.

Quantification of volatile compounds

Samples of atemoya fruit were analyzed on a gas chromatography-ion mobility spectrometry (GC-IMS) instrument (FlavourSpec, GAS, Dortmund, Germany) equipped with an autosampler (Hanon Auto SPE 100, Shandong, China) for headspace analysis. Samples (2.0 g) were weighed into 20 mL headspace vials (CNW Technologies, Germany), and then incubated in headspace volume at 60°C for 10 min. Headspace (500 μL) was automatically loaded into the injector in splitless mode through a syringe heated to 65°C.

The analytes were separated on a FS-SE-54-CB-1 capillary column (15 m × 0.53 mm) at a constant temperature of 40°C and then ionized in the IMS instrument (FlavourSpec®, Gesellschaft für Analytische Sensorsysteme mbH, Dortmund, Germany) at 45°C. High purity nitrogen gas (99.999%) was used as the carrier and drift gas, with an initial flow rate of 150 mL min–1 and the following program was: 2 mL min–1 for the first 2 min, then a linear increase to 150 mL min–1 over 18 min, then 150 mL min–1 for 10 min. Ketones C4–C9 (Sigma Aldrich, St. Louis, MO) were used as an external standard to determine the retention index (RI) of volatile organic compounds. Analyte identification was performed using the Laboratory Analytical Viewer (LAV) 2.2.1 (GAS, Dortmund, Germany) by comparing RI and the drift time of standard in the GC-IMS Library.

Statistical data analysis

All samples were prepared in duplicate and tested at least six times, and the result was expressed as mean ± standard deviation and the level of statistical significance (P < 0.05) was analyzed by using Tukey’s range test of SPSS 18.0 software (SPSS Inc., Chicago, IL, USA). The principal component analysis (PCA) was performed using the LAV software in-built “Dynamic PCA” plug-in to model patter of aroma volatile.

Results and Discussion

Firmness changes

Fruit softening is a complex physiological process, which is closely related to postharvest ripening and senescence and plays an important role in determining fruit-flavor quality Chen et al., (2019). In practice, most consumers subjectively estimate fruit firmness by applying a compression force with their fingers. Brown et al. (1988) found that when ripened at 20°C, atemoya fruit reached acceptable edible quality after the first detectable softening changes. As shown in Table 1, the firmness decreased rapidly from 10.95 N to 3.26 N after 1 day of storage in ambient conditions, and then decreased slowly from 3.26 N to 1.35 N within the next 6 days in storage. The firmness change corresponded to the softening characteristics of atemoya fruit, and was consistent with a previous report (Zainal et al., 2019). However, details on how the mechanical properties of atemoya fruit change during the ripening process are limited, and how they are affected by postharvest processing is unknown. It has been inferred that the softening of atemoya fruit is not only dependent on the expression of xyloglucan endotransglycosylase and expansion genes, but is also affected by the cultivar, production area, harvest timing, and other factors (Pareek et al., 2011; Shen et al., 2009). Pulp softening and apparent color change during ripening and senescence are two major characteristics affecting the shelf life and market value of postharvest fruit (Lin et al., 2018).

Table 1. Changes of FML, BD, skin firmness, TSSC, TA, total phenols and respiratory rate, ethylene production, and lignin content of atemoya fruit during postharvest storage.

Factor At harvest 1 day 3 days 5 days 7 days
Storage time (day)
Firmness (N) 10.95 ± 0.31e 3.26 ± 0.40d 2.63 ± 0.32c 1.97 ± 0.25b 1.35 ± 0.19a
FML (%) 0a 1.27 ± 0.23b 4.39 ± 0.18c 6.66 ± 1.02d 8.46 ± 0.91e
BD (%) 0a 0.54 ± 0.17b 1.41 ± 0.40c 15.67 ± 1.71d 45.49 ± 1.72e
TSSC (%) 13.91 ± 0.56a 18.93 ± 0.79b 19.40 ± 0.90c 19.65 ± 1.10c 20.05 ±0.79d
TA (% citric acids) 0.04 ± 0.02a 0.05 ± 0.03ab 0.06 ± 0.04b 0.08 ± 0.05c 0.06 ± 0.04d
Respiratory rate (mL CO2 kg-1 h-1) 317.43 ± 15.42c 551.95 ± 25.23d 575.22 ± 22.01e 307.85 ± 19.98b 259.91 ± 32.56a
Ethylene production rate (μL C2H4 kg-1 h-1) 0.23 ± 0.01a 3.98 ± 0.14b 15.67 ± 1.85c 34.39 ± 5.17d 22.38 ± 3.20e
Total phenols (OD280 nm g-1) 0.64 ± 0.03ac 0.93 ± 0.12c 1.34 ± 0.08d 0.77 ± 0.02b 0.77 ± 0.06b
Lignin (A 280 g-1) 73.50 ± 0.13a 74.56 ± 0.25b 95.05 ± 0.62c 98.56 ± 0.70d 124.92 ± 1.40e

For each factor, the result was expressed as mean ± standard error (SE), and within the same row followed by different letters are significantly different by Tukey’s multiple range test at P ≤ 0.05.

FML: Fruit mass loss; TSSC: total soluble solid concentrations; BD: browning degree; TA: titratable acidity.

Fruit mass loss and browning degree

After harvest, respiration is the cause of FML in most horticultural products. For most fruit, FML ≥ 8% results in a wilted or shriveled appearance, which makes the fruit more perishable and begins to significantly affect its acceptability to consumers (Cruz-Bravo et al., 2019). The FML of postharvest atemoya steadily increased, reaching 8.46% on the 7th day under room temperature (25 ± 3°C and 70 ± 5% relative humidity). For this reason, we measured the effects of atemoya fruit storage for 7 days. Importantly, atemoya fruit decay is also associated with genotype, maturity, and postharvest handling (Pareek et al., 2011).

The intensity of color development determines the harvest time and ripening duration (Pareek et al., 2011). As shown in Figure 1, atemoya skin color changed from dark green to light green or greenish-yellow through the postharvest ripening process, and visible brown spots were observed on the 3rd day, with 1.41% BD and acceptable marketability. By the 5th day, more obvious browning occurred, with 15.67% BD and limited marketability. By the 7th day, obvious browning was observed, with >45.49% BD and poor sensory acceptability. In practice, the harvesting time and eating quality is commonly determined by the fruit skin color, which changes with physiological maturity.

Respiratory rate and ethylene production

Atemoya displays typical climacteric maturation, characterized by an increased respiration rate (Morena and De La Plaza, 1993). Fruit respiration involves the oxidation of organic molecules (e.g., carbohydrates, amino acids, and organic acids) in cells into small molecule metabolites with concurrent energy production, and is closely related to fruit maturity and senescence (Liu et al., 2019). The respiration rates of postharvest atemoya fruit at different senescence stages are shown in Table 1. The respiration rate initially increased rapidly postharvest and then decreased, and the peak respiration rate (0.23 mg CO2 kg–1 s–1) occurred on the 3rd day, consistent with the results of Alique and Zamorano (2000). Ethylene production in atemoya fruit increased after harvest and the peak rate (approximately 0.12 mg CO2 kg–1 s–1) was detected on the 5th day of storage, after the onset of climacteric respiration, similar to the results of Brown et al. (1988). Moreover, ethylene emission rates were significantly higher in the mature stage (1.33–2.30 ng C2H4 kg–1 s–1) than in the immature stage (0.02–0.34 ng C2H4 kg–1 s–1) (P < 0.05). Fruit softening during storage is usually triggered by ethylene (Krongyut et al., 2011), and the respiration and ethylene emission rates both depend on the cultivar and maturity stage, and are affected by the temperature and humidity of the harvesting area, as well as other factors (Pareek et al., 2011). For climacteric fruit, delaying the peak respiration rate can help to extend the shelf life.

Total soluble solid concentrations (TSSC) and titratable acidity (TA)

The total soluble solid concentrations (TSSC), mostly composed of sugars and acids together with small amounts of dissolved compounds, is the most important quality parameter used by the industry to indicate the sweetness of fresh horticultural products and determine marketing standards (Magwaza and Tesfay, 2015). Tietz (1988) found that the flavor development of ripe cherimoya was closely correlated with the TSSC. The TSSC of atemoya fruit increased from approximately 13.91 to 20.05% during 7 days of postharvest ripening (Table 1). Similar to the TSSC, the TA content is also associated with atemoya taste and sensory properties, and increased acidity can be ascribed to organic acid production during ripening (Gutierrez et al., 1994). Along with increased fruit maturity, we observed a slight increase in acidity during the initial stages of atemoya fruit ripening, followed by a significant decrease (P < 0.05) compared to the initial value (0.04% citric acid). This result is consistent with a previous report (Bolivar-Fernandez et al., 2009). Changes in TSSC and TA could be used to measure the process of commercial maturation.

Total phenol and lignin contents

Phenols, secondary metabolites found in fruit and vegetables, are associated with quality and flavor formation, are precursors for lignin synthesis, and are natural substrates in enzymatic browning reactions (Li et al., 2009). As shown in Table 1, the total phenol content gradually increased from 0.64 OD280 g–1 at harvest to 1.34 OD280 g–1 on the 3rd day, and then decreased during the pulp lignification process, falling to 0.77 OD280 g–1 by the 7th day.

Lignin is a secondary metabolite in plant tissues, and its accumulation is the key reason for postharvest deterioration in fruit quality. After 7 days of storage, obvious lignin synthesis was observed in atemoya flesh compared with at harvest, and the lignin content increased significantly, from 73.50 OD280 g–1 at harvest to 124.92 OD280 g–1 at day 7 (P < 0.05). Storage at 4°C significantly delayed the lignification process by inhibiting lignin-related enzymes such as PAL and PPO activities (data not shown), resulting in less lignin content. Lignification is among the most important physiological disorders in a wide variety of horticultural products, and is correlated with cell wall metabolism abnormality generated by pectin metabolism, manifesting as a woolly texture with a lack of juiciness, which decreases consumer acceptance (Li et al., 2009; Lin et al., 2018; Suo et al., 2018; Ubi et al., 2016).

Enzyme activity assays

Figure 2 shows the activity changes in PAL, catalase and polyphenol oxidase, and peroxidase activities during the postharvest ripening of atemoya fruit in ambient conditions. The change in PAL activity correlated with lignin accumulation, and was consistent with results in kiwifruit (Suo et al., 2018). Catalase and polyphenol oxidase activities displayed similar trends, decreasing significantly on the 1st day compared to at harvest, and then gradually increasing during the remaining period. Peroxidase activity oscillated throughout the ripening period. In most cases, enzymatic browning catalyzed by PPO is considered to be one of the most important oxidative reactions in fruit, leading to loss of sensory and nutritional qualities (Ali et al., 2016; Pareek et al., 2011; Zainal et al., 2019).

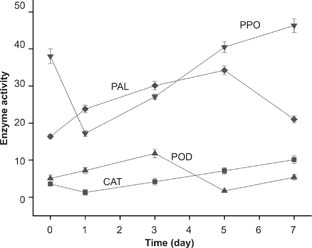

Figure 2. Changes in atemoya fruit enzyme activities during postharvest ripening in ambient conditions (the result was expressed as mean ± standard deviation, n = 6).

Volatile compound identification and principal component analysis

Characteristic volatile fingerprints were obtained by comparing ion mobility spectrometry drift times and relative RIs with those of authentic reference compounds. The changes in volatile compounds in postharvest atemoya fruit at five different senescence stages are presented as a 3D topographical visualization in Figure 3A. The ion migration time and the position of the reactive ion peak (RIP) were normalized, and 3D topographical plots at different stages are shown in Figure 3B. A total of 32 typical target compounds were identified by the GC × IMS Library (Table 2) and 35 indeterminate compounds were also obtained. Due to their different concentrations, some single compounds may have produced multiple signals (dimers and multimers).

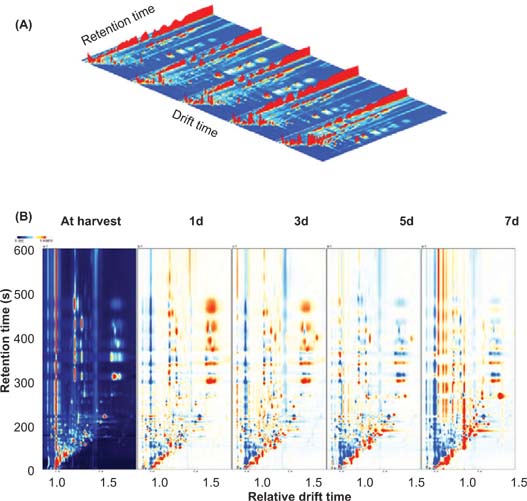

Figure 3. 3D topography of flesh samples of atemoya fruit at five stages of senescence. (A) the y-axis represents the GC retention time, the x-axis represents the ion migration time for identification, and the z-axis represents the peak height for quantification. (B) 3D topographical plots at different stages.

Table 2. GC-IMS integration parameters of volatile compounds of postharvest atemoya fruit.

No. Compound MW RIa RT [s]b MT [RIPrel]c Identification approach
1 Alpha-terpineol 154.3 1194.8 881.652 1.2184 RI, DT
2 Limonene 136.2 1020.6 472.29 1.2183 RI, DT
3 Ethyl hexanoate dimer 144.2 1004.3 441.021 1.8229 RI, DT
4 Ethyl hexanoate 144.2 1004.3 441.021 1.3429 RI, DT
5 Trans-beta-ocimene 136.2 1045.5 525.124 1.2143 RI, DT
6 Myrcene 136.2 991.3 418.245 1.217 RI, DT
7 Beta-pinene 136.2 968.2 382.971 1.217 RI, DT
8 Alpha-pinene 136.2 928.6 334.924 1.2155 RI, DT
9 3-Methylbutyl acetate dimer 130.2 879.3 289.918 1.7444 RI, DT
10 3-Methylbutyl acetate 130.2 880.1 290.527 1.2984 RI, DT
11 1-Hexanol 102.2 874.2 285.871 1.3295 RI, DT
12 1-Hexanol dimer 102.2 873.5 285.309 1.6405 RI, DT
13 Butyric acid 88.1 805 238.076 1.1636 RI, DT
14 Ethyl butanoate 116.2 793.4 231.047 1.2082 RI, DT
15 Dimethyl disulfide 94.2 734.4 198.715 0.9879 RI, DT
16 1-Pentanol 88.1 766 215.302 1.2556 RI, DT
17 1-Pentanol dimer 88.1 765 214.74 1.5122 RI, DT
18 Acetoin 88.1 711.9 188.312 1.3309 RI, DT
19 Hydroxyacetone 74.1 636.7 162.727 1.2278 RI, DT
20 Ethyl acetate 88.1 607.3 155.136 1.3379 RI, DT
21 Butanal 72.1 631.4 161.321 1.2877 RI, DT
22 Acetone 58.1 502.8 129.551 1.119 RI, DT
23 Ethanol 46.1 448.9 116.337 1.0493 RI, DT
24 2-Pentanone 86.1 687.2 178.472 1.3714 RI, DT
25 3-Methyl-3-buten-1-ol 86.1 736.7 199.839 1.4969 RI, DT
26 Butyl acetate dimer 116.2 809.1 240.606 1.6196 RI, DT
27 Butyl acetate 116.2 810 241.168 1.2389 RI, DT
28 Linalool 154.3 1103 660.627 1.22 RI, DT
29 Hexanal dimer 100.2 791.2 229.747 1.5584 RI, DT
30 Hexanal 100.2 790.2 229.155 1.2582 RI, DT
31 3-Methylbutanal 86.1 663.8 170.588 1.4034 RI, DT
32 Propanoic acid 74.1 750.1 206.675 1.3583 RI, DT
33 Trans-2-hexenol 100.2 849.8 267.574 1.1794 RI, DT
34 Trans-2-hexenol dimer 100.2 850.2 267.88 1.5165 RI, DT
35 3-Pentanone 86.1 695.8 181.713 1.3528 RI, DT
36 2,3-Pentanedione 100.1 685 177.683 1.3102 RI, DT
37 2-Methylpropyl acetate 116.2 767.3 215.986 1.6155 RI, DT
38 Ethyl propanoate 102.1 716.9 190.482 1.4538 RI, DT
39 Gamma-terpinene 136.2 1062.6 564.372 1.217 RI, DT

aRepresents the RI calculated using n-ketones C4–C9 as external standard on FS-SE-54-CB-1 column.

bRepresents the retention time in the capillary GC column.

cRepresents the migration time in the drift tube.

As shown in Figure 4, the volatile compounds detected in atemoya fruit at the five stages of senescence were similar, and trans-beta-ocimene, beta-pinene, gamma-terpinene, limonene, myrcene, alpha-pinene, alpha-terpineol, linalool, acetone, and ethanol were detected at all stages, with slight differences in signal intensity. Volatile aroma compound composition and content in atemoya fruit changed significantly during postharvest storage. The signal intensities of trans-2-hexenol, 1-pentanol, 3-methylbutanal, hexanol, and 2,3-pentanedione were much higher in fresh fruit at harvest than in other stages, and gradually decreased during the ripening process, such that only very weak signals were detected at the final storage stage. Increasing volatile compounds were identified as postharvest ripening progressed, alpha-terpineol and linalool contents increased, and acetone and ethanol contents were decreased. Hydroxyacetone, ethyl hexanoate, butyl acetate, butyric acid, and dimethyl disulfide compounds contributed to flavor metabolism during mid-stage storage. As the fruit completely matured and before quality deteriorated, butanal, ethyl butanoate, ethyl acetate, 3-methylbutyl acetate, 2-methylpropyl acetate, propanoic acid, acetoin, 3-pentanone, 3-methyl-3-buten-1-ol, and ethyl propanoate were identified, contributing to the typical aroma of the fruit. In addition, many dimers of volatile compounds were observed at different storage stages, with significantly different compositions and levels.

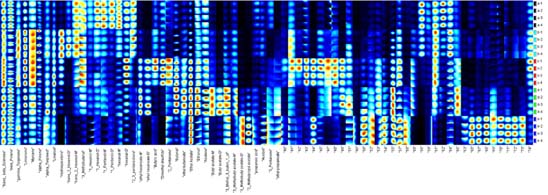

Figure 4. Gallery plot of selected signal peak areas obtained from atemoya fruit flesh at five stages of senescence (a–e, at harvest, 1, 3, 5, and 7 days, respectively).

The principal component analysis (PCA) was applied to evaluate the contribution rates of characteristic volatile compounds based on signal intensities. As presented in Figure 5, samples of postharvest atemoya fruit from different ripening stages existed in fully independent spaces and were well distinguished in the score map, demonstrating that the volatile compounds changed markedly through the postharvest storage process. The PCA described 75% of the accumulative variance contribution rate, with PC1 and PC2 describing 47 and 28%, respectively. These volatile fingerprints of atemoya samples at different senescence stages will contribute to the sensory evaluation of this fruit.

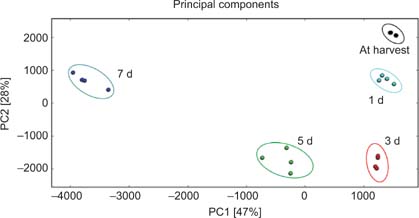

Figure 5. Principal component analysis of postharvest atemoya fruit at five stages of senescence. Results are based on the spectral region at a drift time of 8 ms and retention time from 90 to 920 s.


In this work, the peak respiratory and ethylene production rates of atemoya fruit in ambient conditions were observed before physiological maturity on the 5th day, accompanied by a skin color change from dark green to light green or greenish-yellow. The characteristic flavor developed after climacteric respiration, and the fruit was at its best edible condition on the 5th day postharvest. Generally, after 7 days of storage, the fruit had lost almost all commercial value because of softening and skin browning. Based on GC-IMS, the volatile fingerprints from five stages of senescence were successfully established and were successfully distinguished using PCA. The results are expected to provide a theoretical basis for the development of strategies to extend the shelf life of atemoya fruit.


The authors thank Editage ( for English language editing.


Financial support from the Central Public Interest Scientific Institution Basal Research Fund for the Chinese Academy of Tropical Agricultural Sciences (1630122017013), the Innovation Team of Modern Agricultural Industry Technology System in Guangdong Province of China (2019KJ116), and the Earmarked Fund for the Belt and Road Tropical Project (BARTP-10).
