Effect of Bunium persicum essential oil, NaCl, Bile Salts, and their combinations on the viability of Lactobacillus acidophilus in probiotic yogurt

Parva Mahmmodi1, Zaleh Khoshkhoo2*, Afshin Akhondzadeh Basti3, Peyman Mahasti Shotorbani4, Ali Khanjari5

1Student of Food Science and Technology, Department of Food Science and Technology, Tehran North Branch, Islamic Azad University, Tehran, Iran;

2Department of Food Science and Technology, Tehran North Branch, Islamic Azad University, Tehran, Iran;

3Department of Food Hygiene, Faculty of Veterinary Medicine, University of Tehran, Tehran, Iran;

4Department of Food Quality Control and Hygiene, Science and Research Branch, Islamic Azad University, Tehran, Iran;

5Department of Food Hygiene, Faculty of Veterinary Medicine, University of Tehran, Tehran, Iran


The probiotic yogurt, with additional essential oil researches, has increased recently. Bunium persicum Boiss is a critical medicinal wild growing plant in Iran dry areas. In this study, Lactobacillus acidophilus was exposed to stress with B. persicum essential oil (BEO), NaCl, bile salts, and their combinations by 50 minimum inhibitory concentration (MIC) and then inoculated to the yogurt samples, which were stored at 4°C for 28 days. Independent parameters in this article are BEO 500 and 1000 ppm that the physicochemical, sensory properties, and L. acidophilus of viability in yogurt samples were assessed within the time. A steady increase in syneresis percentage and acidity was observed, while pH values were reduced in all samples. The L. acidophilus survival decreased during storage time in all treatments. In addition, sensory scores showed a reduction trend in the samples. The survival rate of probiotic bacteria is also impacted by redox potential. Increasing the oxidation and resuscitation potential and increasing the hydrogen peroxide concentration due to the bacteria metabolic activity are among the factors that reduce the probiotic bacteria population in yogurt during storage. The most viability of L. acidophilus under stress with BEO compared with other stress treatments may be due to slight changes in pH during this period than in the stress treatments. Generally, it can be argued that the usage of BEO, NaCl, and bile salts at a MIC of 50% in yogurt stored in the refrigerator for 21 days provided a suitable environment for the storage and transmission of L. acidophilus, as recommended to the consumer and, therefore, the current results confirmed that the addition of probiotic and these materials improved the physicochemical and sensory characteristics of yogurt.

Key words: Bunium persicum, L. acidophilus, stress, Yogurt

*Correspondending Author: Zaleh Khoshkhoo, Food Science and Technology, Department of Food Science and Technology, North Tehran Branch, Islamic Azad University, Tehran, Iran. Email:

Received: 9 December 2020. Accepted: 28 December 2020. Published 12 January 2021

DOI: 10.15586/qas.v13i1.858

© 2021 Codon Publications

This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (


Food producers faced opportunities and challenges due to growth in the functional foods market, and the same situation happened for academic departments to achieve the customer confirmation during the recent decade (Mousavi et al., 2019). One of the worldwide favorite probiotic products in the dairy industry is yogurt. Food does not only provide nutrients but is also an active ingredient in bioactive substances. Certain types of foods, which provide energy and improve consumers’ health, are called functional foods (Kocer and Unal, 2018). In addition to its beneficial health properties, the incorporation of the prebiotic lactobionic acid (LBA) in fermented dairy products can provide a technological advantage due to its gelling capacities (Cristina et al., 2018). Probiotic strains are microorganisms that bring about many beneficial effects for their host health. Moreover, three prerequisites for probiotic selection include the viability of the microorganism, sufficient administration, and at least one beneficial health effect (Rezaei et al., 2020). Probiotic products are important in processed foods (Yangilar and Yildiz, 2018). It is proven that probiotic strains of lactic acid bacteria (LAB) can control gastrointestinal tract (GIT) microbiota by inhibiting the opportunistic bacteria growth, therefore, to control enteric pathogens, increment in probiotic strain activity in GIT is considerable (Mousavi et al., 2019). The activity of probiotics is increased in the presence of selected prebiotics. Therefore, it is suggested that the combination of probiotics and prebiotics (synbiotics) can give improved health benefits. The prebiotics enhances the probiotics’ beneficial activity, but at the same time, nondigestible and fermentable prebiotics such as fructans, inulin, and oligofructose play an important role in lowering the cholesterol levels in the blood. These inhibit the build-up of free cholesterol as plagues in arteries (Farkhandah et al., 2019). Various suitable strains of Lactobacilli and Bifidobacteria exist for human use (Marhamatizadeh and Ramezanian, 2016). The produced organic acids, especially lactate, by LAB during fermentation lead to a reduction in the pH, and Lactobacilli metabolic activity will lead to pH decrement till critical limit (Hashemi et al., 2018). According to several studies in this regard, to have the best therapeutic effects, it is needed to present an optimum number of probiotics, which is the “therapeutic minimum” and the amount is 105–106 CFU/g or mL of the product at consumption time and 108 CFU/g to have it in the gut (Tharmaraj and Shah, 2004) and the live cells (Sahadeva et al., 2011). Many factors such as bacterial type, pH, product acidity, heat-dependent processes (incubation and storage temperature), and growth factors influence the probiotic bacteria survival. Besides these, the probiotic viability of fermented products is also low due to low pH and high acidity, so the critical factor for these bacteria survival is to have high acidity along with low pH parameters (Kitazawa et al., 2001). However, during the food production process and digestion, the number of living cells is reduced in the small intestine due to stresses such as heat, cold, osmotic pressure, stomach acid, and bile salts (Sahadeva et al., 2011). Beneficial effects such as mucosal barrier increment, vitamin B synthesizing, cholesterol serum decrement, increasing the immune system, intestinal inflammation control, pathogenic microorganisms affecting control, diarrhea reduction, and antimutagenic activity increment can be obtained by consuming probiotics (Hashemi et al., 2017). Prebiotic could be appropriate for probiotic strain viability during the production period and product storage and protecting them while passing the GIT to reach the colon (Kocer and Unal, 2018). Genes can be activated to withstand stress (Maragkoudakis et al., 2006). Many ingredients have been added to yogurt in recent years, including Primula vulgaris (Lee et al., 2007), Mentha piperita, and Ziziphora clinopodioides (Sarabi-Jamab and Niazmand, 2009) to improve the nutritional, medicinal, and sensory properties and maintenance of yogurt. There are conflicting reports about the effecting of essential oils on the sensory properties so probiotic survival in yogurt, where some studies have shown a decrease in the sensory qualities of the yogurt (Moritz et al., 2015; Shahdadi et al., 2015), improved product properties sensory (Azizkhani and Parsaeimehr, 2018; Shahdadi et al., 2015), no adverse effect on probiotic activity (Azizkhani and Parsaeimehr, 2018; Sarabi-Jamab and Niazmand, 2009), and a negative impact on the activity and survival of probiotics (Azizkhani and Parsaeimehr, 2018). On the other side, the minimum inhibitory concentration (MIC) of plant essential oils against probiotics is high, while at the value of concentrations, the essential oils have inhibitory effects on pathogens. Therefore, the use of essential oils in low doses can kill pathogens without harming the probiotics (Calsamiglia et al., 2007). However, the probiotics’ survival in the production, maintenance, and consumption of yogurt is unclear because these bacteria are subject to various stresses. Therefore, the viability of commercial probiotic strains such as Lactobacillus acidophilus when exposed to NaCl and bile salts under different conditions should be evaluated. Many studies were performed to evaluate the probiotic survival strains against bile salts in vitro (Del Piano et al., 2006). However, there were some differences between the observations made in vitro and in vivo (Sahadeva et al., 2011). A combination of herbal products and probiotics can lead to tremendous major antimicrobial therapy. Probiotic microorganisms’ viability may be impacted due to the antimicrobial feature of herbs. Studies showed that herbs could enhance probiotics and pathogens inhibition (Be et al., 2009; Sutherland et al., 2009). Using herbal essential oil extract would significantly affect product properties, such as protein nutrition and structures (Keshavarzi et al., 2020). According to the study of Massoud et al. (2020) Rosmarinus officinalis essential oil (REO) has a considerable potential to deliver Bifidobacterium bifidum in a sufficient population in yogurt, as well as starter cultures. The lowest pH and highest acidity were found in the samples supplemented with 1% REO. Besides, the optimal viscosity and sensory scores of probiotic yogurts were found in the samples supplemented with 1% REO. The statistical analyses also revealed that during the refrigerated storage, the pH, sensory properties, bacterial counts, and viscosity reduced, while the acidity values increased (Massoud et al., 2020). In addition, in two separate studies conducted by Marteau et al. in 1997 and Lin et al. in 2006, the results presented no remarkable differences between the in vitro and in vivo observations. Therefore, the article’s objective was about the effects of Bunium persicum Boiss essential oil (BEO), NaCl (NC), and bile salts (BS) on L. acidophilus survival and physicochemical and sensory properties of produced yogurt.

Materials and Methods


BHI agar and BHIB broth medium were obtained from Sigma USA, MRS broth and MRS agar medium from Merck, and NaCl and bile salts from Sigma USA. Cow milk was obtained from Pegah (Tehran Plant), and Yogurt Commercial Ingredients: Duplex Express (Streptococcus thermophilus and Lactobacillus delbrueckii ssp. bulgaricus) were received from Chr. Hansen, Ltd., Denmark. All the processes to examination are showed in Figure 1.

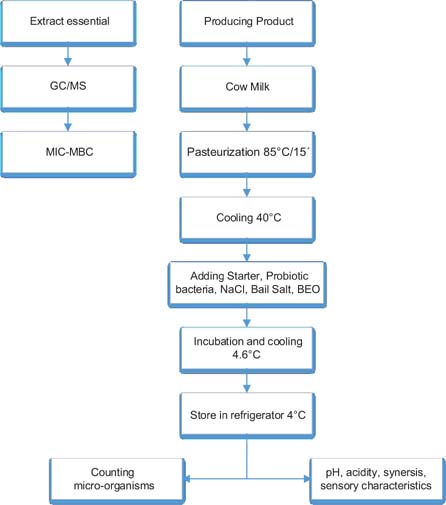

Figure 1. Process to examination flowchart.

Preparation of plant, essential oil, and its analysis

The B. persicum was collected from Kerman province of Iran in the summer, and its scientific name was confirmed by the Iranian National Plant Protection Research Institute in Tehran. The essential plant oil was extracted by water distillation and then analyzed by gas chromatography attached to a mass spectrometer (Model HP-6890, USA). For this purpose, HP-5MS capillary column with 30 m length and 0.25 mm inner diameter and 0.32 μm inner layer thickness was used. The temperature program was used at 60 to 265°C, with a gradual increase of 2.5°C, and finally, the column was maintained at 265°C for 30 min. The injection room temperature was 250°C, and the helium carrier gas passed through the tube at a speed of 1 mm/min (Mehdizadeh et al., 2019). Finally, the essential oil components were identified by ionization energy extraction time using FID inductor with an electrical capacity of 70 eV and ionization source temperature of 250°C (Marriott et al., 2001).

Preparation of inoculum

L. acidophilus is a popular strain in probiotics. Its usage of probiotic products is growing around the world (Tornuk et al., 2014). The strain of bacteria used in this article was L. acidophilus (ATCC4356), obtained from the institute of microbial collections of Iran. It was kept in a laboratory as a glycerol stock at −70°C and transferred in Brain Heart Infusion (BHI) broth at 37°C without shaking. Working cultures were prepared from stock cultures by two sequential transfers (1% inoculum) in BHI broth at 37°C for 18 h. L. acidophilus inoculated from working cultures to tubes of BHIB. Then, the secondary subculture was incubated in the same duration and temperature, and broth culture was adjusted to an optical density (OD) (absorbance) of 0.1 at 600 nm, using a Spectronic 20 spectrophotometer (Varian, USA). This adjustment gave a cell concentration of 2.2×1010 CFU/mL for acidophilus as detected in preliminary trials. The estimation of cells number in suspensions was done by counting the colonies at 37˚C after 24 h of incubation and duplicate plating serial dilutions from 10-fold on BHI agar.

Determining the minimum inhibitory concentration of Bunium persicum Bioss essential oil, NaCl, and bile salt

To determine the MIC, 96-well plates with a volume of 300 µL were used. Then 100 µL of essential oil, NaCl, and bile salts were transferred to each well, and 20 µL of bacterial suspension was added (final concentration of bacteria was 5×106 CFU/mL). The contents of each well were mixed with a Shaker Plate Reader for 2 min. The optical absorption was then read using a plate reader at 0 h at 630 nm. Plates incubation took 24 h at 35°C, and after visualization of turbidity or nonturbidity in the well, they were visualized and light absorbed by a plate reader at the mentioned wavelength.

Adaptation and challenge conditions

Cultures were grown to the mid-exponential growth phase. Bacterial cells were collected via centrifugation (Hettich, German) and suspended again in fresh BHIB (nonadapted control culture). The inoculation dose of L. acidophilus was 1×1010 CFU/mL. Adaptation (120 min) was performed in the same medium at 37°C (i) with 700 mL in 500 cc medium including 50% DMSO (BEO), (ii) 10 g per 100 mL in Mueller Hinton broth medium (NC), (iii) 0.01 g per 100 mL in Mueller Hinton broth medium (BS), (iv) 700 mL in 500 cc medium included 5% DMSO plus 10 g per 100 mL in Mueller Hinton broth medium (BEONC), (v) 700 mL in 500 cc medium included 50% DMSO plus 0.01 g per 100 mL in Mueller Hinton broth medium (BEOBS), (vi) 10 g per 100 mL plus 0.01 g per 100 mL in Mueller Hinton broth medium (NCBS), and (vii) 700 mL in 500 cc medium included 50% DMSO, 10 g per 100 mL, and 0.01 g per 100 mL in Mueller Hinton broth medium. After centrifugation, adapted and nonadapted cells were inoculated to the sterilized yogurt (108 per mL). Measuring colony-forming unit capacity (CFU) for samples (0.01mL) was done by removing at the desired intervals of days (0, 7, 14, 21, and 28). Plates were incubated before counting colonies at 37°C for 48 h. By challenge treatment to CFU at time zero, survival was specified as the ratio of CFU. In all experiments that have been done at least three times, each evaluation is the duplicate plating average.

Measurement of physicochemical properties of probiotic yogurt

Measurement of pH and acidity

The increment of yogurt bacteria’s metabolic activity and acidity results from fermenting yogurt with essential oils, which leads to acidity increment of treatments compared with the control sample due to producing organic acids of lactic acid bacteria. The reduction in pH values is by the growth of the lactic bacteria. Maltose, glucose, and fructose, respectively, had the highest consumption rate (Shokoohi et al., 2015). The acidity increased, and pH decreases gradually in all treatments because of the accumulation of acids such as lactic acid and formic acid (Keshavarzi et al., 2020). The acidity of samples as specified by the titration method is based on the percentage of lactic acid. 10 mL of the sample was titrated in the existence of phenolphthalein against N/10 NaOH. pH values were measured with a digital pH meter (Shahdadi et al., 2015).


First, to measure syneresis’s amount, 25 g of yogurt sample was weighed in centrifuge tubes and centrifuged at 350 x. g and 10°C for 30 min. The liquid that appeared on the tube was removed, and again the tubes were weighed. The amount of watering was reported as 100 grams of yogurt lost weight (Shahdadi et al., 2015).

Sensory analysis

Texture, flavor, and overall acceptability of probiotic-yogurt samples were analyzed after 28-day at 4°C storage. The characteristics of texture, flavor, and overall acceptability of the samples were evaluated by 10 trained panelists using the five-point hedonic method. The very good (very satisfied) score was considered 5, good (satisfactory) score of 4, average (acceptable) score of 3, poor (unacceptable) score of 2, and a very poor (unacceptable) score of 1. To show the importance of flavor in our sensory attributes, the sample is considered unacceptable in terms of the overall evaluation (Shahdadi et al., 2015).

Statistical analysis

Data were inspected utilized Completely Randomized Design (CRD). The Tukey test in SAS version 9 software performed the comparisons of data mean. Three replications were performed for each sample. Two-way ANOVA was used to determine the significance of the nonsignificance of data (P < 0.01).

Results and Discussion

Chemical composition of Bunium persicum Boiss essential oil

GC–MS analysis of the essential oil led to identifying 12 different compounds, representing 100% of the total oil (Table 1).

Table 1. Results of Bunium persicum Boiss essential oil.

No. Name Area%
1 α-Pinene 0.89
2 Sabinene 0.69
3 β-Pinene 1.79
4 β-Myrcene 0.62
5 Cymene 9.62
6 Limonene 12.84
7 Gamma-Terpinene 17.43
8 3-Cyclopentylcyclopentan-1-one 0.98
9 Propanal, 2-methyl-3-phenyl- 18.59
10 Carvone 26.03
11 1-Isopropylidene-3-n-butyl-2-cyclobutene 3.63
12 (R)-(+)-1-Phenyl-1-propanol 6.89

The main components were Carvone (26.03%), Propanal, 2-methyl-3-phenyl (18.59%), Gamma-Terpinene (17.43%), and Limonene (12.84%). It would also be noteworthy to point out that the composition of any plant essential oil studied is influenced by the presence of several factors, such as local, climatic, seasonal, and experimental conditions (Shahsavari et al., 2008). Abduganiew et al. (1997) analyzed the BPEO originating from Tajikistan, and they detected 22 compounds, including p-mentha-1, 4-dien-7 al, γ-terpinene, β-pinene, and cumin aldehyde (Abduganiew et al., 1997) and Mahmoudvand et al. analyzed BPEO that grow in the Jiroft, Kerman, Iran. The main components were g-terpinene (46.1%), cumin aldehyde (15.5%), r-cymene (6.7%), and limonene (5.9%) (Mahmoudvand et al., 2016).

MIC results

The MIC usually shows the antimicrobial effectiveness of a compound. The lowest compound concentration could inhibit organism growth. The MIC was described as “the lowest concentration, which resulted in maintenance or reduction of inoculum viability” over a 24-h contact time (Mann and Markham, 1998). The MIC of BEO, NC, and BS were 1, 4, and 0.3%, respectively.

Viability of L. acidophilus

The viability decrement (P < 0.01) of L. acidophilus was observed during storage in all samples (Figure 2).

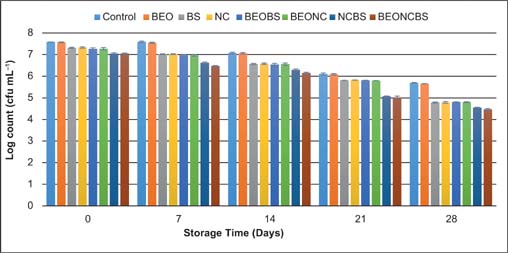

Figure 2. Effects of Bunium persicum essential oil (BEO), NaCl (NC), bile salts (BS), and their combinations on the survival of L. acidophilus ATCC-4356 (log CFU/mL). Deviation bars designate the standard error of the method (n = 3).

According to Figure 2, bypassing storage time, the L. acidophilus population in all the probiotic yogurt samples decreased, but the fall of survival rate in control and BEO treatments was less than that of the other treatments (P < 0.01). Based on a comparison of the population of L. acidophilus among all treatments at each point in time, it was found that the control and BEO treatments had a higher number of probiotic L. acidophilus throughout the days of storage compared with the stress treatments (P < 0.01). In addition, no considerable difference was observed between control and BEO treatments in L. acidophilus survival (P > 0.01). Among the stress treatments, the survival of the L. acidophilus was considerably higher and lower in the treatments with BEO and the stress of the BEONCBS, respectively (P < 0.01). There was no considerable difference between the survival of the L. acidophilus in the treatments under NC and BC alone and combination with BEO throughout the days of storage (P > 0.01). In addition, the stress treatment with NCBS after treatment with BEO had the lowest number of L. acidophilus. After 28 days of storage, the control treatment (5.69 ± 0.02 log CFU/mL) and the stress treatment with BEONCBS (4.47 ± 0.04 log CFU/mL) were assigned the highest and the lowest number of L. acidophilus, respectively. In the production of probiotics, the probiotic bacteria survival in yogurt and other similar products during storage until consumption is a critical factor (Azizkhani and Parsaeimehr, 2018). In this study, the L. acidophilus population in probiotic yogurt was considerably reduced after 4 weeks of storage at 4°C. In the control treatment, the L. acidophilus population was reduced from 7.58 ± 0.01 log CFU/mL on the first day of the storage period to 5.69 ± 0.02 log CFU/mL on the 28th day of the storage period. The L. acidophilus population was less than 5 logs CFU/mL after 28 days of storage for all the stress treatments (except for BEO, which was 5.66 ± 0.01 log CFU/mL). In the control treatment, the L. acidophilus bacteria amount slightly increased during the first 7 days of storage. Other researchers have reported an increment in the population of L. acidophilus bacteria in the probiotic yogurt during the first 7 days of storage (Cruz et al., 2012; Sarabi-Jamab and Niazmand, 2009). There were no considerable differences between the control and BEO and NC and BC treatments alone and in combination with BEO during the period of storage. This may be due to their bacterial resistance to pH values above 4 . L. acidophilus had resistance to acidic conditions, and it could survive up to pH = 4.05 ± 0.05. L. acidophilus can grow at pH = 4 and also titratable acidity should be more than 0.6% (Shah, 2000). The population decrement in the L. acidophilus bacteria during storage may be related to the organic acids cumulation due to growth and fermentation (Cruz et al., 2012). Probiotics are microorganisms that are alive and can produce substances that encourage the reproduction of other microorganisms. However, these microorganisms’ effects depend on the strain they belong to and the dose in the product in which they are found. On the other hand, the survival, growth, and viability of these microorganisms are affected by probiotic food production stages (Gunes and Gultekin, 2018). The L. acidophilus bacteria viability in the control treatment was higher than other treatments during the period of storage. Among the stress treatments, the number of L. acidophilus was considerably higher in the treatment with BEO than the other treatments (P < 0.01). The most viability of L. acidophilus under stress with BEO compared with other stress treatments may be due to slight changes in pH during this period than in the stress treatments (Azizkhani and Parsaeimehr, 2018). Other studies mentioned reducing L. acidophilus viability in probiotic yogurt containing essential oils during storage (Azizkhani and Parsaeimehr, 2018; Lee et al., 2007; Shahdadi et al., 2015). Studies showed that M. piperita essential oil and peppermint decreased the activity of L. acidophilus in probiotic yogurt (Sarabi-Jamab and Niazmand, 2009). One of the important criteria in selecting lactic acid bacteria for use as probiotics is their resistance to NaCl and bile salt concentration, which are the essential requirements for small intestine bacteria metabolic activity increment (Sutherland et al., 2009). The small and large intestines of humans and animals contain relatively large bile acids that can inhibit the growth or kill many bacteria. Therefore, probiotic bacteria must grow at bile concentrations of 0.15–0.30 to be effective (Šušković et al., 2000). In the present study, the L. acidophilus viability in stress treatment containing 0.15% BS was 5.81 ± 0 CFU/mL up to 21 days of storage as defined in the range of 105–106 CFU/mL for food. The resistance of some strains to bile salts is attributed to their ability to hydrolyze bile salts, which reduces their toxicity and adverse effects (Amraii et al., 2014). After 21 days of storage, the L. acidophilus bacteria population was decreased, and the survival rate of L. acidophilus was less than the permissible limit. The main reason for the fall of L. acidophilus is cellular homeostatic abnormalities where they were exposed to bile salts. The cell death mechanism of probiotic strain was related to cell membrane lipids and protein breakdown (Amraii et al., 2014; Sahadeva et al., 2011). Indeed, bile salts kill microorganisms by disrupting the structure of the cell walls. Therefore, resistance to bile salts is an essential feature of probiotics that preserve their viability and activity in the small intestines. Probiotics neutralize their effects by producing bile salt-hydrolyzing enzymes (Sahadeva et al., 2011). Different salt concentrations impact the probiotic strains’ survival rate, especially at the industrial level (Gandhi and Shah, 2015), and also, the L. acidophilus viability was decreased when exposed to high concentrations of salt during the storage period (Gandhi and Shah, 2015). The results obtained by Massoud and Sharifan showed a considerable decline in the L. acidophilus activity after exposure to the essential oils (EOs) of Z. clinopodioides and M. piperita in yogurt. The chemical composition of EOs, their phenolic profiles, and secreted metabolites by the starter cultures could cause various effects on bacterial growth. Notably, phenolic compounds could be converted into more active derivatives (Massoud and Sharifan, 2020). Based on the results, the number of L. acidophilus bacteria under NC stress (NaCl 2 %) treatment at 21st day of storage period (5.83 ± 0 log CFU/mL) was higher than that of 28 days of storage period (5 logs CFU/mL) (Gandhi and Shah, 2015). They found that the L. acidophilus bacteria viability decreased parallel to increasing salt concentration from zero to 5% and storage period from 1 h to 1 week. Therefore, BEO treatment is considered a suitable environment for L. acidophilus survival, and it is also recommended for consumers.

Titratable acidity and pH

The pH and TA content of yogurt were considerably affected during the storage period (P < 0.01) (Figures 2 and 3).

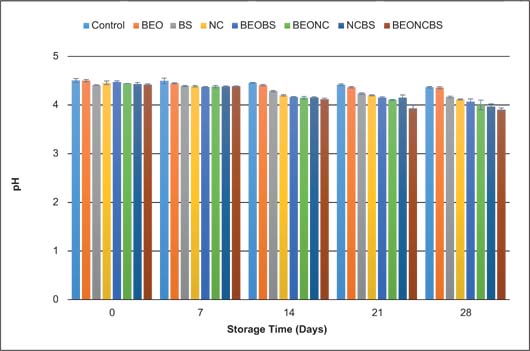

Figure 3. Effect of Bunium persicum essential oil (BEO), NaCl (NC), bile salts (BS), and their combinations on changes to the pH of probiotic yogurt. Deviation bars designate the standard error of the method (n = 3).

Parallel to the decrease in pH value, TA was considerably increased. Control and BEO samples had the lowest content of pH in comparison to other treatments. In terms of pH and TA values, there were no considerable differences between control and BEO treatments during the 28 days storage period (P > 0.01) (Figures 3 and 4).

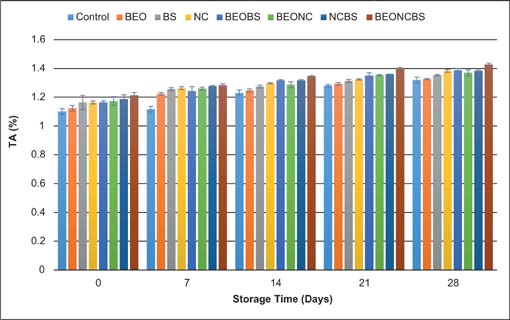

Figure 4. Effects of Bunium persicum essential oil (BEO), NaCl (NC), bile salts (BS), and their combinations on changes to the acidity of probiotic yogurt. Deviation bars designate the standard error of the method (n = 3).

In addition, there were no considerable differences between treatments under stress with NC and BS exclusively after 28 days of storage (P > 0.01). BEONCBS treatment had the most TA and less pH among all samples, and then NCBS treatment had the lowest and the most pH parameter and TA during the storage period. At the end of the 28th day, the control treatment had the highest pH (4.37 ± 0.01) and the lowest TA (1.32 ± 0.02), whereas the treatment under stress with BEONCBS had the lowest pH (3.90 ± 0.03) and the highest TA (1.43 ± 0.01). As mentioned above, the total pH decreased during refrigeration at 4°C for all the treatments (P < 0.01). The range of pH of all the samples varied from 3.9 to 4.4 during the period of storage. The results showed that the control treatment had more pH and less acidity than others (P < 0.01). Among the stress treatments, BEO treatment had a more pH and less acidity than others. The main reason for TA and pH changes could be attributed to the lactose alteration to lactic acid during fermentation, starter culture type, storage duration, and incubation temperature (Singh et al., 2011). Catabolism of lactose by the starter bacteria resulted in lactic acid production. For this reason, pH decreased, and the acidity of samples gradually increased during the storage period (Ramasubramanian et al., 2008). L. acidophilus reduced pH values and increased acidity of yogurt by producing lactic acid (Mortazavian et al., 2006). In stress treatments with NC and BS, pH values decreased, and acidity values increased during storage. Salt impressed the growth of starter culture and consequently changed the production of lactic acid content (Gandhi and Shah, 2015). Moreover, lactic acid production correlated to the viable counts of probiotic strain and prevented starter cultures’ growth due to acid production during the storage (Ahari et al., 2020).


The percentage of syneresis of all samples was considerably increased during storage (P < 0.01). The amount of syneresis was higher for stress treatments than the control sample (except for the BEO treatment) (Figure 5).

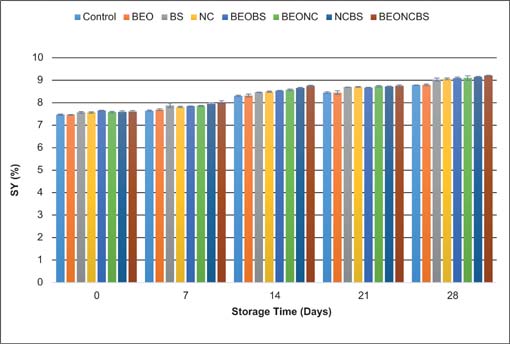

Figure 5. Effects of Bunium persicum essential oil (BEO), NaCl (NC), bile salts (BS), and their combinations on changes to the syneresis of probiotic yogurt. Deviation bars designate the standard error of the method (n = 3).

Because proteins were hydrolyzed during the storage period, free amino acids and short-chain polypeptides were released. These compounds were hydrophilic and increased water-holding capacity (Cumby et al., 2008). Protein denaturation may also have a different impact on the capacity of water holding and syneresis content (Isleten and Karagul-Yuceer, 2006). The control and BEO treatments had lower syneresis than the other treatments (P < 0.01). Lower pH could be an important impact on forming the gel network, and the gel network was weak for treatments with higher pH because of higher electrostatic repulsion among micellar caseins. This might cause a weak gel network during incubation and result in higher syneresis in yogurt (Yangilar and Yildiz, 2018). Hence, control and BEO treatments were expected to have a lower syneresis than the other stress treatments. In addition, probiotic strain and starter culture bacteria hydrolyzed proteins and caused higher syneresis in yogurt during storage in the refrigerator. Syneresis influenced the texture of yogurt and caused weak network gel (Seitz, 1990).

Sensory properties

The addition of B. persicum essential oil (BEO) changed the sensory properties (flavor, texture, and general acceptance) of probiotic yogurt considerably (P < 0.01). Table 2 showed texture, flavor, and overall acceptance scores of probiotic yogurts decreased during all samples’ storage period. On the first day of the storage period, no considerable differences were observed in all samples (P > 0.01).

Table 2. Effects of Bunium persicum (Boiss) essential oil (CEO), NaCl (NC), bile salts (BS), and their combinations on the organoleptic properties/scores* of probiotic yogurts**.

Sensory property Yogurt sample Storage time (day)
0 7 14 21 28
Flavor Control 5 ± 0a 5 ± 0a 5 ± 0a 4.1 ± 0.57b 3.8 ± 0.42bc
BEO 5 ± 0a 5 ± 0a 4.9 ± 0.32a 4 ± 0.47bc 3.7 ± 0.48c
BS 5 ± 0a 5 ± 0a 4 ± 0bc 3.9 ± 0.32bc 3.3 ± 0.48d
NC 5 ± 0a 5 ± 0a 4 ± 0bc 3.9 ± 0.32bc 3.3 ± 0.48d
BEOBS 5 ± 0a 5 ± 0a 4 ± 0bc 3.9 ± 0.32bc 3.3 ± 0.48d
BEONC 5 ± 0a 5 ± 0a 4 ± 0bc 3.9 ± 0.32bc 3.3 ± 0.48d
NCBS 5 ± 0a 5 ± 0a 4 ± 0bc 3.3 ± 0.48d 3.2 ± 0.42d
BEONSBS 5 ± 0a 5 ± 0a 4 ± 0bc 3 ± 0d 3 ± 0d
Texture Control 5 ± 0a 5 ± 0a 4.4 ± 0.52b 4.3 ± 0.48b 3.4 ± 0.52d
BEO 5 ± 0a 5 ± 0a 4.3 ± 0.48b 4.2 ± 0.42bc 3.3 ± 0.48de
BS 5 ± 0a 5 ± 0a 4 ± 0c 3.7 ± 0.48c 3.3 ± 0.48de
NC 5 ± 0a 5 ± 0a 4 ± 0c 3.7 ± 0.48c 3.3 ± 0.48de
BEOBS 5 ± 0a 5 ± 0a 4 ± 0c 3.7 ± 0.48c 3.3 ± 0.48de
BEONC 5 ± 0a 5 ± 0a 4 ± 0c 3.7 ± 0.48c 3.3 ± 0.48de
NCBS 5 ± 0a 5 ± 0a 4 ± 0c 3 ± 0e 3 ± 0e
BEONSBS 5 ± 0a 5 ± 0a 4 ± 0c 3 ± 0e 3 ± 0e
Overall acceptability Control 5 ± 0a 5 ± 0a 4.3 ± 0.48b 4.2 ± 0.63bc 3.9 ± 0.32bcdef
BEO 5 ± 0a 5 ± 0a 4.3 ± 0.48b 4.1 ± 0.57bcd 3.8 ± 0.42cdefg
BS 5 ± 0a 4 ± 0bcde 3.7 ± 0.48defg 3.7 ± 0.48defg 3.5 ± 0.53fg
NC 5 ± 0a 4 ± 0bcde 3.7 ± 0.48defg 3.7 ± 0.48defg 3.5 ± 0.53fg
BEOBS 5 ± 0a 4 ± 0bcde 3.7 ± 0.48defg 3.6 ± 0.52efg 3.5 ± 0.53fg
BEONC 5 ± 0a 4 ± 0bcde 3.7 ± 0.48defg 3.7 ± 0.48defg 3.5 ± 0.53fg
NCBS 5 ± 0a 4 ± 0bcde 3.8 ± 0.42cdefg 3.7 ± 0.48defg 3.5 ± 0.53fg
BEONSBS 5 ± 0a 4 ± 0bcde 3.8 ± 0.42cdefg 3.4 ± 0.52g 3.4 ± 0.52g

*Mean ± standard deviation.

**Each column and row with the same letters indicates that there was no considerable difference at P > 0.01.

On the 28th day of storage, control treatment and the stress treatment with BEONCBS had the highest and the lowest scores in all sensory properties, respectively. In addition, there was no considerable difference between treatments under stress containing NC and BS individually and combined with CBEO in each specified day of storage period (P > 0.01). Probiotic strains inhibited reactions related to producing flavor and odor, and they were very complex, and it is necessary to perform sensory evaluations to specify the suitable sample. The scores for the flavor of probiotic yogurt decreased during the storage period; however, the control sample had a high score among all treatments. The scores for control and stress treatments with BEONCBS were 3.80 ± 0.42 and 3 ± 0, respectively. The decrease of flavor score might have been due to the rising acidity value and diminishing activity of flavor-producing bacteria (Donkor et al., 2006). Proteolytic Lactobacillus strains, such as L. acidophilus, produced effective flavor ingredients via carbohydrate metabolism, proteolysis, and mild lipolysis. These enzymes hydrolyze casein and produce large and medium peptides. Peptides might be decomposed into small peptides and free amino acids by proteolytic enzymes produced from microflora of starter bacteria, nonacidic lactic acid, and probiotics. These compounds are responsible for flavor in dairy products (Seitz, 1990). The texture score of the probiotic yogurt also decreased during the storage period. The highest score for texture was attributed to the control sample (3.40 ± 0.52) up to the end of the storage period. The percentage of syneresis is related to the firmness of texture. The more syneresis during storage, the looser the texture results in yogurt (Ayar and Gurlin, 2014). The overall acceptance score decreased with time in all samples due to attention to flavor and texture scores. At the end of the storage period, the control sample had the highest score (3.90 ± 0.32), and the stressed sample with BEONSBS had the lowest score (3.40 ± 0.52) with due attention of overall acceptance.


The number of L. acidophilus and organoleptic acceptability decreased; however, the percentages of titratable acidity and syneresis increased during the storage period for all samples. Use of B. persicum Boiss essential oil individually or combined with NaCl and bile salts at 50% MIC in yogurt, which was kept in a refrigerator for 28 days of the storage period, provided a suitable environment for bioavailability of L. acidophilus. Herbal essential oils are being used as a new strategy for the viability increment of probiotic strains in fermented probiotics such as yogurt, in addition to meeting consumer expectations regarding the properties of the product sensory BEO could be improved the nutritional, medicinal, and sensory properties and maintenance of yogurt. However, the MIC of plant essential oils against probiotics is high, whereas at much lower concentrations, the essential oils have inhibitory effects on pathogens, so an important impact of this article is increment viability of bacteria in probiotic products. Therefore, the use of essential oils in low doses can kill pathogens without harming the probiotics, and it would be suggested that evaluate the texture properties of yogurt in storage time in a future article.


This article was invested by the Department of Food Science and Technology, Islamic Azad University, Tehran, Iran.


Abduganiew, B.E., Abdullaev, U.A., Aripov, K.N., Baser, K.H.C. and Oezek, T., 1997. Composition of the essential oil of Bunium persicum (Boiss.) B. Fedtsch. from Tajikistan. Journal of Essential Oil Research 9: 597–598. 10.1080/10412905.1997.9700786

Ahari, H., Massoud, R. and Sharifan, A., 2020. The effect of cuminum essential oil on rheological properties and ShelfLife of Probiotic Yogurt. Journal of Nutrition and Food Security 5: 302. 10.18502/jnfs.v5i4.4431

Amraii, H.N., Abtahi, H., Jafari, P., Mohajerani, H.R., Fakhroleslam, M.R. and Akbari, N., 2014. In vitro study of potentially probiotic lacticacid bacteria strains isolated from traditional dairy products. Jundishapur Journal of Microbiology 7(6): 1–5. 10.5812/jjm.10168

Ayar, A. and Gurlin, E., 2014. Production and sensory, textural, physico-chemical properties of flavoured spreadable yogurt. Life Science Journal 11(4): 58–65.

Azizkhani, M. and Parsaeimehr, M., 2018. Probiotics survival, antioxidant activity and sensory properties of yogurt flavoured with herbal essential oils. International Food Research Journal 25(3): 921–927.

Be, K., Gamlath, S. and Smith, S.C., 2009. In-vitro antimicrobial effect of spices on probiotic bacteria. Australasian Medical Journal 1: 113–140.

Calsamiglia, S., Busquet, M., Cardozo, P.W., Castillejos, L. and Ferret, A., 2007. Invited review: essential oils as modifiers of rumen microbial fermentation. Journal of Dairy Science 90(6): 2580–2595. 10.3168/jds.2006-644

Cruz, A.G., Cadena, R.S., Faria, J.A., Bolini, H.M., Dantas, C., Ferreira, M.M., et al., 2012. PARAFAC: adjustment for modeling consumer study covering probiotic and conventional yogurt. Journal of Food Research International 45(1): 211–215. 10.1016/j.foodres.2011.09.031

Cumby, N., Zhong, Y., Naczk, M. and Shahidi, F., 2008. Antioxidant activity and water-holding capacity of canola protein hydrolysates. Journal of Food Chemistry 109(1): 144–148. 10.1016/j.foodchem.2007.12.039

Cristina, G., Lucía, B., Manuel, R. and Mario, D., 2018. A new synbiotic dairy food containing lactobionic acid and Lactobacillus casei. International Journal of Dairy Technology 70: 1–2. 10.1111/1471-0307.12558

Del Piano, M., Morelli, L., Strozzi, G., Allesina, S., Barba, M., Deidda, F., et al., 2006. Probiotics: from research to consumer. Digestive and Liver Disease 38: S248–S255. 10.1016/S1590-8658(07)60004-8

Donkor, O.N., Henriksson, A., Vasiljevic, T. and Shah, N.P., 2006. Effect of acidification on the activity of probiotics in yogurt during cold storage. International Dairy Journal 16(10): 1181–1189. 10.1016/j.idairyj.2005.10.008

Farkhandah, S., Umar, F., Afshan, S., Zafar, H., Kashif, A. and Hafeez, U., 2019. Hypolipidaemic effects of synbiotic yoghurt in rabbits. International Journal of Dairy Technology72: 545–555. 10.1111/1471-0307.12618.

Gandhi, A. and Shah, N.P., 2015. Effect of salt on cell viability and membrane integrity of Lactobacillus acidophilus, Lactobacilluscasei and Bifidobacteriumlongum as observed by flow cytometry. Food Microbiology Journal 197–198. 10.1016/

Gunes, B.A. and Gültekin, B.M., 2018. The effect of cinnamon on microbiological, chemical and sensory nalyses of probiotic yogurt. Bezmialem Science 7(4): 311–316. 10.14235/bas.galenos.2018.2628

Hashemi, M.B., Gholamhosseinpour, A. and Mousavi, K.A., 2018. Fermentation of acorn dough by lactobacilli strains: phytic acid degradation and antioxidant activity. LWT–Food Science and Technology 8–9. 10.1016/j.lwt.2018.10.054

Hashemi, M.B., Mousavi, K.A., Barba, F., Nemati, Z., Sohrabi Shokofti, S. and Alizadeh, F., 2017. Fermented sweet lemon juice (Citrus limetta) using Lactobacillus plantarum LS5: chemical composition, antioxidant and antibacterial activities. Journal of Functional Foods 38: 409–414. 10.1016/j.jff.2017.09.040

Isleten, M. and Karagul-Yuceer, Y., 2006. Effects of dried dairy ingredients on physical and sensory properties of nonfat yogurt. Journal of Dairy Science 89(8): 2865–2872. 10.3168/jds.S0022-0302(06)72559-0

Keshavarzi, M., Sharifan, A. and Yasini Ardakani, A., 2020. Effect of the ethanolic extract and essential oil of Ferulago angulata (Schlecht.) Boiss. on protein, physicochemical, sensory, and microbial characteristics of probiotic yogurt during storage time. International Journal of Food Science and Nutrition 1–12. 10.1002/fsn3.1984

Kitazawa, H., Ueha, S., Itoh, S., Watanabe, H., Konno, K., Kawai, Y., et al., 2001. AT oligonucleotides inducing B lymphocyte activation exist in probiotic Lactobacillusgasseri. International Journal of Food Microbiology 65(3): 149–162. 10.1016/S0168-1605(00)00500-6

Kocer, E. and Unal, G., 2018. Effect of different prebiotics on viability under in vitro gastrointestinal condition and sensory propertiesof fermented milk. Italian Journal of Food Science 30: 580.

Lee, S.J., Hwang, J.H., Lee, S., Ahn, J. and Kwak, H.S., 2007. Property changes and cholesterol-lowering effects in evening primrose oil-enriched and cholesterol-reduced yogurt. International Journal of Dairy Technology 60(1): 22–30. 10.1111/j.1471-0307.2007.00294.x

Lin, W.H., Hwang, C.F., Chen, L.W. and Tsen, H.Y., 2006. Viable counts, characteristic evaluation for commercial lacticacid bacteria products. Food Microbiology 23(1): 74–81. 10.1016/

Mahmoudvand, H., Tavakoli Oliaei, R., Mirbadie, S.R., Kheirandish, F., Tavakoli Kareshk, A. and Ezatpour, B., 2016. Efficacy and safety of bunium persicum (boiss) to inactivate protoscoleces during hydatid cyst operations. Journal of Surgical Infections 17: 4–5. 10.1089/sur.2016.010

Mann, C.M. and Markham, J.L., 1998. A new method for determining the minimum inhibitory concentration of essential oils. Journal of Applied Microbiology 84: 538–544. 10.1046/j.1365-2672.1998.00379.x

Maragkoudakis, P.A., Zoumpopoulou, G., Miaris, C., Kalantzopoulos, G., Pot, B. and Tsakalidou, E., 2006. Probiotic potential of Lactobacillus strains isolated from dairy products. International Dairy Journal 16(3): 189–199. 10.1016/j.idairyj.2005.02.009

Marhamatizadeh, M.H. and Ramezanian, G.S., 2016. The combined effect of thymus vulgaris extract and probiotic bacterial (Lactobacillus acidophilus and bifidobaterium bifidum) on aflatoxin miconcentration in kefir beverage. Italian Journal of Food Science 28(3): 518. 10.14674/1120-1770/ijfs.v244

Marriott, P.J., Shellie, R. and Cornwell, C., 2001. Gas chromatographic technologies for the analysis of essential oils. Journal of Chromatography A 936: 1–22. 10.1016/S0021-9673(01)01314-0

Marteau, P., Minekus, M., Havenaar, R. and Huis, J., 1997. Survival of lactic acid bacteria in a dynamic model of the stomach and small intestine: validation and the effects of bile. Journal of Dairy Science 80(6): 1031–1037. 10.3168/jds.S0022-0302(97)76027-2

Massoud, R. and Sharifan, A., 2020. The assessment the quality of probiotic yogurt using the rosmarinus officinalis essential oil. Journal of Nutrition, Fasting and Health 8(3): 176–185. 10.22038/jnfh.2020.47876.1260

Mehdizadeh, T., Mojaddar Langroodi, A., Shakouri, R. and Khorshidi, S., 2019. Physicochemical, microbiological, and sensory characteristics of probiotic yogurt enhanced with Anethum graveolens essential oil. Journal of food safety 120: 12066. 10.1111/jfs.12683

Moritz, C.M.F., Rall, V.L.M., Saeki, M.J. and Fernandes Junior, A., 2015. Assessment of antimicrobial activity of cinnamon (Cinnamomum zeylanicum) essential oil combined with EDTA and polyethylene glycol in yogurt. Acta Scientific 37(1): 99–104. 10.4025/actascitechnol.v37i1.17325

Mortazavian, A., Ehsani, M., Mousavi, S., Reinheimer, J., Emamdjomeh, Z., Sohrabvandi, S., et al., 2006. Preliminary investigation of the combined effect of heat treatment and incubation temperature on the viability of the probiotic microorganisms in freshly made yogurt. International Journal of Dairy Technology 59(1): 8–11. 10.1111/j.1471-0307.2006.00216.x

Mousavi, K.A., Abhari, K.H., Ismail, E.Ş., Soares, M.B., Oliveira, R.B.A., Hosseini, H., et al., 2019. Interactions between probiotics and pathogenic microorganisms in hosts and foods: a review. Trends in Food Science & Technology 95:205–218. 10.1016/j.tifs.2019.11.022

Mousavi, K.A. and Fakhri, Y., 2019. Probiotics and prebiotics as functional foods: state of the art. Journal of Current Nutrition & Food Science. 15. 10.2174/1573401314666180416120241.

Ramasubramanian, L., Restuccia, C. and Deeth, H.C., 2008. Effect of calcium on the physical properties of stirred probiotic yogurt. Journal of Dairy Science 91(11): 4164–4175. 10.3168/jds.2008-1354

Rezaei, M., Noori, N., Shariatifar, N., Gandomi, H., Basti, A.A. and Khaneghah, A.M., 2020. Isolation of lactic acid probiotic strains from Iranian camel milk: technological and antioxidant properties. LWT–Food Science and Technology 132: 109823. 10.1016/j.lwt.2020.109823

Sahadeva, R., Leong, S., Chua, K., Tan, C., Chan, H., Tong, E., et al., 2011. Survival of commercial probiotic strains to pH and bile. International Food Research Journal 18(4): 1515–1522.

Sarabi-Jamab, M. and Niazmand, R., 2009. Effect of essential oil of Mentha piperita and Ziziphora clinopodioides on Lactobacillus acidophilus activity as bioyogurt starter culture. American-Eurasian Journal of Agricultural & Environmental Sciences 6(2): 129–131.

Seitz, E.W., 1990. Microbial and enzyme-induced flavours in dairy foods. Journal of Dairy Science 73(12): 3664–3691. 10.3168/jds.S0022-0302(90)79070-4

Shah, N., 2000. Probiotic bacteria: selective enumeration and survival in dairy foods. Journal of Dairy Science 83(4): 894–907. 10.3168/jds.S0022-0302(00)74953-8

Shahdadi, F., Mirzaie, H., Kashaninejad, M., Khomeiri, M., Ziaiifar, A.M. and Akbarian, A., 2015. Effects of various essential oils on chemical and sensory characteristics and activity of probiotic bacteria in drinking yogurt. Journal of Agricultural Communications 3(1): 16–21.

Shahsavari, N. and Barzegar, M., 2008. Antioxidant activity and chemical characterization of essential oil of bunium persicum. Journal of Plant Foods for Human Nutrition 63: 183–188. 10.1007/s11130-008-0091-y

Shokoohi, M., Razavi1, S.H., Labbafi, M., Vahidinia, A. and Gharibzahedi, S.M.T., 2015. Wheat sprout flour as an attractive substrate for the producing probiotic fermented beverages: process development and product characterisation. Quality Assurance and Safety of Crops & Foods 7(4): 469–475. 10.3920/QAS2014.0402

Singh, G., Kapoor, I.P.S. and Singh, P., 2011. Effect of volatile oil and oleoresin of anise on the shelf life of yogurt. Journal of Food Processing and Preservation 35(6): 778–783. 10.1111/j.1745-4549.2011.00528.x

Šušković, J., Kos, B., Matošić, S. and Besendorfer, V., 2000. The effect of bile salts on survival and morphology of a potential probiotic strain Lactobacillusacidophilus M92. Journal of Microbiology and Biotechnology 16(7): 673–678. 10.1023/A:1008909505651

Sutherland, J., Miles, M., Hedderley, D., Li, J., Devoy, S., Sutton, K. and Lauren, D., 2009. In vitro effects of food extracts on selected probiotic and pathogenic bacteria. International Journal of Food Sciences and Nutrition 60(8): 717–727. 10.3109/09637480802165650

Tharmaraj, N. and Shah, N.P., 2004. Survival of Lactobacillusacidophilus, Lactobacillusparacasei subsp. paracasei, Lactobacillusrhamnosus, Bifidobacterium animalis and Propionibacterium in cheese-based dips and the suitability of dips as effective carriers of probiotic bacteria. International Dairy Journal 14(12): 1055–1066. 10.1016/j.idairyj.2004.04.011

Tornuk, F., Ozturk, I., Karaman, S., Sagdic, O. and Yetim, H., 2014. Rheological and some physicochemical properties of probiotic boza beverage fermented with Lactobacillus casei Shirota: application of principal component analysis for the characterisation. Journal of Quality Assurance and Safty of Crop and Foods 6(2): 237–247. 10.3920/QAS2012.0231

Yangilar, F. and Yildiz, P.O., 2018. Effects of using combined essential oils on quality parameters of bio-yogurt. Journal of Food Processing and Preservation 42(1): e13332. 10.1111/jfpp.13332
