Original Article

Mechanical properties of stem and physiological–biochemical responses of cucumber under different N and K conditions

Yong Liu1, 2, Yafei Wang1, 2, Guoxin Ma1, 2, Bin Wang1, 2, Xiaoxue Du1, 2, Qiang Shi1, 2, Jiheng Ni1, 2, Hanping Mao1, 2*

1School of Agricultural Engineering, Jiangsu University, Zhenjiang, China;

2Key Laboratory of Modern Agricultural Equipment and Technology, Ministry of Education, Jiangsu University, Zhenjiang, China


In order to investigate the effects of N and K on the mechanical properties of cucumber stems, the physiological and biochemical indexes under different N and K conditions were compared. The analysis showed that the photosynthetic rate was affected by both stress and the self-senescence of cucumber plants, and that the crops under N and K stress were stimulated to activate a highly effective antioxidant system to cope with the damage. Sugar, as the basis for the synthesis and structure formation of the stems, was highly related to stem strength, and polyphenol oxidase in the study of stem strength was limited but indispensable. Compared with CK, the epidermal penetration strength under LN, LNLK, and LNHK treatments increased by at least 10%, while the strength under HN, LK, HNLK, and HNHK treatments decreased by at least 7%. To sum up, it was the photosynthesis rate, the sucrose transportation, as well as the futile cycling of K+ that were the keys of stem strength.

Key words: greenhouse cucumber, mechanical properties, nitrogen stress, physiological and biochemical indexes, potassium stress, stem

*Correspondence Author: Hanping Mao. School of Agricultural Engineering, Jiangsu University, Zhenjiang, China; Key Laboratory of Modern Agricultural Equipment and Technology, Ministry of Education, Jiangsu University, Zhenjiang, China. Email: [email protected]

Received: 12 December 2021; Accepted: 18 January 2022; Published: 5 February 2022

DOI: 10.15586/qas.v14i1.1035

© 2022 Codon Publications

This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (


Cucumber, an important vegetable crop with a wide cultivation area, is assuming great importance because its fruits are delicious with nutrient enrichment and fragrance, as well as often used in beauty products (Zhang et al., 2020, 2021a). The total planting area in China exceeded half of the cucumber planting area worldwide (Cao et al., 2021), which was second only to tomatoes in China (Wang et al., 2020b). Hence, studying the response of cucumber to stress and improving the yield and quality are of great significance for the completion of the “vegetable basket” project and the maintenance of national food safety (Li et al., 2021a; Wang et al., 2020a).

The global population was expected to reach 9.6 billion by 2050, which required crop yields to increase by more than 85% compared to 2013 (Mu and Chen, 2021); an increasing amount of fertilizers was therefore used in modern agricultural crop production to meet the requirements of the rapidly escalating population for crop yield and quality (Waqas et al., 2021; Zhu et al., 2020). The amount of N fertilizers applied globally had increased 10-fold in the past 60 years (Huang et al., 2021), and the K fertilizer requirements in China had far exceeded mined K resources (Li et al., 2021d), which not only caused pollution, destruction of ecological balance and soil nutrients but also had a huge impact on human economic benefits and health (Chen et al., 2018; Sabzi et al., 2021). Therefore, investigating the response of crops to NK and balancing fertilizer application are the bases of the need to balance benefits and costs and avoid environmental degradation (Huang et al., 2021; Li et al., 2021c; Zhu et al., 2020).

N and K are the basic elements of crop growth and are essential for enhancing the quantity and quality of the harvested produce (Li et al., 2021b, 2021d). N affected crop growth externally by reducing leaf area and green leaf lifespan, and internally by inhibiting the synthesis of chlorophyll and protein to reduce photosynthetic products (Dos Santos et al., 2020; Mu and Chen, 2021). K+ participated in protein synthesis, photosynthesis, enzyme activation, regulation of osmosis, and ion homeostasis (Li et al., 2021c), and the research of Yang, H. et al. showed that under low K+ condition, the K+ concentration of old leaves decreased, but the concentration of new leaves changes little because of the highly mobile potassium in the crop (Yang et al., 2020). In addition, phloem transportation and biomass partitioning also depended on the regulation of K+ (Li et al., 2021d). As a signal, reactive oxygen species (ROS) played an important role in the physiological process of crop response to stress (Wang et al., 2013), but excessive ROS induced oxidative damage of the plasma membrane and produced malondialdehyde (MDA), which was also one of the main factors of reduced photosynthesis (Pi et al., 2014). In order to cope with the damage of ROS, in the initial stage of stress, crops defended by increasing the activity of catalase (CAT) and superoxide dismutase (SOD) (Yang et al., 2021). The sugars in tomato (Sung et al., 2015), rice (Khan et al., 2021), stevia (Sun et al., 2021), and corn (Ma et al., 2020), as the main form of photosynthetic products, all had significant changes under stress. Polyphenol oxidase (PPO), which is widely present in animals and plants, was a key enzyme determining the color of mammalian skin, hair, fruits and vegetables, and food softening (Kim et al., 2005; Ren et al., 2021). It was reported by Kunito, T., et al. that PPO promoted the degradation of cellulose and lignin in the soil, and its activity decreased with the increase of N (Kunito et al., 2009), which was of importance for the study of stem strength.

There was a tight relationship between NK and stem strength. Based on previous research, it could be concluded that low K and high N reduced the stem strength (Li et al., 2021d; Xue et al., 2017) mainly by inhibiting the synthesis of cellulose and lignin or changing the structure of the cell wall. The production and partitioning of biomass were determined by N and K, and subsequently, the composition content of the stem and the structure of the cell wall were affected. Furthermore, the stems were easier to be located and observed because they were not covered compared with the roots and had a smaller number compared with the leaves. However, the current research on stem strength was mainly used to investigate the lodging resistance characteristics of crops (Li et al., 2021d; Manga-Robles et al., 2021; Sekhon et al., 2020; Shao et al., 2021; Xue et al., 2017), which was extremely surprising and regrettable. Hence, as the only channel for nutrient transport and carbohydrate partitioning between roots and leaves, stems deserve more attention in crop response to stress. This study investigated the response of cucumber stem strength to N and K with the comparison of physiological and biochemical characteristics under different N and K conditions. These investigations are vital, not only for broadening application range of stem strength but also for understanding the response of crops to adversity with the mechanical properties of stems.

Materials and Methods

Test location and details

The “Jinyou 1” cucumber, which was acquired from Tianjin Academy of Agricultural Sciences, Tianjin, China, was used in the experiment in the Venlo greenhouse of Jiangsu University from June to July 2021. The seeds germinated and grew in the plug tray until true leaves appeared and expanded, and then were transplanted into a pot (diameter 29.5 cm, height 19.3 cm) filled with 8 L perlite. The seedlings were irrigated with Kawasaki solution (Jiheng et al., 2011) once every morning from 8:00 to 9:00 a.m., 600 mL each time. The standard composition was: Ca (NO3)2•4H2O, 826 mg/L; KNO3, 607 mg/L; NH4H2PO4, 114 mg/L; MgSO4•7H2O, 429 mg/L; Fe-EDTA, 7 mg/L; MnSO4•4H2O, 1.7 mg/L; Na2B4O7•10H2O, 2.45 mg/L; ZnSO4•4H2O, 1.45 mg/L; CuSO4•5H2O, 0.19 mg/L; and Na2MoO4•2H2O, 0.12 mg/L. Finally, data collection was performed during the flowering period.

Experiment design

On the 10th day after transplanting, the seedlings were distributed within nine groups, after which nutrient treatments were initiated. There were three levels of nitrogen (50, 100, and 150%) and three levels of potassium (50, 100, and 150%) in the experiment, namely, CK (control group, 100%N+100%K), LN (50%N+100%K), HN (150%N+100%K), LK (100%N+50%K), HK (100%N+150%K), LNLK (50%N+50%K), LNHK (50%N+150%K), HNLK (150%N+50%K), and HNHK (150%N+150%K). Nutrition treatments were as follows: in the low-level treatment, Ca (NO3)2 and KNO3 were replaced by CaCl2 and KCl to halve the N and K elements, while in the high-level treatment, NaNO3 and KCl were used to increase the N and K elements. In addition, because KNO3 contained both N and K, KCl and NaNO3 were used to supplement the K which was reduced in the low nitrogen treatment group and the N which was reduced in the low potassium treatment group, respectively. The specific cultivation plan is shown in Figure 1.

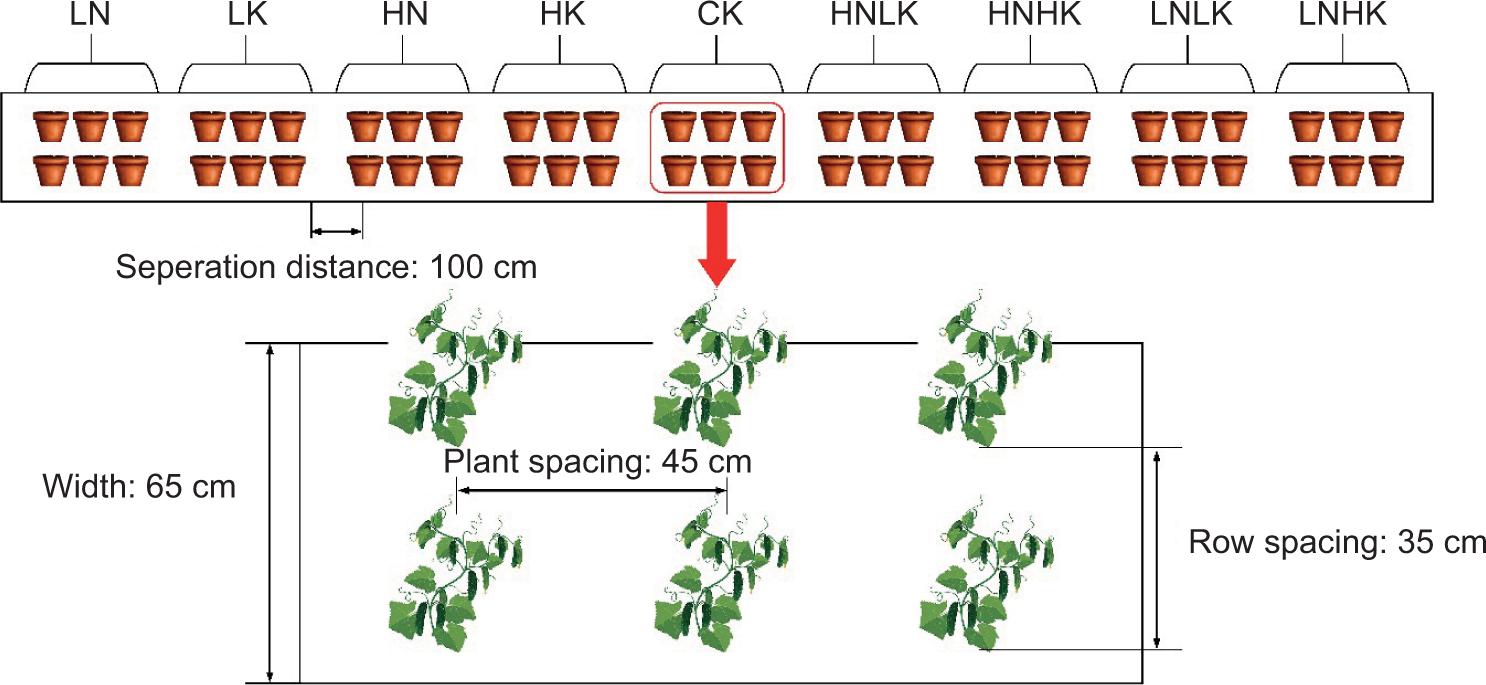

Figure 1. Diagram of experiment design.

Gas exchange parameters

Gas exchange parameters mainly included photosynthetic rate (Pn), stomatal conductance (Gs), intercellular CO2 concentration (Ci), and transpiration rate (Tr). The data collection was done from 9:00 to 11:30 in the morning, because the water, fertilizer supply, and photosynthesis were stable enough to make the results reliable and accurately reflect the growth status of greenhouse cucumbers. Li-6400 (LI-COR Inc., Lincoln, NE, USA) was used to determine the parameters of the well-growing leaves, whose positions were similar under different treatments and were marked for follow-up testing. The parameters were measured before grouping treatment (10th day after transplanting), 1 week after treatment (17th day after transplanting), and before puncture test (24th day after transplanting). During the measurement, five plants were selected for each treatment, and stable data were recorded five times for each leaf.

Physiological and biochemical indexes

On the 24th day after transplanting, the hydrogen peroxide (H2O2) and enzyme activities in cucumber leaves and stems were measured after finishing the gas exchange parameters. The samples of leaves and stems were collected and immediately frozen in liquid nitrogen to ensure the activity of H2O2 and enzymes. The sample was ground and centrifuged at a low temperature, and then the absorbance of the reaction mixture in the supernatant at a specific wavelength was read by spectrophotometry (made by Yoke Instrument, Shanghai, China). H2O2 and CAT were calculated with the absorption peak of the peroxymolybdic acid complex, which was formed by the rapid combination of hydrogen peroxide and molybdate under acidic medium (Chai et al., 2004). The extraction and determination of MDA followed the thiobarbituric acid reaction described by Pi, z. et al. (Pi et al., 2014). The PPO activity was calculated with linear increase in absorbance of the product catalyzed (Ren et al., 2021). Xanthine oxidase was used as one of the most convenient methods to determine the content of SOD because of the specific inhibitory effect of SOD on superoxide radical (Peskin and Winterbourn, 2017; Zhanshen, 2001).

The content of soluble sugar was calculated by the absorbance at 620 nm of the blue-green complex formed under the action of concentrated sulfuric acid (Xiaoxu and Jiazheng, 2013). The sucrose content was determined on the basis of the absorbance of colored substances formed by the reaction of resorcinol and fructose produced by hydrolysis (Shiyuan, 1998).

Stem strength

Stem strength can be predicted by measuring the force required to pierce the epidermis (Manga-Robles et al., 2021). TA-XTPLUS texture analyzer (made by Stable Micro System, London, UK) was used to measure the epidermal penetration strength of cucumber stems in greenhouses. Five plants were selected for each treatment, and each plant was repeatedly punctured three times. The probe was moved from the surface of the stem to a depth of 10 mm at a speed of 2 mm•s–1 and a minimum sensitivity of 5 g.

Statistical analysis

Each treatment was repeated at least three times, and the mean values and standard deviations of each of the parameters studied, including gas exchange parameters, physiological and biochemical indexes, as well as Stem Strength were calculated. Analysis of variance (ANOVA) was performed using SPSS 18.0, and the least significant difference test (LSD) was used to determine significance at the level of P < 0.05.


Gas exchange parameters

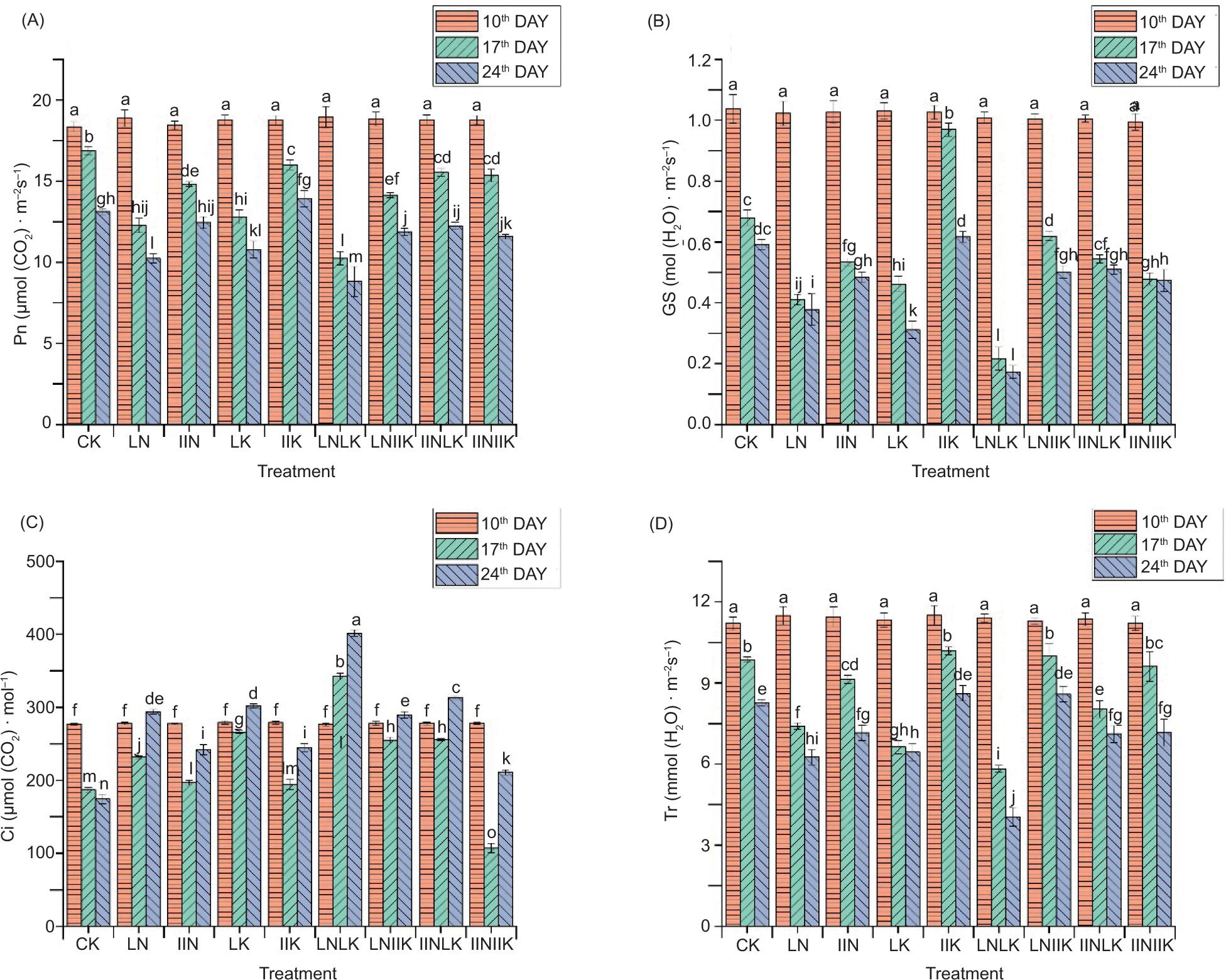

The gas exchange parameters of greenhouse cucumber leaves are shown in Figure 2. It can be seen from Figure 2 that Pn, Gs, and Tr of the leaves gradually decrease with cucumber growth. The Pn under the LN, LK, LNLK, and LNHK treatments was most severely affected on the 17th day compared with that on the 10th day, with a decrease of 34.97, 31.79, 45.93, and 24.90%, respectively, which far exceeded the 8.02% of the CK treatment. On the 24th day, the Pn under LN, LK, and LNLK treatments was only half of the initial state. With the extension of the treatment time, the Gs of each group decreased to a great extent. Exceptionally, the Gs under HK treatment on the 17th day was reduced by 5.49% compared with the initial state, which was much lower than the decrease of other treatments. On the 17th day, the Tr under LN, LK, and LNLK treatments decreased most obviously compared with that on the 10th day, while the decrease of Tr under CK, HK, LNHK, and HNHK treatments was the lowest. The Ci under CK treatment gradually decreased, while the other groups showed a tendency to first decrease and then increase. In particular, the Ci under LNLK treatment continued to increase.

Figure 2. Effects of different water and fertilizer treatments on greenhouse cucumber gas exchange parameters. (A) Photosynthetic rate (Pn); (B) stomatal conductance (Gs); (C) intercellular CO2 concentration (Ci); (D) transpiration rate (Tr).

As shown in Figure 2A, on the 17th day after transplanting, the Pn under LN, HN, LK, HK, LNLK, LNHK, HNLK, and HNHK treatments decreased by 27.31, 12.18, 24.17, 5.20, 39.34, 16.24, 7.96, and 9.10%, compared with that under the CK, and the Gs only increases under the HK treatment. On the 24th day, the Pn under LN, LK, LNLK, LNHK, HNLK, and HNHK treatments decreased by 21.99, 17.77, 9.56, 6.74, and 11.80%, respectively, compared with that on the 17th day. In comparison with the CK treatment, the Gs under the LN, LK, and LNLK treatments decreased by more than 35%, while that changed little under the HK treatment. High K+ concentration was conducive to the bottom-up water transportation of cucumber; in contrast, continuous high K+ stress or other treatments had significant toxic effects on transpiration, especially LNLK treatment. Except for the HNHK treatment on the 17th day, the Ci of the other treatments was higher than that of CK.

H2O2 and enzyme activity

The effect of treatment on greenhouse cucumber H2O2 and enzyme activity is shown in Table 1. It can be seen from Table 1 that compared with the CK treatment, NK stress and combined stress caused a H2O2 burst in cucumber stems and leaves, and the subsequent MDA accumulated rapidly, the amount accumulated of which was often used to indicate the degree of cell membrane damage when the lipid peroxidation caused by the continuous accumulation of H2O2 exceeded the tolerance (Helena Ramirez-Solet et al., 2021; Zhang et al., 2021b). Under the conditions of LN, LK, LNLK, and LNHK, the H2O2 and MDA in leaves and stems were the highest, while there was no significant effect of HK treatment on MDA in leaves and stems. The contents of H2O2 and MDA in the absence of N and K were significantly higher than the contents of excessive N and K, and the influence of N deficiency was dominant, which was also the case under combined stress. The H2O2 in the stem remained at a relatively low level in contrast to a large amount of accumulation in leaves, but the content of MDA in leaves and stems was similar.

Table 1. Effects of different treatments on H2O2 and antioxidant enzyme activities in cucumber.

  Treatment H2O2 (mmol•gprot1) MDA (nmol•mgprot-1) CAT (U•mgprot-1) SOD (U•g–1 FW)
Leaf CK 0.426 ± 0.101g 0.302 ± 0.041g 7.659 ± 0.162d 462.813 ± 23.768d
LN 2.757 ± 0.097b 0.972 ± 0.046c 1.613 ± 0.379g 265.952 ± 12.164f
HN 1.261 ± 0.030e 0.486 ± 0.044e,f 11.145 ± 0.341b 643.190 ± 19.620a
LK 2.177 ± 0.087c 0.753 ± 0.039d 9.877 ± 0.166c 540.456 ± 6.084c
HK 0.937 ± 0.117f 0.399 ± 0.041f,g 14.585 ± 0.219a 602.028 ± 11.420b
LNLK 3.925 ± 0.094a 1.895 ± 0.129a 1.206 ± 0.218g 181.738 ± 18.799g
LNHK 2.915 ± 0.084b 1.412 ± 0.150b 3.821 ± 0.103f 386.194 ± 21.658e
HNLK 1.858 ± 0.105d 0.596 ± 0.038e 6.217 ± 0.160e 419.230 ± 9.664e
HNHK 2.040 ± 0.069c 0.522 ± 0.042e,f 7.354 ± 0.173d 574.085 ± 16.119b,c
Stem CK 0.025 ± 0.011g 0.218 ± 0.018g 1.742 ± 0.078e 312.349 ± 9.290e
LN 0.544 ± 0.016b 0.977 ± 0.021b 0.830 ± 0.093g 152.088 ± 5.046g
HN 0.164 ± 0.018e 0.331 ± 0.024f 7.184 ± 0.378b 594.326 ± 13.675a
LK 0.298 ± 0.011c 0.690 ± 0.057d 4.067 ± 0.351c 505.203 ± 11.885c
HK 0.135 ± 0.010e,f 0.250 ± 0.022f,g 8.744 ± 0.086a 542.954 ± 8.646b
LNLK 0.685 ± 0.030a 1.246 ± 0.087a 0.377 ± 0.172h 116.480 ± 8.142h
LNHK 0.324 ± 0.008c 0.825 ± 0.036c 1.213 ± 0.085f 269.878 ± 25.031f
HNLK 0.111 ± 0.016f 0.531 ± 0.102e 1.556 ± 0.096e,f 395.783 ± 11.994d
HNHK 0.245 ± 0.011d 0.342 ± 0.023f 2.132 ± 0.090d 416.937 ± 4.498d

Different superscript lowercase letters indicate a statistically significant differences in the physiological and biochemical parameters of cucumbers under different treatments at P = PPO

As antioxidant enzymes, CAT and SOD are important means for crops to remove ROS and reduce oxidative damage (An et al., 2020). Compared with CK treatment, HN, LK, and HK treatments induced an increase in CAT and SOD activity in leaves, while the activity decreased under LN, LNLK, LNHK, and HNLK treatments. In addition, the activity of CAT in the leaves under HNHK treatment hardly decreased; in contrast, the activity of SOD increased significantly. In the stem, the CAT and SOD activity under the treatments of LN, LNLK, and LNHK significantly reduced, while the effects of HN, LK, HK, and HNHK treatments on the activity of CAT and SOD were positive. It is worth noting that the changes of antioxidant enzymes in stems under HNLK treatment are similar to those of leaves under HNHK treatment, which seems to indicate that CAT and SOD are not completely consistent in the reaction logic. In addition, the antioxidant response of leaves and stems is also significantly different, as the antioxidant enzyme activity in the stems is significantly lower than that of the leaves, and the changes of CAT under HNHK treatment and SOD under HNLK treatment in the stem were also opposite to those in leaves.

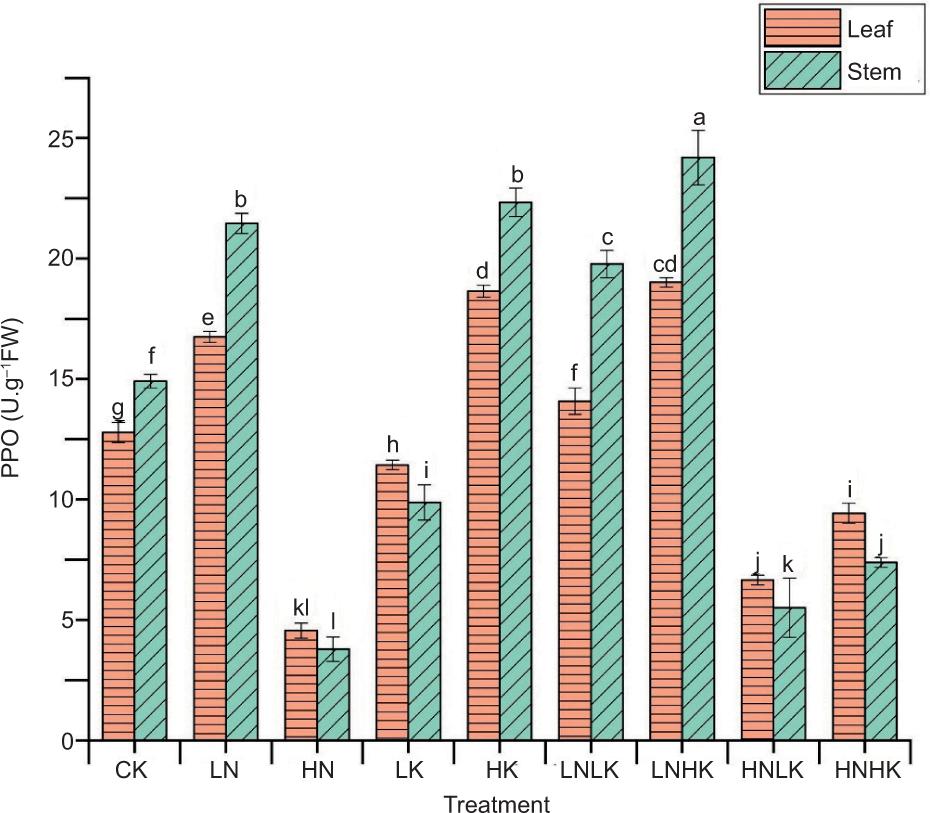

The changes of PPO activity in stems and leaves are shown in Figure 3. PPO is very common in animals and plants (Ren et al., 2021). As can be seen from Figure 3, the PPO activity under LN, HK, LNLK, and LNHK treatments increased significantly in contrast to the significant decrease under HN, LK, HNLK, and HNHK treatments. It is a remarkable fact that under the CK treatment and the treatment with an increase in activity, the PPO activity in the stem is higher than that in the leaves, while the PPO activity in the stem is lower under the treatment with decreased activity.

Figure 3. PPO activity in stem and leaf.

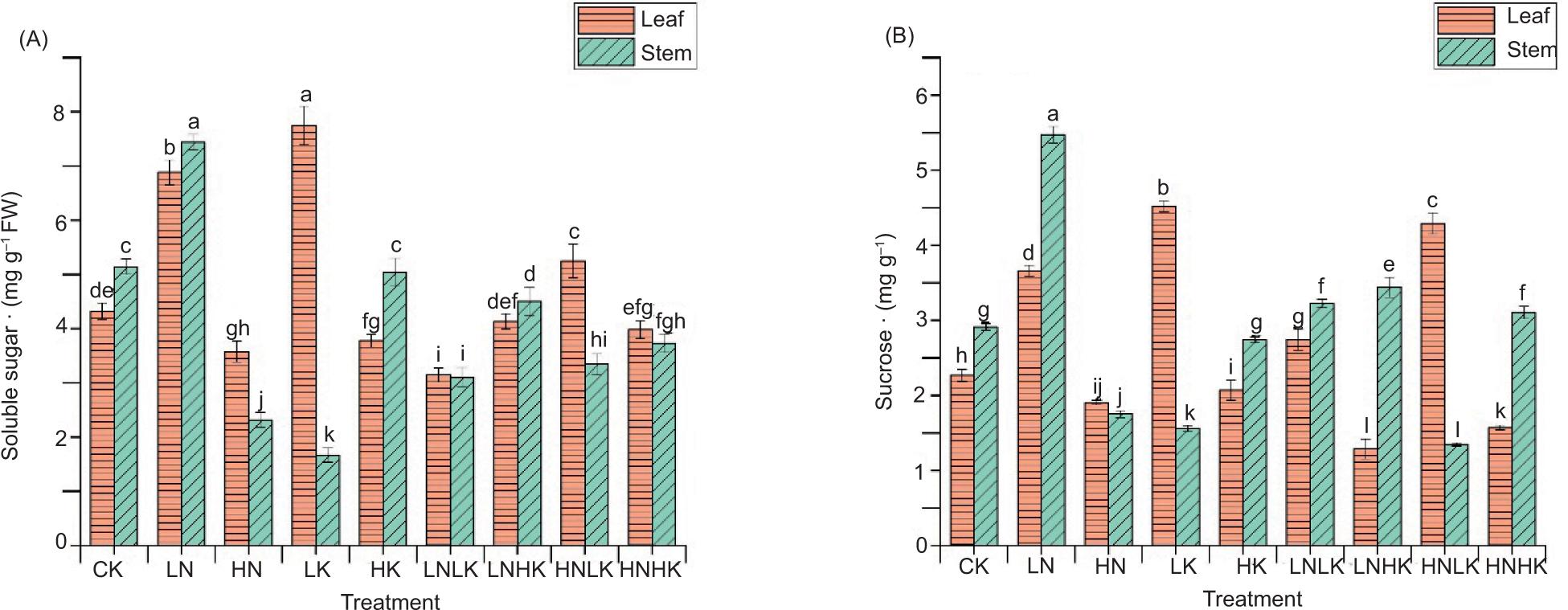

The changes of soluble sugar and sucrose in stems and leaves are shown in Figure 4. It can be seen from Figure 4A that treatments have different effects on soluble sugar in comparison with CK treatment. The effect of LN treatment on the accumulation of soluble sugar is positive, and the effect of HN treatment is the opposite. Under LK treatment, the soluble sugar in leaves increased by 79.19%, while the soluble sugar in stems was decreased by 67.56%. Under HK treatment, the soluble sugar in the leaves was reduced by 12.58% in contrast to little change in the stem. As shown in Figure 4B, under LN, LK, LNLK, and HNLK treatments, the sucrose content in the leaves increased compared with CK treatment, while the content under HN, HK, LNHK, and HNHK decreased. For sucrose accumulation in the stem, the positive effects of LN, LNLK, LNHK, and HNHK treatments and the opposite effects of HN, LK, and HNLK treatments were both found (Figure 4).

Figure 4. Sugar content in stem and leaf. (A) Soluble sugar; (B) sucrose.

Epidermal penetration strength

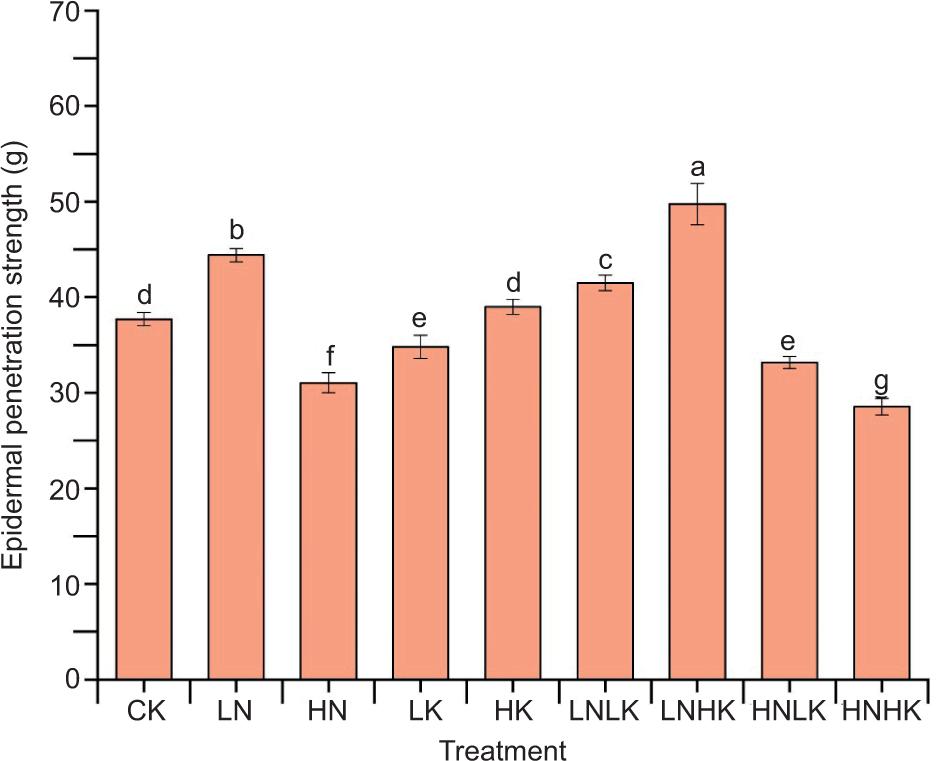

The change of epidermal penetration strength of cucumber stem is shown in Figure 5. The epidermal penetration strength under LN, LNLK, and LNHK treatments increased by 17.77, 10.08, and 31.96%, respectively, while the strength under HN, LK, HNLK, and HNHK treatments decreased by 17.64, 7.69, 12.01, and 24.34%, respectively. Exceptionally, the effect of HK treatment on the epidermal penetration strength of stem was not obvious. Manifestly, under single factor stress or combined stress, N played a much more essential role in the mechanical properties of stem epidermis in comparison with K, which was mainly achieved by influencing structure construction and component synthesis.

Figure 5. Epidermal penetration strength of stem.


Combined stress is not a simple addition of independent stress effects, and the response of crops to K deficiency is usually masked by the symptoms of N deficiency, because the demand for K is also reduced during N deficiency (Zhu et al., 2020, 2021). The continuous decrease of the Pn under the treatments of LN, LK, LNLK, and LNHK indicated that the effect of N deficiency on crops was more significant, and the N stress response was dominant in the combined stress (Zhu et al., 2020). On the 17th day, the HK, LNHK, and HNHK treatments had almost no effect on the Tr in comparison with that on the 10th day, which was mainly because crops absorbed more water to avoid excessive penetration to a certain extent, thereby adapting to abnormal K supply through K+ transport and transpiration (Xu et al., 2018). The decrease in the assimilation rate of CO2 induced by changes in water and fertilizer conditions promoted the accumulation of CO2, while insufficient K supply interfered with the opening of the stomata, thereby exacerbating this accumulation (Boussadia et al., 2010; Helena Ramirez-Solet et al., 2021; Liu et al., 2021). As a result, the Ci first decreased and then increased, except for the gradual decrease of CK treatment and the continuous increase of LNLK treatment. Gradual decrease of Pn, Gs, and Tr with the increase of treatment days, in which there was also a decline under the CK treatment, indicated that leaf senescence had a significant effect on gas exchange parameters, and this effect continued to increase with cucumber growth (Mu and Chen, 2021).

The hyperaccumulation of ROS under the conditions of LN, LK, LNLK, and LNHK destroyed the pH homeostasis in cell (Waqas et al., 2021), which showed a continuous decline in photosynthesis on cucumber leaves. LNLK treatment caused serious damage to crops, because N and K deficiency not only made the crop lose the key elements for synthesizing protein and chlorophyll but also destroyed the homeostasis of the cell and increased the resistance to biomass transportation, and the damage further aggravated by the combination of N and K was even worse (Helena Ramirez-Solet et al., 2021; Okazaki et al., 2020; Zhang et al., 2021b). The low MDA under HK treatment suggested that the crop alleviated the damage of high K stress through K+ transport and transpiration, which in turn provides a stable physiological environment for the protection mechanisms (Xu et al., 2018). The accumulation of H2O2 and the activity of antioxidant enzyme in the leaves were significantly higher than that in the stem, while the MDA in the leaves and the stem was almost at a similar level. It provided an insight into the adaptive response that H2O2, a signal molecule that regulates stomata, was more likely to accumulate in leaves (Waqas et al., 2021) and stems were more sensitive to ROS damage and had weaker antioxidant capacity in comparison with leaves. With the accumulation of ROS, the antioxidant system responded naturally, causing an increase in the activity of CAT and SOD (Yang et al., 2021). The decreased activity of CAT and SOD in leaves and stems under N deficiency or combined stress was attributable to the continuous accumulation of ROS that exceeded the tolerance, which destroyed the antioxidant response system of the cell (Pi et al., 2014). In addition, the effect of NK supply on enzyme synthesis, which led to the suppression of the upper limit of the ability to remove ROS, was also a notable cause (Waqas et al., 2021).

The soluble sugars in the stems and leaves under the LN treatment continued to accumulate because the crops increased outward transportation (Gao et al., 2015), while under the HN treatment, the crops were more likely to leave photosynthetic products in the source organs, which illuminated the effect of HN treatment on leaf expansion (Hou et al., 2021). K deficiency repressed carbohydrate metabolism and transport genes, and impaired the transport of photosynthetic products through the phloem to the sink organs, resulting in the continuous accumulation of sugar in the leaves and the loss of the source of photosynthesis products in the stems (Sun et al., 2021) (Figure 3A). The reduction of soluble sugars under HK treatment may be related to the energy consumption of ion transport that alleviates osmotic stress (Xu et al., 2018). The diversity of ingredients partially revealed the complexity of changes in soluble sugar under combined stress (Hu et al., 2017; Sun et al., 2021), and the effect of the combination of NK stress on the homeostasis of crops was another possible reason (Waqas et al., 2021; Zhang et al., 2021b).

Sucrose is the main form of transport of photosynthetic products (Cui et al., 2020). Crops under stress adjusted the distribution of photosynthetic products among various organs to cope with sudden alterations in the external environment, and the process was always in a direction that was more conducive for survival (Boussadia et al., 2010; Gao et al., 2015; Yang et al., 2021). Under the condition of N deficiency, the response that crops distributed more biomass to the root system to promote the growth of the root system was conducive to obtaining more nitrogen (Gao et al., 2015), and the accumulation of the photosynthetic product, sucrose, therefore rose in the leaves and stems of crops (Figure 3B). However, the accumulation of sucrose under LNLK and LNHK treatments showed high similarity with symptoms under N deficiency, but the continued increase was not observed due to the limited stress resistance of sucrose transport. The lower sucrose in the leaves under LNHK treatment may be due to the removal of the restriction of K+ on sucrose transport and the increased energy consumption of the osmotic regulation mechanism of high K+ (Xu et al., 2018). In addition, the sucrose accumulation was also limited by their destruction of photosynthesis (Waqas et al., 2021). The process by which K+ was absorbed by the root system into the xylem and transported to the leaves through transpiration, and then transported to the various organs through the phloem, seemed to be a futile cycle; on the contrary, it was complicated and crucial (Dreyer et al., 2017). Related studies showed that K+ served as a signal of potassium demand (Dreyer et al., 2017) and was hardly metabolized in crop cells (Han et al., 2016), which was the basis of the interesting cycle. In the futile cycle, K+ actively participated in regulating the osmotic environment in crops, and the activities of carbohydrate metabolizing enzymes and transport enzymes (Sun et al., 2021; Zhang et al., 2021b). The restricted movement of sucrose to the sink organs under LK treatment resulted in the rise of sucrose in the leaves and the decline in the stems (Sun et al., 2021) (Figure 3B).

PPO has always been the focus of research on the browning of fruits and vegetables (Ren et al., 2021). Kunito, T. et al. found that PPO can promote the degradation of lignin in the soil, and the activity of PPO decreases after adding N (Kunito et al., 2009). Similar effects may also be observed in plants. The result of the increase of PPO activity under N deficiency revealed the regulation of N. In contrast, the effect of LK treatment on PPO was negative, but this result still provided valuable evidence for the hypothesis that K+ played a role in PPO regulation to a certain extent. However, the weak negative correlation strongly suggested that the effect of PPO activity on the stem epidermal strength was limited and nondeterministic. Nevertheless, PPO should not be ignored in the study of stem mechanical properties, considering that PPO was indeed regulated by N and K, as well as contributed to the degradation of lignin, which was the mechanical basis of the stem, and the change of the stem structure through the combination with internal substances.

More research has shown that the stem strength is mainly determined by cellulose and lignin (Mahlanza et al., 2014; Xue et al., 2017). Under LN and HK treatments, sucrose was the main form of transport of photosynthetic products (Cui et al., 2020), and its outward transport was enhanced (Gao et al., 2015; Sun et al., 2021), which was conducive for the synthesis of lignin and cellulose in the stems. In addition, the high K+ concentration itself also promoted the lignification of the stem (Li et al., 2021d). Therefore, the cucumber stem strength under the LN and HK treatments rose. However, it was because of the alleviating effect of K+ transport on osmotic pressure that the change of stem strength under HK treatment was gentler than that of LN treatment (Xu et al., 2018). The stem strength was significantly reduced under the HN and LK treatments on account of less photosynthetic products being transported to the stem. The reason for the decrease under LK treatment was that the transport of photosynthetic products to the phloem of the sink organs was restricted (Sun et al., 2021); in contrast, the reason under the HN treatment was that the leaves retained more photosynthetic products. In addition, the weaker connection between adjacent cells and the instability of cell structure was also induced by low K+ concentrations (Li et al., 2010). However, upon the perception of K+ deficiency, the mobilization mechanism of K+ was activated, which improved the absorption and utilization efficiency of K+ to a certain extent (Yang et al., 2020). The complex mechanism delayed the onset of K deficiency symptoms, resulting in a significant lag in the reduction of stem strength under LK treatment in comparison with HN treatment. Although the complexity of combined stress is not explained by the independent addition of individual stress effects, it is very clear that the impact of combined stress is stronger than individual deficiency (Zhu et al., 2020).


The analysis of physiological and biochemical indexes of greenhouse cucumber allowed us to shed light on the complex relationship between stem strength and NK. Under the individual or combined stress of N and K, the effect of nutrient deficiency on crops was more visible, and N stress response had priority in combined stress. In addition, the effect of combined stress was stronger than that of single stress. Leaf senescence had a significant effect on gas exchange parameters, and this effect continued to increase as growth progresses. The analysis of H2O2 and enzyme activity showed that the stimulated crop cells increased the activity of CAT and SOD to deal with the damage of ROS. However, the antioxidant capacity was limited, and the upper limit of this capacity was further reduced due to the effect of stress on enzyme synthesis. Moreover, the H2O2 and antioxidant enzyme activity of stems were lower than those of leaves. The sugar in the stems and leaves under LN treatment continued to accumulate, while more photosynthetic products were left in the leaves under HN treatment. As for K+, it regulated the movement of sucrose to the sink organs through a complex mechanism called futile cycling. The analysis of PPO activity showed that its influence on the strength of the stem epidermis was limited and nondeterministic. To sum up, stem strength is mainly affected by cellulose and lignin, and their synthesis depends on the transportation of sucrose and the promotion of stem lignification by higher K+ concentration, which shed light on the response of stem strength to stress. In addition, it should be noted that K+ transport and transpiration are effective means for crops to adapt to abnormal K+ supply within a certain range, which is also the reason for the lagging response of stem strength to K+.


An, J., Hu, P.G., Li, F.J., Wu, H.H., Shen, Y., White, J.C., Tian, X.L., Li, Z.H. and Giraldo, J.P., 2020. Emerging investigator series: molecular mechanisms of plant salinity stress tolerance improvement by seed priming with cerium oxide nanoparticles. Environmental Science-Nano 7: 2214–2228. 10.1039/D0EN00387E

Boussadia, O., Steppe, K., Zgallai, H., El Hadj, S.B., Braham, M., Lemeur, R. and Van Labeke, M.C., 2010. Effects of nitrogen deficiency on leaf photosynthesis, carbohydrate status and biomass production in two olive cultivars “Meski” and “Koroneiki”. Scientia Horticulturae 123: 336–342. 10.1016/j.scienta.2009.09.023

Cao, M., Li, S., Deng, Q., Wang, H. and Yang, R., 2021. Identification of a major-effect QTL associated with pre-harvest sprouting in cucumber (Cucumis sativus L.) using the QTL-seq method. BMC Genomics 22: 249. 10.1186/s12864-021-07548-8

Chai, X.S., Hou, Q.X., Luo, Q. and Zhu, J.Y., 2004. Rapid determination of hydrogen peroxide in the wood pulp bleaching streams by a dual-wavelength spectroscopic method. Analytica Chimica Acta 507: 281–284. 10.1016/j.aca.2003.11.036

Chen, G.D., Wang, L., Fabrice, M.R., Tian, Y.A., Qi, K.J., Chen, Q., Cao, P., Wang, P., Zhang, S.L., Wu, J.Y., Tao, S.T., 2018. Physiological and nutritional responses of pear seedlings to nitrate concentrations. Frontiers in Plant Science. 9: 1679. 10.3389/fpls.2018.01679

Cui, J., Lamade, E. and Tcherkez, G., 2020. Potassium deficiency reconfigures sugar export and induces catecholamine accumulation in oil palm leaves. Plant Science. 300: 110628. 10.1016/j.plantsci.2020.110628

Dos Santos, L.C.N., Gaion, L.A., Prado, R.M., Barreto, R.F. and Carvalho, R.F., 2020. Low auxin sensitivity of diageotropica tomato mutant alters nitrogen deficiency response. Anais Da Academia Brasileira De Ciencias. 92: e20190254. 10.1590/0001-3765202020190254

Dreyer, I., Gomez-Porras, J.L. and Riedelsberger, J., 2017. The potassium battery: a mobile energy source for transport processes in plant vascular tissues. New Phytologist. 216: 1049–1053. 10.1111/nph.14667

Gao, K., Chen, F.J., Yuan, L.X., Zhang, F.S. and Mi, G.H., 2015. A comprehensive analysis of root morphological changes and nitrogen allocation in maize in response to low nitrogen stress. Plant Cell and Environment. 38: 740–750. 10.1111/pce.12439

Han, M., Wu, W., Wu, W.H. and Wang, Y., 2016. Potassium transporter KUP7 is involved in K+ acquisition and translocation in arabidopsis root under K+-limited conditions. Molecular Plant. 9: 437–446. 10.1016/j.molp.2016.01.012

Helena Ramirez-Solet, C., Magnitskiy, S., Melo Martinez, S.E., Alvarez-Florez, F. and Marina Melgarejo, L., 2021. Photosynthesis, biochemical activity, and leaf anatomy of tree tomato (Solanum betaceum Cav.) plants under potassium deficiency. Journal of Applied Botany and Food Quality 94: 75–81.

Hou, X.B., Xue, Q.W., Jessup, K.E., Zhang, Y.H., Blaser, B., Stewart, B.A. and Baltensperger, D.D., 2021. Effect of nitrogen supply on stay-green sorghum in differing post-flowering water regimes. Planta 254: 63. 10.1007/s00425-021-03712-2

Hu, W., Coomer, T.D., Loka, D.A., Oosterhuis, D.M. and Zhou, Z.G., 2017. Potassium deficiency affects the carbon-nitrogen balance in cotton leaves. Plant Physiology and Biochemistry. 115: 408–417. 10.1016/j.plaphy.2017.04.005

Huang, W.T., Xie, Y.Z., Chen, X.F., Zhang, J., Chen, H.H., Ye, X., Guo, J.X., Yang, L.T. and Chen, L.S., 2021. Growth, mineral nutrients, photosynthesis and related physiological parameters of citrus in response to nitrogen deficiency. Agronomy-Basel 11: 1859. 10.3390/agronomy11091859

Jiheng, N., Hanping, M. and Wanzheng, M., 2011. Effect of different electrical conductivity on photosynthetic characteristics of cucumber leaves in greenhouse. Transactions of the CSAE 27: 277–281.

Khan, Z., Khan, M.N., Luo, T., Zhang, K.K., Zhu, K.M., Rana, M.S., Hu, L.Y. and Jiang, Y., 2021. Compensation of high nitrogen toxicity and nitrogen deficiency with biochar amendment through enhancement of soil fertility and nitrogen use efficiency promoted rice growth and yield. Global Change Biology Bioenergy. 13: 1765-1784. 10.1111/gcbb.12884

Kim, M.J., Kim, C.Y. and Park, I., 2005. Prevention of enzymatic browning of pear by onion extract. Food Chemistry. 89: 181–184. 10.1016/j.foodchem.2004.02.018

Kunito, T., Akagi, Y., Park, H.D. and Toda, H., 2009. Influences of nitrogen and phosphorus addition on polyphenol oxidase activity in a forested Andisol. Eur. European Journal of Forest Research. 128: 361–366. 10.1007/s10342-009-0271-9

Li, G.Z., Liu, J., Chen, S.J., Wang, P.F., Liu, H.T., Dong, J., Zheng, Y.X., Xie, Y.X., Wang, C.Y., Guo, T.C., Kang, G.Z., 2021c. Melatonin promotes potassium deficiency tolerance by regulating HAK1 transporter and its upstream transcription factor NAC71 in wheat. Journal of Pineal Research. 70: e12727. 10.1111/jpi.12727

Li, L., Li, Q., Davis, K.E., Patterson, C., Oo, S., Liu, W., Liu, J., Wang, G., Fontana, J.E., Thornburg, T.E., Pratt, I.S.; Li, F.; Zhang, Z.; Zhou, Y.; Pan, X.; Zhang, B., 2021b. Response of root growth and development to nitrogen and potassium deficiency as well as microRNA-mediated mechanism in peanut (Arachis hypogaea L.). Frontiers in Plant Science. 12: 695234. 10.3389/fpls.2021.695234

Li, W.J., He, P. and Jin, J.Y., 2010. Effect of potassium on ultrastructure of maize stalk pith and young root and their relation to stalk rot resistance. Agricultural Sciences in China. 9: 1467–1474. 10.1016/S1671-2927(09)60239-X

Li, Y., Chi, J.L., Ao, J., Gao, X.M., Liu, X.H., Sun, Y.L. and Zhu, W.W., 2021a. Effects of different continuous cropping years on bacterial community and diversity of cucumber rhizosphere soil in solar-greenhouse. Current Microbiology. 78: 2380–2390. 10.1007/s00284-021-02485-x

Li, Y.H., Zheng, J.L., Wu, Q., Lin, W.H., Gong, X.M., Chen, Y.L., Chen, T.T., Siddique, K.H.M. and Chi, D.C., 2021d. Zeolite alleviates potassium deficiency and improves lodging-related stem morphological characteristics and grain yield in rice. Crop & Pasture Science. 72: 407–415. 10.1071/CP21017

Liu, Y., Yin, Q., Dai, B.J., Wang, K.L., Lu, L., Qaseem, M.F., Wang, J.X., Li, H.L. and Wu, A.M., 2021. The key physiology and molecular responses to potassium deficiency in Neolamarckia cadamba. Industrial Crops and Products. 162: 113260. 10.1016/j.indcrop.2021.113260

Ma, N.N., Dong, L.N., Lu, W., Lu, J., Meng, Q.W. and Liu, P., 2020. Transcriptome analysis of maize seedling roots in response to nitrogen-, phosphorus-, and potassium deficiency. Plant and Soil. 447: 637–658. 10.1007/s11104-019-04385-3

Mahlanza, T., Rutherford, R.S., Snyman, S.J. and Watt, M.P., 2014. Eldana saccharina (Lepidoptera: Pyralidae) resistance in sugarcane (Saccharum sp.): effects of Fusarium spp., stalk rind, fibre and nitrogen content. African Entomology. 22: 810–822. 10.4001/003.022.0420

Manga-Robles, A., Santiago, R., Malvar, R.A., Moreno-Gonzalez, V., Fornale, S., Lopez, I., Centeno, M.L., Acebes, J.L., Alvarez, J.M., Caparros-Ruiz, D., Encina, A.; Garcia-Angulo, P., 2021. Elucidating compositional factors of maize cell walls contributing to stalk strength and lodging resistance. Plant Science. 307: 110882. 10.1016/j.plantsci.2021.110882

Mu, X.H. and Chen, Y.L., 2021. The physiological response of photosynthesis to nitrogen deficiency. Plant Physiology and Biochemistry. 158: 76–82. 10.1016/j.plaphy.2020.11.019

Okazaki, K., Tanahashi, T., Kato, Y., Suzuki, I., Tanaka, F. and Ohwaki, Y., 2020. Metabolic indices related to leaf marginal necrosis associated with potassium deficiency in tomato using GC/MS metabolite profiling. Journal of Bioscience and Bioengineering. 130: 520–524. 10.1016/j.jbiosc.2020.06.007

Peskin, A.V. and Winterbourn, C.C., 2017. Assay of superoxide dismutase activity in a plate assay using WST-1. Free Radical Biology and Medicine. 103: 188–191. 10.1016/j.freeradbiomed.2016.12.033

Pi, Z., Stevanato, P., Yv, L.H., Geng, G., Guo, X.L., Yang, Y., Peng, C.X. and Kong, X.S., 2014. Effects of potassium deficiency and replacement of potassium by sodium on sugar beet plants. Russian Journal of Plant Physiology. 61: 224–230. 10.1134/S1021443714020101

Ren, H.W., Du, N.N., Niu, X.Q., Wang, Y.G., Tian, H., Cao, Y.Y., Zhang, B.Y. and Fan, W.G., 2021. Inhibitory effects of L-3-phenyllacitc acid on the activity of mushnroom pholyphenol oxidase. Food Science and Technology. 41: 343–351. 10.1590/fst.08420

Sabzi, S., Pourdarbani, R., Rohban, M.H., Garcia-Mateos, G. and Arribas, J.I., 2021. Estimation of nitrogen content in cucumber plant (Cucumis sativus L.) leaves using hyperspectral imaging data with neural network and partial least squares regressions. Chemometrics and Intelligent Laboratory Systems. 217(14): 104404. 10.1016/j.chemolab.2021.104404

Sekhon, R.S., Joyner, C.N., Ackerman, A.J., McMahan, C.S., Cook, D.D. and Robertson, D.J., 2020. Stalk bending strength is strongly associated with maize stalk lodging incidence across multiple environments. Field Crops Research. 249: 107737. 10.1016/j.fcr.2020.107737

Shao, H., Shi, D.F., Shi, W.J., Ban, X.B., Chen, Y.C., Ren, W., Chen, F.J. and Mi, G.H., 2021. The impact of high plant density on dry matter remobilization and stalk lodging in maize genotypes with a different stay-green degree. Archives of Agronomy and Soil Science. 67: 504–518. 10.1080/03650340.2020.1737679

Shiyuan, X., 1998. The suitable conditions of measuring cane sugar by using resorcinol-photometric method. Journal of Sichuan Teachers College (Natural Science). 19: 57–59.

Sun, Y.M., Huang, X.L., Zhang, T., Yang, Y.H., Cheng, X.F., Xu, X.Y. and Yuan, H.Y., 2021. Potassium deficiency inhibits steviol glycosides synthesis by limiting leaf sugar metabolism in stevia (Stevia rebaudiana Bertoni) plants. Journal of Integrative Agriculture 20: 2932–2943. 10.1016/S2095-3119(20)63472-4

Sung, J., Sonn, Y., Lee, Y., Kang, S., Ha, S., Krishnan, H.B. and Oh, T.K., 2015. Compositional changes of selected amino acids, organic acids, and soluble sugars in the xylem sap of N, P, or K-deficient tomato plants. Journal of Plant Nutrition and Soil Science. 178: 792–797. 10.1002/jpln.201500071

Wang, Y. and Wu, W.H., 2013. Potassium transport and signaling in higher plants. In: Merchant, S.S. (ed.) Annual review of plant biology, Vol. 64. Annual Reviews, Palo Alto, pp. 451–476.

Wang, Y.F., Du, X.X., Ma, G.X., Liu, Y., Wang, B. and Mao, H.P., 2020a. Classification methods for airborne disease spores from greenhouse crops based on multifeature fusion. Applied Sciences-Basel. 10: 7850. 10.3390/app10217850

Wang, Y.F., Ma, G.X., Du, X.X., Liu, Y., Wang, B., Xu, G.L. and Mao, H.P., 2020b. Effects of nutrient solution irrigation quantity and downy mildew infection on growth and physiological traits of greenhouse cucumber. Agronomy-Basel 10: 1921. 10.3390/agronomy10121921

Waqas, M., Chen, Y.N., Iqbal, H., Shareef, M., Rehman, H.U. and Bilal, H.M., 2021. Synergistic consequences of salinity and potassium deficiency in quinoa: linking with stomatal patterning, ionic relations and oxidative metabolism. Plant Physiology and Biochemistry. 159: 17–27. 10.1016/j.plaphy.2020.11.043

Xiaoxu, L. and Jiazheng, L., 2013. Determination of the content of soluble sugar in sweet corn with optimized anthrone colorimetric method. Storage and Process. 13: 24–27.

Xu, Z., Lai, T.Z., Li, S., Si, D.X., Zhang, C.C., Cui, Z.L. and Chen, X.P., 2018. Promoting potassium allocation to stalk enhances stalk bending resistance of maize (Zea mays L.). Field Crops Research. 215: 200–206. 10.1016/j.fcr.2017.10.020

Xue, J., Xie, R.Z., Zhang, W.F., Wang, K.R., Hou, P., Ming, B., Gou, L. and Li, S.K., 2017. Research progress on reduced lodging of high-yield and-density maize. Journal of Integrative Agriculture. 16: 2717–2725. 10.1016/S2095-3119(17)61785-4

Yang, D.D., Li, F.J., Yi, F., Eneji, A.E., Tian, X.L. and Li, Z.H., 2021. Transcriptome analysis unravels key factors involved in response to potassium deficiency and feedback regulation of K+ uptake in cotton roots. International Journal of Molecular Sciences. 22: 3133. 10.3390/ijms22063133

Yang, H., Li, Y., Jin, Y.M., Kan, L.P., Shen, C.W., Malladi, A., Nambeesan, S., Xu, Y.C. and Dong, C.X., 2020. Transcriptome analysis of Pyrus betulaefolia seedling root responses to short-term potassium deficiency. International Journal of Molecular Sciences. 21: 8857.

Zhang, J.L., Lu, Z.F., Ren, T., Cong, R.H., Lu, J.W. and Li, X.K., 2021b. Metabolomic and transcriptomic changes induced by potassium deficiency during Sarocladium oryzae infection reveal insights into rice sheath rot disease resistance. Rice. 14: 81. 10.1186/s12284-021-00524-6

Zhang, J.P., Feng, S.J., Yuan, J., Wang, C., Lu, T., Wang, H.S. and Yu, C., 2021a. The formation of fruit quality in Cucumis sativus L. Frontiers in Plant Science. 12: 729448. 10.3389/fpls.2021.729448

Zhang, T.G., Shi, Z.F., Zhang, X.H., Zheng, S., Wang, J. and Mo, J.N., 2020. Alleviating effects of exogenous melatonin on salt stress in cucumber. Scientia Horticulturae. 262: 109070. 10.1016/j.scienta.2019.109070

Zhanshen, G., 2001. The methods of determining superoxide dismutaselike activities. Journal of Hengshui Normal College. 3: 39–41.

Zhu, Z.X., Li, D., Cong, L. and Lu, X.C., 2021. Identification of microRNAs involved in crosstalk between nitrogen, phosphorus and potassium under multiple nutrient deficiency in sorghum. Crop Journal. 9: 465–475. 10.1016/j.cj.2020.07.005

Zhu, Z.X., Li, D., Wang, P., Li, J.H. and Lu, X.C., 2020. Transcriptome and ionome analysis of nitrogen, phosphorus and potassium interactions in sorghum seedlings. Theoretical and Experimental Plant Physiology. 32: 271–285. 10.1007/s40626-020-00183-w
