Introduction

Carbon dots (CDs) are sustainable and highly functional nanoparticles. Their sub-10-nanometer size, high stability, low cytotoxicity, tunable photoluminescence (PL) properties, high quantum yields, availability of diverse precursors, and simplicity in synthesis techniques make them favorable for many applications over other carbon-based nanomaterials (Chu et al., 2019; Yin et al., 2019). Moreover, their carbonaceous core with sp²/sp³ hybridization can be functionalized with amine, epoxy, ether, carbonyl, carboxyl, and hydroxyl or doped with heteroatoms (e.g., N, P, S, and B), thereby providing many opportunities for the fabrication of novel nanomaterials (Garg et al., 2022; Raveendran and Kizhakayil, 2021). These diverse surface functional groups make them hydrophilic, hydrophobic, or amphiphilic, which significantly influences their solubility and dispersibility in various media and provides diversity to the scope of their applications (Shang et al., 2018). However, a notable challenge with hydrophilic CDs is fluorescence quenching due to aggregation and strong intermolecular ‘π–π’ stacking among adjacent surface groups during the fabrication of solid-state fluorescent CDs for optoelectronic devices and fluorometric sensors (Bandi et al., 2020; Pagidi et al., 2022).

To address this issue, hydrophobic surface functional groups (such as aliphatic carbons/ligands) can be employed, allowing CDs to be effectively dispersed in organic solvents and enhancing their compatibility with organic electronic materials. Hydrophobic carbon dots (HCDs) can be dispersed in a wide range of organic solvents (De et al., 2021). Extensive research has focused on developing and understanding HCDs for various technological applications. The methodology of synthesis for HCDs has been a focal point of investigation, with various techniques being developed to tailor the properties of HCDs to meet specific application requirements. Cytotoxicity studies have shown that HCDs generally exhibit low toxicity toward mammalian cells, making them suitable for biomedical applications. HCDs have the potential to be incorporated into polymer matrix structures for use in the fields of food, drug delivery, and medicine (Fu et al., 2022b; Jiang et al., 2021). HCDs have been incorporated into polydimethylsiloxane (PDMS) (Kováčová et al., 2020; Yang et al., 2022), polycaprolactone (PCL) (Budimir et al., 2021), polyurethane (PU) (Zhang et al., 2024), poly(methyl methacrylate) and polydimethylsiloxane (Yin et al., 2019), polyester (Chu et al., 2022), and amphiphilic polymers (1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-methoxy polyethylene glycol) (Yang et al., 2016). HCDs have shown utility as chemosensors for the detection of various analytes, as the surface functional groups of HCDs can interact with specific molecules, leading to changes in their fluorescence properties. Chemosensors based on HCDs are used for environmental monitoring, food safety, and medical diagnostics, providing rapid and accurate detection of harmful substances, including heavy metals, toxins, and biomolecules. In addition, studies have revealed the efficacy of HCDs in inhibiting microbial growth and in preventing biofouling on surfaces. These properties make HCDs highly effective as antimicrobial agents for various applications, including medical devices, water purification, and food packaging.

This paper is a comprehensive overview of the synthesis methods, antimicrobial properties, cytotoxicity considerations, and potential applications of HCDs in food safety and analytical chemistry. This review offers valuable insights to researchers and practitioners seeking to harness the unique properties of HCDs for novel technological applications. The development of environment-friendly synthesis methods, optimization of surface functionalization, and thorough evaluation of biocompatibility and safety profiles are crucial steps toward realizing the full potential of HCDs.

Synthesis of HCDs

Carbon dots are produced by top-down and bottom-up approaches (Moradi et al., 2023). This classification relies on the size relationship between CDs and type of precursor (Shi et al., 2019). Laser ablation is a top-down approach for preparing CDs that is rapid and straightforward to deploy, although the process is energy-intensive, which restricts its widespread use. In addition, CDs produced using this method have low quantum yield (Li et al., 2021a). However, synthesis through electrochemical oxidation can result in high purity and yield, although the processing steps are complex (Das et al., 2018). Other methods, such as the sonochemical approach, are novel, facile, and simple, involving mild experimental conditions for the production of CDs with controlled physicochemical properties, although the lack of control over the particle size hampers its applicability in large-scale and widespread production (Dutta and Karak, 2022; Kumar et al., 2020). HCDs are synthesized using hydrophobic precursors, partial carbonization of organic materials, and secondary surface modification of water-soluble CDs with amphiphilic molecules (Yao et al., 2019). Information regarding the precursors, solvents, and methods of synthesis of HCDs is presented in Table 1.

Chemical oxidation approach

It is a straightforward approach for the large-scale preparation of CDs; however, one drawback of this method is the lack of homogeneity in the particles produced (Bartolomei et al., 2021). This method was used by Lin et al. (2022) for the synthesis of HCDs from triolein. They mixed triolein and concentrated sulfuric acid in ethyl acetate, followed by vigorous stirring for 2 h under ambient conditions. The hydrophobic product was separated and precipitated after liquid–liquid extraction, followed by the neutralization of organic phase with NaHCO₃ solution. Zheng et al. (2015) reported the synthesis of HCDs using cetylpyridinium chloride monohydrate (CPC) and sodium hydroxide. In their green one-step method, CPC was mixed with NaOH (0.0 to 360 mM) for various reaction periods (28 to 180 h) at room temperature. They showed that longer reaction period and higher initial NaOH concentrations led to the production of higher quantities of HCDs (Figure 1A). Feng et al. (2020) used terephthalaldehyde, dimethyl formamide, pyrrole, and trifluoroacetic acid as raw materials (Figure 1B). Red-emitting HCDs were obtained by stirring the mixture at room temperature for 120 h. The synthesized HCDs (5.70 nm) exhibited red emission with a maximum fluorescence wavelength of 650 nm.

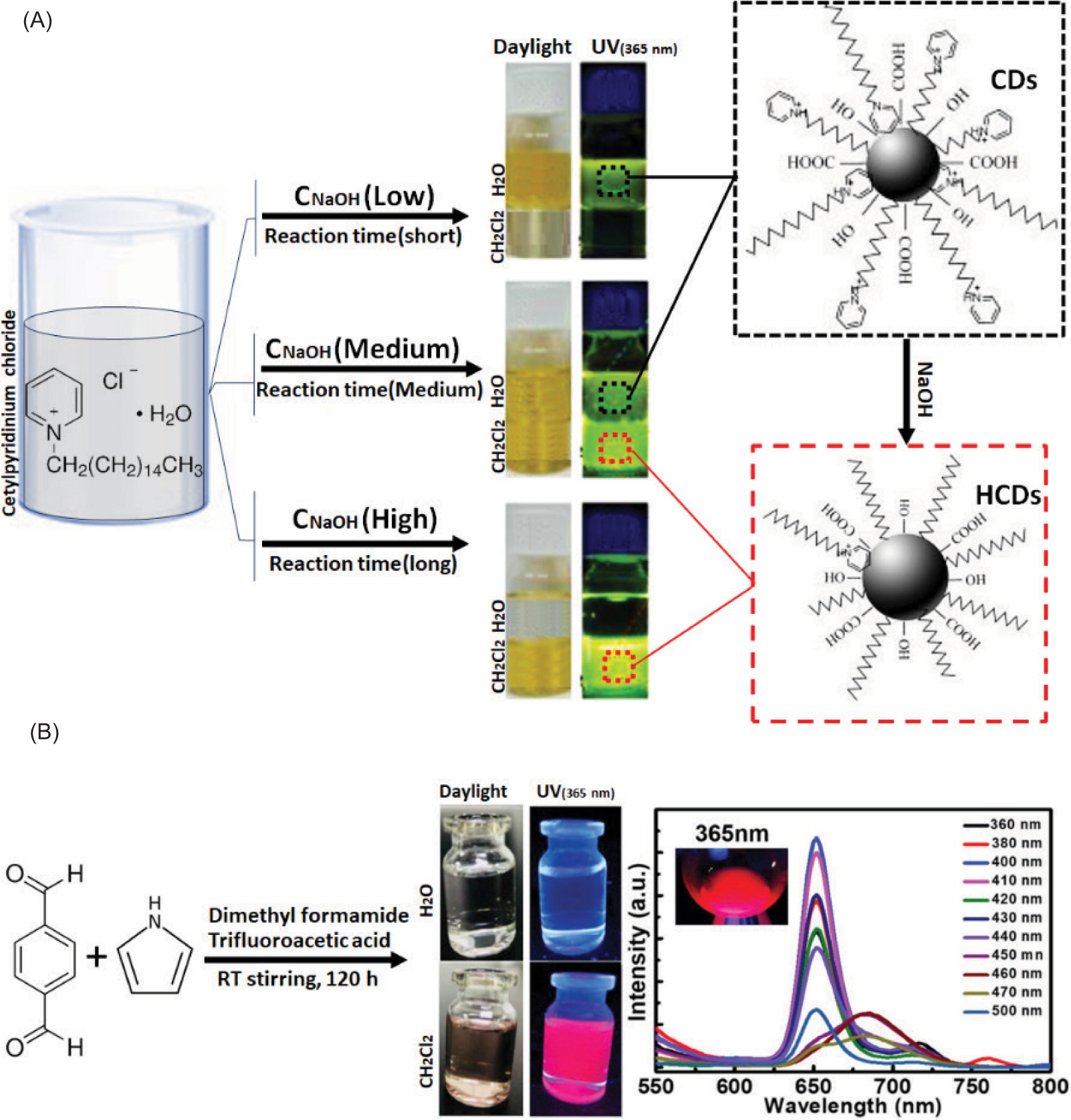

Figure 1. (A) Chemical oxidation synthesis of CDs and HCDs. Photographic images showing CDs in water and CH₂Cl₂ under daylight and ultraviolet (UV) light (at 365 nm) (adapted from Zheng et al., 2015); (B) schematic of chemical oxidation approach to HCD synthesis from pyrrole and terephthalaldehyde, trifluoroacetic, and DMF. Photos of HCDs in daylight and UV light, and fluorescence spectra in CH₂Cl₂ (adapted from Feng et al., 2020).

Hydrothermal/solvothermal procedure

Hydrothermal/solvothermal procedure involves the use of heat and pressure in sealed containers to treat water-based (hydrothermal) or organic-based (solvothermal) solutions containing different precursors. These methods are used to synthesize various CDs and HCDs by adjusting their temperature, pressure, and reaction period. These methods are simple, cost-effective, and size, shape, and surface can be changed (Dutta and Karak, 2022).

Yang et al. (2019) synthesized dispersed blue-emitting and aggregation-induced red-emitting HCDs by adding melamine and dithiosalicylic acid to an acetic acid solution and using a one-pot solvothermal method at 180°C for 10 h (Figure 2A(a)). As illustrated in Figure 2A(b), the as-synthesized HCDs showed reversible two switch-mode luminescence properties, so that the addition of water turned on the red emission of the liquid HCDs, and the addition of ethanol displayed the blue emission of HCDs. In addition, after purifying and drying blue-luminance HCDs, the output of HCD powders emitted red aggregation-induced emission. Recently, Mondal et al. (2023) synthesized HCDs employing a solvothermal method with citric acid as a carbon source, subsequently subjecting them to surface functionalization with alkylamines possessing diverse hydrophobic alkyl chains (methyl amine, n-butyl amine, and n-octyl amine). They ascertained that the solubility of CDs was elevated in aqueous media in comparison to organic solvents. Moreover, butyl-amine-functionalized CDs exhibited solubility in both polar and nonpolar media because of the co-presence of hydrophilic and hydrophobic functional groups on the surfaces of CDs whereas octyl amine-functionalized CDs demonstrated solubility exclusively in organic solvents. Similarly, riboflavin is carbonized into HCDs in the presence of ethylenediamine and acetone (Marković et al., 2022). For this purpose, riboflavin was first dissolved in acetone, and ethylamine was added dropwise to obtain a transparent dark orange solution and heated at 180°C for 12 h. In another study, highly luminescent HCDs were synthesized using a hydrothermal technique (Coşkun et al., 2022). The carbon precursors were calix[4]pyrrole and n-hexane, separately dissolved in toluene, and heated at 200°C for 8 h (Figure 2B). Results demonstrated that HCDs in toluene exhibited a smooth crystalline structure and high stability.

Figure 2. (A) (a) Hydrothermal formation of HCDs; (b) photographs of two-switch-mode luminescence of HCDs in water and re-dissolution in ethanol, and the dried product under sunlight and UV light (365 nm); (adapted from Yang et al., 2019). (B) Synthesis of blue-emitting HCDs from calix[4]pyrrole and the bright blue emission of the prepared HCDs under UV light (366 nm) (adapted from Cos¸kun et al., 2022).

Other environmentally sustainable carbon sources, such as biomass, biowastes, and other carbon precursors, are explored by researchers for the synthesis of various HCDs using hydrothermal methods (Ndlwana et al., 2021). For example, fluorescent HCDs are synthesized hydrothermally using Clitoria ternatea leaves. The ethanolic extract of the plant was first prepared and heated at 160^°C for 24 h. The crude product was subsequently combined with a mixture of 1:1 dichloromethane:water and the organic layer containing HCDs was collected as the final product (Shinde et al., 2023). Multifunctional HCDs with an average size of 2.5±1 nm with various surface functional groups (OH/NH, C=O, C–N, and C-O-C) were produced using a facile solvothermal method with tea saponin as a precursor (Zhang et al., 2023a). Shi et al. (2023) reported an innovative use of Rhodamine B as a precursor for the hydrothermal synthesis of near-infrared (NIR)-responsive HCDs. The significance of this starting material lies in its ability to address the issue of rhodamine, a harmful dye pollutant generated by the textile industry while also offering an opportunity to transform waste into valuable materials. During the synthesis process, the organic dye, ethanol, and hydrogen peroxide were heated (200°C for 10 h). The resulting HCDs exhibited tunable excitation wavelengths and upconverted fluorescence within the UV–NIR range.

Pyrolysis treatment

During pyrolysis, the carbon precursors are heated to high temperatures, leading to thermal decomposition. The main advantages of this method are solvent-free nature, short reaction time, cost-effectiveness, ease of performance, and scalability, making it a preferred choice over the hydrothermal/solvothermal method (Khairol Anuar et al., 2021; Tajik et al., 2020). Various polymeric feedstocks have been explored for pyrolytic HCDs syntheses. For example, Bodik et al. (2018) prepared a mixture of polyoxyethylene-polyoxypropylene-polyoxyethylene triblock copolymer (Pluronic PF-68) and phosphoric acid, which was heated to 250°C with stirring for 2 h to form spheroid shape HCDs (5 nm) (Stanković et al., 2018). Bourlinos et al. (2008) investigated the nonlinear optical response of HCDs synthesized through pyrolysis of lauryl gallate powder. The precursor was placed in a porcelain crucible without any secondary or modifier agents and heated at 270°C for 2 h. The same research group synthesized HCDs through one-step pyrolysis decomposition using various ammonium citrate salts, where the citrate unit and organic ammonium served as the source of carbon cores and surface modifiers, respectively. The results showed that when 2-(2-aminoethoxy)-ethanol citrate salt precursors were used, hydrophilic CDs were synthesized whereas the carbonization of octadecyl ammonium (C₁₈H₃₇NH₃⁺) citrate salt resulted in the formation of HCDs. Cheng et al. (2015) developed a green method to make fluorescent HCDs using ascorbic acid and hexadecylamine. After sonication, mixing, and refluxing in an oil bath, the obtained mixture was purified using acetone and dried in a vacuum oven to yield the HCD product. The acquired HCDs showed green fluorescence when excited with 365-nm UV radiation. This probe could be used to detect 2,4,6-trinitrophenol in hydrophobic media.

Microwave-assisted

This process allows rapid synthesis of HCDs in the order of a few minutes with high yield. The efficiency and simplicity of this process have attracted the interest of researchers (Li et al., 2021b). For example, Wang et al. (2018) prepared HCDs (3.5 nm) in the presence of pyridinic nitrogen, pyrrolic nitrogen, and sp³ hybrid nitrogen by mixing 1,3-dibutylimidazolium dicyandiamide ionic liquid and ethanol, followed by reaction under microwave irradiation at 1,300 W for 5 min. The ionic liquids with cationic moieties consisting of N-heteroaromatic rings or ammonium derivatives are susceptible to decomposition, thereby greatly improving the efficiency of carbonization.

In another study, Mitra et al. (2012) reported a straightforward microwave synthesis of fluorescent HCDs using a domestic microwave oven. To avoid multistep functionalization and expensive raw materials, they used poloxamer Pluronic F-68 and phosphoric acid as precursors and an optimal synthesis process at 450 W for 4 min. Wen et al. (2019) developed a microwave-assisted synthesis of monodispersed HCDs (5.5 nm with various surface functional groups) using pheophytin powder dissolved in N,N-dimethylformamide at 500 W for 30 min.

Other methods

Solid-phase synthesis is an alternative approach to HCDs synthesis. This method eliminates the need for strong acids/bases and organic reagents, making it more environment-friendly than other techniques. Zhao et al. (2020) synthesized HCDs utilizing L-cysteine, citric acid, and N,N'-dicyclohexylcarbodiimide (DCC) as precursors in the presence of minimal water. The as-prepared HCDs had excellent PL properties and are useful as a light source in white light-emitting diode (LED) lamps and solid luminescent structures. Talib et al. (2015) developed a novel technique that utilized paraplast granules, which are high-purity polymer blends used in tissue embedding and prosthesis devices, as the precursors. The granules were melted at 70°C and rapidly injected into a toluene solution with gentle stirring while being flushed with nitrogen. Notably, dodecanethiol was added to the reaction mixture to enhance PL and provide surface passivation of HCDs. The mixture was stirred until it developed a yellow-green color. The synthesized HCDs had sizes in the range of 5–30 nm and emitted a strong bright blue fluorescence.

Purification

When synthesizing CDs, impurities, such as molecular intermediates and unreacted substrates, can affect the characteristics of synthesized products, especially their PL and quantum yields. Research indicates that CDs produced through bottom-up methods have higher purity whereas a purification process is necessary for CDs fabricated using top-down routes (González-González et al., 2022). Various purification methods of CDs are reported in the literature, such as washing, centrifugation, filtration, dialysis, ion-exchange chromatography, reversed-phase chromatography, gel electrophoresis, solvent extraction, and so on (Yao et al., 2019). The water-wash method (boiling water) is commonly used to remove unreacted substrates by adding a reaction mixture to boiling water. The purification efficiency of this technique is comparable to that of column chromatography (Yang et al., 2019).

In contrast, solvent extraction relies on the dispersion of HCDs in hydrophobic or hydrophilic solvents (Cook et al., 2021). Organic solvents, such as chloroform, ethyl acetate, toluene, hexane, carbon tetrachloride, dichloromethane, N-methyl-2-pyrrolidone (NMP), DMF, acetonitrile, and ether, are commonly used to purify synthesized HCDs (Mitra et al., 2012). The effectiveness of the solvent extraction method in separating and purifying HCDs is influenced by the polarity and structural characteristics of the solvent employed. Han et al. (2014) reported a gradient extraction technique involving the use of solvents with varying polarities to extract different fractions of HCDs. The organic solvents used were n-hexane, CHCl₃, and CHCl₂, with respective polarities of 0.06, 1.6, and 3.4. Additionally, a mixture of CHCl₃ and CHCl₂ in a ratio of 3:2 was used. The four extracted fractions exhibited a narrow size distribution, with an average diameter of approximately 3 nm, and a consistent spherical morphology. Furthermore, the intensity of surface functional groups, encompassing polar groups, such as O-H/N-H and C=O, and nonpolar groups, such as C-C, C=C, and C-H, on the as-prepared nanodots demonstrated a direct correlation with the polarity of the solvents utilized during extraction. Specifically, an increase in the polarity of the extraction solvent resulted in a corresponding increase in the number of heteroatoms present on the surface of CDs (Han et al., 2014). For example, after solid-phase synthesis using anhydrous L-cysteine hydrochloride and citric acid, it was found that HCDs could dissolve in commonly used organic reagents (e.g., dimethyl sulfoxide [DMSO], tetrahydrofuran (THF), and various alcohols) with polar coefficients ranging from 7.2 and 3.4. However, their solubility in organic solvents with polar coefficient of less than 3.4 was significantly low (Zhao et al., 2020). Importantly, the PL properties of the extracted CDs were influenced by their respective surface polarities.

However, Yin et al. (2019) synthesized HCDs from aliphatic compounds with a single terminal functional group and performed either gel permeation chromatography or silica gel column chromatography to purify HCDs, resulting in the acquisition of highly pure HCDs with absolute fluorescence quantum yields exceeding 10%. As shown in Figure 3A, the separation of HCDs from 3,4,5-tris(octadecyloxy)benzaldehyde by gel permeation chromatography with toluene as an eluent yielded five fractions of nanodots with different fluorescence properties. Researchers have also explored the purification of tea saponin-derived HCDs using silica gel column chromatography, with dichloromethane used as an eluent (Zhang et al., 2023b). Koutsioukis et al. (2018) employed a purification technique based on solid-phase extraction of fluorescent CDs by passing the product of hydrothermal synthesis through a tube packed with neutral aluminum oxide (Al₂O₃). The HCDs were then retrieved from alumina using appropriate elution solvents. They separated yellow-, blue-, violet-, and green-emitting CDs by eluting the column with ethanol, acetone, and chloroform, respectively (Figure 3B).

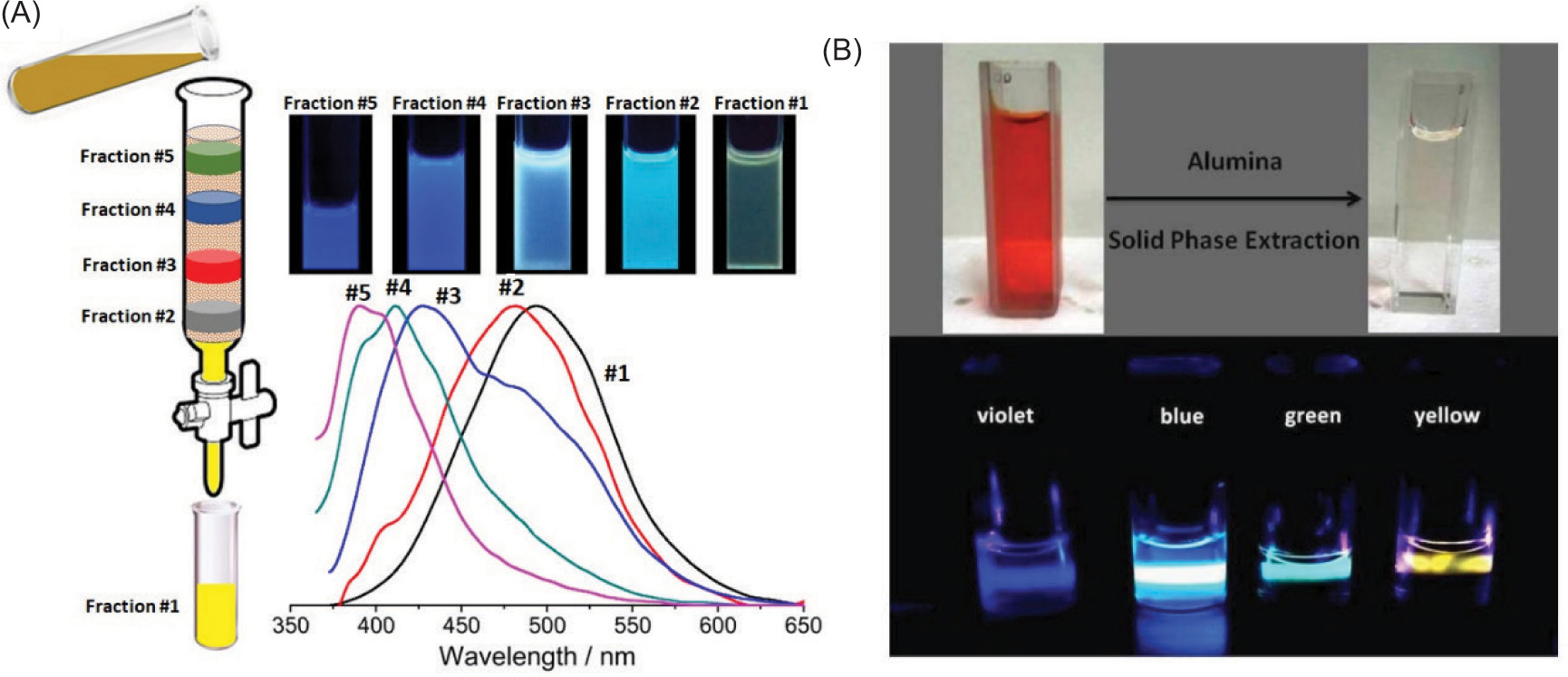

Figure 3. (A) Separation schematic of the synthesized HCDs by gel permeation chromatography, which illustrates the separated fluorescent fractions of the synthesized HCDs from 3,4,5-tris(octadecyloxy)benzaldehyde under 365-nm UV irradiation, and their relevant emission spectra excited at 360 nm (adapted from Yin et al., 2019). (B) Photo of the as-prepared HCDs before (red-brown) and after (colorless) the purification step. Violet-, blue-, green-, and yellow-emitting CDs (when exposed to 365-nm UV radiation) were obtained by eluting the Al₂O₃ column with various solvents (adapted from Koutsioukis et al., 2018).

In addition, dialysis bag of 100-kDa molecular weight cut-off (MWCO) was used to purify dye-derived HCDs (1.5 to 6 nm) (Shi et al., 2023). In another study, Wang et al. (2018) refined HCD solution using a dialysis bag with a 500-Da MWCO in ultrapure water. This process led to a narrow range of particle sizes, averaging around 3.5 nm. Despite its effectiveness, the dialysis method is time-consuming and not suitable for large-scale production. To remove residual acetone and obtain pure HCDs, the remaining supernatant was subjected to centrifugation at 10,000×g for 10 min. Other researchers reported the removal of impurities from the synthesized HCDs of paraplast granules and riboflavin using a 0.2-µm filter (Talib et al., 2015) and 100-nm nylon filter membranes (Marković et al., 2022), respectively.

Hydrophobicity Determination of HCDs

In pharmaceutical applications, the hydrophobicity of nanomaterials can affect their pharmacokinetics, host immune responses, bioaccumulation, and toxicity (Taylor et al., 2022). Currently, standardized quantitative procedures for determining the hydrophobicity of nanomaterials do not exist, although some researchers have used the partition coefficient (K_ow) as an indicator of hydrophobicity. K_ow quantifies a compound’s hydrophobicity by comparing its relative distribution between water and n-octanol at a specific temperature (Amézqueta et al., 2020). This two-phase system served as a synthetic reference model, allowing for the evaluation of polarity without significantly altering the properties of either phase. The hydroxyl group in n-octanol functions as both hydrogen-bond donor and acceptor, enabling it to interact with various polar groups. This interaction enhances the solubility of these polar groups within the octanol phase. Additionally, n-octanol possesses acceptable viscosity and low vapor pressure, making it suitable for UV detection in quantitative analysis. If the obtained K_ow > 1, the substance has higher solubility in organic phases (Moldoveanu and David, 2021). A key limitation of this method is that it is only applicable to nanoparticles that remain stable in octanol. It cannot be used when surfactants are present, which are commonly added to stabilize nanoparticle suspensions, because the surfactant distributes unevenly between phases (Taylor et al., 2022).

The hydrophobicity of CDs can also be assessed by contact angle (CA) measurements. The solution of CDs was then applied to a hydrophilic glass slide. Typically, nanoparticles with a CA > 90° are considered hydrophobic. Conversely, lower angle values indicate increased hydrophilicity of particles (Guo et al., 2021). Shi et al. (2023) measured the CA value of synthesized dye-derived HCDs on a silicon wafer greater than 105° (on both sides), which confirmed the good hydrophobicity of the synthesized product. In addition, Mitra et al. (2012) reported a CA value of approximately 122° for HCDs synthesized from PF-68 in the presence of o-phosphoric acid on a standard hydrophilic glass slide, suggesting the hydrophobic characteristics of the as-prepared nanodots. Despite the importance of characterization and hydrophobicity of CDs to increase the understanding of their behavior for various applications, it appears that CDs’ hydrophobicity analysis is largely overlooked in many studies.

Characterization Techniques for HCDs

Carbon dots are characterized by nanometrological techniques based on physical measurements at nanoscale level (de Andrés and Ríos, 2021). Figure 4 summarizes the selected instrumental techniques for the characterization of hydrophobic CDs. Certain physical properties may require the use of multiple techniques for a comprehensive examination. The characterization techniques used in various related reports on the synthesis and application of HCDs are listed in Table 1.

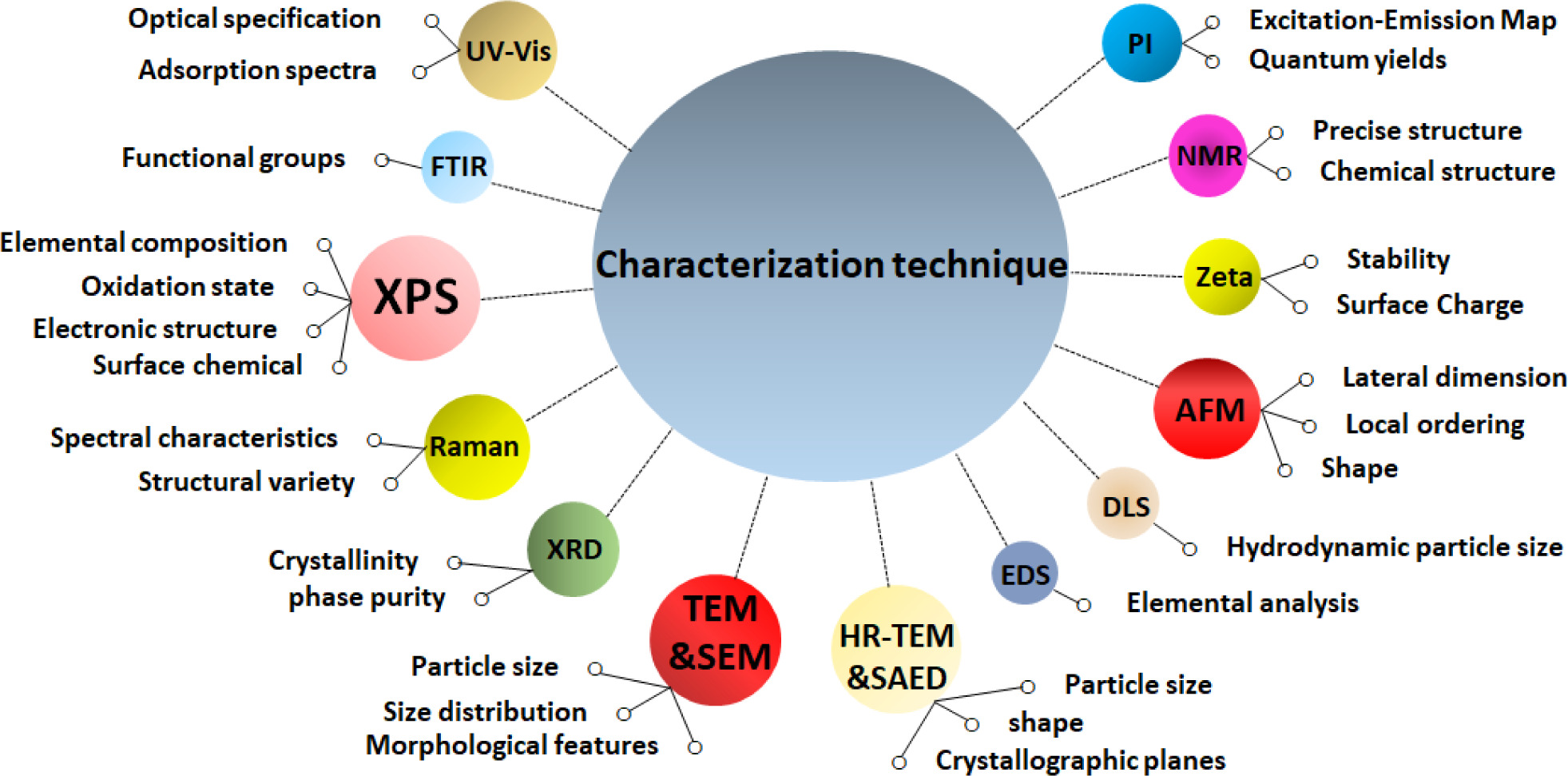

Figure 4. Instrumental techniques for HCD characterization.

Toxicology of HCDs

The biological effects of nanoscale hydrophobic materials occur through specific interactions with lipophilic cellular components, particularly with the cell membrane. This interaction can alter the structure, organization, and concentration of membrane proteins, thereby affecting their biological functions (Barnoud et al., 2014; Chisari et al., 2009). Owing to their lipophilic nature, hydrophobic nanoparticles can easily traverse the cell membranes and accumulate within cellular and tissue lipids (Puckowski et al., 2016). The safety or toxicity of CDs depends on their specific physicochemical characteristics, including their size, chemical composition, surface chemistry, and charge. These factors are crucial for determining the overall toxicity of CDs (Guha and Ghosh, 2022; Hardman, 2006; Liu and Tang, 2020). In general, the IC₅₀ value can be used as an indicator of nanomaterial cytotoxicity. In a recent study, Chatterjee et al. (2022) applied the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) to assess the cytotoxicity of HCDs in human HEK 293 T (embryonic kidney 293) and HeLa cell lines. The synthesized HCDs derived from sucrose and dodecylamine demonstrated low cytotoxicity, with IC₅₀ values of 56 g mL^–1 and 14 g mL^–1 in HEK 293 T and HeLa cell lines, respectively. Mao et al. (2016) investigated the cytotoxicity of HCDs (~8.52 nm) and surface functionalized by hydroxyl, secondary amide, and aromatic structure groups, using a standard MTT experiment on different cell lines. The results showed that cell viability remained unchanged after the incubation of tumor cells with 50 μg mL^–1 HCDs for 24.

To transform HCDs into hydrophilic nanoparticles, CDs encapsulated in human serum albumin (HCDs-HSA), resulting in excellent stability under a wide pH range and ionic strength (Fahmi et al., 2020). The in vitro cytotoxicity evaluation of HeLa cells using the Cell Counting Kit-8 (CCK-8) assay showed that neither HCDs nor HCDs-HSA caused a significant reduction in the viability of HeLa cells. Moreover, cell viability remained above 80% even at concentrations as high as 500 μg/mL, indicating that both nanoparticles had low cell toxicity. Zhang et al. (2023a) used the CCK8 assay to assess the cytotoxicity of HCDs, which were produced from melamine and dithiosalicylic acid, on 293T cells. The results demonstrated that at HCD concentrations of 0.25, 0.5, 1, 2, and 4 mg/mL, cell viability was greater than that of the control group. This suggests that the synthesized HCDs enhanced cell viability and promoted cell growth.

Cytotoxicity is essential when using HCDs for various biological purposes. Choi et al. (2018) evaluated the toxicity of HCD probes functionalized with dodecane/sulfobetaine groups on Madin–Darby canine kidney (MDCK) cells and cells isolated from the pleural effusion of a patient with invasive ductal carcinoma (MDA-MB) by using MTT assay. Their results demonstrated that the viability of MDCK and MDA-MB cells remained at or near 100% level at HCDs concentration of up to 0.10 mg. mL⁻¹. Similarly, the MTT assay on HL-7702 cells (Lu et al., 2017) and 4T1 cells (Wen et al., 2019) was also used for cytotoxicity studies of carbohydrate-derived HCDs and synthesized HCDs from pheophytin, respectively.

In addition to cell lines, other in vivo and in vitro models are also used by researchers. Zebrafish (Danio rerio) embryos were used by Shinde et al. (2023) to evaluate HCD toxicity. Embryos were immersed in a suspension of HCDs and collected after different periods of incubation. The distribution of fluorescent dots in zebrafish was assessed using fluorescence microscopy. Their findings verified the absorption and accumulation of HCDs, which did not disrupt the embryos’ physiological development or normal growth. This indicates that CDs are biocompatible with in ovo zebrafish embryos (Figure 5).

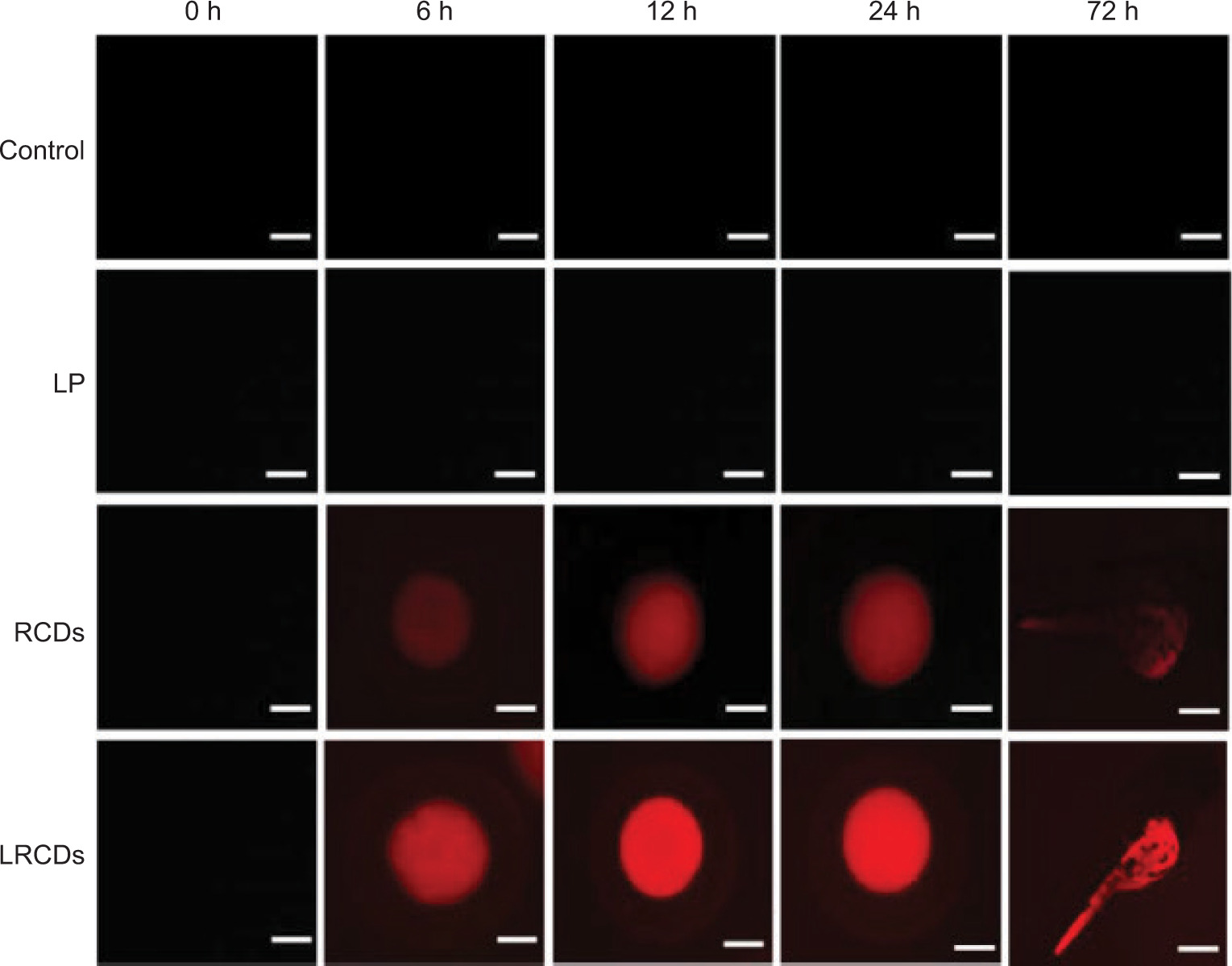

Figure 5. In ovo application of CDs in bioimaging studies. (a) Control, liposome (LP), red fluorescent carbon dot (RCDs), and lipid-coated red fluorescent carbon dot (LRCDs) uptake in zebrafish embryos at 0-, 6-, 12-, 24-, and 72-h intervals. (Scale bar: 100 μm) (adapted from Shinde et al., 2023).

Applications of HCDs

Hydrophobic carbon dots possess fluorescence, photoluminescence, and functional properties that can be exploited for various applications, such as sensing, microbial control, bio-imaging, drug delivery, and electronics (Sun et al., 2022; Yang et al., 2016). In the following sections, the selected HCD applications for food safety and analysis are discussed.

Sensor application

Carbon dots possess excellent fluorescence properties and exceptional photostability, making them ideal for use in precise and responsive sensing systems. Several chemical nanosensors based on HCDs are reported. For instance, Cheng et al. (2015) examined the efficiency of HCDs synthesized from vitamin C and hexadecylamine as nanosensors to detect 2,4,6-trinitrophenol (TNP) (a harmful nitroaromatic pollutant nitroaromatic) in hydrophobic media (Figure 6A). The HCDs dissolved in tetrahydrofuran exhibited a strong emission at λ_em = 495 nm if excited at λ_ex = 410 nm. Upon the addition of 1–110-μM TNP, the fluorescence intensity was quenched linearly (limit of detection [LOD] = 1.8 μM) because of the inner filter effect (IFE) quenching mechanism (Figure 6B). In addition, Figure 6C reveals the responses of portable fluorescent test strips (silica gel TLC plate) under 365-nm UV light without any treatment and after treatment with TNP concentrations of 2, 20, 200, and 400 µM.

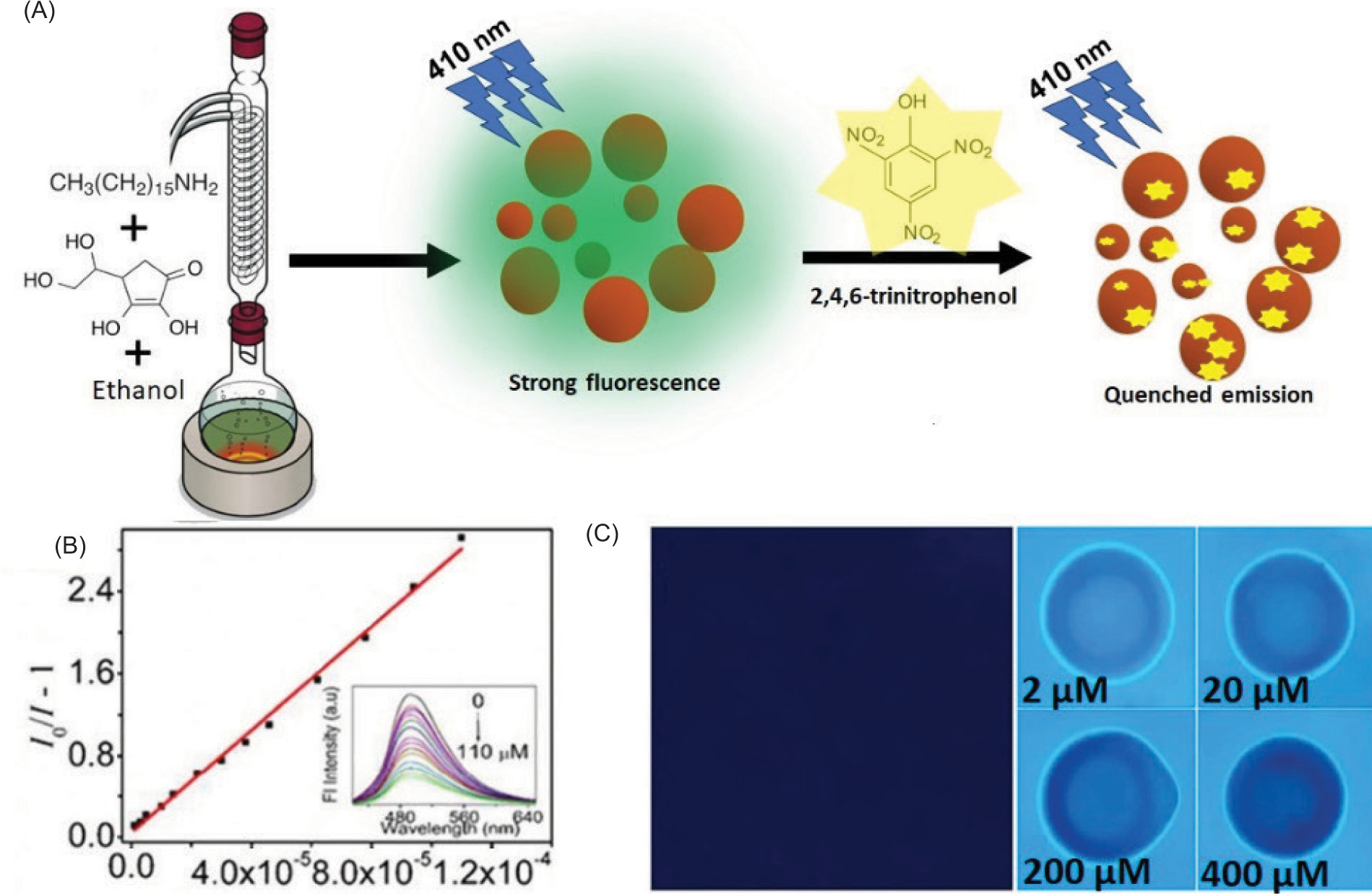

Figure 6. (A) Schematic of HCD synthesis from vitamin C and hexadecylamine and their sensing of TNP; (B) linear relationship between ((I₀/I) – 1) and TNP concentration. Emission spectra of the HCDs excited at 410 nm in the presence of different concentrations of TNP (inset); (C) portable fluorescent test strips (silica gel TLC plate) under 365-nm UV light without any treatment and after treatment with various concentrations of TNP (adapted from Cheng et al., 2015).

An HCD-based fluorescent nanoprobe was developed by refluxing maleic acid and oleylamine, with long-chain oleylamine serving as a self-surface passivating agent for selective sensing of TNP and 2,4-dinitrophenol (DNP) (Garg et al., 2022). The obtained nanodots exhibited excitation-dependent fluorescence properties (λ_em = 465 nm at λ_ex = 360 nm), and these emission intensities were selectively quenched by the addition of TNP and DNP. In that study, the quenching mechanism of the fluorescent nanoprobe was explained using a combination of fluorescence resonance energy transfer (FRET) and photo-induced electron transfer (PET) processes.

Hydrophobic carbon dots-based probes are developed for ratiometric fluorescent sensing of Cu²⁺ (Lu et al., 2017). To prepare the probe, researchers prepared HCDs, which were derived from glucose, octadecylamine, or octadecene, and then encapsulated in the amphiphilic polymer 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-poly(ethylene glycol) (DSPE-PEG) and tetrakis (4-carboxyphenyl) porphyrin (TCPP)-modified DSPE-PEG through self-assembly. When excited at a wavelength of 405 nm, these structures displayed emissions at 485 nm for HCDs and 655 nm for TCPP. As illustrated in Figure 7, Cu²⁺ ions interact with the nitrogen atom in the porphyrin ring of TCPP, leading to a selective suppression of its fluorescence. For this probe, the plot of the ratio of fluorescence intensity at 655 nm to fluorescence at 485 nm (F.I₆₅₅ nm/F. I₄₈₅ nm) versus Cu²⁺ concentration was linear in the range of 2×10⁻⁷–1×10⁻⁶ M.

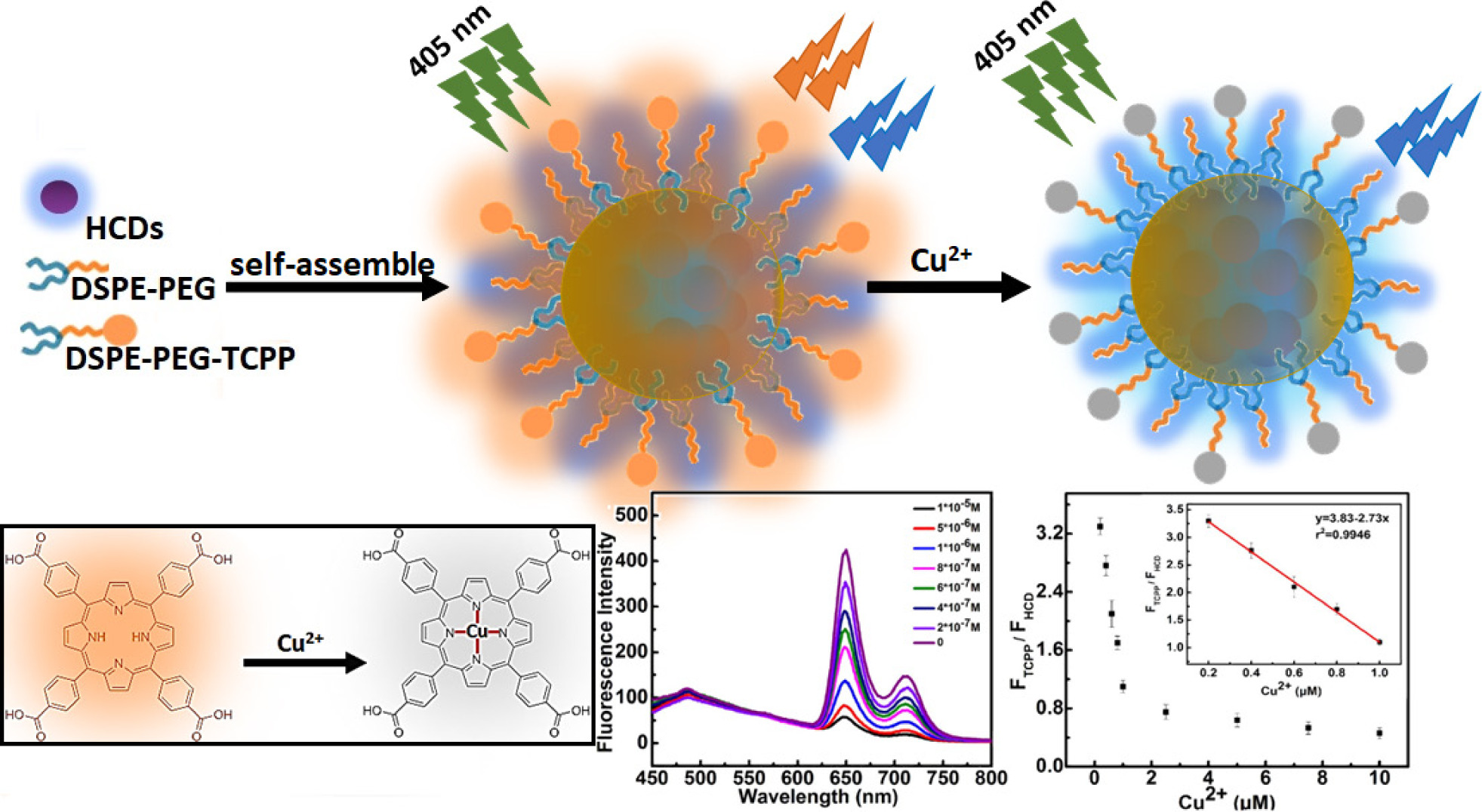

Figure 7. Diagram of HCDs encapsulated in micelles, showing dual fluorescence emissions under a single excitation wavelength (405 nm), quenching mechanism, alterations in the fluorescence spectra of the dual-emission probe when exposed to varying Cu²⁺ concentrations, and the fitting curve of FTCPP/FHCD against different Cu²⁺ levels (adapted from Lu et al., 2017).

In another study, triolein-derived HCDs (TO-HCDs) were developed to detect sodium copper chlorophyllin in nonalcoholic beverages (Lin et al., 2022). The coordination of Cu²⁺ to the surface sulfonyl groups of TO-HCDs induced nanoparticle aggregation, thus causing fluorescence quenching (PET). Practical investigations revealed that TO-CDs are promising for the rapid and accurate detection of Cu²⁺ ions and copper-based compounds in environmental and food samples (Lin et al., 2022). In addition, Kong et al. (2017) developed HCDs by thermal oxidation of citric acid and methionine, followed by surface modification of HCDs with a long-chain cationic CTAB surfactant through an ion exchange process. They observed that the blue fluorescence emitted by CDs was completely quenched when flavanol and morin molecules bonded to the surface groups of the CDs. With the introduction of Al³⁺, the fluorescence intensity of the metal-ion complex (MR-Al³⁺) increased linearly between 8 mM and 20 mM. This HCD-based detection technique enables the quick identification (around 0.5 minutes) of Al³⁺ in human umbilical vein endothelial cells (Kong et al., 2017).

A new fluorescent sensing platform using HCDs was recently created for detecting HSA. This platform offers a linear detection range of 0–180 μM and is effective across a pH range of 2 to 13 (Zhang et al., 2023). Researchers have reported that when HSA was added to saponin-derived HCDs, the fluorescence intensity (at λ_ex = 380 nm) increased significantly, reaching up to 6.5 times the original intensity of the as-prepared HCDs. This enhancement was attributed to the decreased polarity of the solvent, which inhibited the rotation or vibration of fluorophore. The LOD for HSA was achieved at a concentration of 140 nM. Additionally, this study revealed that the fluorescence intensity of synthesized HCDs exhibited significant variations under extremely acidic conditions when excited at a wavelength of 380 nm. This result led to the introduction of a sensitive ratiometric pH-detection probe for extremely acidic conditions.

Hydrophobic carbon dots have gained considerable interest in the detection of specific contaminants in food, and Yen et al. (2020) designed a highly selective and sensitive detection kit for nitro-substituted benzodiazepines in beverages, using the fluorescence quenching properties of HCDs. These HCDs were synthesized from d-phenylalanine through a hydrothermal process and exhibited excitation-dependent fluorescence behavior (λ_em = 430 nm at λ_ex = 365 nm) and different quantum yields in toluene, ethyl acetate, and dichloromethane (16.2%, 9.8%, and 9.4%, respectively). The results verified that the analyte caused fluorescence quenching for nimetazepam up to a concentration of 7.24 μM, with a detection time of <5 min. The assay method was evaluated for the detection of nimetazepam in various beverages, such as beer, red wine, whiskey, and orange juice. Figure 8 shows the concept and application of the proposed probe for determining nimetazepam in some drink samples.

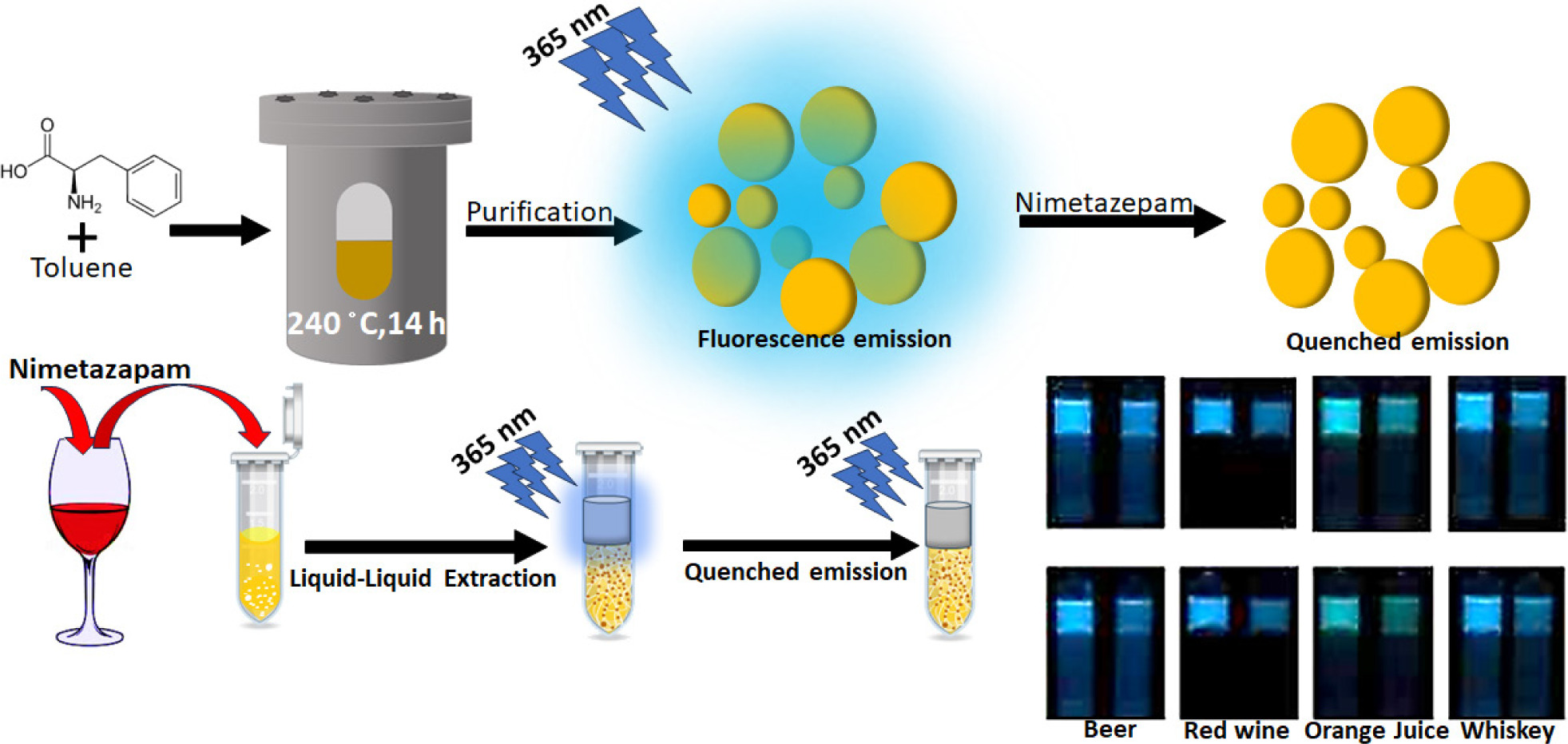

Figure 8. Synthesis and application of as-prepared HCDs from D-phenylalanine for fluorescence sensing of nimetazepam in various beverages (adapted from Yen et al., 2020).

In chemical and industrial applications, accurate monitoring of water content is crucial, as even small amount of water impurities in organic solvents can lead to hydrolysis, generate unwanted oxidation products during processes, or contaminate solvents during storage. Therefore, in one study, the efficiency of a fluorescent probe based on HCDs synthesized via a hydrothermal method from pentafluorobenzyl alcohol in DMF was used to detect water content in DMF (Zhang et al., 2024). In the proposed design, for increasing water content from 2% to 90% (v/v), the PL of HCDs decreased gradually. They examined the effect of fluorescence quenching by observing variations in PL intensity with change in water content, revealing a linear correlation (R² = ~0.994) in broad water content (4–80%). The LOD in DMF was 0.08%, which is considerably lower than the values reported in earlier studies.

Recently, Wang et al. (2024) developed a fast, sensitive, and portable sensing platform for detecting ethanol in alcoholic beverages (specifically Chinese Baijiu) using a dual-mode approach that combines optical detection and smartphone imaging with HCDs. The HCDs, which exhibited bright red fluorescence, were synthesized through a hydrothermal method using o-phenylenediamine, p-aminobenzoic acid, manganese chloride, and hydrochloric acid. The authors found that adding ultrapure water to an ethanol solution containing HCDs led to HCD accumulation, resulting in notable changes in both fluorescence intensity and absorption. Additionally, the color of HCDs in the water-ethanol mixture changed visibly under both daylight and UV light, allowing the creation of a smartphone-based colorimetric detection system for simple and real-time ethanol monitoring. Figure 9 provides a schematic representation of the synthesis process and the ethanol detection mechanism of HCDs. In this approach, captured images of probes exposed to visible and UV light were carefully analyzed, and R, G, and B values were determined. Finally, the linear correlation between ethanol concentration and R, G, and B values was determined. The analytical results indicated that the sensor demonstrated strong sensitivity, a broad detection range, and impressive resistance to interference. Additionally, high recovery rates (96.5–104.5%) and excellent reproducibility (with reproducibility standard deviation [RSDs] < 6.6%) validated its effectiveness for analyzing real samples.

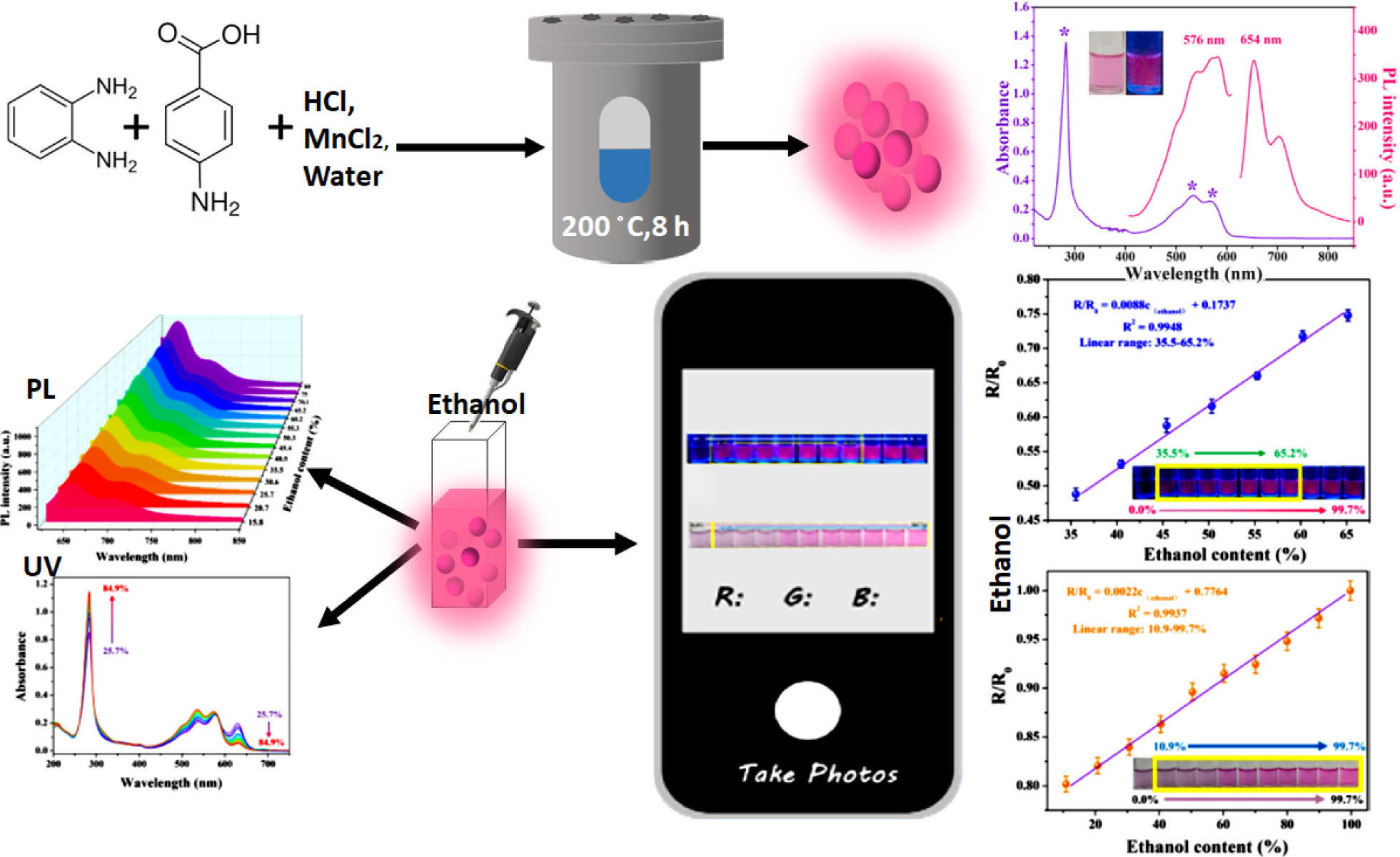

Figure 9. Schematic illustration of HCDs preparation process, PL excitation, PL emission, ultraviolet-visible (UV-vis) absorption spectra of HCDs, and optical dual-mode and smartphone imaging ethanol detection sensor operation (adapted from Wang et al., 2024).

He et al. (2024) developed a highly selective fluorometric probe for the specific detection of curcumin using HCDs synthesized from flaxseed oil through a solvent-free reaction. The resulting HCDs emitted blue fluorescence at 425 nm, achieving a relatively high quantum yield of 21.1%. In the presence of curcumin, the fluorescence was quantitatively quenched. They proposed that both dynamic and static quenching mechanisms contributed to the probe’s signal and found that the sensing HCDs could quickly recover from the tested solutions via solvent-change precipitation. According to their findings, the detection limit for curcumin using this fluorescent method was 20 nM, with a linear response range of 0.2–200 μM. The probe also effectively analyzed various real food samples, including turmeric sugar, curry powder, turmeric powder solid beverage, turmeric milk powder, and ginger powder, yielding reproducible and accurate results.

Galyean et al. (2018) also addressed the challenges of using toxic organic dyes or heavy-metal quantum dots incorporating fluorescence HCDs in the ionophore-based optical sodium nanosensor. In their approach, HCDs synthesized from L-ascorbic acid and oleamine, combined with blueberry dye, an ionophore, and a charge-balancing additive, were integrated into an ionophore-based Na⁺ nanosensor. Owing to the interaction between the blueberry dye and HCDs, only the dye becomes protonated at low concentrations of Na⁺, leaving the fluorescence of the HCDs unaffected. As the concentration of Na⁺ rises, the cations engage with the ion-selective receptor at the core of the nanosensor (Figure 10). At the same time, to preserve the internal charge balance, the dye underwent deprotonation, resulting in a reduction of fluorescence signal from HCDs. The energy transfer mechanism between the dye and HCDs has been suggested to involve FRET or IFE (Galyean et al., 2018).

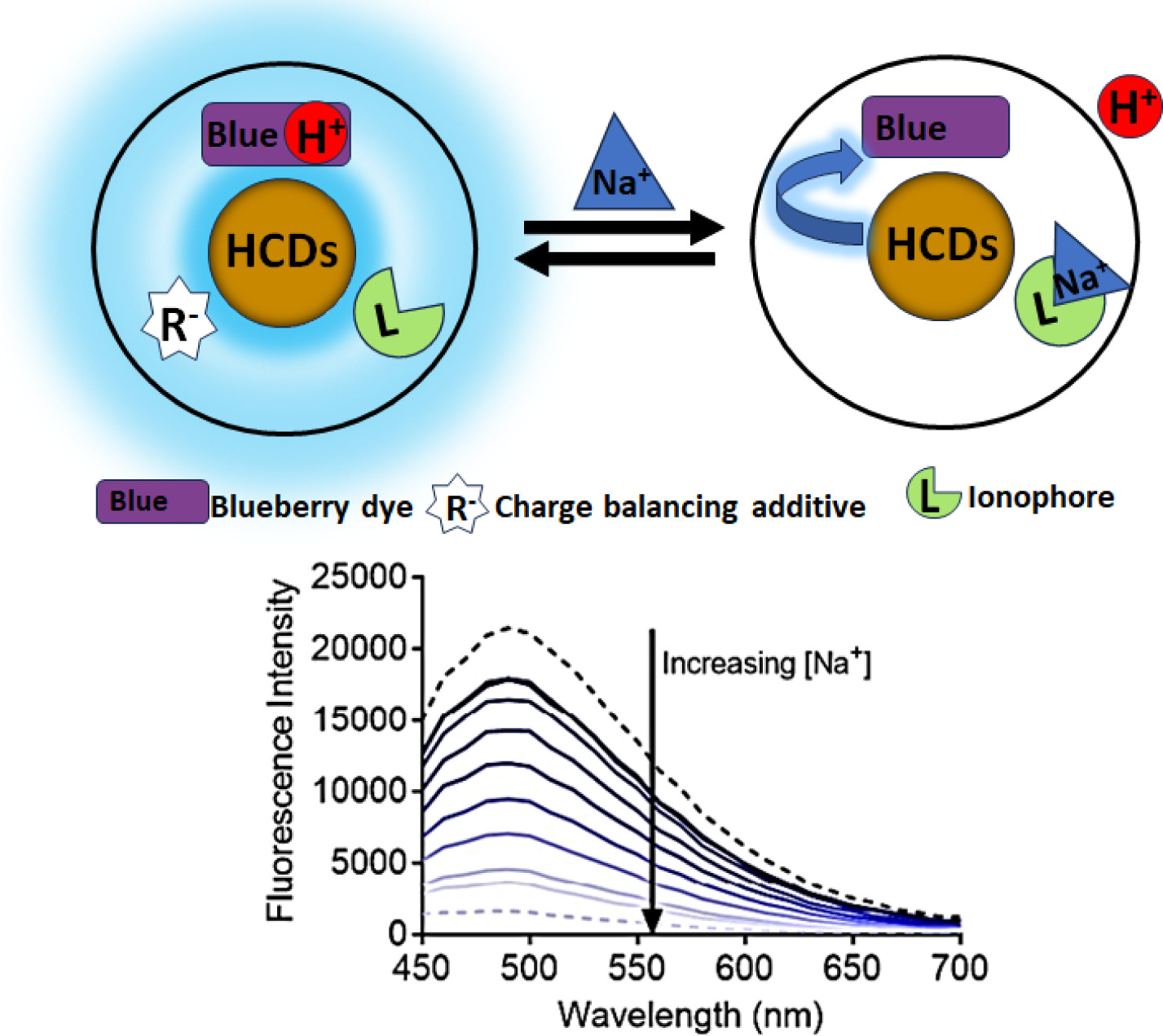

Figure 10. Illustration of the components of HCD nanosensors integrated into the nanosensor matrix, the mechanism of fluorescence quenching, and emission response with increase in sodium (Na⁺) concentrations (adapted from Galyean et al., 2018).

The emergence of aggregation-induced emission (AIE) approach has provided new insights into the fabrication of fluorescent probes based on CDs. For instance, a ratiometric fluorescent marker utilizes dual-emissive HCDs enables in situ, real-time visual evaluation of shrimp freshness (Zhang et al., 2023b). They fixed the HCDs onto a substrate made of cotton fiber paper. The as-prepared tag was used for the visual recognition of volatile base nitrogen (VBNs) using spermine and ammonium hydroxide as typical targets, which displayed distinct color variations from red to blue under UV light (Figure 11). The confirmed mechanism for naked-eye monitoring was based on the disaggregation of HCD aggregates in the presence of VBNs.

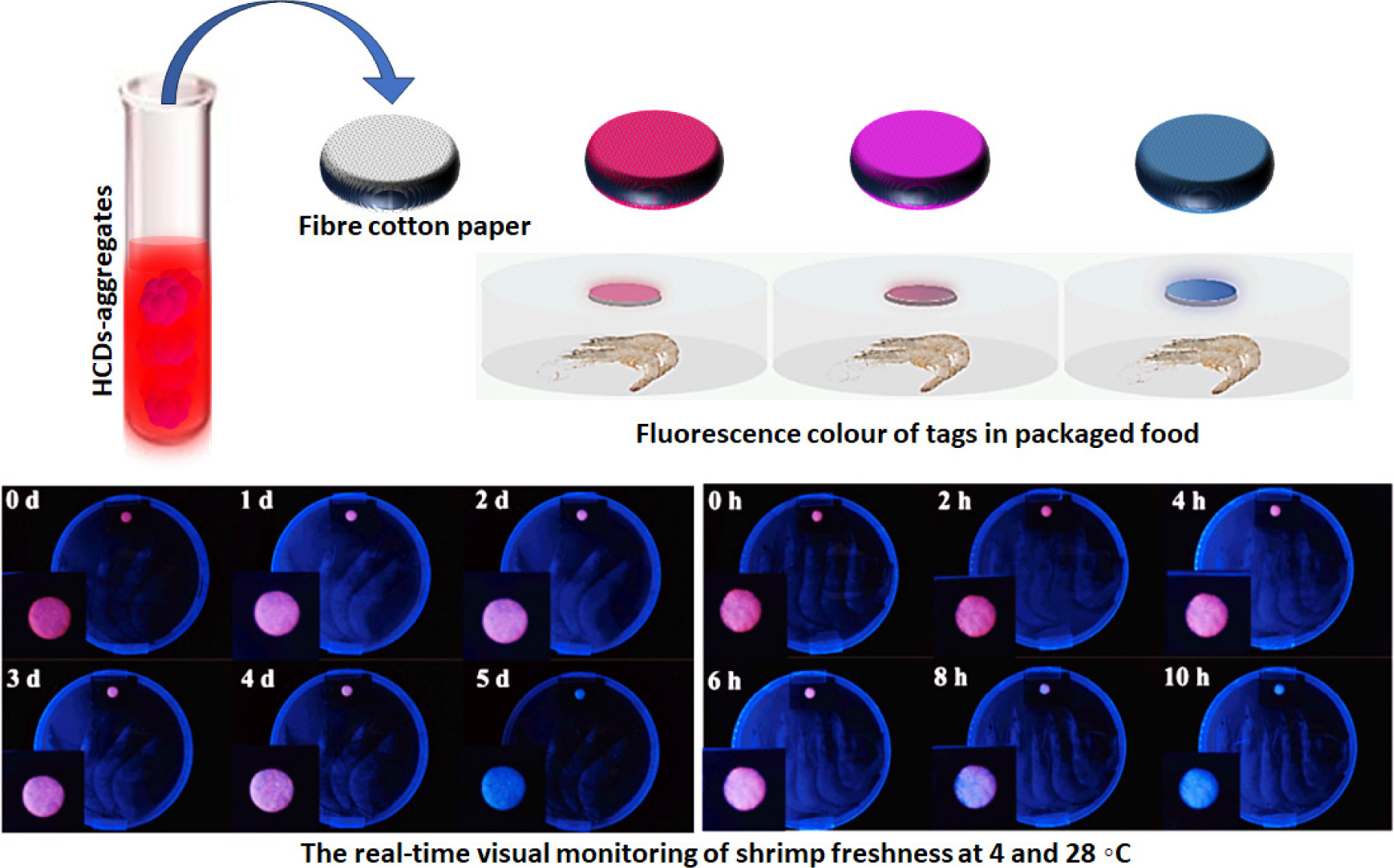

Figure 11. Schematic representation of the preparation process of the loaded HCD aggregates tag and the monitoring of shrimp freshness using this tag at 4°C (left) and 28°C (right). The image includes photographs of the tag after being exposed to shrimp under UV light (adapted from Zhang et al., 2023).

Application of HCDs in chromatography

Carbon dots are promising materials for modifying stationary phases in chromatographic applications because of their nanoscale size, customizable surface chemistry, and moderate adsorption capabilities (Chen et al., 2021a). Fu et al. (2022a) explored the applications of HCDs in chromatography by introducing a novel hydrophobic stationary phase for high performance liquid chromatography (HPLC). The stationary phase was prepared by chemically bonding the deep eutectic solvent-based HCDs to the surface of silica, which was then packed into a stainless-steel column. Tanaka and Engelhardt standard test mixtures were employed to assess the retention behavior of the fabricated stationary phase, including polycyclic aromatic hydrocarbons, flavonoids, aromatic amines, phenolic compounds, and even structurally similar compounds, such as prednisolone and hydrocortisone. The same research group enhanced the separation performance of the chromatographic stationary phase by introducing a mixed-mode approach: reversed-phase and hydrophilic interaction chromatographic modes (Fu et al., 2022b). This was achieved by developing a modified silica stationary phase using phosphorous-doped HCDs synthesized using choline chloride, lactic acid, and phosphoric acid as modifiers to impart specific hydrophobicity, hydrogen-bonding ability, and molecular-shape selectivity for the effective separation of diverse hydrophilic and hydrophobic compounds (Fu et al., 2022b). Jiang et al. (2021) employed an ionic liquid (1-vinyl-3-octadecyl ; imidazolium bromide) for the hydrothermal synthesis of HCDs. The prepared HCDs were then grafted and co-grafted onto silica beads for use as stationary phases in the packed HPLC columns. The column’s retention characteristics for different hydrophobic compounds (such as Tanaka, Engelhardt, SRM869b, and SRM870) were explained by the π–π interactions occurring between the imidazolium groups on the surface of the HCDs and the analytes. This column demonstrated enhanced selectivity for the separation of isomers of tetracyclic/tricyclic polycyclic aromatic hydrocarbons and butylbenzene when compared to standard C18 columns available on the market.

In a different study, HCDs were synthesized using citric acid, 1-aminoethyl-3-methylimidazolium bromide ionic liquid, and octadecylamine, resulting in multiple surface functional groups, such as carboxyl, amino, hydroxyl, and imidazole groups (Yang et al., 2022). The silica gel bead stationary phase was then modified with the synthesized HCDs with (3-aminopropyl)triethoxysilane as a spacer. The HCD synthesis process, modification of functionalized silica gels, and chromatograms of various analytes in the modified stationary phase are shown in Figure 12. The diverse analytes separated in this study indicated that the retention mechanisms were influenced by hydrophobic, π-π stacking, and electrostatic interactions (Yang et al., 2022).

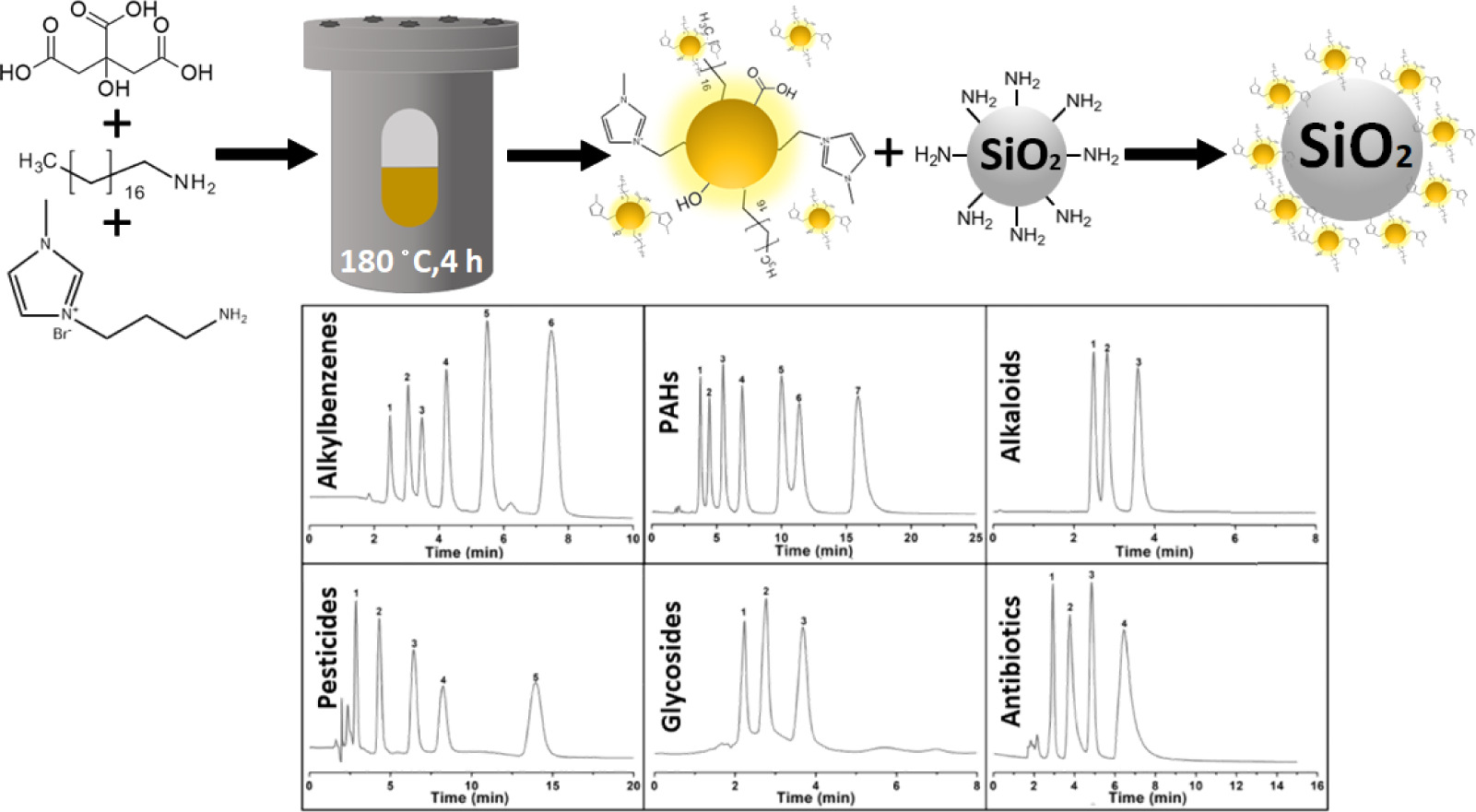

Figure 12. A hypothetical diagram of the synthesis of HCDs and modification of stationary phases, and chromatograms of alkylbenzenes, PAHs, alkaloids, pesticides, glycosides, and antibiotics on the modified column (adapted from Yang et al., 2022).

Antimicrobial performance

The antimicrobial properties of HCDs are believed to relate the production of reactive oxygen species (ROS), the disruption of bacterial membranes, and the degradation of biofilm structures. One approach to trigger the antibacterial effectiveness of HCDs is through the generation of ROS using low-power blue light (470 nm). In this process, HCDs act as both photosensitizers and photocatalysts, triggering the production of ROS and hydroxyl radicals (Bodik et al., 2018; Budimir et al., 2021; Kováčová et al., 2020). These reactive species disrupt redox balance, which interferes with bacterial metabolism and affects cell membranes, mitochondria, proteins, and DNA. This ultimately results in the death of microorganisms (Chu et al., 2022). As stated earlier, HCDs can produce ROS when exposed to blue light and are capable of withstanding photobleaching (Budimir et al., 2021). Moreover, when subjected to radiation at a specific wavelength, HCDs generate electron-hole pairs (e-/h+) that promote electron transfer and the subsequent production of ROS such as hydroxyl radicals (•OH) and superoxide ions (O₂^•−), which effectively deactivate microorganisms (Zhang et al., 2018).

Carbon dots exhibit varying levels of antimicrobial activity against different microorganisms. Gram-negative bacteria possess a delicate peptidoglycan layer situated between two membranes, which are composed of lipopolysaccharides and phospholipids. Hydrophilic antibacterial compounds exhibit limited efficacy against Gram-negative bacteria because these antimicrobials cannot effectively cross the hydrophobic layers of cell membranes (Ezati et al., 2022). In contrast, hydrophobic antimicrobial compounds can easily penetrate cell membranes (Bandi et al., 2020; Mousavi Khaneghah et al., 2018) and disrupt their integrity, leading to the leakage of cytosol from the cell, ultimately causing cell death (Figure 13; Jian et al., 2020).

Figure 13. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) of untreated S. aureus and E. coli cells following treatment with CDs derived from spermine and dopamine (adapted from Jian et al., 2020).

Hydrophobic carbon dots can interact with microbial biofilms on different surfaces by affecting microbial adhesion, biofilm matrix stability, and microbial behavior within the biofilm structure. In this case, HCDs can be directly added to biofilm-contaminated surfaces or incorporated into a thin-layer film. In a particular study, scientists applied consistent and uniform thin films incorporating HCDs onto various substrates, such as SiO₂/Si, glass, and mica, and investigated the biofilm formation of several bacterial strains (Stanković et al., 2018). The results showed that bacterial strains had an affinity for hydrophobic surfaces, increasing their likelihood of attachment. However, following blue light exposure, the metabolic activity, which corresponds to the number of Bacilluscereus and Pseudomonas aeruginosa, decreased by approximately 50% and 78%, respectively. Additionally, the results demonstrated that the majority of Escherichia coli strains were eradicated within 1 h.

Budimir et al. (2021) introduced a photoactive HCD-based composite film in which Pluronic 68-derived HCDs were integrated into a PU polymer matrix. The films were prepared using the ex-situ method by submerging PU stripes in a solution containing HCDs dispersed in toluene, followed by drying in the vacuum furnace overnight at 80°C. Also, Marković et al. (2022) fabricated the antibacterial composite consisting of HCD riboflavin-based CDs and commercial PU films by submerging PU films in riboflavin-derived CDs dispersed in acetone, followed by drying in a vacuum furnace at 80°C. These approaches produce hydrophobic polymer surfaces with decreased microbial adhesion, which is ideal for medical devices, self-cleaning textiles, and food packaging applications (Bodik et al., 2018; Marković et al., 2019).

Enhancing textiles with HCDs ensures cleanliness of hospital garments and eliminates the need for disinfection. Kováčová et al. (2020) selected two types of transparent polyether–urethane and polyester–urethane polymers as substrates for the embedding of HCDs through dip coating. These composites can be coated onto different types of textiles (using lamination procedure). Their findings revealed a significant reduction in the Staphylococcus spp. population. The antimicrobial effect of modified surfaces relies on the generation of ROS, which induce oxidative stress and subsequent damage to bacteria (Kováčová et al., 2020; Marković et al., 2019). Marković et al. (2019) developed an antibacterial surface by incorporating HCDs into a PDMS polymer matrix to create a nanocomposite. When exposed to blue light (470 nm, for 15 min), the nanocomposite generated singlet oxygen, leading to eradication of Klebsiella pneumoniae, E. coli, and S. aureus. A swelling–shrinkage–encapsulation approach was utilized to encapsulate HCDs in polymer. The nanocomposites based on HCDs were found to generate singlet oxygen upon exposure to blue light at 470 nm, effectively targeting and eliminating Gram-negative bacteria, such as K. pneumonia and E. coli as well as Gram-positive bacteria, such as Listeria monocytogenes and S. aureus (Ghosal et al., 2021). The HCDs derived from riboflavin embedded in innovative PU composite films exhibit high potential to generate ROS, photocatalytic activity, low dark cytotoxicity (against MRC-5 cells), and robust antibacterial activity, especially against E. coli. Significantly, the extended lifetime of singlet oxygen production, along with favorable kinetics for generating singlet oxygen and superoxide anions, encouraged the use of the developed nanocomposites as antimicrobial surfaces in healthcare environments where numerous high-contact items are present (Marković et al., 2022). The photocatalytic activity of HCDs embedded in transparent PU demonstrated degradation of Rose Bengal dye up to 86% of the dye solution within 3 h of exposure to blue light (Kováčová et al., 2018). They attributed this behavior to the substantial production of ROS during irradiation.

Recently, Razavi et al. (2024) described an easy method for synthesizing Janus nanoparticles that combine beeswax-based HCDs with hydrophilic carboxymethyl cellulose. They utilized a hydrothermal technique, placing a mixture of beeswax dispersed in acetic acid and heating at 200°C for 10 h. The antibacterial evaluation of the HCDs revealed a minimum inhibitory concentration of 0.02 mg/mL against E. coli and 0.04 mg/mL against L. monocytogenes. Additionally, the HCDs displayed significant antioxidant properties. Furthermore, the synthesized HCDs were incorporated into minced beef, serving as innovative preservatives that effectively reduced both chemical and microbial spoilage during storage.

Development of fluorescent inks, light-emitting diode, and fingerprint detection

Owing to their impressive optical features and ability to dissolve in various solvents, long-wavelength-emitting HCDs hold great promise for applications in optoelectronics as well as innovative solid-state lighting and monitoring technology (Chen et al., 2018; Khan et al., 2018; Zhao et al., 2020). Xu et al. (2023) synthesized solid luminescent HCDs from dithiosalicylic acid and acetic acid precursors. The emission behavior of HCDs, including red, yellow, and green AIE, can be tuned by incorporating melamine, urea, and sulfonamide in the formulation during synthesis (Figure 14).

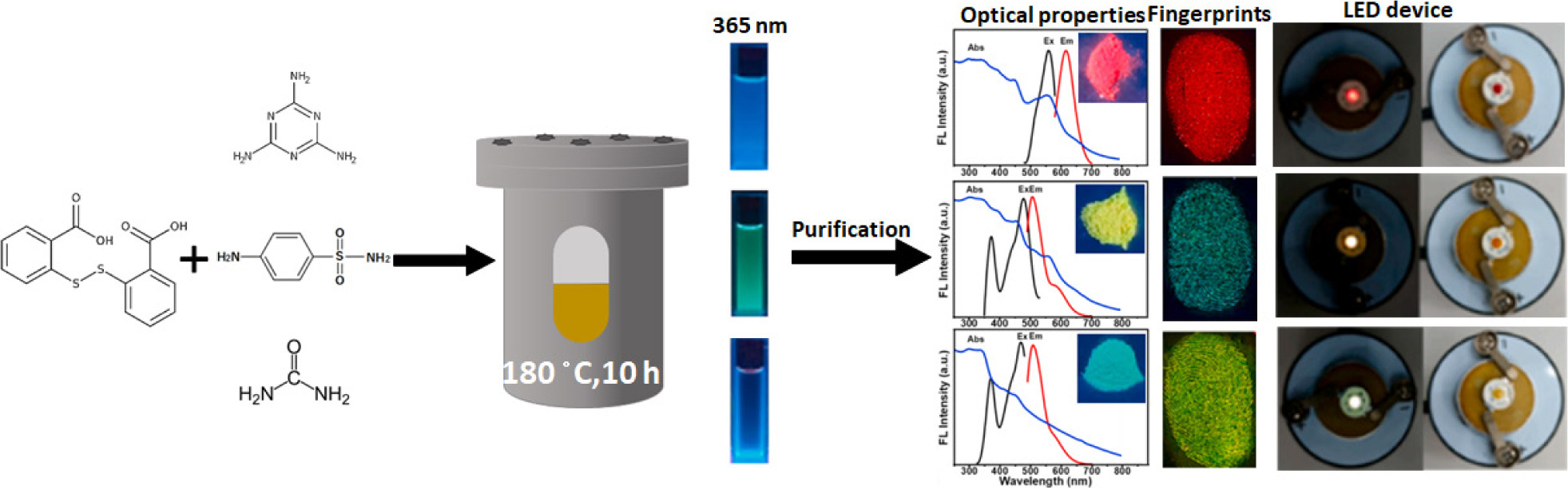

Figure 14. Synthesis process, photographs of three HCDs under 365-nm UV light, optical characteristics (FL excitation, emission spectra, and UV-vis spectra), photograph of powder-stained latent fingerprints on glass substrates under UV light irradiation, and photos of fabricated LED devices before and after power connected (adapted from Xu et al., 2023).

Fluorescent materials significantly increase contrast and sensitivity compared to standard white and black powders. Xu et al. (2023) effectively demonstrated the visualization of latent fingerprints on a glass surface by using the photoluminescent properties of lipid-soluble HCDs (Figure 14). The pronounced contrast of fluorescent signals from various features in the latent fingerprint, including bifurcations, islands, terminations, eyes, nuclei, ridge divergence, and intersection points, enables the differentiation of various sample patterns.

In the case of many water-soluble CDs, fluorescence quenching happens either when aggregates form or in a solvent-free environment. However, if the cores of CDs are adequately spaced apart, fluorescence quenching can be prevented. In HCDs, the photoluminescent centers are distanced from one another by alkyl chains, which inhibit fluorescence quenching and make them particularly appealing for applications in fluorescent inks (Yin et al., 2019). Yin et al. (2019) used a mixture of ethanol and glycerol with a volume ratio of 1:1, and the optimum concentration of HCDs synthesized through refluxing of dodecylamine (C₁₂−NH₂) in chlorobenzene as fluorescence ink. Figure 15A shows letters written on a silica gel plate with bright emission under 365-nm UV radiation.

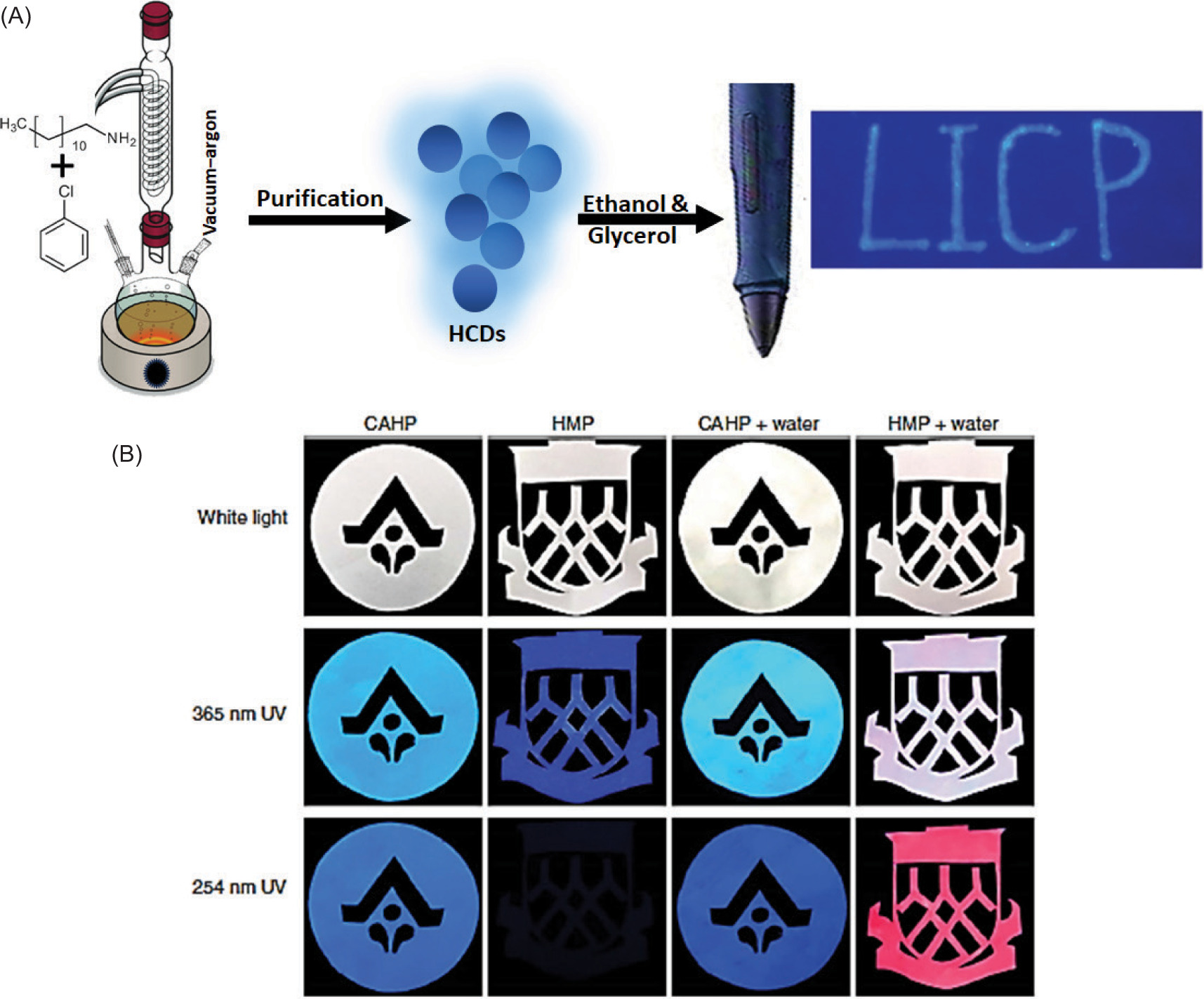

Figure 15. An image of letters written with HCD ink on a silica plate, captured under UV light (365 nm) (A) (with permission from in Yin et al., 2019). (B) A mark pen filled with HCD solution (HMP) used as an anti-counterfeiting tool, shown alongside a standard commercially available highlighter pen (CAHP) (adapted from Yang et al., 2019).

Yang et al. (2019) developed HCDs using melamine, dithiosalicylic acid, and acetic acid to formulate a luminescence ink capable of reversible two-switch mode functionality. The resulting N- and S-doped HCDs exhibited varying luminescent properties based on the conditions of treatment and irradiation. When exposed to 365-nm UV light, the printed filter paper produced a blue emission, while no luminescence was detected under 254-nm UV light. When printing was performed with an aqueous suspension of HCDs, followed by air-drying, pink and red emissions were observed when irradiated with UV at 365 nm and 254 nm, respectively. Furthermore, after re-dissolution in ethanol and drying, a change from pink to blue emission (at 365-nm UV) and the quenching of red fluorescence (at 254 nm) was observed (Figure 15B).

Other applications

In photovoltaic applications, one of the drawbacks of CDs is the existence of a large number of surface defects, which impair the efficiency of charge transfer. To address this issue, Coşkun et al. (2022) synthesized a water-insoluble CD using a calix[4]pyrrole precursor that displayed excitation-dependent emission properties. The produced HCDs exhibited a quantum yield (QY) exceeding 60%, with particle sizes ranging from roughly 4–10 nm, a graphitic framework, and minimal surface imperfections. These characteristics make them a promising option for use as an additive in solar cell applications. The researchers introduced CDs as additives to the photoactive layer (poly(3-hexylthiophene-2,5-diyl):(6,6)-phenyl C61 butyric acid methyl ester blend) and reported enhanced synergistic effects of photovoltaic parameters, charge generation, ohmic contact, and extraction efficiency more than the traditional ones.

Hydrophobic carbon dots are also used in the development of nanocomposites designed to adsorb and eliminate radioactive pollutants, such as iodine (molecular I₂), from aqueous waste solutions. Zheng et al. (2019) synthesized HCDs from CPC and NaOH through a chemical oxidation route. The carbonization process resulted in a wine-red-colored solution, from which the HCDs were extracted using petroleum ether. The HCDs were modified with natural cotton fibers through simple physical adsorption via dip coating. The constructed nano-adsorbent had an excellent stability in water and its efficiency in absorbing I₂ in an aqueous solution, with an improved adsorption capacity of approximately 6.8 times higher than that of the unmodified cotton fiber. Additionally, the adsorbed I₂ can be easily released by immersing it in a different aqueous solution (pH 1) containing an excess amount of Na₂SO₃.

The development of high-quality membranes with effective separation capabilities is crucial for forward osmosis (FO) technology. Zhang et al. (2021) introduced a thin-film composite membrane incorporating HCDs to optimize water channels for FO applications. These HCDs acted as nanofillers within a polyacrylonitrile (PAN) support layer. The analysis of the PAN membrane with HCDs revealed a uniform pore distribution with a reduced average pore size, while the membrane’s surface exhibited consistent finger-like hierarchical channels and micro-convex structures along the pore walls. The HCD-enhanced membrane achieved a high water flux of 15.47 L m^-2 h^-1 and a low reverse salt flux of 2.9 g m^-2 h^-1 using a 1 mol/L NaCl draw solution. These findings suggest that HCDs can serve as effective water flux modifiers to enhance FO performance.

Carbon dots attached to fluorescent labels are used for tumor diagnosis to provide information about malignancy, progression, and location (Boakye-Yiadom et al., 2019). In addition, the longer-wavelength fluorescence emission of HCDs is preferred for better differentiation from the background of live tissues, and minimizes radiation damage, compared to shorter-wavelength excitation. Compared to hydrophilic CDs, HCDs exhibit significantly enhanced cell imaging capabilities because of their increased traverse across cell membranes and accumulation within the cells (Paul et al., 2022). For example, Mao et al. (2015) synthesized hydrophilic CDs and HCDs using a single-pot hydrothermal process involving the use of 1-butyl-3-methylimidazolium hexafluorophosphate as a carbon source in an H₃PO₄–ethanol medium. Fluorescent CDs were used to label live HeLa cells, and the labeled cells were examined with an inverted fluorescence microscope.

Carbon dots are used to deliver drugs to specific cells and tissues. Owing to their small size, CDs can readily cross biological barriers (Zhang et al., 2021; Zhou et al., 2019). For example, Shu et al. (2017) produced hydrophilic and organophilic CDs through a hydrothermal method using 1,3-dibutylimidazolium nitrate in the presence of sulfuric acid. HCDs showed excellent compatibility with biological systems, bright PL, low levels of toxicity, effective drug-loading capacity, and swift infiltration into HeLa cells.

Photodynamic therapy (PDT) and photothermal therapy rely on clinical conditions as well as the quality of external light sources and the effectiveness of light-activating photosensitizers. Photothermal therapy relies on heat generation by photosensitizers to eliminate cancer cells, while photodynamic therapy works by producing ROS. Wen et al. (2019) recently used NIR-light-emitting HCDs derived from pheophytin for PDT. In their work, Wen et al. (2019) investigated photodynamic behavior, including singlet oxygen formation and ROS generation upon NIR irradiation (671-nm laser), cellular uptake behavior, cytotoxicity (on 4T1 cells), and photostability of HCDs. The researchers reported that the HCDs exhibited excellent photostability, as observed through their consistent absorption spectra under different laser irradiation periods. The treated cells initially showed high viability; however, upon exposure to laser irradiation, their viability declined due to the generation of singlet oxygen, as indicated by green fluorescence. In vivo imaging of mice with tumors revealed that HCDs gradually accumulated at the tumor site following intravenous administration, with a higher concentration at the tumor, compared to other tissues and organs. An in vivo study validated the effectiveness of HCDs in PDT against 4TI tumors in mice.

Conclusions and Future Trends

Owing to their sensitivity to light, compatibility with lipids, availability of raw materials, and low toxicity profile, HCDs have emerged as a significant focus in nanoscience and food science. Despite their promising attributes, the full potential of HCDs remains largely unexplored. This review highlights the immense promise of HCDs in a multitude of fields, such as chemosensors, antimicrobials, and food safety applications. One of the most notable features of HCDs is their optical properties, particularly strong and tunable fluorescence. The PL of HCDs is adjusted by modifying their size, surface functional groups, and the types of precursors used in their synthesis. Additionally, HCDs with unique luminescence properties (ability to emit light in different colors) are ideal for use in light-emitting diodes, solar cells, photodetectors, and optoelectronic devices. The integration of HCDs into these devices could lead to improvement in performance, energy efficiency, and device longevity for the manufacturing of food-related materials and instruments.

Since the emission of HCDs can be fine-tuned by adjusting condensation reactions, performing chemical modifications, or introducing heteroatoms, it is possible to create chemosensors and biosensors for a wide range of substances, including heavy metal ions, toxins, and specific compounds, suitable for both laboratory applications and commercial kits. One of the most promising uses of HCDs is their antimicrobial properties. Their photocatalytic, photothermal, and photoluminescent characteristics enable them to effectively inhibit microbial growth and prevent biofouling. Additionally, modifying the surface of HCDs can enhance their interactions with microbial cells, thereby boosting their antimicrobial effectiveness. The photoluminescent characteristics of HCDs can also be utilized in smart packaging solutions, which signal the freshness or spoilage of food items through color changes. This advancement can offer consumers immediate insights into food quality, help minimize food waste, and enhance overall food safety.

Despite the potential applications of HCDs, several obstacles are to overcome to fully harness their capabilities. The lack of environmentally sustainable synthesis methods, complex multi-step functionalization procedures, production of HCDs with a wide size distribution, and the necessity for additional purification steps that can be both time-consuming and labor-intensive are significant challenges in this area. Furthermore, securing approval from health and environmental regulatory bodies is essential to ensure that HCDs are safe and comply with regulations for various uses. Extensive toxicity assessments and environmental impact evaluations are needed to verify the safety of HCDs for both human health and the environment. In summary, while there are inherent difficulties in utilizing HCDs, ongoing research initiatives offer promise for overcoming these challenges.
