Zebrafish models for the evaluation of essential oils (EOs): A comprehensive review
Lulu Wang1,2†, Meijie Yu1,2†, Shiwei Ding3, Jiazhen Cao1, Xianghe Meng2,4, Li Li5,6, Ren Sa7, Min He1,2*, Mengmeng Sun1,2*
1Changchun University of Chinese Medicine, No. 1035, Boshuo Rd, Jingyue Economic Development District, 130117, Changchun, China;
2The Jilin Province School-Enterprise Cooperation Technology Innovation Laboratory of Herbal Efficacy Evaluation Based on Zebrafish Model Organisms, Changchun University of Chinese Medicine, Jingyue Economic Development District, 130117, Changchun, China;
3The Affiliated Hospital of Changchun University of Chinese Medicine, No.1478, Gongnong Rd. Chaoyang District, Changchun, China;
4Changchun Wish Technology Co., Ltd., Building E11, Area B, Beihu Science and Technology Park, High-tech North District, 130102, Changchun, China;
5Capital Medical University Subsidiary Beijing Hospital of Traditional Chinese Medicine, No. 23 Backstreet of Art Gallery, Dongcheng District, Beijing, 100010, China;
6Beijing Institute of Traditional Chinese Medicine, No. 13 Shuiche Alley Xinjiekou, Xicheng District, Beijing, 100035, China;
7Sanya Hospital of Traditional Chinese Medicine, No. 106, Fenghuang Road, Sanya, 572022, China
†These authors have equal contributions
Abstract
Essential oils (EOs) derived from crops, especially aromatic plants, have been well-acknowledged to provide several health benefits for humans. Zebrafish as an unprecedented tool has been widely used as an excellent vertebrate model in labs owing to its many useful characteristics. Its applications for rapidly and economically screening and identifying toxicity, safety, and bioactivity of EOs may serve to meet the rising demand for nutraceuticals, food supplements, and natural cosmetics. In this study, we summarized the research progress of zebrafish models in evaluating EOs. In addition, toxicity, safety, and various bioactivities of EOs were summarized using a wide variety of readily applicable zebrafish models covering antioxidant, anti-inflammatory, angiogenesis inhibition, neuromodulation, anesthesia, anti-melanogenesis, analgesic activities, etc. In conclusion, zebrafish is a valuable animal model for evaluating the bioactivity and safety of EOs, and using such a model may contribute to speeding up the identification of novel EOs with potential health functions and quality assessment, which in turn boosts the recognition of aromatic plants as important industrial crops and encourages a healthier way of life.
Key words: Essential oils, Zebrafish, Toxicity, Safety, Bioactivity
*Corresponding Authors: Mengmeng Sun, Changchun University of Chinese Medicine, No. 1035, Boshuo Rd, Jingyue Economic Development District, Changchun 130117, China, Email: sunmm@ccucm.edu.cn; Min He, Changchun University of Chinese Medicine, No. 1035, Boshuo Rd, Jingyue Economic Development District, Changchun 130117, China, Email: hemin@ccucm.edu.cn
Received: 14 September 2023; Accepted: 5 October 2023; Published: 21 December 2023
© 2023 Codon Publications
This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0). License (http://creativecommons.org/licenses/by-nc-sa/4.0/)
Introduction
Aromatic plants have been used for thousands of years, resulting in a vast and comprehensive understanding of their properties and numerous applications as foods (Burdock and Carabin, 2009), perfumes (Mileva et al., 2021), cosmetics (Sharmeen et al., 2021), pharmaceuticals (Islam et al., 2016), etc., which consequently became important industrial crops worldwide. Essential oils (EOs) as the main concentrated volatile components can be extracted from various aromatic plant sections such as leaves, stalks, flowers, bark, roots, seeds, fruits, and resins (Hanif et al., 2019). These components include terpenes, alcohols, acids, esters, epoxides, aldehydes, ketones, amines, and sulfides (Sendra, 2016). In addition, the EOs of each aromatic plant has specific bioactive effects that correspond to their different ameliorative function. EOs have extensive bioactive spectrums, including antioxidant, anti-inflammatory, antimicrobial, analgesic, anti-plaque, respiratory, skin-emollient, anti-ulcer, anti-diabetic, anxiolytic, anti-seizure, and neuroprotective effects (da Fonsêca et al., 2019; Đorđević et al., 2007; Eddin et al., 2021; Gandhi et al., 2023; Li et al., 2023; Silva et al., 2003; Van Leeuwen et al., 2011; Verallo-Rowell et al., 2016; Zhang et al., 2016). Many nutraceuticals (Campos et al., 2019), food supplements (Matera et al., 2023), and pharmaceutical prescriptions (Raut and Karuppayil, 2014) are explored and manufactured based on the bioactivities of EOs. Therefore, understanding and evaluating the bioactivity, toxicity, and safety of EOs are crucial for the development of industrial products containing EOs as raw materials. Currently, cell and mammalian models are commonly utilized to investigate the bioactivities of EOs (de Moraes Pultrini et al., 2006; Manosroi et al., 2006). However, as a mixture of distinct volatile components, EOs have relatively complex actions, which may raise difficulties for clarifying the complete functions of these bioactive substances from a cellular level alone. On the other hand, using mammalian models (e.g., mice or rats) to assess the bioactivity, toxicity, and safety of EOs is hampered by the time-consuming preparation of ethical certification for animal experiments, by the relatively lengthy analysis periods, and by the higher experimental costs. Moreover, there are currently more than 3,600 species of aromatic plants in the world, but only about one-ninth of them are developed and utilized adequately, the EOs of the other aromatic plants may have important industrial applications (Dezhi and Aili, 2008). Furthermore, the incorporation of EOs in the dietary supplement and cosmetic industries is a significant aspect of their ongoing shift toward environmentally friendly and sustainable products. However, it is crucial to acknowledge the safety concerns related to the utilization of EOs in the final product. Consequently, the implementation of more efficient quality control measures becomes imperative. Therefore, their bioactivity, toxicity, and safety need to be investigated urgently. In recent years, with the increased demands of the use of EOs in health products, it has become necessary to use a rapid, simple, visual, and systemic model organism for evaluation at a low cost to better understand the bioactivity, toxicity, and safety of EOs. The utilization of zebrafish model organisms has significant promise in addressing the existing challenges encountered in EOs research. First, the primary objectives of toxicological research are to expeditiously identify and characterize specific hazardous effects of EOs. Traditional methods of toxicity screening, which involve the use of rodents, dogs, and rabbits, are commonly associated with high costs and time requirements. Zebrafish embryos possess the capacity to effectively uptake minute molecular compounds at a rapid rate, potentially offering a valuable model for screening the toxicity of EOs. Furthermore, the application of transgenic zebrafish has promise in augmenting the examination of cells, tissues, organs, and biological processes, thereby improving the exploration of the biological functionalities of EOs. In conclusion, zebrafish is a highly suitable and refined model organism for effectively addressing the objectives and overcoming the obstacles encountered in the field of EOs research.
Zebrafish, also known by their scientific name Danio rerio, are small tropical fish (Arunachalam et al., 2013). They are fertilized ex vivo, and can produce hundreds of embryos from a single reproductive pair (Zon and Peterson, 2005). The embryos are transparent, and the rapid development of zebrafish embryos enables the recording of the development of a vertebrate from a single cell through organogenesis to a zebrafish (Patton and Zon, 2001). In addition, it has low maintenance costs and occupies less space. The genomic sequence of this fish is readily modifiable, and the effects of mutations can be investigated with relative ease due to its rapid development (Gut et al., 2017). As they share 70% of their genome with humans, zebrafish have become a suitable model organism (Howe et al., 2013). The integration of advanced gene editing techniques and high-resolution in live imaging allows for the comprehensive examination and documentation of growth progression and disease states in zebrafish models with enhanced scientific precision and detail (Keller, 2013). In addition, this model has evolved into an alternative cell model for the study of diverse diseases (Novoa and Figueras, 2012). The results were consistent with in vitro investigations and more straightforward than in vivo tests by using mammalian models. Moreover, the zebrafish model is also investigated for toxicological research (Tanguay, 2018). The toxicity of natural compounds may be evaluated in zebrafish within several days by observing morphological changes in internal organs such as the heart (Qin et al., 2021), brain, liver (Huo et al., 2019), etc. This improves the screening process and the identification of key features for bioactive compounds. Therefore, the zebrafish has been recognized as an unparalleled model organism for promptly and inexpensively evaluating the bioactivity and safety of natural products in response to the increased need for the production of functional foods, nutraceuticals, and cosmetics.
A recent review summarized the applications of zebrafish models in the evaluations of the safety and the bioactivities of various natural products (Lin et al., 2022); however, only a small number of studies on EOs were included. Therefore, this review primarily compiled the literature regarding the use of zebrafish in EOs evaluation over the past two decades based on the public academic databases of Google Scholar, PubMed, and Scopus, using “essential oil”, “volatile oil”, “benzine” and “zebrafish” as keywords. The typical research flow for these investigations is shown in Figure 1. Sometimes, bioactivities of specific EOs are determined by its principal components. However, the overall activities cannot be easily attributed to any single component, as the existence of a combination of various molecules may significantly modify the activity. Therefore, in this review, we focused mainly on zebrafish models for evaluating the bioactivities concerning the overall composition of EOs. The activities summarized in this article include anti-angiogenic, anti-inflammatory, anti-oxidative, anesthetic, neuroprotective, anti-osteoporosis, and anti-melanogenesis, and the assessment of toxicity and safety of EOs using zebrafish models were also summarized (Figure 2). This review can prompt researchers to give more attention to zebrafish models, allowing for more establishments and more applications of useful zebrafish models for the evaluation on EOs.

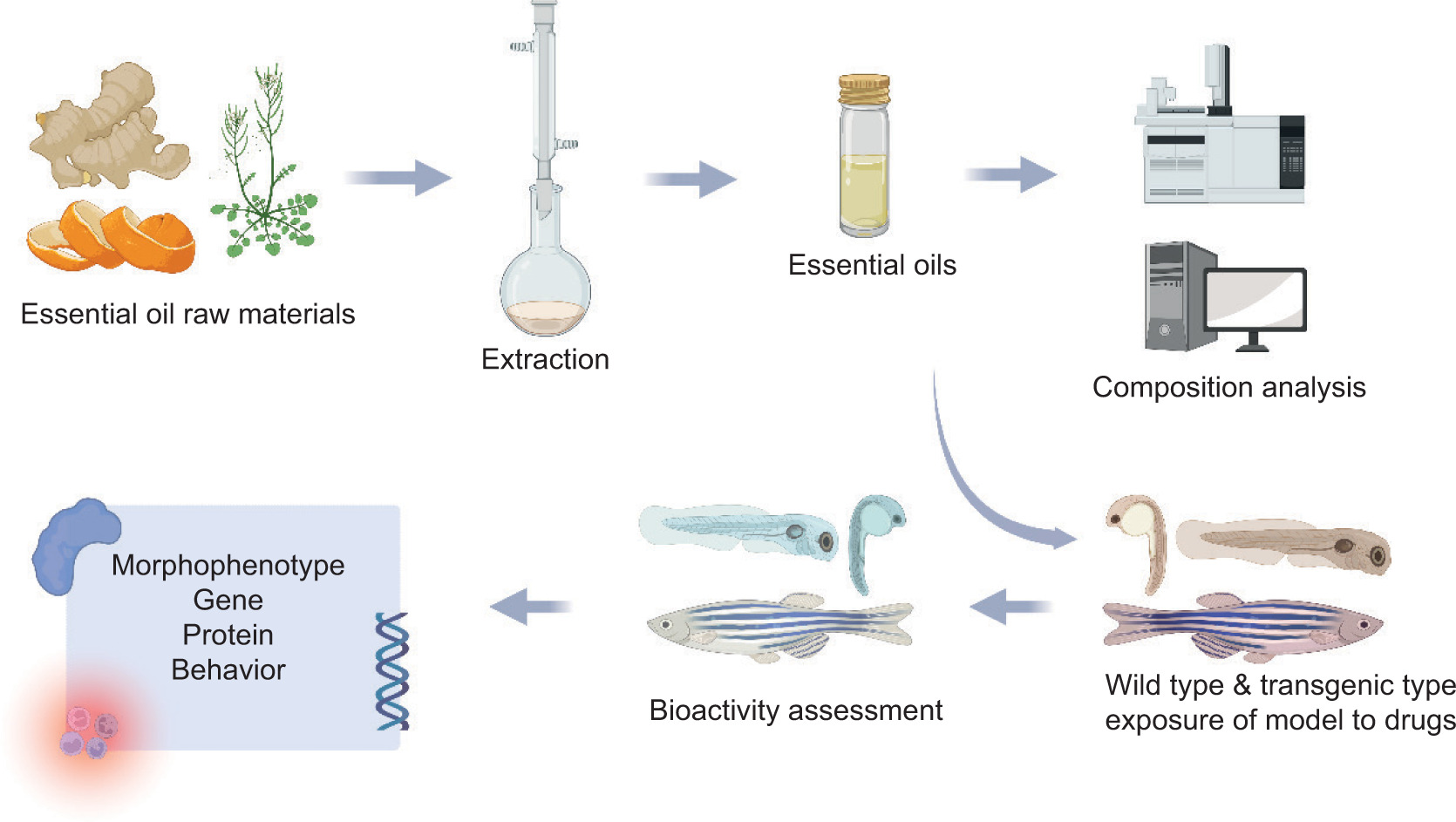

Figure 1. The typical research flow for EOs investigations using the zebrafish model. This encompasses the processes of isolating and extracting EOs, analyzing their chemical profile, evaluating their toxicity and safety, and assessing their diverse biological functions.

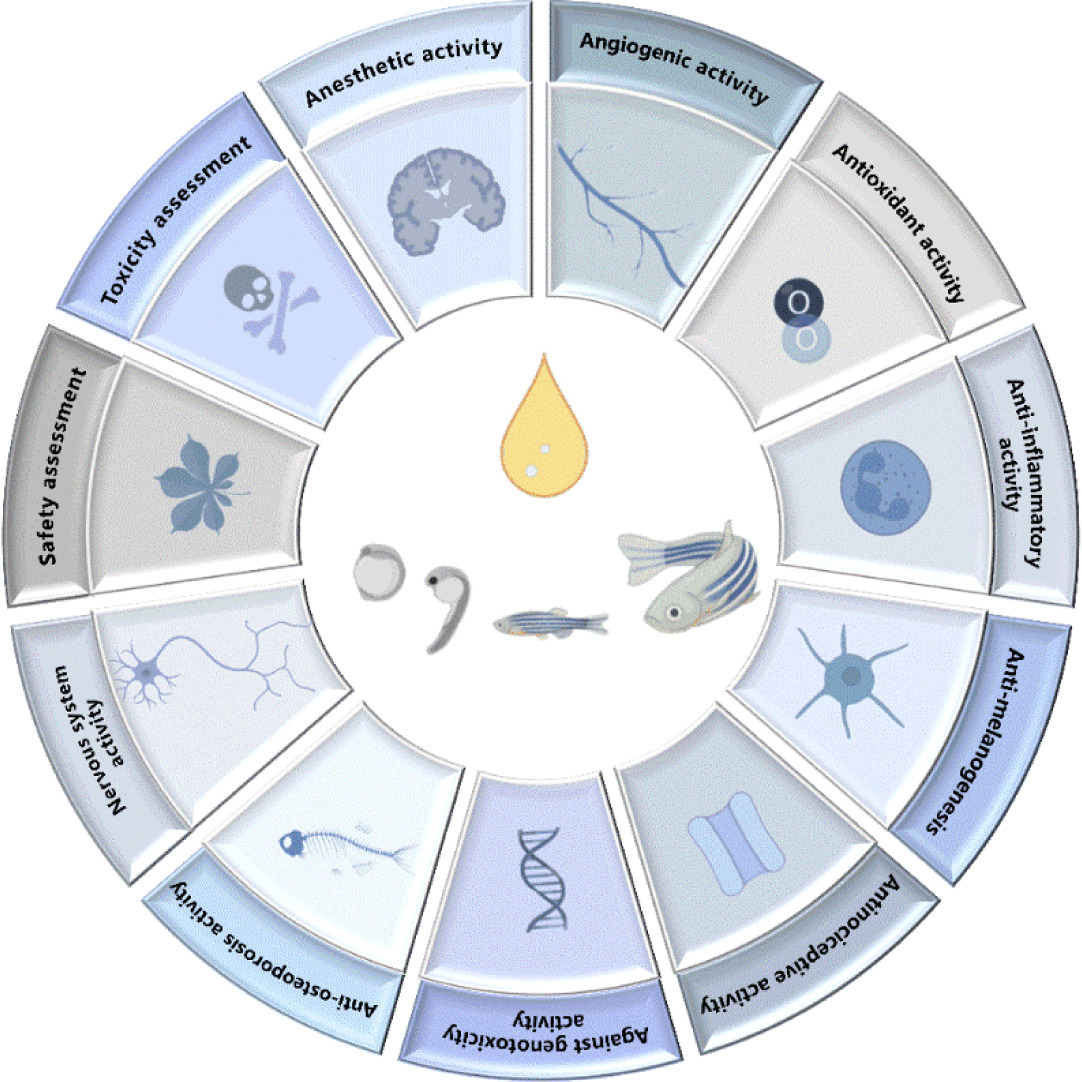

Figure 2. Available Zebrafish Models for Evaluating EOs. The central portion of the diagram illustrates the relevant zebrafish models corresponding to various developmental phases, while the outer ring provides a concise overview of the activities associated with EOs.
Zebrafish Models for Toxicity and Safety Evaluation of EOs
Toxicity Evaluation of EOs Using the Zebrafish Model
Zebrafish permits the evaluation of chemical toxicity throughout the entire vertebrate developmental period (Jeong et al., 2015), from embryo to adult, resulting in a comprehensive assessment of teratogenicity, tissue and organ injury, and mortality (Lira et al., 2020; Zhong et al., 2019). Currently, zebrafish are widely used to assess the toxicity of bioactive compounds including EOs. Alpha-Pinene is a terpene-class organic compound found in the EOs of numerous plants (Allenspach and Steuer, 2021). In an experiment, the toxicity of alpha-pinene was defined by the LC50 (Median Lethal Concentration) of 441.360 mg/L and EC50 (Median Effective Concentration) values of 367.795 mg/L, respectively, using embryos of wild type (AB) zebrafish. In addition, it was found that the teratogenicity of alpha-pinene in zebrafish embryos was observed until the excessive doses (320 or 640 mg/L, 72 hours) (Şişman and Ceylan, 2023) (Table 1). Volatile compound in EOs is frequently formulated into various formulations, such as nano-emulsions (Campolo et al., 2020), microspheres (Benavides et al., 2016), or micelles (Wang et al., 2019), in order to improve their water solubility, stability, and bioavailability. The toxicity of these volatile compound formulations can also be evaluated using the zebrafish model. In a study, the toxicity of perillyl alcohol nano-emulsion was evaluated using adult wild type (AB) zebrafish, exposing that the zebrafish gills can be severely damaged in small concentration (25μg/L), and significant hepatic pathological alterations and even death occurred with the increase of concentrations (25μg/L) for 48 hours (Tavares Carvalho, 2016) (Table 1). In addition, transgenic zebrafish, particularly which are fluorescently labeled in cells (e.g., neutrophils) (Lieschke and Currie, 2007), tissues (e.g., vascular tissue) (Kamei et al., 2010), and organs (e.g., liver) (Cheng et al., 2022), are ideal for investigating bioactivity and toxicity of chemical compounds because their transparent embryonic and larval bodies enable their comprehensive and dynamic evaluation under the fluorescence microscope (Zhao et al., 2015). Lodovichi et al. used transgenic zebrafish (Tg (Myl7: EGFP); Tg (flk1: GFP)) as well as the wild type (AB) species to determine the toxicity of thymoquinone micelles (Lodovichi et al., 2022). The results revealed that the hatching rates of wild type (AB) and Tg (Myl7: EGFP) zebrafish lines treated with this thymoquinone micelles decreased significantly. Meanwhile, embryos displayed a dose-dependent increase in axis-tail curvature and cardiac edema, and transgenic lines displayed greater sensitivity. By the fishline of Tg (flk1: GFP), the thymoquinone micelles did not significantly alter the morphology of blood vessels (Table 1). More studies concentrated on the activities of the overall EO compositions were extracted from different plants. In these studies, the chemical composition of EOs is typically analyzed using Gas chromatography–mass spectrometry (GC-MS) techniques, and then wild-type or transgenic zebrafish embryos and larvae are used to evaluate the toxicity of EOs using a variety of evaluation indicators, such as teratogenicity, lethality, hatch rate, blood flow, heart rate etc. (Kim et al., 2017; Mektrirat et al., 2020; Thitinarongwate et al., 2021) (Table 1). Interestingly, Rashan et al. assessed the systematic toxicity profile, including acute toxicity, genotoxicity, neuromuscular toxicity, cardiotoxicity, and hepatotoxicity, of frankincense EOs extracted from Boswellia sacra using wild type and three transgenic zebrafish (Tg(Cmlc2: GFP), Tg(fabp10: RFP), and Tg(ela31: EGFP) (Rashan et al., 2023). The results indicated that frankincense EOs were not deleterious to zebrafish at the concentrations (≤300 µg/mL) tested. Moreover, Serifi et al. evaluated the potential carcinogenic toxicity (lateral line neuromas) of EOs extracted from Pistacia lentiscus Var. chia using zebrafish larvae (Serifi et al., 2019). This is because lateral line neuromas contain sensory hair cells that can influence the swimming behavior of zebrafish, as well as their extraordinary sensitivity to environmental compounds (Ghysen and Dambly-Chaudiere, 2004). After 4 days of exposure to various concentrations of EOs, zebrafish larvae were stained with acetylated tubulin or FM1-43 and observed under the microscope for lateral line neuromas and hair cells, respectively. The results indicated that zebrafish mortality did not increase until reaching an excessive dose of 200 ppm (4 days) of EOs, which affected the lateral line neuromas and hair cells of zebrafish larvae. In addition, dozens of gene expression of zebrafish after EO administration were investigated and the results indicated further impact of these EOs on the immune system of zebrafish. These studies demonstrate that zebrafish is an effective model organism for assessing the toxicity of EOs.
Table 1. Toxicity Evaluation of EOs Using a Zebrafish Model.
| Essential Oils (from) | Model | Findings | References |
|---|---|---|---|
| Alpha-pinene | Zebrafish embryo Wild type, AB |
LC50: 441.360 mg/L; 72 hours EC50: 367.795 mg/L; 72 hours Teratogenic doses: 320 mg/L, cardiac edema, 48 hpf; absence of somite, ≤48 hpf, lordosis, yolk sac deformity, tail abnormality, and eye shrinkage, ≤72 hpf Safe concentrations: 20 and 40 mg/L, virtually no embryotoxicity and teratogenicity |
S¸is¸man and Ceylan (2023) |
| Perillyl alcohol nano-emulsion | Adult zebrafish Wild type, AB |
LC50: 33.4 µg/L; 48 hours Lethal doses: 50 and 125 µg/L, 100% of mortality, ≤3 hours Liver damage doses: 25, 35, and 50 µg/L Gills damage doses: 25 and 35 µg/L |
Tavares Carvalho (2016) |
| Thymoquinone micelles | Zebrafish embryo Wild type, AB Tg (myl7: EGFP) Tg (flk1: GFP) |
Low hatch rates: 1μM, 53 hpf Axis-tail curvature: 1μM, 27 hpf Cardiac edema: 0.3μM, 72 hpf Blood vessels: No significant change, Tg (flk1: GFP) |
Lodovichi et al.(2022) |
| Trachyspermum ammi L., Apiaceae | Zebrafish embryo Wild type, AB |
Twenty chemicals including thymol and β-cymene were identified by GC-MS. LC50: 17.8 μg/mL, 96 hours Low hatch rates: 15 and 30 μg/mL, 96 hpf High mortality rates: 15 and 30 μg/mL, 96 hpf Heartbeat rates reduction: heartbeat rates decreased significantly after exposure to 15 and 30 μg/mL EOs by 70±5.2 bpm and 50±5.2 bpm, respectively, 60 hpf Morphological changes: yolk sac edema, opaque yolk, craniofacial malformation, and axial curvature, >5μg/mL, 96 hpf Apoptosis doses: 30 μg/mL, 48 hpf |
Kim et al.(2017) |
| Zingiber cassumunar Roxb. | Zebrafish embryo Wild type, AB |
Eleven chemicals including sabinene, 1,2-dimethyl-6-nitroindolizine, terpinen-4-ol, and γ-terpinene were identified by GC-MS. Embryotoxicity: ≥100 µg/mL, 96 hours Lethal doses (100%): 100 µg/mL, 96 hours Teratogenic doses: ≥10 µg/mL, 24 hours |
Mektrirat et al.(2020) |
| Pogostemon cablin(Blanco) Benth. | Zebrafish embryo Wild type, AB |
LC50: 120 ppm, 96 hours | Wijaya (2020) |
| Eugenia caryophyllata Thunb. | Zebrafish larvae Wild type, AB |
LC50: 18.2 ± 5.52 mg/L, 96 hours | Doleželová et al.(2011) |
| P. lentiscus Var. chia | Zebrafish larvae Wild type, AB |
Thirteen chemicals including α-pinene, myrcene, and β-pinene were identified by GC-MS. Nontoxic reaction to lateral line neuromasts: 10–20 ppm, 4 days. Lethal doses: 100–200 ppm, 4 days. |
Serifi et al.(2019) |
| Zingiber ottensii Valeton | Zebrafish embryo/larvae Wild type, AB |
GC-MS analysis revealed that the EOs were predominantly composed of terpenoids, which consisted mainly of 21 monocyclic monoterpenoids and 7 sesquiterpenes. The most abundant compound was zerumbone (24.73%), which was followed by terpinen-4-ol, sabinene, and β-pinene. LC50: 1.003 µg/mL, 96 hpf Lethal doses: 1.95 µg/mL, 96 hpf or 3.91 µg/mL, 72 hpf Heart rate reduction: 0.49–3.91 µg/mL, 72 hpf Low hatch rates: 0.49–3.91 µg/mL, 120 hpf Teratogenic doses: 0.49–3.91 µg/mL, 120 hpf, pericardial sac edema, coagulation, dented tail, poor reabsorption of the yolk sac, malformation of the yolk sac, and spinal curvature. |
Thitinarongwate et al.(2021) |
| E. caryophyllata Thunb. | Zebrafish embryo/larvae Wild type, AB |
LC50: 18.8±5.52 mg/L, juvenile zebrafish, 96 hours LC50: 15.64±3.30 mg/L, zebrafish embryonic stage, 168 hours |
Mácová et al.(2008) |
| Boswellia sacra | Zebrafish embryo/larvae Wild type, AB Tg (cmlc2: GFP), Tg (fabp10: RFP), Tg (ela31: EGFP) |
Twenty-three chemicals including α-pinene (79.59%), followed by δ-3-careen (9.94%), camphene (3.23%), and β-pinene (2.39%) were identified by GC-MS. Mortality(5%): 1000 µg/mL, 96 hours Teratogenicity: 1000 µg/mL, 96 hours No neuromuscular toxicity (3 hours), genotoxicity (96 hours), and hepatotoxicity (32 hours) were found at 300 μg/mL, and there was no obvious abnormality in related observation indexes. There was no cardiotoxicity (4 hours) at 100 μg/mL and no abnormality. |
Rashan et al.(2023) |
| Ocimum basilicum | Zebrafish embryo Wild type, AB |
Lethal doses: 200 μL/L, 96 hpf Delayed hatching doses: ≥100 μL/L Cardiotoxicity: ≥100 μL/L, 96 dpf, pericardial edema, blood congestion, and un-looped heart Teratogenic doses: ≥100 μL/L, 96 dpf Heart rate reduction: ≥100 μL/L, 96 dpf |
Capparucci et al.(2022) |
| Leonurus japonicus Houtt. | Zebrafish embryo Tg(flk1, EGFP) sunitinib-induced injury model |
TC50: 1.67 ± 0.23 μg/mL, 2 hpf Low hatch rates: ≥12.5μg/mL, 24 hpf Cardiotoxicity: ≥6.25 μg/mL, 24 hpf, cardiac congestion, pericardial enlargement, and pericardial bleeding Heart rate reduction: ≥6.25 μg/mL, at 2 hpf; ≥25 μg/mL, at 48 hpf Teratogenic doses: ≥6.25 μg/mL, 2 hpf Lethal doses: ≥6.25 μg/mL, 2 hpf |
He et al.(2018) |
| Artemisia argyi H. Lév. and Vaniot, Artemisia verlotiorum LaMotte | Zebrafish embryo Wild type, AB |
Nontoxic dose and hatching rates 100%: 10 μg/mL, 36 hpf | Wang et al.(2023b) |
Note: The research incorporated in this analysis provides a comprehensive overview of the utilization of zebrafish models in investigating the acute toxicity of EOs, encompassing teratogenesis, mortality, low hatchability, and particular organ toxicity. LC50, half lethal concentration; EC50, drug half effective concentration; TC50, half toxic concentration.
Safety Evaluation of EOs Using the Zebrafish Model
Zebrafish as a nontarget organism is often used for detecting safe levels of environmental pollutants and is considered as an indicator of potential toxicity to human and animal health (Ullah et al., 2018). Bioactive compounds extracted from plants that are typically used to improve the life quality must be prior to passing safety tests. Many EOs were found to possess superior repellent (Nerio et al., 2010), antibacterial, and antiviral activities (Najar et al., 2021). By zebrafish, the safety dose range of EOs prior to these bioactivity studies can be evaluated. For instance, EOs were found to have larvicidal and repellent properties. Here, LC50 is the most significant evaluation index. If the LC50 value of EOs at biologically active concentrations for mosquitoes is lower than the LC50 value for zebrafish, the effective repellent dose of EOs may be harmless to nontarget organisms and the environment (Baskar et al., 2018; Luz et al., 2020; Moura et al., 2021). In the article on antibacterial and antiviral activities, in addition to evaluating the lethal effect of EOs, physiological changes in the heart and tail of zebrafish were evaluated in order to better comprehend the safety of EOs (Akermi et al., 2022; Haddad et al., 2019; Piasecki et al., 2021). These studies demonstrate conclusively that the zebrafish is an excellent model organism for evaluating the biosafety of EOs and their products.
Table 2. Safety Evaluation of EOs Using Zebrafish Model.
| Bioactivity | Essential Oils (from) |
Model | Findings | References |
|---|---|---|---|---|
| Larvicidal and repellent activity |
Atalantia monophylla Linn. | Adult zebrafish (Wild type, AB) |
Forty chemicals including eugenol, sabinene, 1,2-dimethoxy-4-(2-methoxyethenyl) benzene, and beta-asarone were identified by GC-MS. Nontoxic doses: ≤100 mg/L up to 96 hours. LC50: 69.59 mg/L after 96 hours. |
Baskar et al.(2018) |
| Mesosphaerum suaveolens(L.) Kuntze | Adult zebrafish (Wild type, AB) |
The GC-MS analysis of EOs samples performed at different times during a year, showed qualitative and quantitative variations in the chemical composition. The 1,8-Cineole is the major compound in all seasons. LC50: 126.2 ± 7.98 μg/mL, rainy; 94.6 ± 6.65 μg/mL, intermediary; 116.1 ± 4.74 μg/mL, dry, 48 hours. |
Luz et al.(2020) | |
| Siparuna guianensis Aublet | Zebrafish embryo (Wild type, AB) |
Eighteen different constituents including monoterpene β-myrcene (39.16%), sesquiterpenes epicurzerenone (16.02%), and β-copaene (9.33%) were identified by GC-MS. Hatching rates above 50%: 0.507 mg/cm3, 96 hours LC50: 0.936 mg/cm3, 96 hours EC50: altered yolk sac, 0.374 mg/cm3; cardiac edema 0.283 mg/cm3, 96 hours; the toxic reaction was reflected in the abnormal swimming behavior of zebrafish. |
Moura et al.(2021) | |
| Antibacterial activity | Cymbopogon Species (C . nardus, C . citratus, C winterianus, C. flexuosus, C. schoenanthus, C. martinii, C. giganteus) |
Zebrafish embryo (Wild type, AB) |
The chemical constituents of nineteen EOs from seven different citronella plants were analyzed. Five different chemotypes were determined by GC/MS and TLC analysis, including citronellal, geraniol, and citral (neral + geranial). Among the EOs tested at maximum tolerated concentration, except for two kinds of nontoxic, others showed different degrees of cardiotoxicity and developmental toxicity. (EOs: 0.04–0.46 mg/mL and 0.004–0.0046 mg/mL, 72 hours) |
Piasecki et al.(2021) |
| Cupressus sempervirens | Zebrafish embryo (Wild type, AB) |
Twenty-seven chemicals including α-pinene (38.47%), δ-3-carene (25.14%), D-limonene (5.84%), and citronellal (5.33%) were identified by GC-MS. LC50: 6.6 µg/mL, continuously examined every 24 hours. |
Akermi et al.(2022) | |
| Antiviral activity | Ayapana triplinervis | Adult zebrafish (Wild type, AB) |
GC-MS analysis of EOs showed that the thymohydroquinone dimethyl ether (THQ) is the main component in this EO. At the antiviral effective concentration, THQ injection in zebrafish does not lead to any signs of stress and does not impact fish survival, demonstrating the absence of acute toxicity for THQ (0.15 mg/g of body weight, 6 days). |
Haddad et al.(2019) |
Note: The present analysis encompasses studies that offer a thorough examination of the application of zebrafish models in the investigation of safe concentrations of EOs for repellant, antibacterial, and antiviral purposes. LC50, half lethal concentration; EC50, drug half effective concentration
Table 3. Evaluation of Antioxidant and Anti-inflammatory Activity Using a Zebrafish Model.
| Essential Oils (from) | Model | Findings | References | |
|---|---|---|---|---|
| Antioxidant effect | K. galanga L. | Zebrafish embryo (Wild type, AB), H2O2-induced oxidative stress model |
Twenty-eight chemicals including trans ethyl p-methoxycinnamate (32.01%), n-pentadecane (29.14%), and trans ethyl cinnamate (19.50%) were identified by GC-MS. Improving survival rates; recovering heartbeat rates; reducing ROS fluorescence intensity, apoptotic cells, lipid peroxidation, and MDA level; improving CAT, GSH-Px, and SOD dose-dependently (EOs, pretreatment 0.4, 0.8, and 1.6 mg/mL, 1 hour; incubated with H2O2, 2 mM, 24 hours) |
Wang et al.(2023) |
| T. quinquecostatus celak. | Zebrafish larvae (Wild type, AB) and Tg(krt4:NTR-hKikGR)cy17, dihydrochloride, metronidazole-induced oxidative model |
One hundred and thirty chemicals including 1,8-cineole, terpinen-4-ol, linalool, and γ-terpinene were identified by GC-MS. LC10: 20 μg/mL, 48 hpf Increasing epidermal fluorescent spots, SOD, and CAT; reducing ROS fluorescence intensity and MDA level; downregulating the expression of Keap1; upregulating the expression level of Nrf2, Sod1, Cat, and Hmox1 (EOs, 5, 10 and 20 μg/mL, 24 hours, Tg(krt4:NTR-hKikGR)cy17) |
He et al.(2020) | |
| Anti-inflammatory effect | S. guianensis | Zebrafish embryo, larvae (Wild type, AB), tailfin injury model, H2O2-induced oxidative stress model |
Forty-one chemicals including β-myrcene, germacrene-D, bicyclogermacrene, α-muurolol, and siparunone were identified by GC-MS. Inhibiting the recruitment of neutrophils dose-dependently (EOs, 12.5–0.39 µg/mL, pretreated for 2 hours, continue processing for 6 hours after modeling); promoting caudal fin regeneration dose-dependently (EOs, 12.5-0.39 µg/mL, 72 hpf) Biochemical parameters assay, at 96 hpf:CAT↓, SOD↑, GST↓ EOs showed no protective effect against cell apoptosis and 12.5 µg/mL had a cardiotoxic effect. |
Santos et al.(2022) |
| Thymus vulgaris L. | Zebrafish embryo (Wild type, AB), tailfin injury model |
Fifteen chemicals including thymol and p-cymene were identified by GC-MS. Reducing neutrophils infiltration (EOs, 0.001% (v/v), 0.0005% (v/v), 72 hpf, pretreated for 2 hours, continue processing for 6 hours after modeling) |
Polednik et al.(2018) | |
| Artemisia vulgaris | Adult zebrafish (Wild type, AB), oxazolone-induced enteritis model |
Alleviating enteritis; improving the intestinal histopathological damage dose- and time-dependently; changing the expression levels of IL-1β, IL-10, and genes in MyD88/TRAF6/NF-κB pathway; reducing acid mucin; increasing occludin and ZO-1mRNA expression (EOs, 20, 40, and 80 μg/g, for 3 and 6 days) Biochemical parameters assay of the intestine: ROS↓, SOD↑, MDA↓, CAT↑, ACP↑, AKP↑, MPO↓in both male and female zebrafish EOs had more significant therapeutic effects on the enteritis of male zebrafish than that of female zebrafish. |
Meng et al.(2022) | |
| R. officinalis L. | Adult zebrafish (Wild type, AB), carrageenan-induced edema model |
The EOs were submitted to the analysis-coupled GC–MS, which highlighted 1,8-cineol and camphor as major compounds. Inhibiting inflammatory edema; relieving histopathological change of gill, kidney, and liver (EOs, 498 μg/kg, 5 hours) |
Borges et al.(2018) | |
Note:This summary provides an overview of research that has assessed the effectiveness of EOs in terms of their antioxidant and anti-inflammatory properties utilizing both wild-type and transgenic zebrafish as experimental models.“↑” or “↓” elucidate the regulatory impact of EOs on oxidation indicators. “↑”, upregulating; “↓”, downregulating.
Table 4. Evaluation of Angiogenic Activity Using a Zebrafish Model.
| Essential Oils (from) |
Model | Findings | References | |
|---|---|---|---|---|
| Anti-angiogenic effect | Thymoquinone from Nigella sativa |
Zebrafish embryo (Wild type, AB) |
Lethal dose: ≥5μM, 48 hours Inhibiting intersegmental vessel formation; downregulating the expression of VEGF-A mRNA dose-dependently. (EOs, 4μM, 48 hours) |
Paramasivam et al.(2012) |
| n-butylidenephthalide from Radix Angelica sinensis |
Zebrafish embryo (Wild type, AB) |
Fifty-one chemicals including n-butylidenephthalide were identified by GC-MS. Inhibiting intersegmental vessel formation (EOs, 0.01 μg/mL, initiated at the 13 somite stage (ss), observation at 72 hpf) |
Yeh et al.(2011) | |
| Moringa oleifera and Moringa peregrina seeds | Zebrafish embryo (Wild type, AB/ Tuebingen TAB-14), Tg(fli1,EGFP) |
The chemical compositions and fatty acid compositions of the two essential oils were analyzed by LC-MS/MS and GC, 13 fatty acids including oleic acid and palmitic acid were identified. LD50: M. oleifera, 21.24 ± 0.44μg/mL; M. peregrina, 25.11 ± 0.547 μg/mL, 12 hours Perturbing intersegmental and sub-intestinal vessels formation (EOs, 10–20 μg/mL, 3 dpf) |
Elsayed et al.(2020) | |
| Furanodiene | Zebrafish embryo Tg(fli1, EGFP) |
Inhibiting intersegmental vessel formation (EOs, 10 μM, the effect of using 50 μM was more obvious, 72 hours) | Zhong et al.(2012) | |
| Aromatic-turmerone from Curcuma longa Linn |
Zebrafish embryo Tg(fli1, EGFP) |
Inhibiting subintestinal vessel formation (EOs, 12.5 and 25 μg/mL, 48 hours) Downregulating the expression of angiogenic genes Ang-2 and Tie-2 (EOs, 25 μg/mL, 24 hours) |
Yue et al.(2015) | |
| Ferula akitschkensis | Zebrafish embryo Tg(VEGFR2, GFP) |
Forty-one chemicals including tricyclo [4.4.0.0(2,7)] dec-3-ene-3-methanol, 1-methyl-8-(1methylethyl), and adamantane, 2-hydroperoxy-2(2-oxiranyl) were identified by GC-MS. Inhibiting intersegmental and inferior intestinal vessels formation dose-dependently (EOs, 37.5, 18.75, and 9.375 μg/mL, 14 hours and 48 hours) |
Han et al.(2022) | |
| Curcuma phaeocaulis Valeton | Zebrafish embryo (Wild type, AB), Tg(flk1, GFP) |
LC50(vinegar-processed products): 67.315 μg/mL, 12 hours Inhibiting intersegmental vessel formation (EOs, 20 μg/mL, 12 hours) |
Liao et al.(2021) | |
| Kelussia odoratissima and A. sinensis | Zebrafish embryo, larvae Tg(fli1, EGFP), Tg (ins, GFP-NTR) |
Fifty-two chemicals including Z/E-ligustilide were identified by GC-MS. Eleven compounds were common to both EOs. Blocking intersegmental vessels outgrowth formation; inducing pancreatic beta cells regeneration (EOs from A. sinensis) (EOs, embryo, 7.81 μg/mL; 18 hours; larvae, 1.95 µg/mL, 2 days) |
Rezaei et al.(2023) | |
| Pro-angiogenic effect | P. frutescens(L.) Britt. and perillaldehyde | Zebrafish embryo Tg(flk1, EGFP), sunitinib-induced injury model |
Promoting intersegmental vessel formation dose-dependently (EOs, from 1.25 to 20 µg/mL, 48 hpf) (Perillaldehyde, from 3.13 to 50 µM, 48 hpf) |
Zhou et al.(2021) |
Note: This summary provides an overview of research that has assessed the effectiveness of EOs in terms of their angiogenesis inhibitory (or promotion) properties utilizing both wild-type and transgenic zebrafish as experimental models. LD50, half lethal dose; LC50, half lethal concentration.
Table 5. Evaluation of Nervous System Activity Using a Zebrafish Model.
| Essential Oils (from) | Model | Findings | References | |
|---|---|---|---|---|
| Anti-anxiety effect | L. alba and A. triphylla |
Adult zebrafish (Wild type, AB) |
The main chemical compositions of the EOs of L. alba leaves include linalool, eucalyptol, α-citral, and the EOs of A. triphylla leaves including α-citral, e-carveol, and limonene. Attenuating anxiety-like locomotive behavior in novel tank test without preference behavior (EOs, 150 μL/L L. alba; 100 μL/L A. triphylla, filmed for 6 min) Cortisol analysis: 15 min, the EOs of A. triphylla was stressful and did not attenuate cortisol increase after stress, L. alba EOs attenuated the cortisol response to stress and was not stressful. |
Junior et al.(2018) |
| C. citratus(DC.) stapf | Adult zebrafish (Wild type, AB), flumazenil-induced GABAA receptor inhibition model |
Relieving anxiety-like locomotive behavior in light–dark preference test; regulating GABAergic system; citral and geraniol have synergistic effect on anti-anxiety effect. (EOs, 10 mg/L, 10 min) |
Mendes Hacke et al.(2020) | |
| Limonene, β-Myrcene, Linalool |
Adult zebrafish (Wild type, AB) |
Relieving anxiety-like locomotive behavior in open field and novel object approach test; linalool groups demonstrated only minor alterations in locomotion. (limonene doses from 0.25% to 0.75%; linalool doses from 0.0001% to 0.00125%; β-myrcene doses from 0.001% to 0.1%, 10 min) Repeating exposure causes neuroadaptations or metabolic tolerance, resulting in a negligible effect on behavior. (Limonene 0.39% or β-myrcene 0.0083%, 7 days) |
Szaszkiewicz et al.(2021) | |
| Anthemis nobilis L. (roman chamomile) and Citrus reticulata Blanco (tangerine) |
Adult zebrafish (Wild type, AB) |
The GC-MS analysis proved that EOs of A. nobilis mainly contain pentadecyl-3-methyl-2-butenoate, hexadecyl-3-methyl-2-butenoate, 1-piperidinol, and trans-1-ethyl-3-methyl-cyclopentane; the main chemical constituents of EO from C. reticulata are limonene and γ-terpinene. Improving anxiety-like locomotor impairment in light–dark test (EOs, 10 mg/L, 20 min) Tangerine EOs showed a tendency to reduce anxiety, but it was not statistically significant. |
Silveira et al.(2022) | |
| Cinnamaldehyde of Cinnamomum cassia |
Adult zebrafish (Wild type, AB), MK-801-induced anxiety-like model |
Twenty-seven chemicals including (E)-cinnamaldehyde and (Z)-cinnamaldehyde were identified by GC-MS. Recovering changes in the EEG power spectrum (Cinnamaldehyde, 5 mg/L, 30 min) Electroencephalogram(EEG) |
Nguyen et al.(2022) | |
| Gamisachil-tang, Guibi-tang, Sihogayonggolmoryeo -tang, Danchisoyosan, Sihosogansan, Soyosan |
Adult zebrafish (Wild type, AB), MK-801-induced anxiety-like model |
EOs from Gamisachil-tang and Sihosogansan reversed the changes in the EEG signals and decreased the theta/beta and delta/beta ratios. EOs from Gamisachil-tang, Danchisoyosan, Sihosogansan, and Soyosan regulated the EEG power spectrum. (EOs, 10 mg/L, 30 min) Electroencephalogram(EEG) |
Ly et al.(2023) | |
| Lippia alba, Lippia sidoides, Lippia gracilis | Adult zebrafish (Wild type, AB), flumazenil-induced GABAA receptor inhibition model |
Attenuating anxiety-like locomotive behavior in open field and light/dark tests; regulating GABAergic system (LaEO, LsEO, 4 mg/kg; LgEO, 40 mg/kg, 30 min) |
Nonato et al.(2023) | |
| E. caryophyllata Thunb. | Adult zebrafish (Wild type, AB), flumazenil-induced GABAA receptor inhibition model |
Relieving anxiety-like locomotive behavior in open field and light/dark tests; regulating GABAergic system (EOs, eugenol and nanoemulsion; 4, 12 and 20 mg/kg, 30 min) |
da Silva Campelo et al.(2023) | |
| Anticonvulsant and Anti-epileptic effect |
Bisabolene sesquiterpenoids of Curcuma longa |
Zebrafish larvae Tg(fli1a: EGFP)y1 strain, PTZ-induced seizure model | 1H-, 13C-NMR spectra, and LC-MS results suggested that three of the eight active constituents of EOs identified have anticonvulsant activity, including α, β-turmerone, ar-turmerone and α-atlantone. Reducing both the number and the duration of ictal-like discharges and the cumulative duration of epileptiform discharges. (EOs, 10 μg/mL, pre-treated 1 hour, PTZ and EOs treated together for 15 min) |
Orellana-Paucar et al.(2012) |
| Ar-turmerone of Curcuma longa | Zebrafish larvae (Wild type, AB), PTZ-induced seizure model |
Downregulating the expression of c-fos; upregulating the expression of brain-derived neurotrophic factor (bdnf) (Ar-turmerone, 46 µM, 1 hour) |
Orellana-Paucar et al.(2013) | |
| Citrus sinensis Linn. Leaves | Zebrafish larvae (Wild type, AB), PTZ-induced seizure model |
Twenty-five chemicals including sabinene, myrcene, α-pinene, and β-pinene were identified by GC-MS. Teratogenic dose: 2-4 µl/mL, 80 hours Inhibiting convulsive-like locomotive behavior concentration-dependently. (EOs doses from 0.5 to 1.5 µl/mL, 1 hour) |
Prabahar (2018) | |
| Pyrrolone-fused benzosuberene of Cedrus deodara |
Zebrafish larvae (Wild type, AB), PTZ-induced epileptic seizure model |
Improving epilepsy symptoms; downregulating the expression of c-fos, PIK3CA, PIK3R1, AKT, mTOR, Rps6, and Rps6kb1. (PBS-8 and PBS-9, 1μM, 1 hour) |
Tanwar et al.(2019) | |
| Cyperus articulates L. | Zebrafish larvae (Wild type, AB), PTZ-induced seizure model |
The hexane extract was analyzed by HPLC, GC-MS, UHPLC-TOF-HRMS, NMR, and MPLC, and four antiseizure components were identified, including cyperotundone, mustakone, 1,2-dehydro-α-cyperone, and sesquichamaenol. Toxic dose: 50–200 μg/mL, 18 hours Relieving epileptic movements (EOs, 10, 30 μg/mL, 4, 13, 45, 135, and 460 µM for four pure compounds, 18 hours) |
Brillatz et al.(2020) | |
| cis- jasmone | Adult zebrafish (Wild type, AB), PTZ-induced seizure model |
Inhibiting convulsive-like locomotive behavior; modulating the GABAergic system (cis- jasmone, 0.1, 0.3 mg/mL, 1 hour) |
Bezerra et al.(2023) | |
| Neuroprotective effect | Schinus terebinthifolius | Adult zebrafish (Wild type, short-thin strain), scopolamine-induced memory deficits model |
Twenty-seven chemicals including β-phellandrene, α-pinene, terpinen-4-ol, α-phellandrene, and β-pinene were identified by GC-MS. Improving anxiety-like locomotive behavior and memory in novel tank diving and Y-maze tests AChE↓, SOD↑, CAT↑, GPX↑, MDA↓ (EOs, 10, 25, and 50 μL/L, pre-treated 8 days) |
Todirascu-Ciornea et al.(2019) |
| R. officinalis L. | Adult zebrafish (wild-type, short-fin strain), scopolamine-induced memory deficits model |
Seventy-seven chemicals including eucalyptol, α-pinene, camphor, and camphene were identified by GC-MS. Improving anxiety-like locomotive behavior and memory in novel tank diving and Y-maze tests AChE↓, SOD↑, CAT↑, GPX↑, MDA↓ (EOs, 25, 150, and 300 µL/L, 1 hour a day for 8 consecutive days) |
Capatina et al.(2020) | |
| T. vulgaris L. | Adult zebrafish (wild-type, short-fin strain), scopolamine-induced memory impairment model |
More than 70 components including thymol, p-cymene, and sesquiterpene β-caryophyllene were identified by GC-MS. Improving anxiety-like locomotive behavior and memory in novel tank diving, Y-maze, and novel object recognition tests AChE↓, SOD↑, GPX↑, GSH↑, MDA↓, protein carbonyl↓ (EOs, 25, 150, and 300 µL/L, treated 13 days) |
Capatina et al.(2020b) | |
| Origanum vulgare ssp. Hirtum | Adult zebrafish (wild-type, short-fin strain), scopolamine-induced cognitive impairments model |
Fifty-four chemicals including thymol, p-cymene, and γ-terpinene were identified by GC-MS. Improving anxiety-like locomotive behavior and memory; modulating GABAergic system activity in novel tank diving, Y-maze, and novel object recognition tests. AChE↓, SOD↑, CAT↑, GPX↑, GSH↑, MDA↓, protein carbonyl↓ (EOs, 25, 150, and 300 µL/L, treated 13 days) |
Capatina et al.(2021) | |
| Origanum vulgare ssp. Hirtum | Adult zebrafish (Wild type, AB), scopolamine-induced memory impairment model |
The EOs mix was perceived by the GC-MS being thymol, p-cymene, and terpinene. Improving anxiety-like locomotive behavior and memory in novel tank diving, Y-maze, and novel object recognition tests. AChE↓, SOD↑, CAT↑, GPX↑, GSH↑, MDA↓, protein carbonyl↓ (EOs, 1, 4, and 8 g/L, pretreatment 1 hour a day for 7 days) |
Sharma et al.(2022) | |
| Angelica purpurascens (Avé-Lall.) Gilli. |
Adult zebrafish (wild type, short-fin strain), scopolamine-induced memory impairment model |
Twelve chemicals including β-phellandrene, sabinene, α-pinene, germacrene-D, α-phellandrene, and p-cymene were identified by GC-MS. Improving anxiety-like locomotive behavior and memory; modulating GABAergic system activity in novel tank diving, Y-maze, and novel object recognition tests. AChE↓, SOD↑, CAT↑, GPX↑, MDA↓, carbonylated protein↓ (EOs, 25, 150 µL/L, once daily for 13 days) |
Boiangiu et al.(2022) | |
| Coriandrum sativum var. microcarpum | Adult zebrafish (Wild type, AB), scopolamine-induced memory impairment model |
Ameliorating cognitive dysfunction and anxiety state in novel tank diving, Y-maze, and novel object recognition tests; adjusting cholinergic system; decreasing oxidative stress in the brain. AChE↓, SOD↑, CAT↑, GPX↑, MDA↓, carbonylated protein↓ (EOs, 25, 150, and 300 µL/L, 21 days) |
Brinza et al.(2023) | |
| Glaucosciadium cordifolium (Boiss.) Burtt & Davis | Adult zebrafish (Wild type, AB), scopolamine-induced memory impairment model |
Twenty-two chemicals including limonene, α/β-pinene, p-cymene, and α-phellandrene were identified by GC-MS. Mitigating the memory deficits and the anxiety-like behavior in novel tank diving, Y-maze, and novel object recognition tests; adjusting cholinergic system; reducing the oxidative stress. AChE↓, SOD↑, CAT↑, GPX↑, MDA↓, carbonylated protein↓ (EOs, 25 and 150 µL/L, 17 days) |
Boiangiu et al.(2023) |
Note:This summary provides an overview of research that has assessed the effectiveness of EOs in terms of their neuro-modulatory properties (e.g. anti-anxiety effect, anticonvulsant and anti-epileptic effect, and neuroprotective effect) utilizing both wild-type and transgenic zebrafish as experimental models. “↑” or “↓” elucidate the regulatory impact of EOs on oxidation indicators. “↑”, upregulating; “↓”, downregulating.
Table 6. Evaluation of Anesthetic Activity by Zebrafish Model.
| Essential Oils (from) |
Model | Findings | References |
|---|---|---|---|
| Clove oil | Zebrafish larvae (Wild type, AB) |
LC50: 21 ppm, 96 hours Compared with MS-222(100ppm), Eugenol(60ppm) has faster anesthetic time and longer anesthetic effect. |
Grush et al.(2004) |
| Adult zebrafish (Wild type, AB) |
LC50: MS-222, 170.6 ± 7.4 mg/L (ML), 215.6 ± 3.9 mg/L (MD); eugenol, 70.3 ± 3.1 mg/L (ML), 104.9 ± 5.4 mg/L (MD), 15 min (middle of the light phase [ML], middle of the dark phase [MD]) |
Sánchez-Vázquez et al.(2011) | |
| Adult zebrafish, larvae, embryo(Wild type, AB) |
a) Prolonged anesthesia: 24 hours, embryo; 2 hours, larvae Compared with MS-222 (200 ppm)and benzocaine (200 ppm), the anesthetic effect of clove oil (60 ppm for embryo; 90 ppm for larvae) and AQUI-S (active ingredient iso-eugenol, 40 ppm) lasts longer, although it takes a certain amount of anesthesia time. b) Short-term anesthesia: 15 min, adult Compared with MS-222 (200 ppm)and benzocaine (200 ppm), it takes longer for clove oil (100 ppm) and AQUI-S (150 ppm) to recover from anesthesia. |
Ehrlich et al.(2019) | |
| Adult zebrafish (Wild type, AB) |
Compared with other anesthetics (MS-222 (175mg/L),Etomidate (2 mg/L) and Propofol (5mg/L) combined with lidocaine (150 mg/L)), clove oil (45 mg/L) anesthesia time was faster and has no respiratory inhibitory effect. | Jorge et al.(2021) | |
| Adult zebrafish (Wild type, AB) |
Compared with MS-222 (150 mg/L), zebrafish have less aversion to clove oil (55 mg/L) in light/dark box experiment. | Wong et al.(2014) | |
| Adult zebrafish (Wild type, AB), Tg(isl1-hsp70l:mRFP), Tg(UAS:GCaMPHS), Tg(5xUAS:RFP) |
Greater amounts of serum could be collected and lower serum levels of cortisol were present in fish euthanized with clove oil (0.1%) compared with an equipotent dose of MS222 (7.8 mM). | Davis et al.(2015) | |
| Adult zebrafish (Wild type, AB) |
Clove oil nanoformulations: 150 mg/L, 10 min Fish skin permeation: self-microemulsifying drug-delivery system, 18.17±0.64 µg/cm2, increasing penetration flux. Distribution: Clove oil entered the body of the zebrafish through the gills and skin and then accumulated in the brain. |
Kheawfu et al.(2022) | |
| A. galanga | Adult zebrafish (Wild type, AB) |
The GC-MS analysis showed that 1,8-cineole and 4-allylphenyl acetate were the main active compounds of EOs. Distribution: EOs entered the body of the zebrafish through the gills and skin and then accumulated in the brain. Determination of optimal dose for fish anesthesia: 300 mg/L Skin permeation fluxes: 1,8-cineole (EtOH-AGO), 0.58 µg/cm2 min; Self-nanoemulsifying drug delivery system (SNEDDS-AGO-2), 2.46 µg/cm2 min |
Khumpirapang et al.(2021) |
| A. suaveolens Mart. Ex Spreng nano-emulsification |
Adult zebrafish, embryo (Wild type, AB) |
The GC-MS analysis exhibited β-farnesene, linalool, and massoialactone are the major components of the EO. Nano-emulsion enhanced the sedative effect of EOs (embryo, doses from 25 to 100 μg/m, 96 hours), and males were more sensitive to EOs (adult zebrafish, 125 mg/kg, 14 days). |
de Oliveira Ferraz et al.(2020) |
| Anise, Thyme, Mint | Adult zebrafish (Wild type, AB) |
Males were found to be more sensitive than female zebrafish to recovery times. (thyme: 1, 5, 10 mg/L, 20 mg/L; mint: 10, 20, 30 mg/L) |
Seyidoglu and Yagcilar (2020) |
| C. cyminum | Adult zebrafish (Wild type, AB) |
The lowest effective concentrations were based on the efficacy criteria of complete anesthesia induction within 180 s and recovery within 300 s. Under similar anesthesia effect, the dosage of essential oil was less. (EOs, 0.24 mL/L; 2-phenoxyethanol, 0.35 mL/L) |
Khosravanizadeh et al.(2020) |
| A. oleracea and P. alatabaccum | Adult zebrafish (Wild type, AB) |
Inducing deep anesthesia; no significant increase of nitrite or nitrate (NOx-) levels in both the encephalon and cephalic kidney tissues. (A. oleracea flowers, 2 mL/L; leaves, 3 mL/L; P. alatabaccum, 2.5 mL/L) |
Leite et al.(2022) |
Note: This summary provides an overview of research that has assessed the effectiveness of EOs, in particular clove oil, in terms of their anesthetic activity properties utilizing both wild-type and transgenic zebrafish as experimental models. LC50, half lethal concentration.
Zebrafish Models for Bioactivity Evaluation of EOs
Zebrafish Models for the Evaluation of Anti-oxidant and Anti-inflammatory Activity
Some compounds, including 2,2’-Azobis(2-amidinopropane) dihydrochloride (AAPH) (Ko et al., 2014), metronidazole (MTZ) (Chen et al., 2016), and hydrogen peroxide (H2O2) (Geun Lee et al., 2022), can be used to induce oxidative stress models in zebrafish embryos or larvae. Commonly, these zebrafish models are often used to test the antioxidant strength of potential chemicals or extracts, such as EOs. Changes in biomarkers after exposure to oxidative inducers are typically used to assess a natural product’s antioxidant efficacy. These biomarkers include reactive oxygen species (ROS) (Raguraman et al., 2019), reactive superoxide dismutase (SOD), catalase (CAT), glutathione peroxidase (GSH-Px), malondialdehyde (MDA), lipid peroxidation, heart rate, survival rate, etc., in zebrafish (Chen et al., 2021a; Hoseinifar et al., 2023). Wang et al. induced oxidative stress in wild-type zebrafish using H2O2 (Wang et al., 2023a). Results from in vivo investigations showed that zebrafish treated with EOs, which were produced from Kaempferia galanga L., had an enhanced survival rate and heart rate, and that ROS production and lipid peroxidation had been suppressed. Zebrafish treated with EOs also showed reductions in MDA levels and enhancements in SOD, CAT, and GSH-Px activities. He et al. (2020b) induced oxidative stress in zebrafish using MTZ and evaluated EOs derived from Thymus quinquecostatus celak, observing comparable regulatory activity (He et al., 2020b). Importantly, by detecting the expression of oxidative stress-related genes in zebrafish, the authors summarized that antioxidant activity of these EOs may be related to the activation of the Keap1/Nrf2 pathway.
Zebrafish inflammation models induced by tailfin amputation have been successfully established in order to test the anti-inflammatory compounds (He et al., 2020a). Natural products’ anti-inflammatory efficacy may be measured by their ability to modulate neutrophil migration at the site of zebrafish caudal fin damage (Xiong et al., 2022). Santos et al. (2022) discovered that EOs derived from S. guianensis Aublet decreased the migration of neutrophils to the fin injury in zebrafish, which explains the EOs’ potent anti-inflammatory activity (Santos et al., 2022). Due to the fact that antioxidants (e.g., EOs) prevent inflammatory responses in living organisms, the aforementioned antioxidant indicators are investigated in anti-inflammatory activity of these EOs. And, the antioxidant enzyme test demonstrated that these EOs mitigated oxidative stress. In addition, the tailfin amputation model of zebrafish was also used to study the anti-inflammatory activity of EOs derived from T. vulgaris (Polednik et al., 2018). Next, Meng et al. (2022) induced enteritis in wild-type zebrafish using oxazolone. In vivo studies demonstrated that A. vulgaris-derived EOs effectively alleviated enteritis in zebrafish by ameliorating intestinal histopathological damage, decreasing intestinal oxidative stress, restoring intestinal immune function, and altering the expression levels of IL-1, IL-10, and genes in the MyD88/TRAF6/NF-B pathway (Meng et al., 2022). In addition, these EOs had substantially greater therapeutic effects on male zebrafish enteritis than on female zebrafish enteritis. Furthermore, the anti-inflammatory effectiveness of EOs nanoemulsions produced from Rosmarinus officinalis L. was assessed by observing the effects on the histopathological and cellular features of numerous zebrafish organs, including the gills, liver, kidney, and intestine (Borges et al., 2018).
Zebrafish Models for the Evaluation of Angiogenesis Inhibitory (or Promotion) Activity
It is widely acknowledged that modulation of angiogenesis is an attractive therapeutic strategy for the treatment of a wide range of human diseases, such as cancer, heart diseases, and inflammation (Carmeliet and Jain, 2000; Fiedler and Augustin, 2006). The activity of EOs to modulate angiogenesis has been linked to their ability to combat these diseases, notably cancer (Bostancioglu et al., 2012). Due to its small size and transparent body during embryonic and larval development, zebrafish is an ideal model for studying EOs-induced alterations in vascular structure. In wild-type zebrafish embryo or larvae, the degree of development of the dorsal longitudinal anastomotic vessel (DLAV) (Anegundi and Pancharatna, 2017), dorsal aorta (DA), posterior cardinal vein (PCV), and intersegmental vessel (ISV) can be used as an indicator of the anti-angiogenic activity of EOs (Zhao et al., 2014). When a particular concentration of EOs was added, the growth of these vessels, particularly ISV, was significantly inhibited (Paramasivam et al., 2012). It should be emphasized that red blood cell staining is useful for observing the variation of these blood vessels in zebrafish of the wild type (Yeh et al., 2011). Nonetheless, transgenic zebrafish allow for more direct and practical observation of vascular structure. To examine the impact of substances on blood vessel development in vivo, zebrafish embryos or larvae from transgenic lines like Tg (fli1: EGFP) or Tg (flk1: EGFP) are a great choice (Elsayed et al., 2020; Liao et al., 2021). Transgenic zebrafish are useful for studying the effects of substances on angiogenic blood vessels in growing fish because their blood vessels continuously exhibit green fluorescence. Thus, the green fluorescence could be used to detect the existence or absence of blood vessels, and a quantitative evaluation could be performed by observing and comparing the same blood vessels in untreated control zebrafish (Zhong et al., 2012). For instance, on these transgenic zebrafish, the anti-angiogenic activity of EOs derived from numerous plants was evaluated. Blood vessels of zebrafish after EOs treatment, primarily ISVs, can exhibit a decrease in the intensity and quantity of green fluorescence compared to those of control zebrafish, indicating that these EOs inhibit angiogenesis, and the expression level of some related genes can be used to further understand the mechanism of the anti-angiogenesis effect of EOs (Yue et al., 2015). In addition, Zhou et al. (2021) found that the intensity and quantity of green fluorescence of ISV were considerably decreased when sunitinib was employed to produce damage to the ISV of Zebrafish Tg (flk1: EGFP) (Zhou et al., 2021). EOs derived from Perilla Frutescens were shown to dramatically boost green fluorescence of ISV, suggesting that these EOs have a role in promoting angiogenesis (Zhou et al., 2021).
Zebrafish Models for the Evaluation of Neuro-modulatory Activity
EOs may be useful in alleviating the symptoms of different nervous system disorders, which has led to a worldwide uptick in the use of aromatherapy for the treatment of insomnia, depression, anxiety, and some cognitive impairments (Lizarraga-Valderrama, 2021). Over the past few years, mounting research has revealed that EOs ingestion exerts measurable bioactivity, and that at therapeutic concentrations, EOs appear to be risk-free of the side effects that are frequent in many pharmaceutical products (Edris, 2007). However, additional research is needed to confirm their effectiveness in neuroprotection, and zebrafish are a great model to test the efficacy of EOs against neurological disorders.
Anxiety and depression can be studied using zebrafish as a model because of the fish’s predictable behavioral response to anxiogenic and anxiolytic chemicals (Kalueff et al., 2014). Commonly used behavioral assays for gauging anxiolytic and antidepressant effects in zebrafish include the light/dark and novel tank tests (Stewart et al., 2012; Stewart et al., 2014). The light/dark chamber was made to use zebrafish’s dislike of brightly lit areas and their natural curiosity in new places as a measure of their anxiety (Araujo et al., 2012). The device is made up of a tank that is split in half by a room in the middle (Haigis et al., 2022). About half of the device is made of white materials, and the other half is made of black materials that don’t reflect light. Fish generally like dark areas and stay away from bright ones (Stewart et al., 2011). The time it takes to leave the center chamber and the number of changes between compartments can be used to figure out how well EOs treat anxiety and depression. For instance, a light/dark test has been used to assess the anxiolytic activity of EOs derived from E. caryophyllata Thunb. and C. citratus (DC.) Stapf (da Silva Campelo et al., 2023; Mendes Hacke et al., 2020). Zebrafish spent substantially more time in the light compartment after being treated with these EOs, suggesting that they alleviate anxiety. Latency time and the number of midline crossings between the light and dark compartments in zebrafish are not significantly affected by these EOs, showing that there are no significant changes to the sensory systems or locomotor activity of zebrafish. In addition, the novel tank test works on a similar concept to the light/dark test. The novel tank test relies on the zebrafish’s natural tendency to seek shelter after being placed in an unfamiliar tank (Stewart et al., 2012). Until they feel safe enough to go to the top of the tank, they prefer to hang around at the bottom. Each fish is given its own section of the tank for the duration of the test (about five to six minutes) and the tank is effectively split into two equal halves by a horizontal line. People track how long it takes for the fish to reach the top half of the tank, how often they cross to the upper half, how erratically they swim, and how long they spend frozen. Anxiolytic substances can reduce latency and encourage exploration of the tank’s top levels (Farias-Cea et al., 2023). Using a novel tank assay, the anxiolytic activity of EOs derived from Lippia alba and Aloysia triphylla was evaluated (Junior et al., 2018). Moreover, the anxiolytic activity of EOs in a zebrafish model was also evaluated using an open-field test and electroencephalogram power spectrum (Ly et al., 2023; Nguyen et al., 2022; Nonato et al., 2023; Szaszkiewicz et al., 2021).
Epilepsy is a significant neurological disorder. The induction of seizures in zebrafish by pentylenetetrazole (PTZ) is a standard experimental model for the discovery of new anticonvulsant agents (Jin et al., 2020). Recently, it was found that EOs have antiepileptic activity using this model. The EOs’ anti-epileptic effectiveness was determined by comparing the zebrafish locomotor activity in the EOs treatment group with that of the PTZ-induced zebrafish epilepsy model group (Bezerra et al., 2023; Orellana-Paucar et al., 2012). The expression of genes involved in these processes was also identified to better understand how EOs exert their antiepileptic effects (Orellana-Paucar et al., 2013).
Many EOs’ neuroprotective properties have been studied in zebrafish models using the scopolamine-induced memory impairment paradigm, which may mimic Alzheimer’s disease symptoms (Boiangiu et al., 2022; Capatina et al., 2020a; Capatina et al., 2020b; Todirascu-Ciornea et al., 2019). T-maze and Y-maze tests may be used to evaluate zebrafish spatial memory (Benvenutti et al., 2021). Measurements of antioxidant enzyme activity and gene expression in redox-related signaling pathways might inform future investigations into the mechanisms by which these EOs exert their anti-neurodegenerative effects (Boiangiu et al., 2023; Brinza et al., 2023; Capatina et al., 2021; Sharma et al., 2022). In addition, trimethyltin or aluminum trichloride-induced neurodegeneration model in zebrafish was also used to evaluate the neuro-modulatory activity of EOs and their products (Chen et al., 2021b; More and Pawar, 2023).
Zebrafish Models for the Evaluation of Anesthetic Activity
Clove oil, the main component of which is eugenol (over 70% of clove oil’s composition) (Chaieb et al., 2007), is extracted from the clove plant Syzygium aromaticum, Eugenia aromatica, or Eugenia caryophylatta (Selles et al., 2020), and is used worldwide as a moderate topical analgesic for toothache, headache, and joint discomfort in humans (Ayushi et al., 2020), as well as a food flavoring agent (Nurdjannah and Bermawie, 2012). Clove oil has been successfully used to immobilize and suppress the sensory systems of fish. In a study on zebrafish larvae (30 days old), Grush et al. (2004) investigated the anesthetic effects of clove oil with MS-222 (Ethyl 3-aminobenzoate methanesulfonate, a popular fish anesthetic agent) (Grush et al., 2004). Unlike MS-222, clove oil was effective in inducing anesthesia quickly and at low doses. Clove oil prolonged fish recovery durations relative to those seen with MS-222 at similar doses. These results imply that clove oil has the potential to be a useful anesthetic for zebrafish, with advantages over MS-222 such as reduced cost, reduced dose, increased safety, and maybe reduced fatality rates. In another study, zebrafish of varying ages (embryos, 1 day; larvae, 5 days; adult, 9–11 months) were used to investigate the anesthetic activity of clove oil and to compare it to that of MS-222 and benzocaine (Ehrlich et al., 2019). The results of this study indicate that clove oil possesses potentially superior anesthetic activity to MS-222 and benzocaine in the embryonic and larval stages of zebrafish. In addition, Davis et al. (2015) discovered that adult zebrafish anesthetized with clove oil were able to collect more serum and had lower cortisol levels than those anesthetized with an equivalent dose of MS-222 (Davis et al., 2015). Clove oil’s anesthetic effect can also be assessed by observing zebrafish behavior. Sánchez-Vázquez et al. (2011) found that adult zebrafish exposed to higher concentrations of clove oil exhibited less swimming behavior, and this shift in behavior follows a diurnal rhythm (Sánchez-Vázquez et al., 2011). In addition, aversion to MS-222 and clove oil was compared using a conditioned place avoidance paradigm (i.e., light/dark test) by Wong et al., 2014. Each anesthetic was presented to zebrafish in their light/dark preference at first. Zebrafish exposed to MS-222 avoided spending time on their favored side; however, this aversion was mitigated with clove oil. These data imply that clove oil, rather than MS-222, may be the superior anesthetic for zebrafish. Moreover, the bioavailability of clove oil is restricted because of its volatility, chemical instability, and hydrophobic nature. The utilization of nano-drug-loaded dosage forms has been contemplated. Effectively contrasting the distribution of different clove oil nanoformulations in various organs has been facilitated by zebrafish (Kheawfu et al., 2022). And different nanoformulations of EOs extracted from Alpinia galanga and Aeollanthus suaveolens were also evaluated for organ distribution properties and anesthetic activity in zebrafish using comparable techniques and indicators (de Oliveira Ferraz et al., 2020; Khumpirapang et al., 2021). Furthermore, recovery time served as a crucial metric for assessing the anesthetic efficacy of various EOs such as anise oil, thyme oil, and mint oil (Seyidoglu and Yagcilar, 2020), and EOs derived from Cuminum cyminum (Khosravanizadeh et al., 2020), Acmella oleracea, Piper alatabaccum (Leite et al., 2022).
Zebrafish Models for the Evaluation of Other Bioactivities
It is often believed that the best place to find effective and safe depigmentation ingredients is in natural products. Natural compounds with anti-melanogenic effects have been screened extensively using zebrafish embryos and larvae as potent models (Chaita et al., 2017). However, only a small number of studies using zebrafish models have examined the anti-melanogenic activity of EOs. During embryonic development, zebrafish will create melanin in their bodies; zebrafish exposed to EOs show a large decrease in this melanin, which might be indicative of an anti-melanogenic effect (Ho et al., 2023; Kim et al., 2023; Yan et al., 2023; Zhou et al., 2020). In addition, the anti-nociceptive effects of EOs on a zebrafish model of chemically induced pain were investigated (Batista et al., 2021; Lima et al., 2020). Moreover, the effects of EOs on anti-osteoporotic, anti-genotoxicity, and promotion of intestinal microbial homeostasis have been investigated in zebrafish models (Hasankhani et al., 2023; Khalil et al., 2011; Stephen, 2019). Furthermore, indicators including growth, liver histology, and antioxidant effects were used in the zebrafish model to assess the efficacy of EOs as natural dietary supplements (Ramos et al., 2022; Silva et al., 2022).
Limitation
As of now, there exist several constraints in the utilization of zebrafish models for EOs research. Zebrafish exhibit a lack of certain organs, including lungs and limbs, which poses challenges in administering compounds due to the persistence of chorion up to 48 hours post-fertilization (Kari et al., 2007; Santos et al., 2018). Nevertheless, these obstacles can be addressed using human or automated removal methods, as well as modern procedures like microinjection (Bauer et al., 2021). Moreover, the scope of pharmacokinetic investigations in this species is constrained not only by challenges associated with the delivery of water-soluble substances and the utilization of solvents that may influence toxicological outcomes but also by deficiencies in comprehending the operational metabolic mechanisms in zebrafish embryos (Félix et al., 2019). Furthermore, despite the identification of primary chemical constituents in EOs through various studies, a comprehensive understanding of the specific role played by these chemical components in the efficacy of EOs remains elusive. Consequently, additional study is required to address this knowledge gap. Moreover, the extent of zebrafish’s absorption of EOs remains uncertain, as does the attribution of the observed effects to either the elevated concentrations of individual compounds or the synergistic interactions among the chemicals found in the EOs (Rubinstein, 2006). Subsequent investigations may direct their attention toward enhancing zebrafish models to depict distinct facets of human biology more accurately.
Conclusions
The present review primarily summarizes and discusses the zebrafish models that are most widely used in EOs assessment, as well as the construction of zebrafish models and associated evaluation indicators. Using zebrafish as a model organism is an efficient and cost-effective way to test and evaluate EOs for their health benefits. The toxicity, safety, and bioactivity of EOs can be studied using a number of readily applicable zebrafish models, including those generated by chemical induction and transgenic lines with fluorescent tagging. The following areas need greater investigation to make zebrafish models more useful and informative for the evaluation of EOs. First, to optimize its use in EOs’ product development, the zebrafish model described in this review may be applied to more EOs assessment studies. Second, new zebrafish models are needed for analyzing the biological activities of EOs, as current studies do not cover all the important biological functions of EOs. The utilization of transgenic zebrafish lines that include specific genetic modifications, in conjunction with multidimensional imaging techniques, can be employed to examine the possible impacts of various EOs on zebrafish in future studies. Finally, the current study does not go far enough to fully grasp the regulation mechanisms of EOs in a zebrafish model. To examine the mechanism of action of EOs more thoroughly and systematically, not only restricted to cytokine and gene expression detection, advanced research tools should be applied, such as omics technology, etc. Overall, zebrafish modeling is an effective method for assessing EOs, which have the potential to advance the fields of functional foods, nutraceuticals, and cosmetics; raise awareness about the value of aromatic plants as important industrial crops; and improve healthy lifestyle.
Author Contributions
M.H. and M.S. designed the study. X.M., L.L., J.C. and R.S. carried out document and data analysis. L.W. and M.Y. drafted the manuscript. S.D. contributed to revisions of the manuscript. All authors read and approved the final manuscript.
Funding
Mengmeng Sun is financially supported by the Scientific and Technological Developing Project of Jilin Province (No. YDZJ202301ZYTS151); the Scientific and Technological Developing Project of Jilin Province (No. 20210402042GH); the Scientific and Technological Developing Project of Changchun City (No. 21ZGM21). Min He is financially supported by the National Natural Science foundation of China (No. 82004030); the Scientific and Technological Developing Project of Jilin Province (No. YDZJ202101ZYTS119); Jilin Provincial Development and Reform Commission (grant number 2023C028-1); and the Scientific and Technological Developing Project of Changchun City (No. 21ZGM22).
Consent for Publication
The manuscript is approved by all authors for publication.
Acknowledgments
The authors thank the support of Changchun Wish Technology Co., Ltd.
Conflicts of Interest
All contributing authors declare no conflicts of interest.
REFERENCES
Akermi, S., Smaoui, S., Elhadef, K., Fourati, M., Louhichi, N., Chaari, M., et al., 2022. Cupressus sempervirens Essential Oil: Exploring the Antibacterial Multitarget Mechanisms, Chemcomputational Toxicity Prediction, and Safety Assessment in Zebrafish Embryos. Molecules. 27(9): 2630. 10.3390/molecules27092630
Allenspach, M. and Steuer, C., 2021. alpha-Pinene: A never-ending story. Phytochemistry. 190: 112857. 10.1016/j.phytochem.2021.112857
Anegundi, N. and Pancharatna, K., 2017. 7-Hydroxycoumarin Elicit Anti-Angiogenic Effects Through Cellular Apoptosis in Developing Embryos of Zebrafish (Danio Rerio). European Scientific Journal, ESJ. 13(21): 53. 10.19044/esj.2017.v13n21p53
Araujo, J., Maximino, C., de Brito, T.M., da Silva, A.W.B., Oliveira, K.R.M., de Jesus Oliveira Batista, E., et al., 2012. Behavioral and Pharmacological Aspects of Anxiety in the Light/Dark Preference Test, Zebrafish Protocols for Neurobehavioral Research, pp. 191–202.
Arunachalam, M., Raja, M., Vijayakumar, C., Malaiammal, P. and Mayden, R.L., 2013. Natural History of Zebrafish (Danio rerio) in India. Zebrafish. 10(1): 1–14. 10.1089/zeb.2012.0803
Ayushi, K.U., Danish, S.M. and Mohammad, P.U., 2020. A review on biological and therapeutic uses of Syzygium aromaticum Linn.(Clove): Based on phyto-chemistry and pharmacological evidences. International Journal of Botany Studies. 5(4): 33–39.
Baskar, K., Sudha, V., Nattudurai, G., Ignacimuthu, S., Duraipandiyan, V., Jayakumar, M., et al., 2018. Larvicidal and repellent activity of the essential oil from Atalantia monophylla on three mosquito vectors of public health importance, with limited impact on non-target zebra fish. Physiological and Molecular Plant Pathology. 101: 197–201. 10.1016/j.pmpp.2017.03.002
Batista, F.L.A., de Araújo, J.I.F., de Araújo, S.M.B., de Sousa, D.B., Sobrinho, F.B.C., Bezerra, F.S., et al., 2021. Antinociceptive Effect of Volatile Oils from Ocimum basilicum Flowers on Adult Zebrafish. Revista Brasileira de Farmacognosia. 31(3): 282–289. 10.1007/s43450-021-00154-5
Bauer, B., Mally, A. and Liedtke, D., 2021. Zebrafish Embryos and Larvae as Alternative Animal Models for Toxicity Testing. Int J Mol Sci. 22(24): 13417. 10.3390/ijms222413417
Benavides, S., Cortes, P., Parada, J. and Franco, W., 2016. Development of alginate microspheres containing thyme essential oil using ionic gelation. Food Chemistry. 204: 77–83. 10.1016/j.foodchem.2016.02.104
Benvenutti, R., Marcon, M., Gallas-Lopes, M., de Mello, A.J., Herrmann, A.P. and Piato, A., 2021. Swimming in the maze: An overview of maze apparatuses and protocols to assess zebrafish behavior. Neuroscience & Biobehavioral Reviews. 127: 761–778. 10.1016/j.neubiorev.2021.05.027
Bezerra, F., Vieira-Neto, A.E., Benevides, S.C., Tavares, K.C.S., Ribeiro, A.D.C., Santos, S., et al., 2023. Pharmacological Potential of cis-jasmone in Adult Zebrafish (Danio rerio). Planta Medica. 89(5): 539–550. 10.1055/a-1988-2098
Boiangiu, R.S., Bagci, E., Dumitru, G., Hritcu, L. and Todirascu-Ciornea, E., 2022. Angelica purpurascens (Ave-Lall.) Gilli. Essential Oil Improved Brain Function via Cholinergic Modulation and Antioxidant Effects in the Scopolamine-Induced Zebrafish (Danio rerio) Model. Plants (Basel). 11(8): 1096. 10.3390/plants11081096
Boiangiu, R.S., Bagci, E., Dumitru, G., Hritcu, L. and Todirascu-Ciornea, E., 2023. Promnesic, Anxiolytic and Antioxidant Effects of Glaucosciadium cordifolium (Boiss.) Burtt & Davis Essential Oil in a Zebrafish Model of Cognitive Impairment. Plants (Basel). 12(4): 784. 10.3390/plants12040784
Borges, R.S., Keita, H., Ortiz, B.L.S., Dos Santos Sampaio, T.I., Ferreira, I.M., Lima, E.S., et al., 2018. Anti-inflammatory activity of nanoemulsions of essential oil from Rosmarinus officinalis L.: in vitro and in zebrafish studies. Inflammopharmacology. 26(4): 1057–1080. 10.1007/s10787-017-0438-9
Bostancioglu, R.B., Kurkcuoglu, M., Baser, K.H. and Koparal, A.T., 2012. Assessment of anti-angiogenic and anti-tumoral potentials of Origanum onites L. essential oil. Food and chemical Toxicology. 50(6): 2002–2008. 10.1016/j.fct.2012.03.074
Brillatz, T., Jacmin, M., Queiroz, E.F., Marcourt, L., Slacanin, I., Petit, C., et al., 2020. Zebrafish bioassay-guided isolation of antiseizure compounds from the Cameroonian medicinal plant Cyperus articulatus L. Phytomedicine. 70: 153175. 10.1016/j.phymed.2020.153175
Brinza, I., Boiangiu, R.S., Cioanca, O., Hancianu, M., Dumitru, G., Hritcu, L., et al., 2023. Direct Evidence for Using Coriandrum sativum var. microcarpum Essential Oil to Ameliorate Scopolamine-Induced Memory Impairment and Brain Oxidative Stress in the Zebrafish Model. Antioxidants (Basel). 12(8): 1534. 10.3390/antiox12081534
Burdock, G.A. and Carabin, I.G., 2009. Safety assessment of coriander (Coriandrum sativum L.) essential oil as a food ingredient. Food and chemical Toxicology. 47(1): 22–34. 10.1016/j.fct.2008.11.006
Campolo, O., Giunti, G., Laigle, M., Michel, T. and Palmeri, V., 2020. Essential oil-based nano-emulsions: Effect of different surfactants, sonication and plant species on physicochemical characteristics. Industrial Crops and Products. 157. 10.1016/j.indcrop.2020.112935
Campos, J.R., Severino, P., Ferreira, C.S., Zielinska, A., Santini, A., Souto, S.B., et al., 2019. Linseed Essential Oil–Source of Lipids as Active Ingredients for Pharmaceuticals and Nutraceuticals. Current Medicinal Chemistry. 26(24): 4537–4558. 10.2174/0929867325666181031105603
Capatina, L., Boiangiu, R.S., Dumitru, G., Napoli, E.M., Ruberto, G., Hritcu, L., et al., 2020a. Rosmarinus officinalis Essential Oil Improves Scopolamine-Induced Neurobehavioral Changes via Restoration of Cholinergic Function and Brain Antioxidant Status in Zebrafish (Danio rerio). Antioxidants (Basel). 9(1): 62. 10.3390/antiox9010062
Capatina, L., Napoli, E.M., Ruberto, G. and Hritcu, L., 2021. Origanum vulgare ssp. hirtum (Lamiaceae) Essential Oil Prevents Behavioral and Oxidative Stress Changes in the Scopolamine Zebrafish Model. Molecules. 26(23): 7085. 10.3390/molecules26237085
Capatina, L., Todirascu-Ciornea, E., Napoli, E.M., Ruberto, G., Hritcu, L. and Dumitru, G., 2020b. Thymus vulgaris Essential Oil Protects Zebrafish against Cognitive Dysfunction by Regulating Cholinergic and Antioxidants Systems. Antioxidants (Basel). 9(11): 1083. 10.3390/antiox9111083
Capparucci, F., De Benedetto, G., Natale, S., Pecoraro, R., Iaria, C. and Marino, F., 2022. Evaluation of Anaesthetic Effect of Commercial Basil Ocimum basilicum on Zebrafish (Danio rerio) Embryos. Fishes. 7(6): 318. 10.3390/fishes7060318
Carmeliet, P. and Jain, R.K., 2000. Angiogenesis in cancer and other diseases. Nature. 407(6801): 249–257. 10.1038/35025220.
Chaieb, K., Hajlaoui, H., Zmantar, T., Kahla-Nakbi, A.B., Rouabhia, M., Mahdouani, K., et al., 2007. The chemical composition and biological activity of clove essential oil, Eugenia caryophyllata (Syzigium aromaticum L. Myrtaceae): a short review. Phytotherapy Research. 21(6): 501–506. 10.1002/ptr.2124
Chaita, E., Lambrinidis, G., Cheimonidi, C., Agalou, A., Beis, D., Trougakos, I., et al., 2017. Anti-Melanogenic Properties of Greek Plants. A Novel Depigmenting Agent from Morus alba Wood. Molecules. 22(4): 514. 10.3390/molecules22040514
Chen, J., Chen, Y., Zheng, Y., Zhao, J., Yu, H., Zhu, J., et al., 2021a. Protective Effects and Mechanisms of Procyanidins on Parkinson’s Disease In Vivo and In Vitro. Molecules. 26(18): 5558. 10.3390/molecules26185558
Chen, S.X., Xiang, J.Y., Han, J.X., Yang-Feng, Li, H.Z., Chen, H., et al., 2021b. Essential Oils from Spices Inhibit Cholinesterase Activity and Improve Behavioral Disorder in AlCl3 Induced Dementia. Chemistry & Biodiversity. 19(1). 10.1002/cbdv.202100443
Chen, Z., Wan, X., Hou, Q., Shi, S., Wang, L., Chen, P., et al., 2016. GADD45B mediates podocyte injury in zebrafish by activating the ROS-GADD45B-p38 pathway. Cell Death and Disease. 7(1): e2068. 10.1038/cddis.2015.300
Cheng, H., Duan, Z., Wu, Y., Wang, Y., Zhang, H., Shi, Y., et al., 2022. Immunotoxicity responses to polystyrene nanoplastics and their related mechanisms in the liver of zebrafish (Danio rerio) larvae. Environment International. 161: 107128. 10.1016/j.envint.2022.107128
da Fonsêca, D.V., da Silva Maia Bezerra Filho, C., Lima, T.C., de Almeida, R.N. and de Sousa, D.P., 2019. Anticonvulsant Essential Oils and Their Relationship with Oxidative Stress in Epilepsy. Biomolecules. 9(12): 835. 10.3390/biom9120835
da Silva Campelo, M., Camara Neto, J.F., de Souza, A.L., Ferreira, M.K.A., Dos Santos, H.S., Gramosa, N.V., et al., 2023. Clove volatile oil-loaded nanoemulsion reduces the anxious-like behavior in adult zebrafish. DARU Journal of Pharmaceutical Sciences. 31: 183–192. 10.1007/s40199-023-00473-z
Davis, D.J., Klug, J., Hankins, M., Doerr, H.M., Monticelli, S.R., Song, A., et al., 2015. Effects of clove oil as a euthanasia agent on blood collection efficiency and serum cortisol levels in Danio rerio. Journal of the American Association for Laboratory Animal Science. 54(5): 564–567. 10.1089/154585404774101671
de Moraes Pultrini, A., Almeida Galindo, L. and Costa, M., 2006. Effects of the essential oil from Citrus aurantium L. in experimental anxiety models in mice. Life Sciences. 78(15): 1720–1725. 10.1016/j.lfs.2005.08.004
de Oliveira Ferraz, T., Ferreira, D.Q., Mourão, R.H.V., Formiga, F.R., Carvalho, J.C.T. and Fernandes, C.P., 2020. Nano-emulsification of Aeollanthus suaveolens Mart. Ex Spreng essential oil modifies its neuroeffects? Drug Delivery and Translational Research. 10(6): 1764–1770. 10.1007/s13346-020-00846-w
Dezhi, L. and Aili, Q., 2008. “Aromatic Plants in China” by Wang Yumei. 2008. [book review]. The Canadian Field-Naturalist. 122(1): 85–86.
Doleželová, P., Mácová, S., Plhalová, L., Pištěková, V. and Svobodová, Z., 2011. The acute toxicity of clove oil to fish Danio rerio and Poecilia reticulata. Acta Veterinaria Brno. 80(3): 305–308. 10.2754/avb201180030305
Đorđević, S., Petrović, S., Dobrić, S., Milenković, M., Vučićević, D., Žižić, S., et al., 2007. Antimicrobial, anti-inflammatory, anti-ulcer and antioxidant activities of Carlina acanthifolia root essential oil. Journal of Ethnopharmacology. 109(3): 458–463. 10.1016/j.jep.2006.08.021
Eddin, L.B., Jha, N.K., Meeran, M.F.N., Kesari, K.K., Beiram, R. and Ojha, S., 2021. Neuroprotective Potential of Limonene and Limonene Containing Natural Products. Molecules. 26(15): 4535. 10.3390/molecules26154535
Edris, A.E., 2007. Pharmaceutical and therapeutic potentials of essential oils and their individual volatile constituents: a review. Phytotherapy Research. 21(4): 308–323. 10.1002/ptr.2072
Ehrlich, O., Karamalakis, A., Krylov, A.J., Dudczig, S., Hassell, K.L. and Jusuf, P.R., 2019. Clove Oil and AQUI-S Efficacy for Zebrafish Embryo, Larva, and Adult Anesthesia. Zebrafish. 16(5): 451–459. 10.1089/zeb.2019.1737
Elsayed, E.A., Farooq, M., Sharaf-Eldin, M.A., El-Enshasy, H.A. and Wadaan, M., 2020. Evaluation of developmental toxicity and anti-angiogenic potential of essential oils from Moringa oleifera and Moringa peregrina seeds in zebrafish (Danio rerio) model. South African Journal of Botany. 129: 229–237. 10.1016/j.sajb.2019.07.022
Farias-Cea, A., Leal, C., Hodar-Salazar, M., Esparza, E., Martinez-Duran, L., Fuentes, I., et al., 2023. Behavioral Study of 3-and 5-Halocytisine Derivatives in Zebrafish Using the Novel Tank Diving Test (NTT). International Journal of Molecular Sciences. 24(13): 10635. 10.3390/ijms241310635
Félix, L., Coimbra, A.M., Valentim, A.M. and Antunes, L., 2019. Review on the use of zebrafish embryos to study the effects of anesthetics during early development. Critical Reviews in Toxicology. 49(4): 357–370. 10.1080/10408444.2019.1617236
Fiedler, U. and Augustin, H.G., 2006. Angiopoietins: a link between angiogenesis and inflammation. Trends in Immunology. 27(12): 552–558. 10.1016/j.it.2006.10.004
Gandhi, G.R., Hillary, V.E., Antony, P.J., Zhong, L.L.D., Yogesh, D., Krishnakumar, N.M., et al., 2023. A systematic review on anti-diabetic plant essential oil compounds: Dietary sources, effects, molecular mechanisms, and safety. Critical Reviews in Food Science and Nutrition. 1–20. 10.1080/10408398.2023.2170320
Geun Lee, H., Jayawardena, T.U., Liyanage, N.M., Song, K.M., Choi, Y.S., Jeon, Y.J., et al., 2022. Antioxidant potential of low molecular weight fucoidans from Sargassum autumnale against H(2)O(2)-induced oxidative stress in vitro and in zebrafish models based on molecular weight changes. Food Chemistry. 384: 132591. 10.1016/j.foodchem.2022.132591
Ghysen, A. and Dambly-Chaudiere, C., 2004. Development of the zebrafish lateral line. Current Opinion in Neurobiology. 14(1): 67–73. 10.1016/j.conb.2004.01.012
Grush, J., Noakes, D.L.G. and Moccia, R.D., 2004. The Efficacy of Clove Oil As An Anesthetic for the Zebrafish, Danio rerio (Hamilton). Zebrafish. 1(1): 46–53. 10.1089/154585404774101671
Gut, P., Reischauer, S., Stainier, D.Y.R. and Arnaout, R., 2017. Little Fish, Big Data: Zebrafish as a Model for Cardiovascular and Metabolic Disease. Physiological Reviews. 97(3): 889–938. 10.1152/physrev.00038.2016
Haddad, J.G., Picard, M., Benard, S., Desvignes, C., Despres, P., Diotel, N., et al., 2019. Ayapana triplinervis Essential Oil and Its Main Component Thymohydroquinone Dimethyl Ether Inhibit Zika Virus at Doses Devoid of Toxicity in Zebrafish. Molecules. 24(19): 3447. 10.3390/molecules24193447
Haigis, A.C., Ottermanns, R., Schiwy, A., Hollert, H. and Legradi, J., 2022. Getting more out of the zebrafish light dark transition test. Chemosphere. 295: 133863. 10.1016/j.chemosphere.2022.133863
Han, R., Sun, Y., Ma, R., Wang, D., Sun, J., Zhao, S., et al., 2022. The Inhibitory Effect and Mechanism of Ferula akitschkensis Volatile Oil on Gastric Cancer. Evidence-Based Complementary and Alternative Medicine. 2022: 5092742. 10.1155/2022/5092742
Hanif, M.A., Nisar, S., Khan, G.S., Mushtaq, Z. and Zubair, M., 2019. Essential Oils, Essential Oil Research, pp. 3–17
Hasankhani, T., Nikaein, D., Khosravi, A., Rahmati-Holasoo, H. and Hasankhany, M., 2023. The Effect of Echinacea Purpurea L. (Eastern Purple Coneflower) Essential Oil on Hematological Parameters and Gut Microbial Population of Zebrafish (Danio Rerio) With Aflatoxicosis. Iranian Journal of Veterinary Medicine. 17(2): 173–182. 10.32598/ijvm.17.2.1005271
He, M., Halima, M., Xie, Y., Schaaf, M.J.M., Meijer, A.H. and Wang, M., 2020a. Ginsenoside Rg1 Acts as a Selective Glucocorticoid Receptor Agonist with Anti-Inflammatory Action without Affecting Tissue Regeneration in Zebrafish Larvae. Cells. 9(5): 1107. 10.3390/cells9051107
He, T., Li, X., Wang, X., Xu, X., Yan, X., Li, X., et al., 2020b. Chemical composition and anti-oxidant potential on essential oils of Thymus quinquecostatus Celak. from Loess Plateau in China, regulating Nrf2/Keap1 signaling pathway in zebrafish. Scientific Reports. 10(1): 11280. 10.1038/s41598-020-68188-8
He, Y.L., Shi, J.Y., Peng, C., Hu, L.J., Liu, J., Zhou, Q.M., et al., 2018. Angiogenic effect of motherwort (Leonurus japonicus) alkaloids and toxicity of motherwort essential oil on zebrafish embryos. Fitoterapia. 128: 36–42. 10.1016/j.fitote.2018.05.002
Ho, Y.-T., Liu, I.H., Chang, S.-T., Wang, S.-Y. and Chang, H.-T., 2023. In Vitro and In Vivo Antimelanogenesis Effects of Leaf Essential Oil from Agathis dammara. Pharmaceutics. 15(9): 2269. 10.3390/pharmaceutics15092269
Hoseinifar, S.H., Fazelan, Z., El-Haroun, E., Yousefi, M., Yazici, M., Van Doan, H., et al., 2023. The Effects of Grapevine (Vitis vinifera L.) Leaf Extract on Growth Performance, Antioxidant Status, and Immunity of Zebrafish (Danio rerio). Fishes. 8(6) 326. 10.3390/fishes8060326
Howe, K., Clark, M.D., Torroja, C.F., Torrance, J., Berthelot, C., Muffato, M., et al., 2013. The zebrafish reference genome sequence and its relationship to the human genome. Nature. 496(7446): 498–503. 10.1038/nature12111
Huo, J., Yu, Q., Zhang, Y., Liu, K., Hsiao, C.D., Jiang, Z., et al., 2019. Triptolide-induced hepatotoxicity via apoptosis and autophagy in zebrafish. Journal of Applied Toxicology. 39(11): 1532-1540. 10.1002/jat.3837
Islam, M.T., da Mata, A.M.O.F., de Aguiar, R.P.S., Paz, M.F.C.J., de Alencar, M.V.O.B., Ferreira, P.M.P., et al., 2016. Therapeutic Potential of Essential Oils Focusing on Diterpenes. Phytotherapy Research. 30(9): 1420–1444. 10.1002/ptr.5652
Jeong, J., Cho, H.-J., Choi, M., Lee, W.S., Chung, B.H. and Lee, J.-S., 2015. In vivo toxicity assessment of angiogenesis and the live distribution of nano-graphene oxide and its PEGylated derivatives using the developing zebrafish embryo. Carbon. 93: 431–440. 10.1016/j.carbon.2015.05.024
Jin, M., Zhang, B., Sun, Y., Zhang, S., Li, X., Sik, A., et al., 2020. Involvement of peroxisome proliferator-activated receptor gamma in anticonvulsant activity of alpha-asaronol against pentylenetetrazole-induced seizures in zebrafish. Neuropharmacology. 162: 107760. 10.1016/j.neuropharm.2019.107760
Jorge, S., Ferreira, J.M., Olsson, I.A.S. and Valentim, A.M., 2021. Adult Zebrafish Anesthesia: A Study of Efficacy and Behavioral Recovery of Different Anesthetics. Zebrafish. 18(5): 330–337. 10.1089/zeb.2021.0023
Junior, G.B., de Abreu, M.S., Rosa, J.G.d.S.d., Pinheiro, C.G., Heinzmann, B.M., Caron, B.O., et al., 2018. Lippia alba and Aloysia triphylla essential oils are anxiolytic without inducing aversiveness in fish. Aquaculture. 482: 49–56. 10.1016/j.aquaculture.2017.09.023
Kalueff, A.V., Stewart, A.M. and Gerlai, R., 2014. Zebrafish as an emerging model for studying complex brain disorders. Trends in Pharmacological Sciences. 35(2): 63–75. 10.1016/j.tips.2013.12.002
Kamei, M., Isogai, S., Pan, W. and Weinstein, B.M., 2010. Imaging blood vessels in the zebrafish. Methods in Cell Biology. 100: 27–54. 10.1016/B978-0-12-384892-5.00002-5
Kari, G., Rodeck, U. and Dicker, A.P., 2007. Zebrafish: an emerging model system for human disease and drug discovery. Clin Pharmacol Ther. 82(1): 70–80. 10.1038/sj.clpt.6100223
Keller, P.J., 2013. Imaging Morphogenesis: Technological Advances and Biological Insights. Science. 340(6137). 10.1126/science.1234168
Khalil, W., Abdel-Gawad, F., Belattar, N., Senator, A. and Abdel-Wahhab, M., 2011. Protective effects of Nigella sativa extract against chromium (VI)-induced genotoxicity in Nile tilapia (Oreochromis niloticus) and Zebrafish (Danio rerio). Global Veterinaria. 7: 283–293.
Kheawfu, K., Pikulkaew, S., Wellendorph, P., Jørgensen, L.v.G., Rades, T., Müllertz, A., et al., 2022. Elucidating Pathway and Anesthetic Mechanism of Action of Clove Oil Nanoformulations in Fish. Pharmaceutics. 14(5): 919. 10.3390/pharmaceutics14050919
Khosravanizadeh, A., Rahdari, A. and Gharaei, A., 2020. Anesthetic effects of Cuminum cyminum essential oil and 2-phenoxyethanol on zebrafish (Danio rario). Journal of Ornamental Aquatics. 7(1): 17–25.
Khumpirapang, N., von Gersdorff Jørgensen, L., Müllertz, A., Rades, T. and Okonogi, S., 2021. Formulation optimization, anesthetic activity, skin permeation, and transportation pathway of Alpinia galanga oil SNEDDS in zebrafish (Danio rerio). European Journal of Pharmaceutics and Biopharmaceutics. 165: 193–202. 10.1016/j.ejpb.2021.04.022
Kim, S., Cha, J., Choi, Y.-S., Yang, H.-W., Jang, H.W. and Kang, M.-C., 2023. Anti-melanogenic effects of the essential oil from Citrus reticulata blossom on B16-F10 melanoma cells and in vivo zebrafish embryos. Process Biochemistry. 134: 1–8. 10.1016/j.procbio.2023.09.011
Kim, S.H., Sharma, C. and Kang, S.C., 2017. Ajowan Oil Potentiates Ros-mediated Teratogenic Effect in Zebrafish Embryos. Journal of Essential Oil Bearing Plants. 20(4): 883–896. 10.1080/0972060x.2017.1383193
Ko, J.Y., Kim, E.A., Lee, J.H., Kang, M.C., Lee, J.S., Kim, J.S., et al., 2014. Protective effect of aquacultured flounder fish-derived peptide against oxidative stress in zebrafish. Fish and Shellfish Immunology. 36(1): 320–323. 10.1016/j.fsi.2013.11.018
Leite, M., Tercya, H., Nascimento, B.G., Rodrigues, J., Santos, R., Costa, B.P.D., et al., 2022. Anesthesia or seizure-like behavior? The effects of two Amazonian plants, Acmella oleracea and Piper alatabaccum in zebrafish (Danio rerio). Brazilian Journal of Biology. 82: e266010. 10.1590/1519-6984.266010
Li, J., Chen, W., Liu, H., Liu, H., Xiang, S., You, F., et al., 2023. Pharmacologic effects approach of essential oils and their components on respiratory diseases. Journal of Ethnopharmacology. 304. 10.1016/j.jep.2022.115962
Liao, W., Chen, Y., Zhu, Z., Chen, J., Gao, T., Limsila, B., et al., 2021. Vinegar-processed Curcuma phaeocaulis promotes anti-angiogenic activity and reduces toxicity in zebrafish and rat models. Pharmaceutical Biology. 59(1): 410–417. 10.1080/13880209.2021.1874427
Lieschke, G.J. and Currie, P.D., 2007. Animal models of human disease: zebrafish swim into view. Nature Reviews Genetics. 8(5): 353–367. 10.1038/nrg2091
Lima, M.d.C.L., de Araújo, J.I.F., Gonçalves Mota, C., Magalhães, F.E.A., Campos, A.R., da Silva, P.T., et al., 2020. Antinociceptive Effect of the Essential Oil of Schinus terebinthifolius (female) Leaves on Adult Zebrafish (Danio rerio). Zebrafish. 17(2): 112–119. 10.1089/zeb.2019.1809
Lin, F.J., Li, H., Wu, D.T., Zhuang, Q.G., Li, H.B., Geng, F., et al., 2022. Recent development in zebrafish model for bioactivity and safety evaluation of natural products. Critical Reviews in Food Science and Nutrition. 62(31): 8646-8674. 10.1080/10408398.2021.1931023
Lira, S.M., Dionisio, A.P., Holanda, M.O., Marques, C.G., Silva, G.S.D., Correa, L.C., et al., 2020. Metabolic profile of pitaya (Hylocereus polyrhizus (F.A.C. Weber) Britton & Rose) by UPLC-QTOF-MS(E) and assessment of its toxicity and anxiolytic-like effect in adult zebrafish. Food Research International. 127: 108701. 10.1016/j.foodres.2019.108701
Lizarraga-Valderrama, L.R., 2021. Effects of essential oils on central nervous system: Focus on mental health. Phytotherapy Research. 35(2): 657–679. 10.1002/ptr.6854
Lodovichi, J., Landucci, E., Pitto, L., Gisone, I., D’Ambrosio, M., Luceri, C., et al., 2022. Evaluation of the increase of the thymoquinone permeability formulated in polymeric micelles: In vitro test and in vivo toxicity assessment in Zebrafish embryos. European Journal of Pharmaceutical Sciences. 169: 106090. 10.1016/j.ejps.2021.106090
Luz, T.R.S.A., Leite, J.A.C., de Mesquita, L.S.S., Bezerra, S.A., Silveira, D.P.B., de Mesquita, J.W.C., et al., 2020. Seasonal variation in the chemical composition and biological activity of the essential oil of Mesosphaerum suaveolens (L.) Kuntze. Industrial Crops and Products. 153. 10.1016/j.indcrop.2020.112600
Ly, T.H.N., Nhi, P.K.N., Khoa, N.T., Shin, H.-M. and Yang, I.-J., 2023. Investigation of Anxiolytic-and Antidepressant-like Effects of Essential Oils from Six Traditional Korean Herbal Prescriptions. Korean Journal of Oriental Physiology and Pathology. 37(2): 36–44. 10.15188/kjopp.2023.04.37.2.36
Mácová, S., Dolezelova, P., Pistekova, V., Svobodova, Z., Bedanova, I. and Voslarova, E., 2008. Comparison of acute toxicity of 2-phenoxyethanol and clove oil to juvenile and embryonic stages of Danio rerio. Neuroendocrinology Letters. 29(5): 680–684.
Manosroi, J., Dhumtanom, P. and Manosroi, A., 2006. Anti-proliferative activity of essential oil extracted from Thai medicinal plants on KB and P388 cell lines. Cancer Letters. 235(1): 114–120. 10.1016/j.canlet.2005.04.021
Matera, R., Lucchi, E. and Valgimigli, L., 2023. Plant Essential Oils as Healthy Functional Ingredients of Nutraceuticals and Diet Supplements: A Review. Molecules. 28(2): 901. 10.3390/molecules28020901
Mektrirat, R., Yano, T., Okonogi, S., Katip, W. and Pikulkaew, S., 2020. Phytochemical and Safety Evaluations of Volatile Terpenoids from Zingiber Cassumunar Roxb. On Mature Carp Peripheral Blood Mononuclear Cells and Embryonic Zebrafish. Molecules. 25(3): 613. 10.3390/molecules25030613
Mendes Hacke, A.C., Miyoshi, E., Marques, J.A. and Pereira, R.P., 2020. Anxiolytic properties of Cymbopogon citratus (DC.) stapf extract, essential oil and its constituents in zebrafish (Danio rerio). Journal of Ethnopharmacology. 260: 113036. 10.1016/j.jep.2020.113036
Meng, R., Wu, S., Chen, J., Cao, J., Li, L., Feng, C., et al., 2022. Alleviating effects of essential oil from Artemisia vulgaris on enteritis in zebrafish via modulating oxidative stress and inflammatory response. Fish and Shellfish Immunology. 131: 323–341. 10.1016/j.fsi.2022.10.010
Mileva, M., Ilieva, Y., Jovtchev, G., Gateva, S., Zaharieva, M.M., Georgieva, A., et al., 2021. Rose Flowers—A Delicate Perfume or a Natural Healer? Biomolecules. 11(1): 127. 10.3390/biom11010127
More, S. and Pawar, A., 2023. Brain Targeted Curcumin Loaded Turmeric Oil Microemulsion Protects Against Trimethyltin Induced Neurodegeneration in Adult Zebrafish: A Pharmacokinetic and Pharmacodynamic Insight. Pharmaceutical Research. 40(3): 675–687. 10.1007/s11095-022-03467-9
Moura, W.S., Oliveira, E.E., Haddi, K., Corrêa, R.F.T., Piau, T.B., Moura, D.S., et al., 2021. Cassava starch-based essential oil microparticles preparations: Functionalities in mosquito control and selectivity against non-target organisms. Industrial Crops and Products. 162: 113289. 10.1016/j.indcrop.2021.113289
Najar, B., Mecacci, G., Nardi, V., Cervelli, C., Nardoni, S., Mancianti, F., et al., 2021. Volatiles and Antifungal-Antibacterial-Antiviral Activity of South African Salvia spp. Essential Oils Cultivated in Uniform Conditions. Molecules. 26(9): 2826. 10.3390/molecules26092826
Nerio, L.S., Olivero-Verbel, J. and Stashenko, E., 2010. Repellent activity of essential oils: a review. Bioresource Technology. 101(1): 372–378. 10.1016/j.biortech.2009.07.048
Nguyen, L.T.H., Nguyen, N.P.K., Tran, K.N., Shin, H.M. and Yang, I.J., 2022. Anxiolytic-like Effect of Inhaled Cinnamon Essential Oil and Its Main Component Cinnamaldehyde in Animal Models. Molecules. 27(22): 7997. 10.3390/molecules27227997
Nonato, C.F.A., de Melo, E.V.S., Camilo, C.J., Ferreira, M.K.A., de Meneses, J.E.A., da Silva, A.W., et al., 2023. Antibacterial Activity and Anxiolytic Effect in Adult Zebrafish of Genus Lippia L. Species. Plants (Basel). 12(8): 1675. 10.3390/plants12081675
Novoa, B. and Figueras, A., 2012. Zebrafish: Model for the Study of Inflammation and the Innate Immune Response to Infectious Diseases, Current Topics in Innate Immunity, pp. 253–275.
Nurdjannah, N. and Bermawie, N., 2012. Cloves, Handbook of Herbs and Spices, pp. 197–215.
Orellana-Paucar, A.M., Afrikanova, T., Thomas, J., Aibuldinov, Y.K., Dehaen, W., de Witte, P.A., et al., 2013. Insights from zebrafish and mouse models on the activity and safety of ar-turmerone as a potential drug candidate for the treatment of epilepsy. PLoS One. 8(12): e81634. 10.1371/journal.pone.0081634
Orellana-Paucar, A.M., Serruys, A.S., Afrikanova, T., Maes, J., De Borggraeve, W., Alen, J., et al., 2012. Anticonvulsant activity of bisabolene sesquiterpenoids of Curcuma longa in zebrafish and mouse seizure models. Epilepsy & Behavior. 24(1): 14–22. 10.1016/j.yebeh.2012.02.020
Paramasivam, A., Kalaimangai, M., Sambantham, S., Anandan, B. and Jayaraman, G., 2012. Anti-angiogenic activity of thymoquinone by the down-regulation of VEGF using zebrafish (Danio rerio) model. Biomedicine & Preventive Nutrition. 2(3): 169–173. 10.1016/j.bionut.2012.03.011
Patton, E.E. and Zon, L.I., 2001. The art and design of genetic screens: zebrafish. Nature Reviews Genetics. 2(12): 956–966. 10.1038/35103567
Piasecki, B., Biernasiuk, A., Skiba, A., Skalicka-Wozniak, K. and Ludwiczuk, A., 2021. Composition, Anti-MRSA Activity and Toxicity of Essential Oils from Cymbopogon Species. Molecules. 26(24): 7542. 10.3390/molecules26247542
Polednik, K.M., Koch, A.C. and Felzien, L.K., 2018. Effects of Essential Oil from Thymus vulgaris on Viability and Inflammation in Zebrafish Embryos. Zebrafish. 15(4): 361–371. 10.1089/zeb.2017.1519
Prabahar, T., 2018. Bioprospective of Citrus Sinensis Linn. Leaves: Its Volatile Oil as a Weapon on Convulsion in Zebra Fish Larvae Seizure Model. College of Pharmacy, Madurai Medical College, Madurai.
Qin, W.-n., Zhang, K.-c., Geng, T., Cheng, F.-f., Chen, P.-d., Yao, W.-f., et al., 2021. The toxicity mechanism of toxic compounds from Euphorbiae pekinensis Radix on zebrafish embryos. Biomedicine & Pharmacotherapy. 138. 10.1016/j.biopha.2021.111521
Raguraman, V., L, S.A., J, J., Palaniappan, S., Gopal, S., R, T., et al., 2019. Sulfated polysaccharide from Sargassum tenerrimum attenuates oxidative stress induced reactive oxygen species production in in vitro and in zebrafish model. Carbohydrate Polymers. 203: 441–449. 10.1016/j.carbpol.2018.09.056
Ramos, T.R., Souza, K.A., Lewandowski, V., Prado, R.M.d., Ornaghi, M.G., Vital, A.C.P., et al., 2022. Animal development, liver histology, and antioxidant activity in the muscle of zebrafish (Danio rerio) fed with natural additives in the diets. Research, Society and Development. 11(4): 10.33448/rsd-v11i4.27326
Rashan, L., Efferth, T., Bishir, M., Hediyal, T.A., Essa, M.M. and Babu, S., 2023. Acute, genetic, and target organ toxicity profiling of Frankincense essential oil from Boswellia sacra in zebrafish (Danio rerio). Archives of Clinical Toxicology. 5(1): 12–21.
Raut, J.S. and Karuppayil, S.M., 2014. A status review on the medicinal properties of essential oils. Industrial Crops and Products. 62: 250–264. 10.1016/j.indcrop.2014.05.055
Rezaei, M., Fooladi, P., Norani, M., Crawford, A., Eisa-Beygi, S., Tahamtani, Y., et al., 2023. Investigation of Kelussia odoratissima and Angelica sinensis similarities in zebrafish-based in-vivo bioactivity assays and their chemical composition. Galen Medical Journal. 12: e2793–e2793. 10.31661/gmj.v12i0.2793
Rubinstein, A.L., 2006. Zebrafish assays for drug toxicity screening. Expert opinion on drug metabolism & toxicology. 2(2): 231–240. 10.1517/17425255.2.2.231
Sánchez-Vázquez, F.J., Terry, M.I., Felizardo, V.O. and Vera, L.M., 2011. Daily Rhythms of Toxicity and Effectiveness of Anesthetics (MS222 and Eugenol) in Zebrafish (Danio Rerio). Chronobiology International. 28(2): 109–117. 10.3109/07420528.2010.538105
Santos, D., Vieira, R., Luzio, A. and Félix, L., 2018. Zebrafish Early Life Stages for Toxicological Screening: Insights From Molecular and Biochemical Markers, pp. 151–179.
Santos, M.d.F., Silva, K.C.D.d., Carneiro, W.F., Castro, T.F.D., Virote, B.d.C.R., Murgas, L.D.S., et al., 2022. Toxicity and Anti-Inflammatory Activity of the Essential Oil of Siparuna Guianensis Aublet (Siparunaceae) in Embryos and Larvae of Zebrafish (Danio Rerio). Available at: https://papers.ssrn.com/sol3/papers.cfm?abstract_id=4201198.
Selles, S.M.A., Kouidri, M., Belhamiti, B.T. and Ait Amrane, A., 2020. Chemical composition, in-vitro antibacterial and antioxidant activities of Syzygium aromaticum essential oil. Journal of Food Measurement and Characterization. 14(4): 2352–2358. 10.1007/s11694-020-00482-5
Sendra, E., 2016. Essential Oils in Foods: From Ancient Times to the 21st Century. Foods. 5(4): 43. 10.3390/foods5020043
Serifi, I., Tzima, E., Bardouki, H., Lampri, E. and Papamarcaki, T., 2019. Effects of the Essential Oil from Pistacia lentiscus Var. chia on the Lateral Line System and the Gene Expression Profile of Zebrafish (Danio rerio). Molecules. 24(21): 3919. 10.3390/molecules24213919
Seyidoglu, N. and Yagcilar, C., 2020. The Anesthetic Role of Some Herbal Oils for Zebrafish. Erciyes Üniversitesi Veteriner Fakültesi Dergisi. 17(3): 209–214. 10.32707/ercivet.828319
Sharma, S., Chakrapani, I., Yeruva, A.R. and Priyadarsini, A.I., 2022. Integrated network pharmacology and zebrafish model to investigate effects components of Origanum valgare for treating Alzheimers Disease. Neuro Quantology. 20(13): 1465–1474. 10.14704/nq.2022.20.13.NQ88182
Sharmeen, J., Mahomoodally, F., Zengin, G. and Maggi, F., 2021. Essential Oils as Natural Sources of Fragrance Compounds for Cosmetics and Cosmeceuticals. Molecules. 26(3): 666. 10.3390/molecules26030666
Silva, J., Abebe, W., Sousa, S.M., Duarte, V.G., Machado, M.I.L. and Matos, F.J.A., 2003. Analgesic and anti-inflammatory effects of essential oils of Eucalyptus. Journal of Ethnopharmacology. 89(2–3): 277–283. 10.1016/j.jep.2003.09.007
Silva, T.C.D., Utsunomiya, K.S., Castro, P.L., Rocha, J.D.M., Visentainer, J.V., Gasparino, E., et al., 2022. Fatty Acid Incorporation in the Muscle, Oxidative Markers, Lipid Peroxidation and PPAR-alpha and SREBP-2 Expression of Zebrafish Fed Linseed Oil and Clove Leaf Essential Oil. An Acad Bras Cienc. 94(2): e20210236. 10.1590/0001-3765202220210236
Silveira, V., Santos Rubio, K.T. and Poleti Martucci, M.E., 2022. Anxiolytic effect of Anthemis nobilis L. (roman chamomile) and Citrus reticulata Blanco (tangerine) essential oils using the light-dark test in zebrafish (Danio rerio). Journal of Ethnopharmacology. 298: 115580. 10.1016/j.jep.2022.115580
Şişman, T. and Ceylan, Z., 2023. The Embryotoxicity of Alpha-Pinene to the Early Life Stages of Zebrafish (Danio Rerio Hamilton, 1822). Natural and Life Sciences Communications. 22(2). 10.12982/nlsc.2023.020
Stephen, A., 2019. Anabolic effect on bone formation of nano encapsulated volatile oil of Ruta Graveolens leaves in larval zebrafish Model. International Journal of Pharmacognosy. 6(4): 146–154. 10.13040/IJPSR.0975-8232.IJP
Stewart, A., Gaikwad, S., Kyzar, E., Green, J., Roth, A. and Kalueff, A.V., 2012. Modeling anxiety using adult zebrafish: a conceptual review. Neuropharmacology. 62(1): 135–143. 10.1016/j.neuropharm.2011.07.037
Stewart, A., Maximino, C., Marques de Brito, T., Herculano, A.M., Gouveia, A., Morato, S., et al., 2011. Neurophenotyping of Adult Zebrafish Using the Light/Dark Box Paradigm, Zebrafish Neurobehavioral Protocols, pp. 157–167.
Stewart, A.M., Braubach, O., Spitsbergen, J., Gerlai, R. and Kalueff, A.V., 2014. Zebrafish models for translational neuroscience research: from tank to bedside. Trends in Neurosciences. 37(5): 264–278. 10.1016/j.tins.2014.02.011
Szaszkiewicz, J., Leigh, S. and Hamilton, T.J., 2021. Robust behavioural effects in response to acute, but not repeated, terpene administration in Zebrafish (Danio rerio). Scientific Reports. 11(1): 19214. 10.1038/s41598-021-98768-1
Tanguay, R.L., 2018. The Rise of Zebrafish as a Model for Toxicology. Toxicological Sciences. 163(1): 3–4. 10.1093/toxsci/kfx295
Tanwar, G., Mazumder, A.G., Bhardwaj, V., Kumari, S., Bharti, R., Yamini, et al., 2019. Target identification, screening and in vivo evaluation of pyrrolone-fused benzosuberene compounds against human epilepsy using Zebrafish model of pentylenetetrazol-induced seizures. Scientific Reports. 9(1): 7904. 10.1038/s41598-019-44264-6
Tavares Carvalho, J.C., 2016. Obtainment and Study of the Toxicity of Perillyl Alcohol Nanoemulsion on Zebrafish (Danio rerio). Journal of Nanomedicine Research. 4(4): 093. 10.15406/jnmr.2016.04.00093
Thitinarongwate, W., Mektrirat, R., Nimlamool, W., Khonsung, P., Pikulkaew, S., Okonogi, S., et al., 2021. Phytochemical and Safety Evaluations of Zingiber ottensii Valeton Essential Oil in Zebrafish Embryos and Rats. Toxics. 9(5): 102. 10.3390/toxics9050102
Todirascu-Ciornea, E., El-Nashar, H.A.S., Mostafa, N.M., Eldahshan, O.A., Boiangiu, R.S., Dumitru, G., et al., 2019. Schinus terebinthifolius Essential Oil Attenuates Scopolamine-Induced Memory Deficits via Cholinergic Modulation and Antioxidant Properties in a Zebrafish Model. Evidence-Based Complementary and Alternative Medicine. 2019: 5256781. 10.1155/2019/5256781
Ullah, S., Zuberi, A., Alagawany, M., Farag, M.R., Dadar, M., Karthik, K., et al., 2018. Cypermethrin induced toxicities in fish and adverse health outcomes: Its prevention and control measure adaptation. Journal of Environmental Management. 206: 863–871. 10.1016/j.jenvman.2017.11.076
Van Leeuwen, M.P.C., Slot, D.E. and Van der Weijden, G.A., 2011. Essential Oils Compared to Chlorhexidine With Respect to Plaque and Parameters of Gingival Inflammation: A Systematic Review. Journal of Periodontology. 82(2): 174–194. 10.1902/jop.2010.100266
Verallo-Rowell, V.M., Katalbas, S.S. and Pangasinan, J.P., 2016. Natural (Mineral, Vegetable, Coconut, Essential) Oils and Contact Dermatitis. Current Allergy and Asthma Reports. 16(7). 10.1007/s11882-016-0630-9
Wang, S.Y., Cai, L., Yang, N., Xu, F.F., Wu, Y.S. and Liu, B., 2023a. Chemical composition of the Kaempferia galanga L. essential oil and its in vitro and in vivo antioxidant activities. Frontiers in Nutrition. 10: 1080487. 10.3389/fnut.2023.1080487
Wang, Y.F., Zheng, Y., Feng, Y., Chen, H., Dai, S.X., Wang, Y., et al., 2023b. Comparative Analysis of Active Ingredients and Potential Bioactivities of Essential Oils from Artemisia argyi and A. verlotorum. Molecules. 28(9) : 3297. 10.3390/molecules28093927
Wang, Z., Bai, H., Lu, C., Hou, C., Qiu, Y., Zhang, P., et al., 2019. Light controllable chitosan micelles with ROS generation and essential oil release for the treatment of bacterial biofilm. Carbohydrate Polymers. 205: 533–539. 10.1016/j.carbpol.2018.10.095
Wijaya, R.C., 2020. Lethal concentration 50% of patchouli oil (Pogostemon cablin) towards zebrafish embryo (Danio rerio). Herb-Medicine Journal: Terbitan Berkala Ilmiah Herbal, Kedokteran dan Kesehatan. 3(2): 1–6. 10.30595/hmj.v3i2.6360
Wong, D., von Keyserlingk, M.A.G., Richards, J.G. and Weary, D.M., 2014. Conditioned Place Avoidance of Zebrafish (Danio rerio) to Three Chemicals Used for Euthanasia and Anaesthesia. PLoS One. 9(2). 10.1371/journal.pone.0088030
Xiong, Y., Halima, M., Che, X., Zhang, Y., Schaaf, M.J.M., Li, M., et al., 2022. Steamed Panax notoginseng and its Saponins Inhibit the Migration and Induce the Apoptosis of Neutrophils in a Zebrafish Tail-Fin Amputation Model. Frontiers in Pharmacology. 13: 946900. 10.3389/fphar.2022.946900
Yan, X., Ma, X., Dai, D., Yan, X., Han, X., Bao, X., et al., 2023. Potent pigmentation inhibitory activity of incensole-enriched frankincense volatile oil-identification, efficacy and mechanism. Journal of Cosmetic Dermatology. 10.1111/jocd.15887
Yeh, J.C., Cindrova-Davies, T., Belleri, M., Morbidelli, L., Miller, N., Cho, C.W., et al., 2011. The natural compound n-butylidenephthalide derived from the volatile oil of Radix Angelica sinensis inhibits angiogenesis in vitro and in vivo. Angiogenesis. 14(2): 187–197. 10.1007/s10456-011-9202-8
Yue, G.G.-L., Kwok, H.-F., Lee, J.K.-M., Jiang, L., Chan, K.-M., Cheng, L., et al., 2015. Novel anti-angiogenic effects of aromatic-turmerone, essential oil isolated from spice turmeric. Journal of Functional Foods. 15: 243–253. 10.1016/j.jff.2015.03.030
Zhang, N., Zhang, L., Feng, L. and Yao, L., 2016. The anxiolytic effect of essential oil of Cananga odorata exposure on mice and determination of its major active constituents. Phytomedicine. 23(14): 1727–1734. 10.1016/j.phymed.2016.10.017
Zhao, D., Qin, C., Fan, X., Li, Y. and Gu, B., 2014. Inhibitory effects of quercetin on angiogenesis in larval zebrafish and human umbilical vein endothelial cells. European Journal of Pharmacology. 723: 360–367. 10.1016/j.ejphar.2013.10.069
Zhao, S., Huang, J. and Ye, J., 2015. A fresh look at zebrafish from the perspective of cancer research. Journal of Experimental & Clinical Cancer Research. 34(1): 80. 10.1186/s13046-015-0196-8
Zhong, R., Chen, Y., Ling, J., Xia, Z., Zhan, Y., Sun, E., et al., 2019. The Toxicity and Metabolism Properties of Herba Epimedii Flavonoids on Laval and Adult Zebrafish. Evidence-Based Complementary and Alternative Medicine. 2019: 3745051. 10.1155/2019/3745051
Zhong, Z.F., Hoi, P.M., Wu, G.S., Xu, Z.T., Tan, W., Chen, X.P., et al., 2012. Anti-angiogenic effect of furanodiene on HUVECs in vitro and on zebrafish in vivo. Journal of Ethnopharmacology. 141(2): 721–727. 10.1016/j.jep.2011.08.052
Zhou, F., Dai, O., Peng, C., Xiong, L., Ao, H., Liu, F., et al., 2021. Pro-Angiogenic Effects of Essential Oil from Perilla frutescens and Its Main Component (Perillaldehyde) on Zebrafish Embryos and Human Umbilical Vein Endothelial Cells. Drug Design, Development and Therapy. 15: 4985–4999. 10.2147/DDDT.S336826
Zhou, W., He, Y., Lei, X., Liao, L., Fu, T., Yuan, Y., et al., 2020. Chemical composition and evaluation of antioxidant activities, antimicrobial, and anti-melanogenesis effect of the essential oils extracted from Dalbergia pinnata (Lour.) Prain. Journal of Ethnopharmacology. 254. 10.1016/j.jep.2020.112731
Zon, L.I. and Peterson, R.T., 2005. In vivo drug discovery in the zebrafish. Nature Reviews Drug Discovery. 4(1): 35–44. 10.1038/nrd1606
